Detailed Drawings – Wood-alu Tilt & Slide Patio Doors

Detailed drawings

Below is a collection of technical drawings for our wood-alu tilt and slide patio door profiles, including accurate cross sections and CAD plans. These drawings allow the precise dimensions and details of the doors to be seen, which helps during both the initial product configuration and final installation.

IDEALU Classicline IV 68

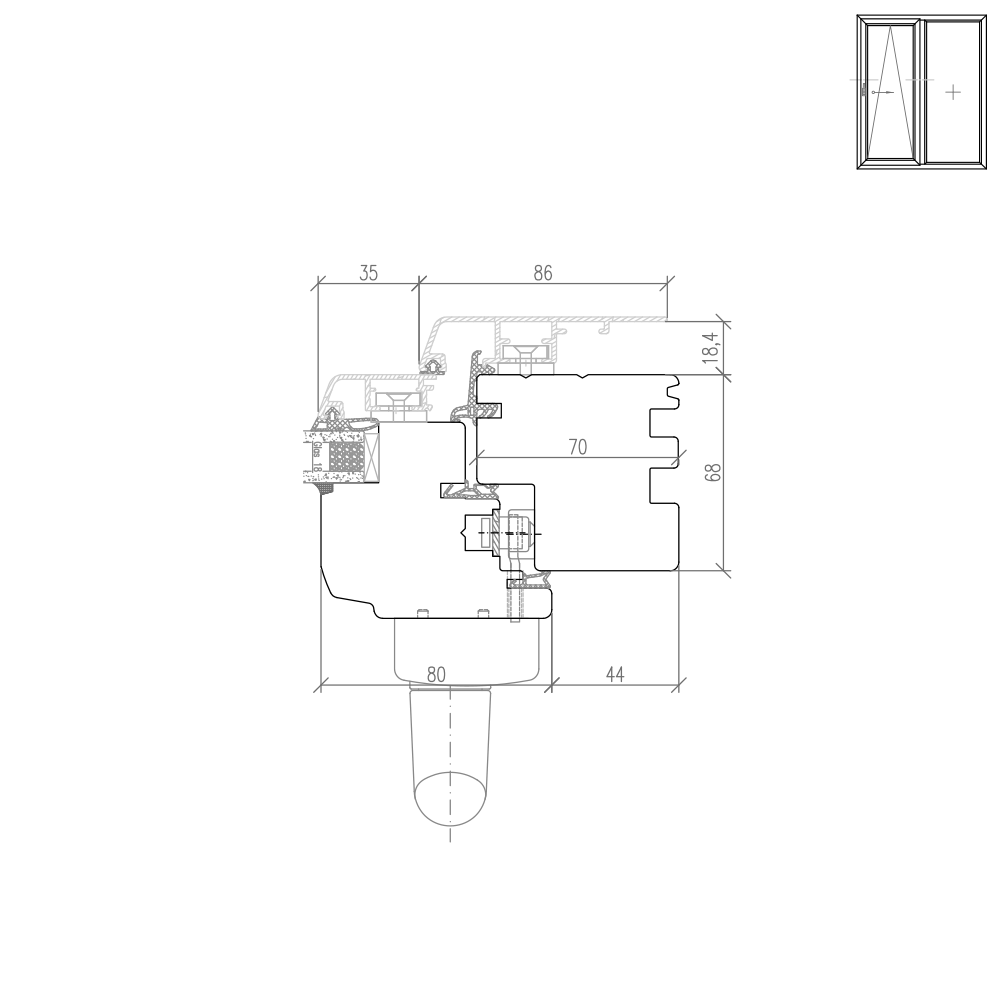

IDEALU Classicline IV 68 - detail of the frame and sash with handle
IDEALU Classicline IV 68 - detail of the frame and sash with handle

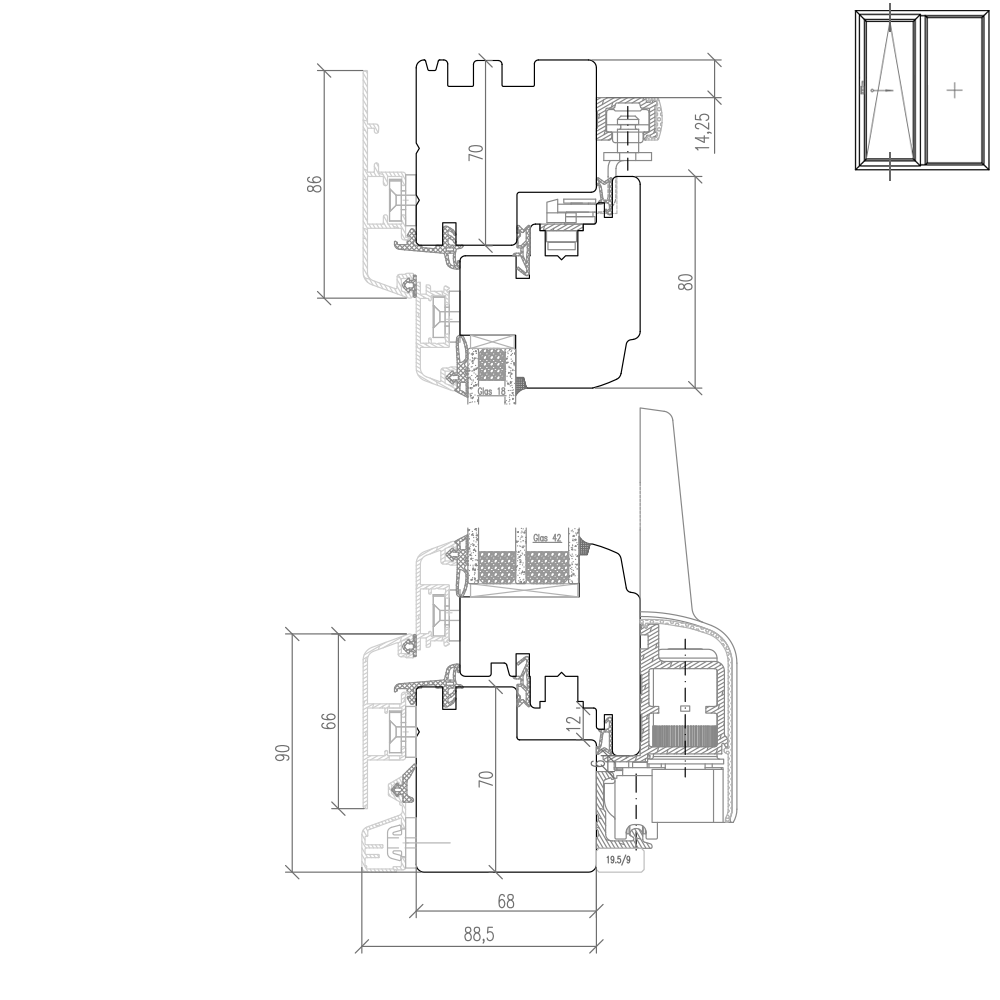

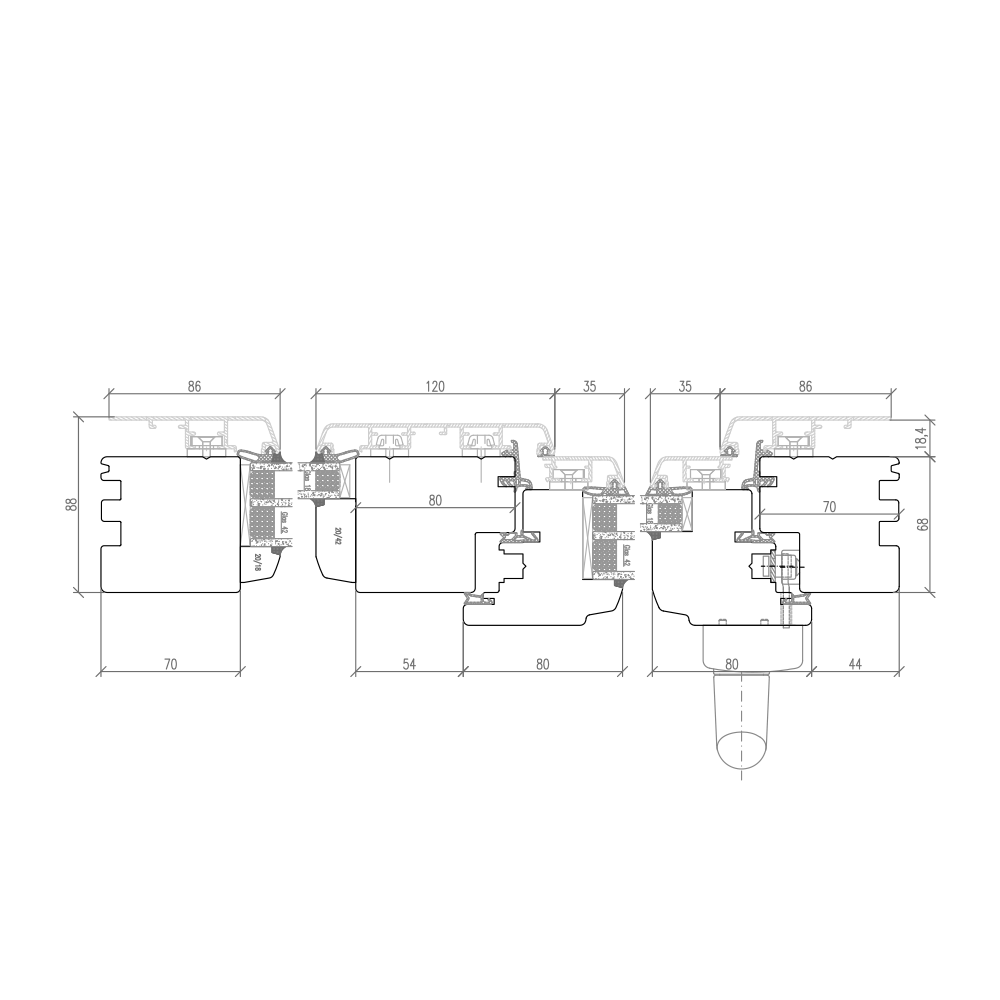

IDEALU Classicline IV 68 - vertical cross section
IDEALU Classicline IV 68 - vertical cross section

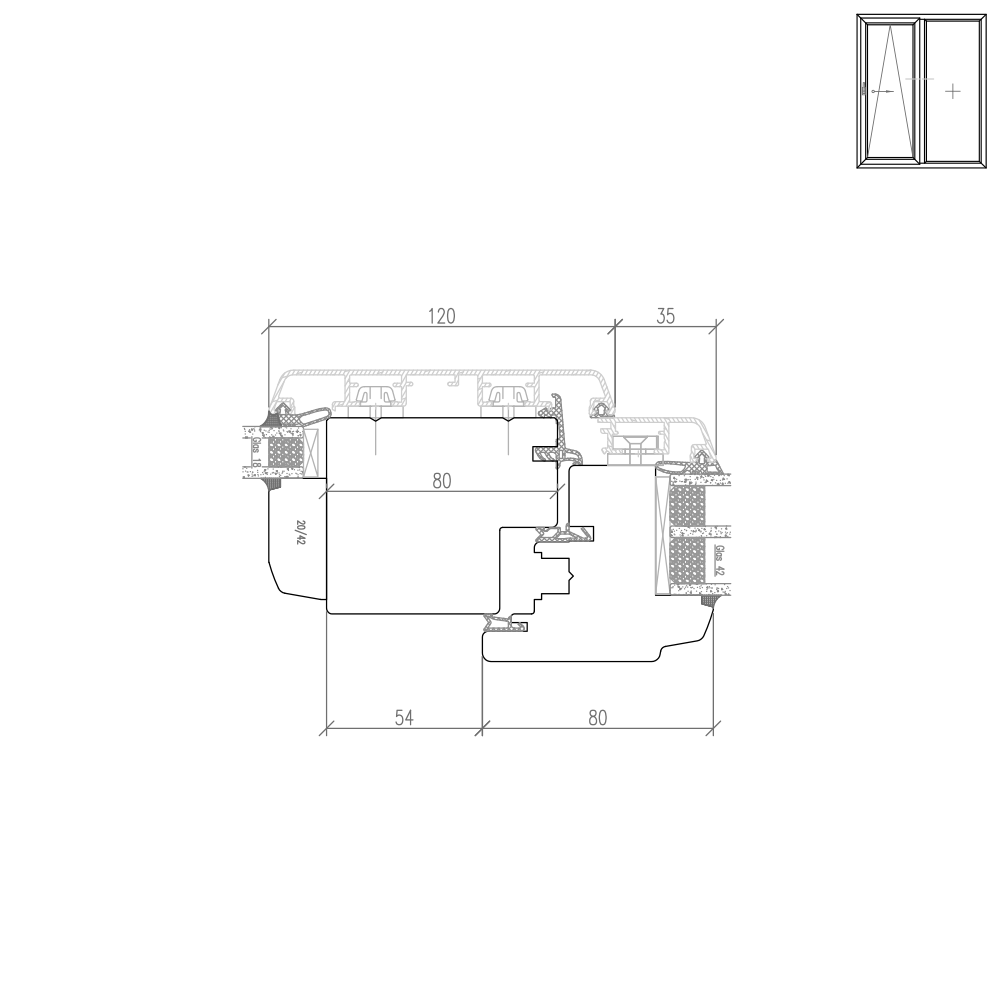

IDEALU Classicline IV 68 - IDEAL 4000 - detail of central mullion
IDEALU Classicline IV 68 - IDEAL 4000 - detail of central mullion
IDEALU Classicline IV 68 - horizontal cross-section
IDEALU Classicline IV 68 - horizontal cross-section

To top of page

IDEALU Classicline IV 78

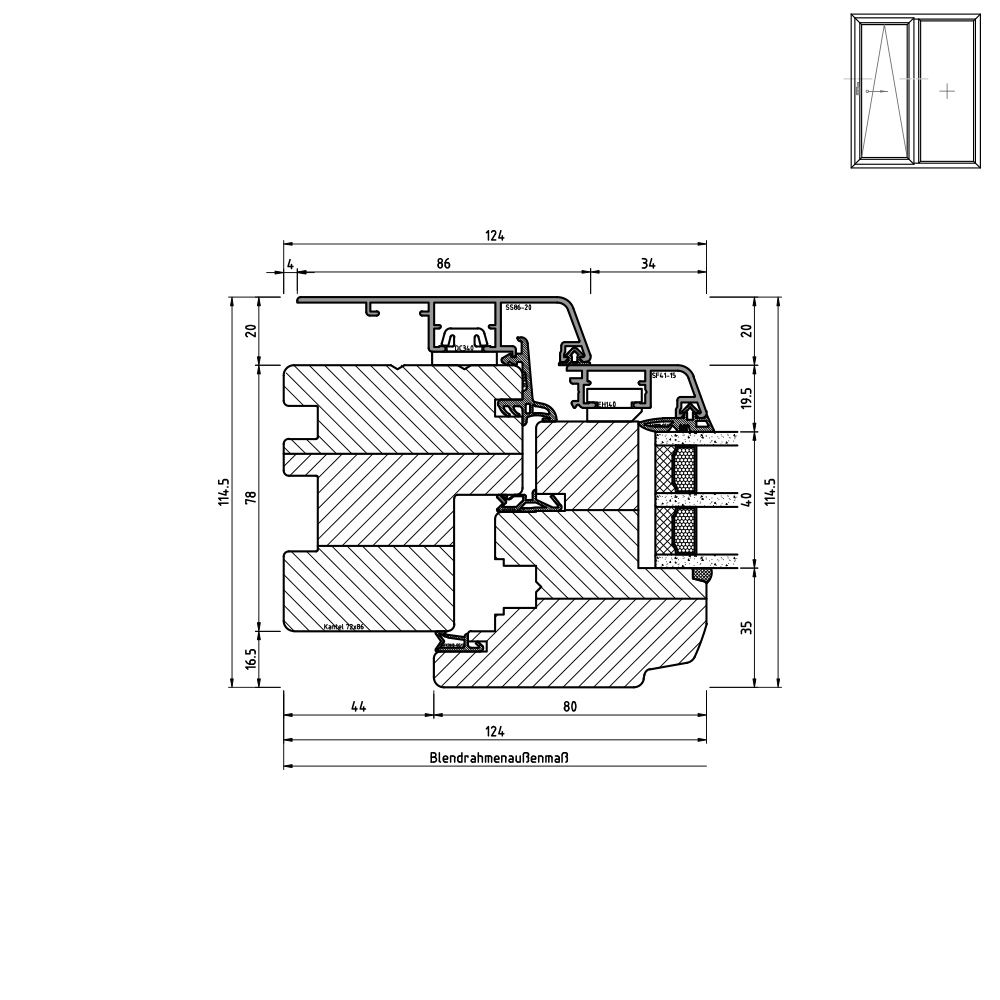

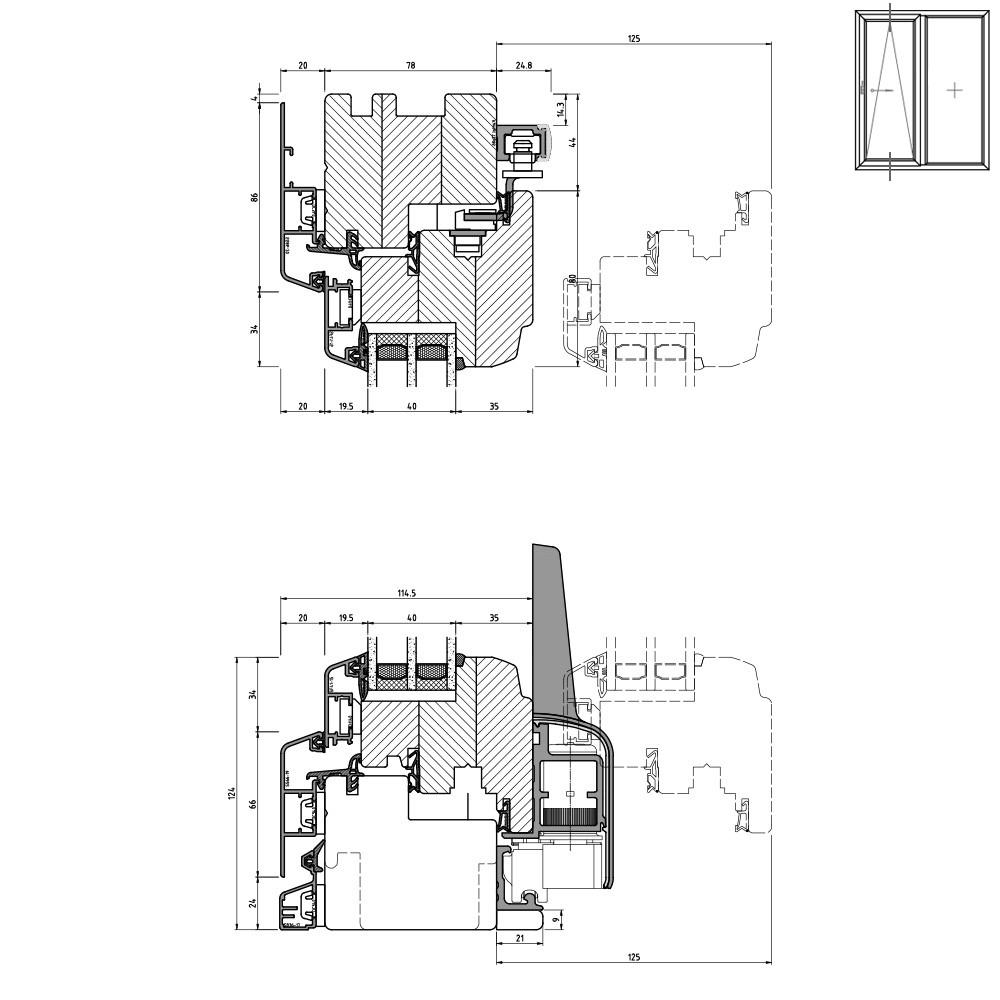

IDEALU Classicline IV 78 - detail of the frame and sash with handle
IDEALU Classicline IV 78 - detail of the frame and sash with handle
IDEALU Classicline IV 78 - vertical cross-section
IDEALU Classicline IV 78 - vertical cross-section

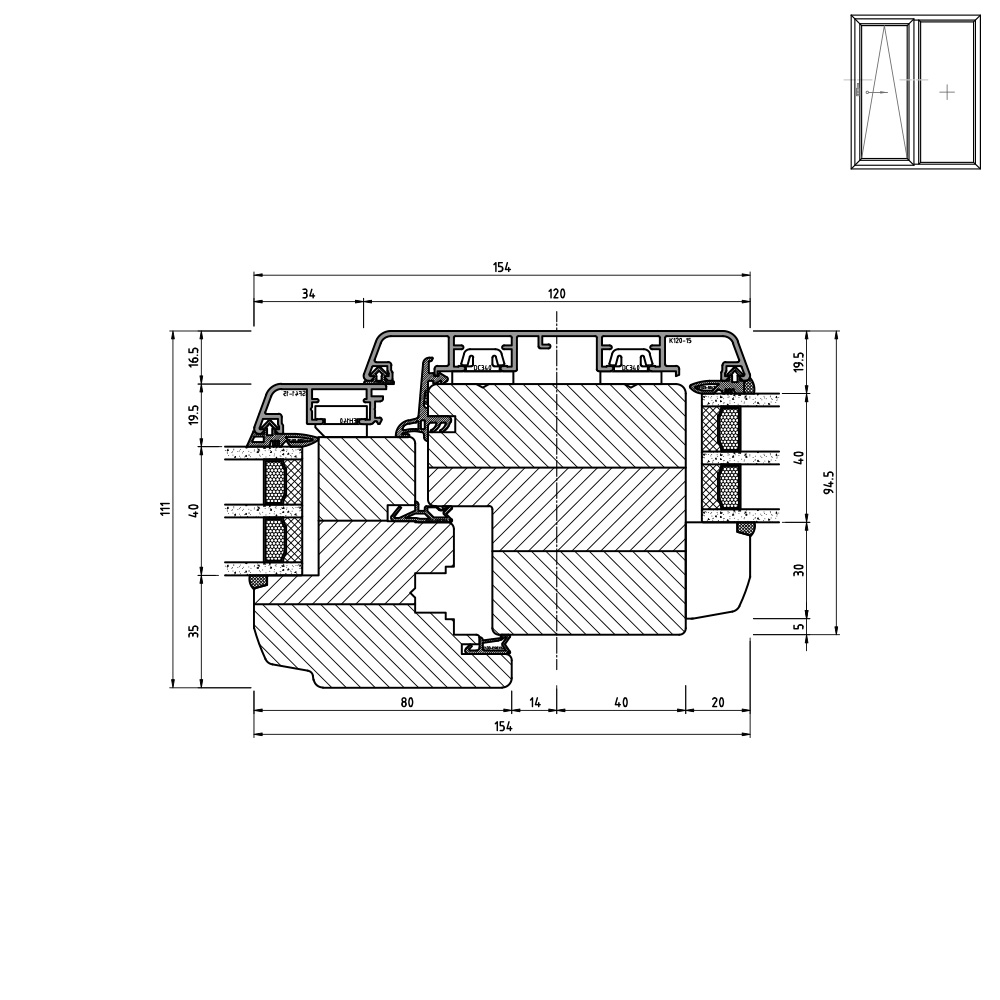

IDEALU Classicline IV 78 - detail of central mullion
IDEALU Classicline IV 78 - detail of central mullion

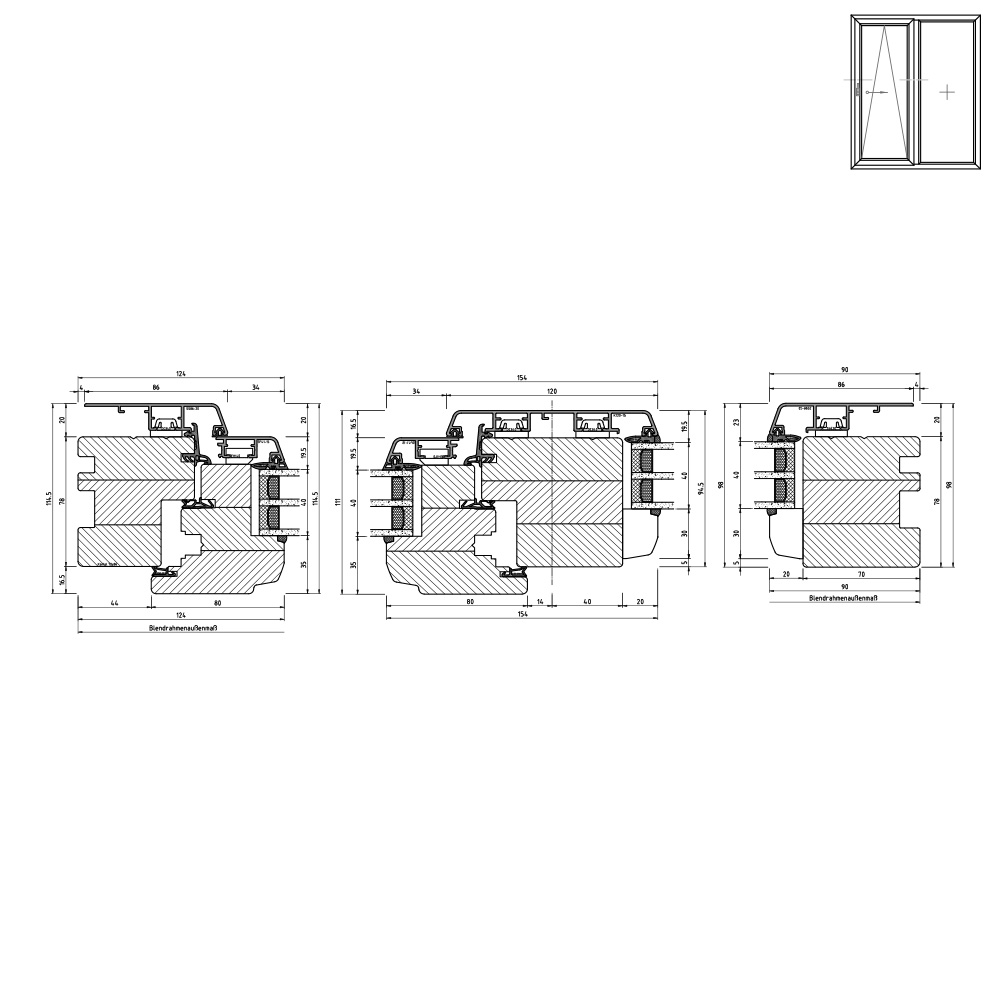

IDEALU Classicline IV 78 - horizontal cross-section
IDEALU Classicline IV 78 - horizontal cross-section

IDEALU Classicline – Sill Connection Profiles

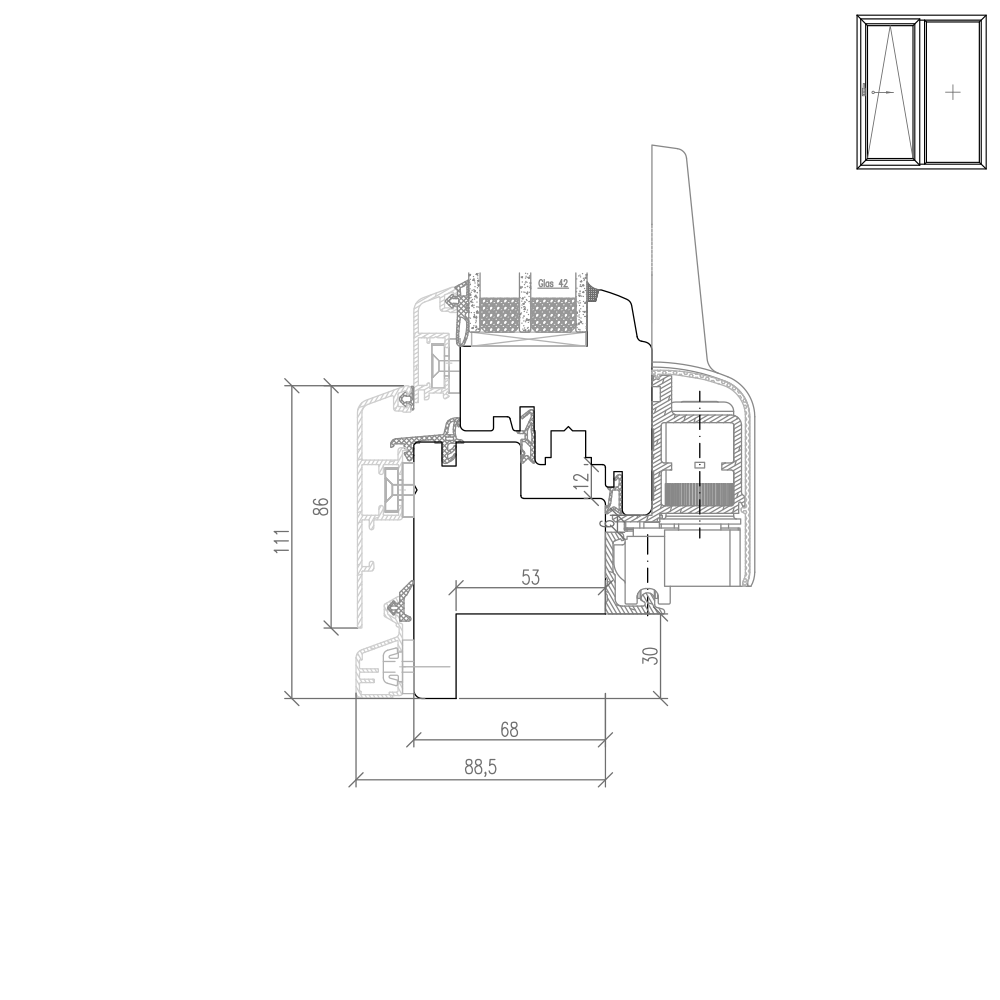

IDEALU Classicline - 30 mm milling for a sill connection profile for older buildings
IDEALU Classicline - 30 mm milling for a sill connection profile for older buildings

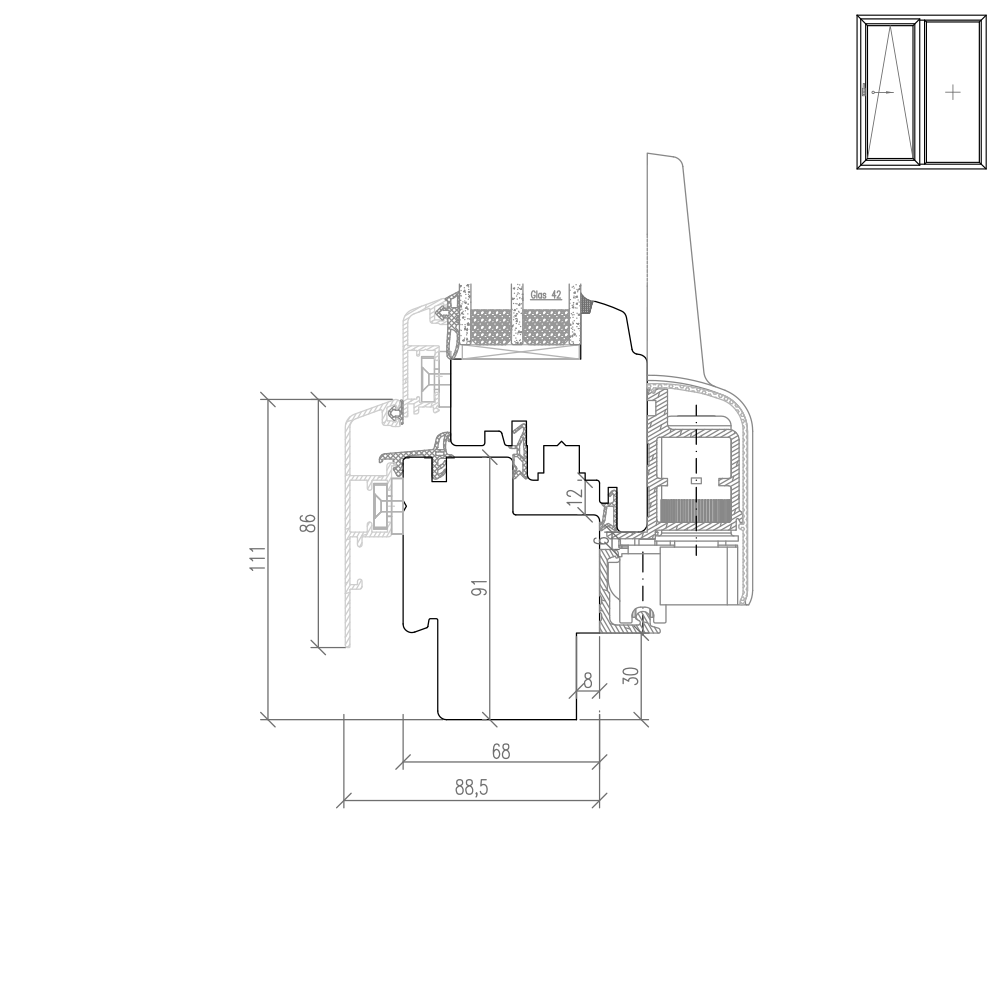

IDEALU Classicline - 30 mm milling for a sill connection profile for new-builds
IDEALU Classicline - 30 mm milling for a sill connection profile for new-builds

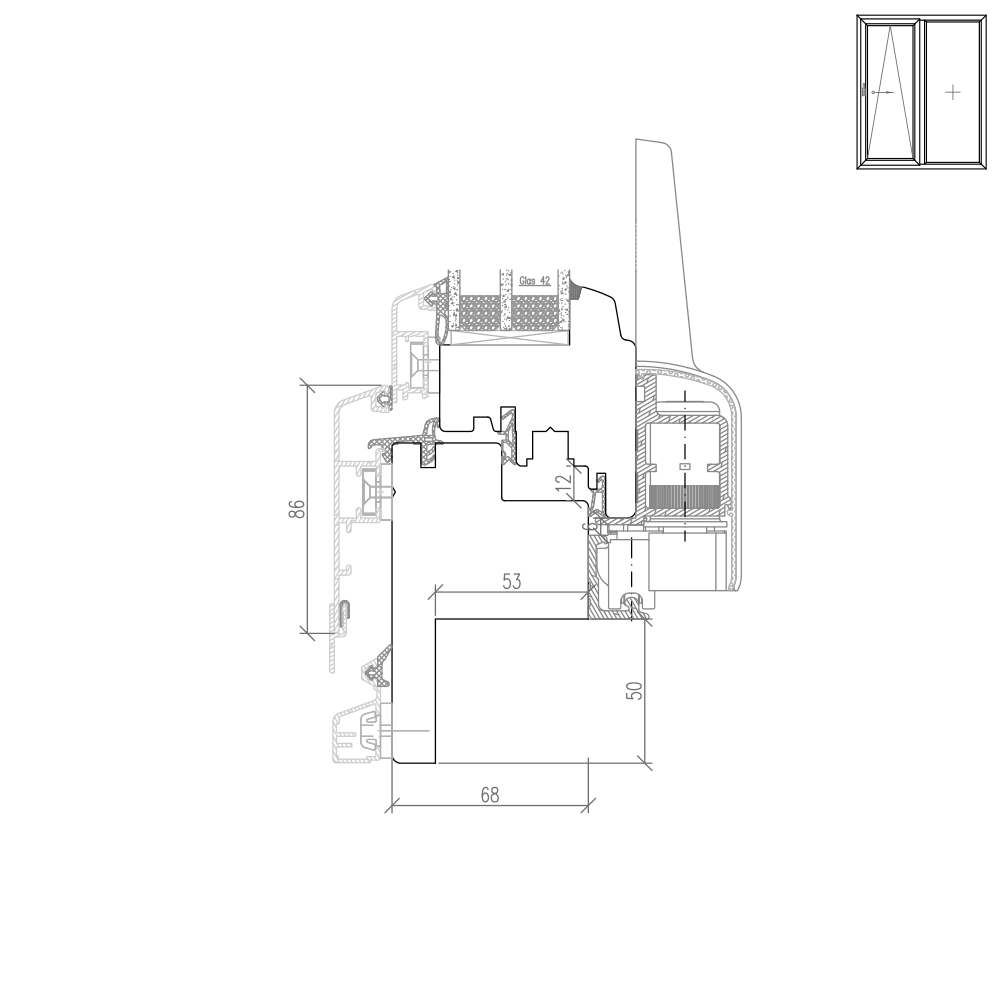

IDEALU Classicline - 50 mm milling for a sill connection profile for older buildings
IDEALU Classicline - 50 mm milling for a sill connection profile for older buildings

IDEALU Classicline – Frame Extensions

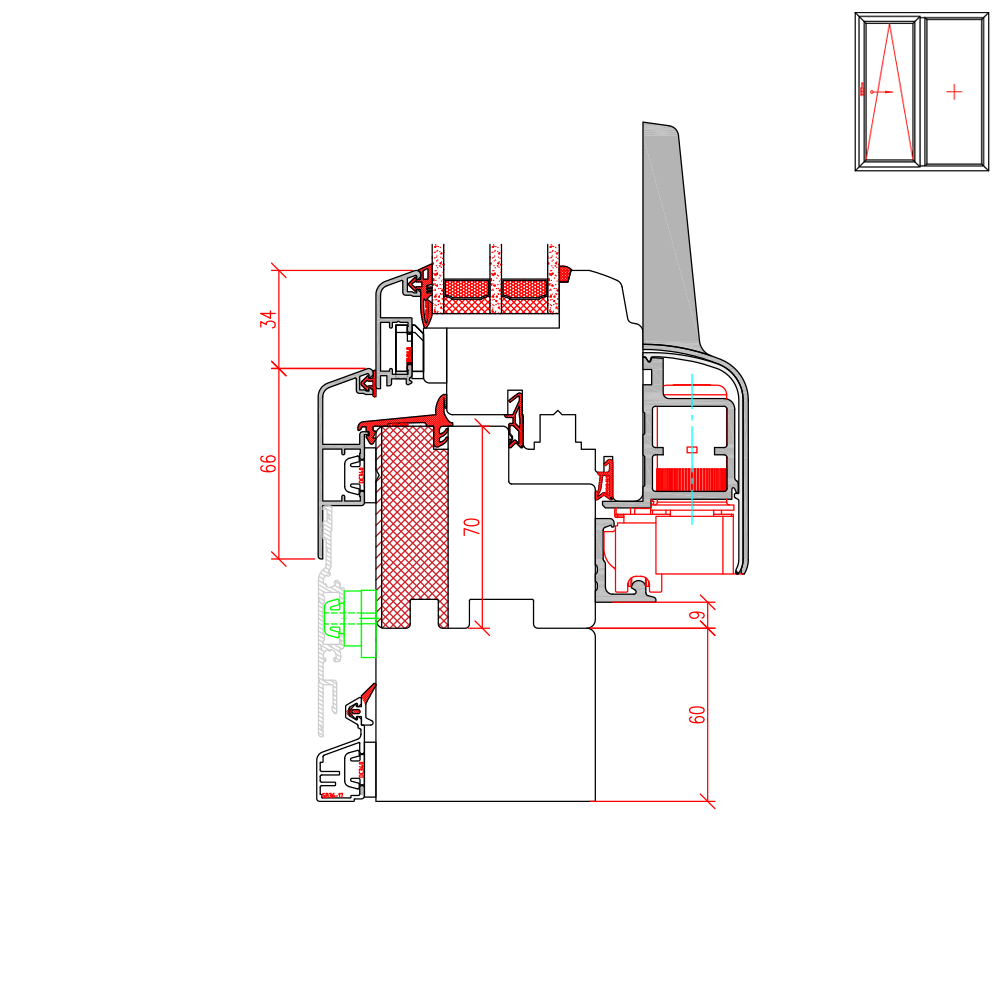

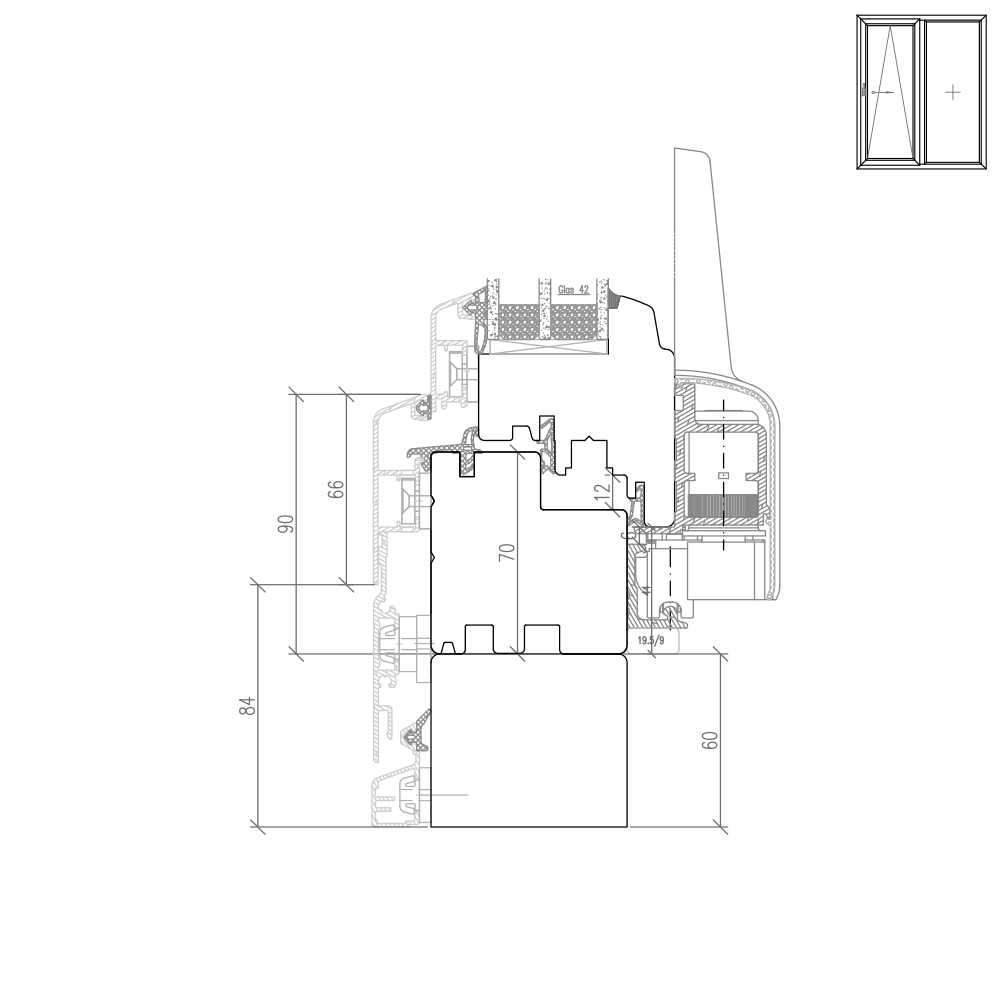

IDEALU Classicline - frame extension with aluminium cladding
IDEALU Classicline - frame extension with aluminium cladding

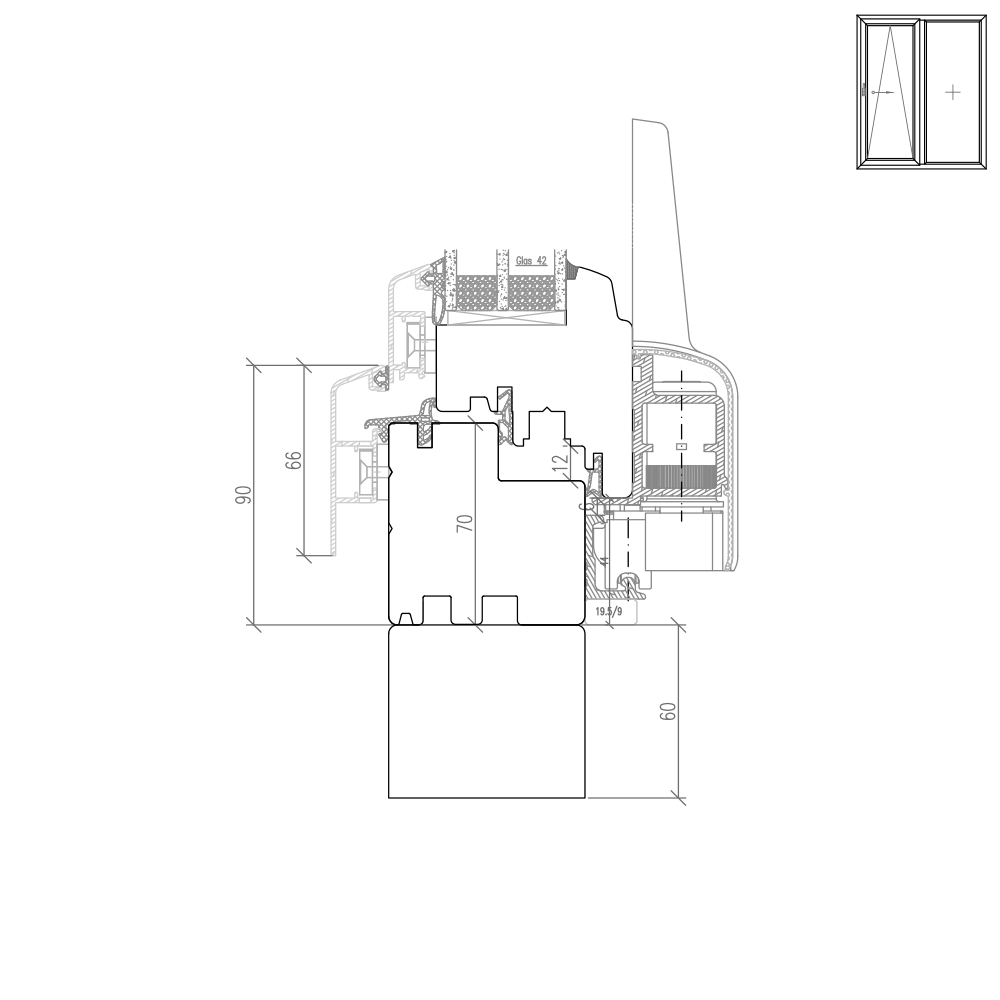

IDEALU Classicline - frame extension without aluminium cladding
IDEALU Classicline - frame extension without aluminium cladding

IDEALU Classicline - Roller Shutter Guide Rails

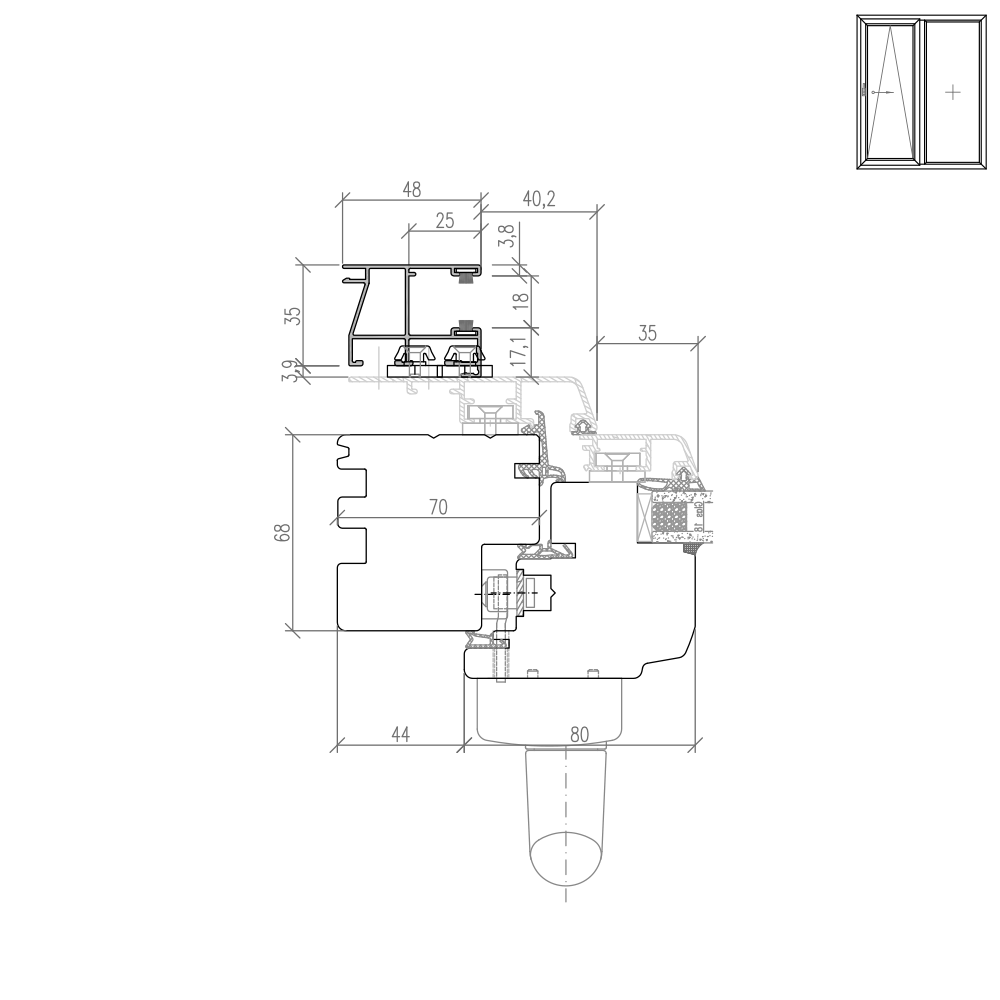

IDEALU Classicline - roller shutter guide rails for new-builds
IDEALU Classicline - roller shutter guide rails for new-builds

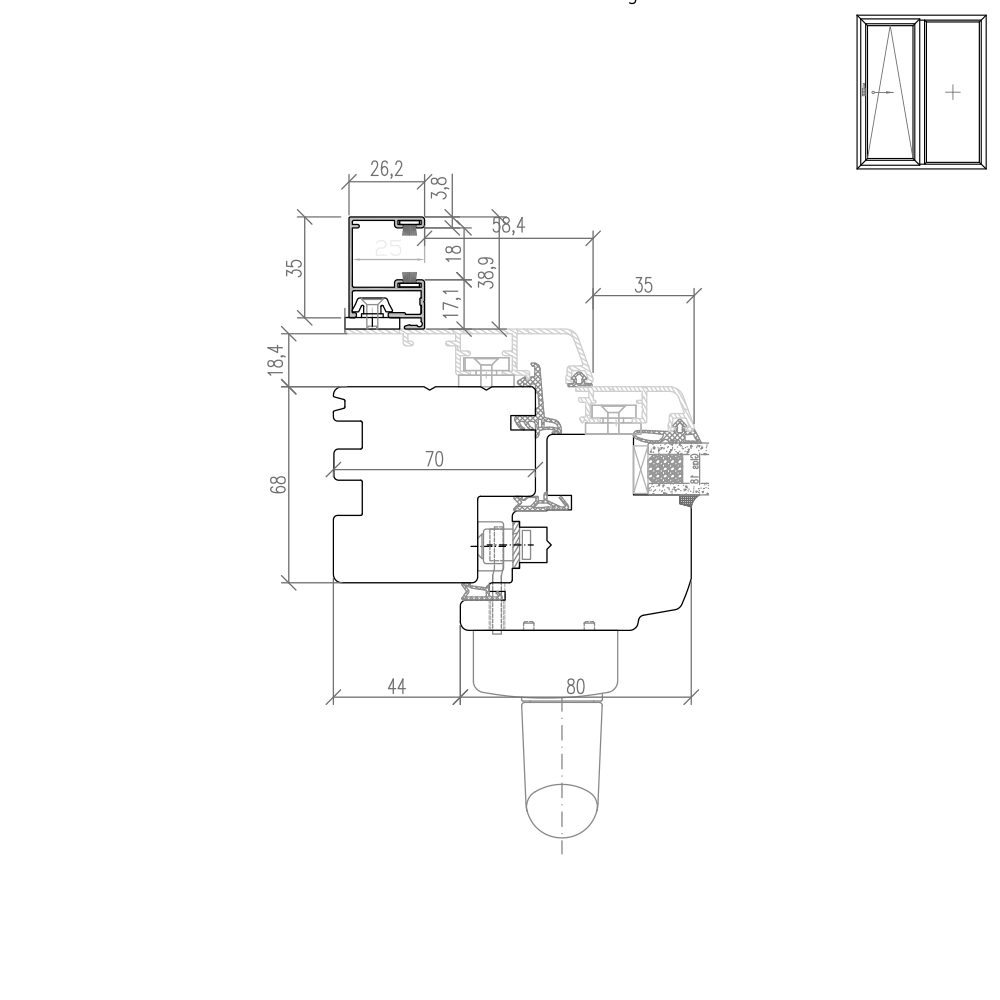

IDEALU Classicline - roller shutter guide rails for older buildings
IDEALU Classicline - roller shutter guide rails for older buildings

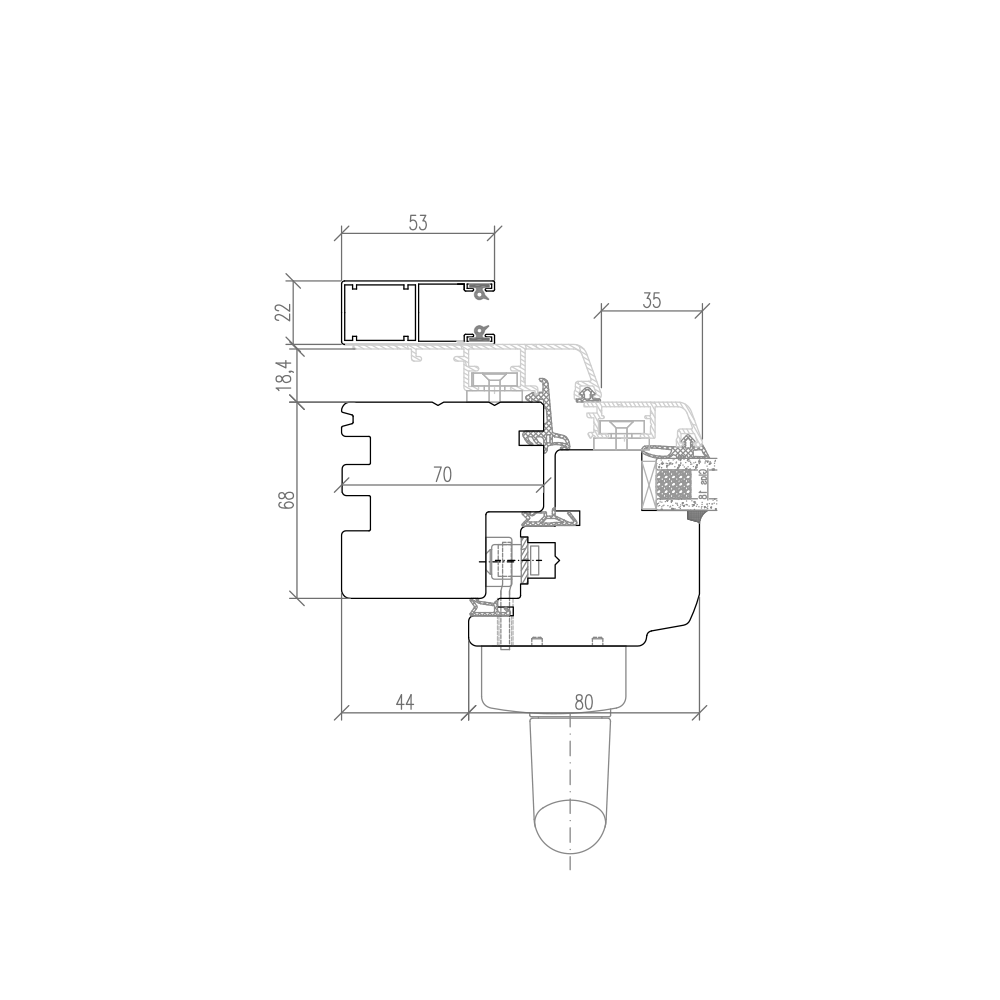

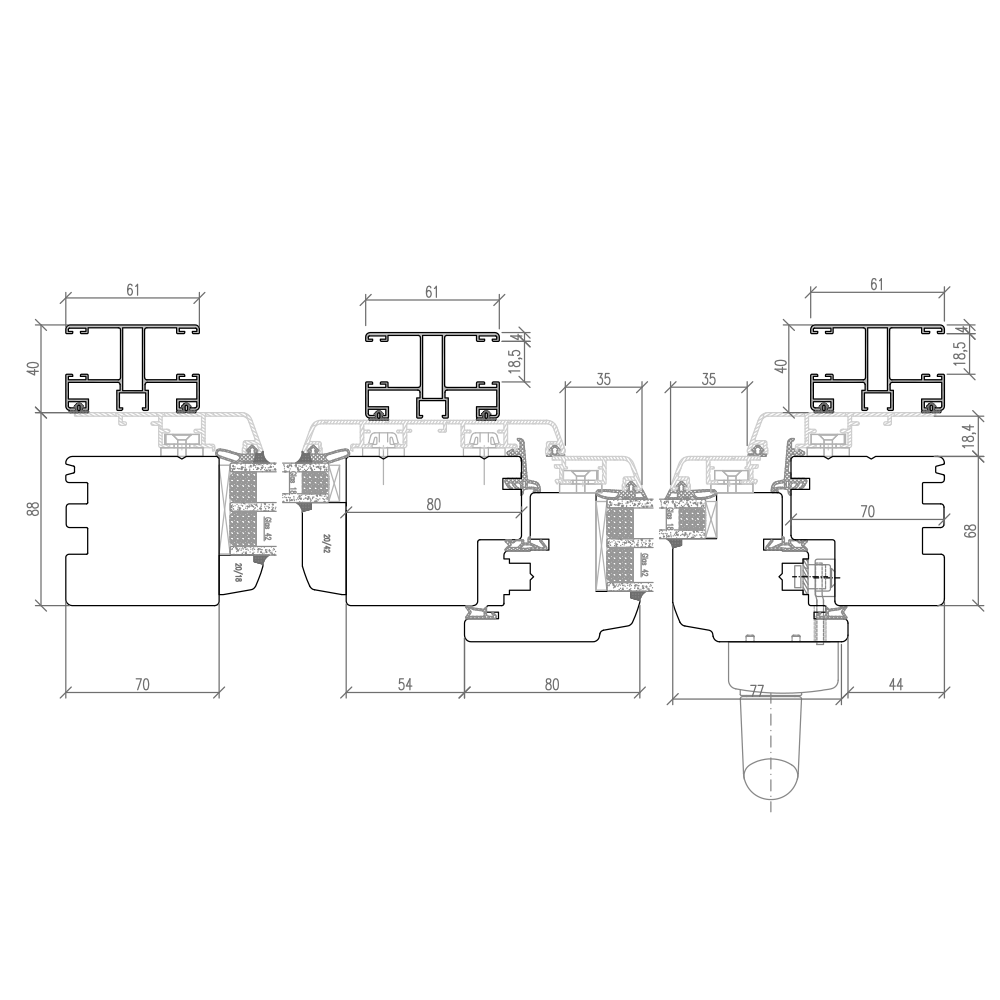

IDEALU Classicline - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEALU Classicline - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEALU Classicline - guide rails for front-mounted roller shutters
IDEALU Classicline - guide rails for front-mounted roller shutters

To top of page

IDEALU Trendline IV 68

IDEALU Trendline IV 68 - detail of the frame and sash with handle
IDEALU Trendline IV 68 - detail of the frame and sash with handle
IDEALU Trendline IV 68 - vertical cross-section
IDEALU Trendline IV 68 - vertical cross-section
IDEALU Trendline IV 68 - detail of central mullion
IDEALU Trendline IV 68 - detail of central mullion
IDEALU Trendline IV 68 - horizontal cross-section
IDEALU Trendline IV 68 - horizontal cross-section

Sill Connection Profiles

IDEALU Trendline IV 68 - 30 mm milling for a sill connection profile for older buildings
IDEALU Trendline IV 68 - 30 mm milling for a sill connection profile for older buildings
IDEALU Trendline IV - 30 mm milling for a sill connection profile for new-builds
IDEALU Trendline IV - 30 mm milling for a sill connection profile for new-builds
IDEALU Trendline IV 68 - 50 mm milling for a sill connection profile for older buildings
IDEALU Trendline IV 68 - 50 mm milling for a sill connection profile for older buildings

Frame Extensions

IDEALU Trendline IV 68 - frame extension with aluminium cladding
IDEALU Trendline IV 68 - frame extension with aluminium cladding
IDEALU Trendline IV 68 - frame extension without aluminium cladding
IDEALU Trendline IV 68 - frame extension without aluminium cladding

Roller Shutter Guide Rails

IDEALU Trendline IV 68 - roller shutter guide rails for new-builds
IDEALU Trendline IV 68 - roller shutter guide rails for new-builds
IDEALU Trendline IV 68 - roller shutter guide rails for older buildings
IDEALU Trendline IV 68 - roller shutter guide rails for older buildings
IDEALU Trendline IV 68 - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEALU Trendline IV 68 - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEALU Trendline IV 68 - guide rails for front-mounted roller shutters
IDEALU Trendline IV 68 - guide rails for front-mounted roller shutters

To top of page

IDEAL Plano

IDEAL Plano - detail of the frame and sash with handle
IDEAL Plano - detail of the frame and sash with handle
IDEALU Plano - vertical cross-section
IDEALU Plano - vertical cross-section
IDEAL Plano - horizontal cross-section
IDEAL Plano - horizontal cross-section
IDEAL Plano - detail of central mullion
IDEAL Plano - detail of central mullion

Frame Extensions

IDEAL Plano - frame extension with aluminium cladding
IDEAL Plano - frame extension with aluminium cladding
IDEAL Plano - frame extension without aluminium cladding
IDEAL Plano - frame extension without aluminium cladding

Roller Shutter Guide Rails

IDEAL Plano - roller shutter guide rails for new-builds
IDEAL Plano - roller shutter guide rails for new-builds
IDEAL Plano - roller shutter guide rails for older buildings
IDEAL Plano - roller shutter guide rails for older buildings
IDEAL Plano - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEAL Plano - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEAL Plano - guide rails for front-mounted roller shutters
IDEAL Plano - guide rails for front-mounted roller shutters

To top of page

Eco Idealu Classicline

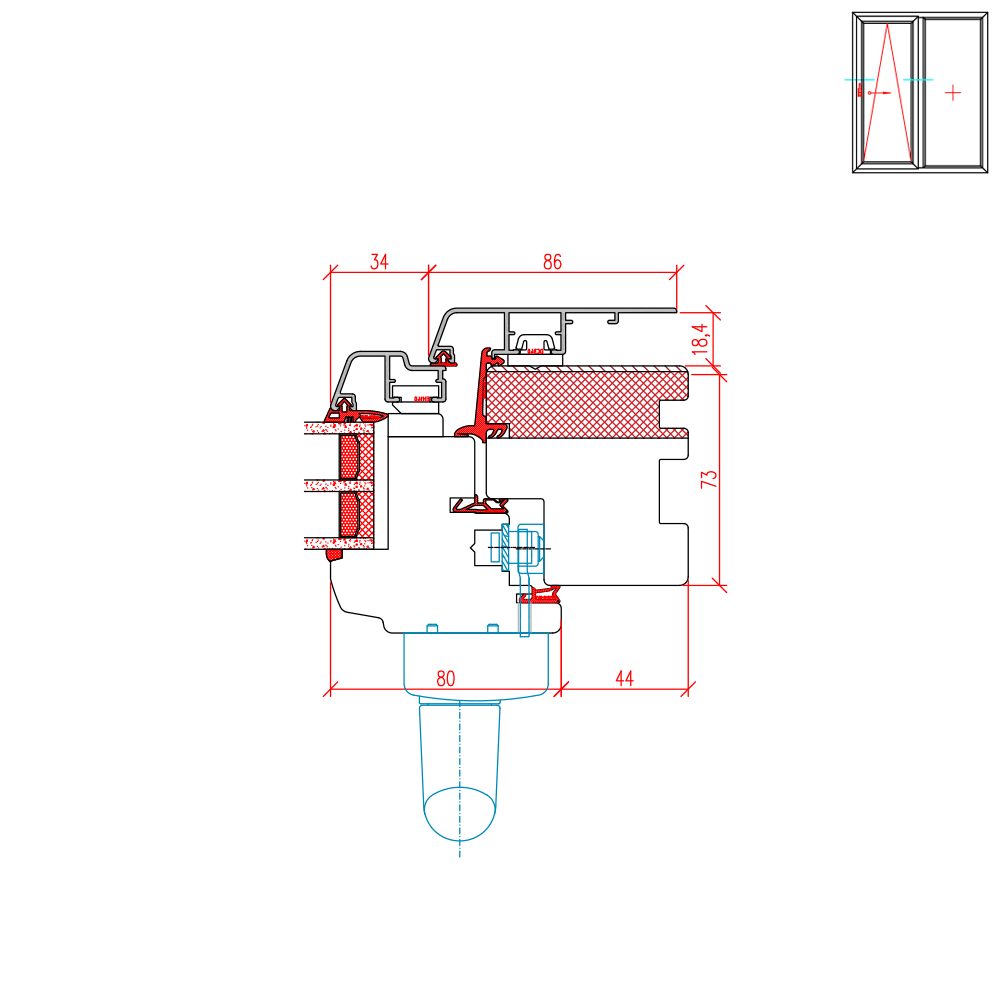

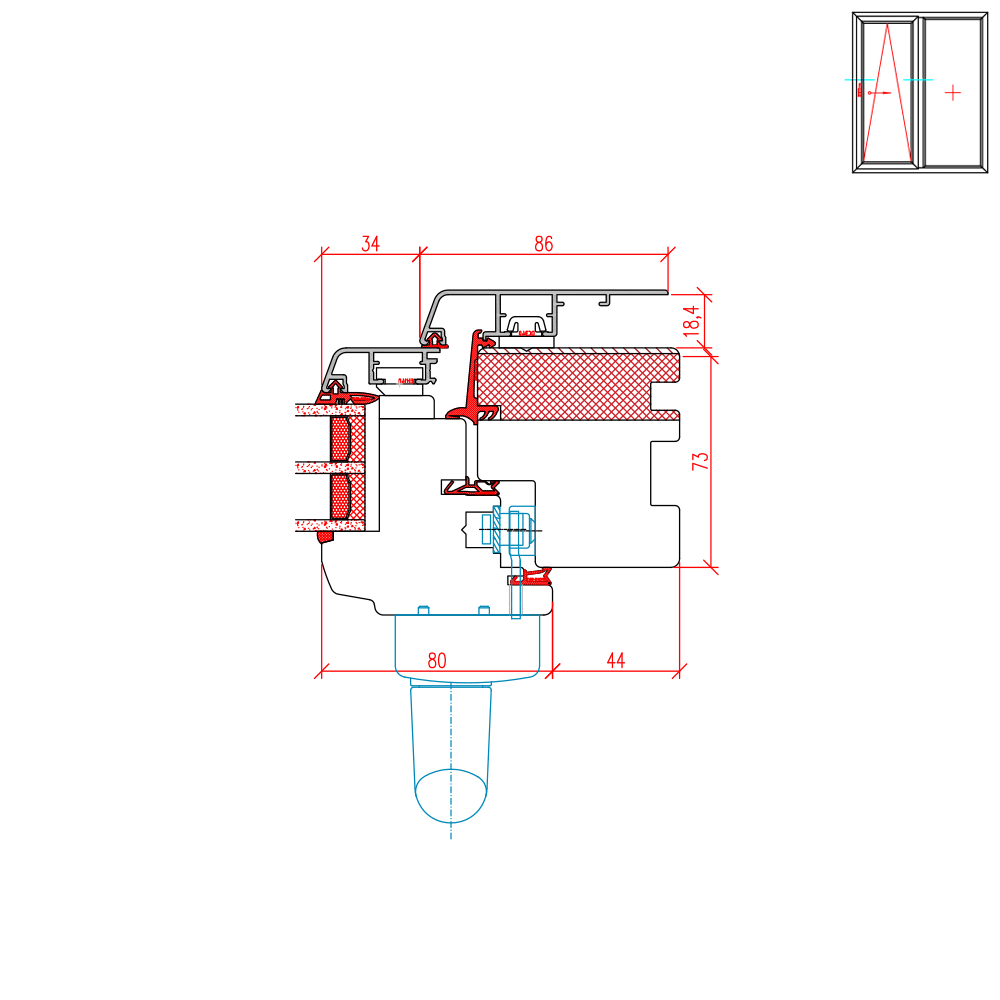

ECO IDEALU Classicline - detail of the frame and sash with handle
ECO IDEALU Classicline - detail of the frame and sash with handle

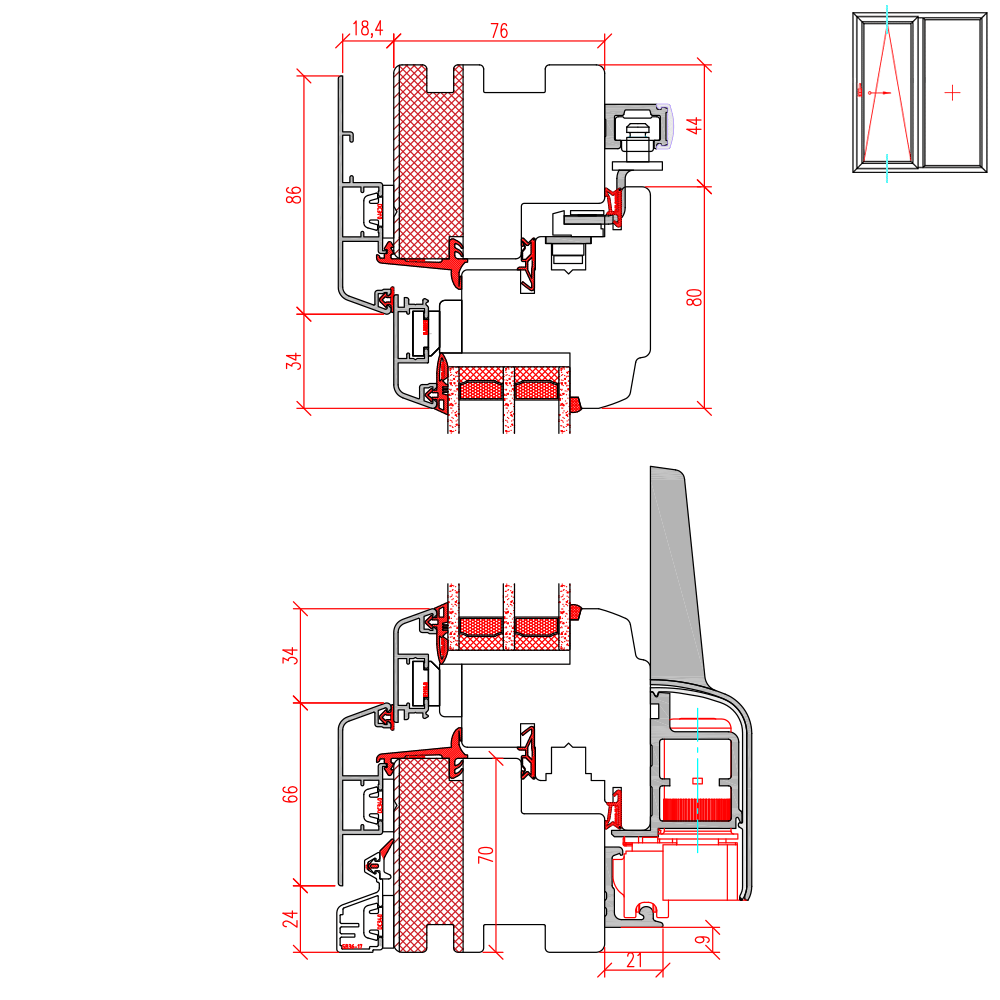

ECO IDEALU Classicline - vertical cross-section
ECO IDEALU Classicline - vertical cross-section

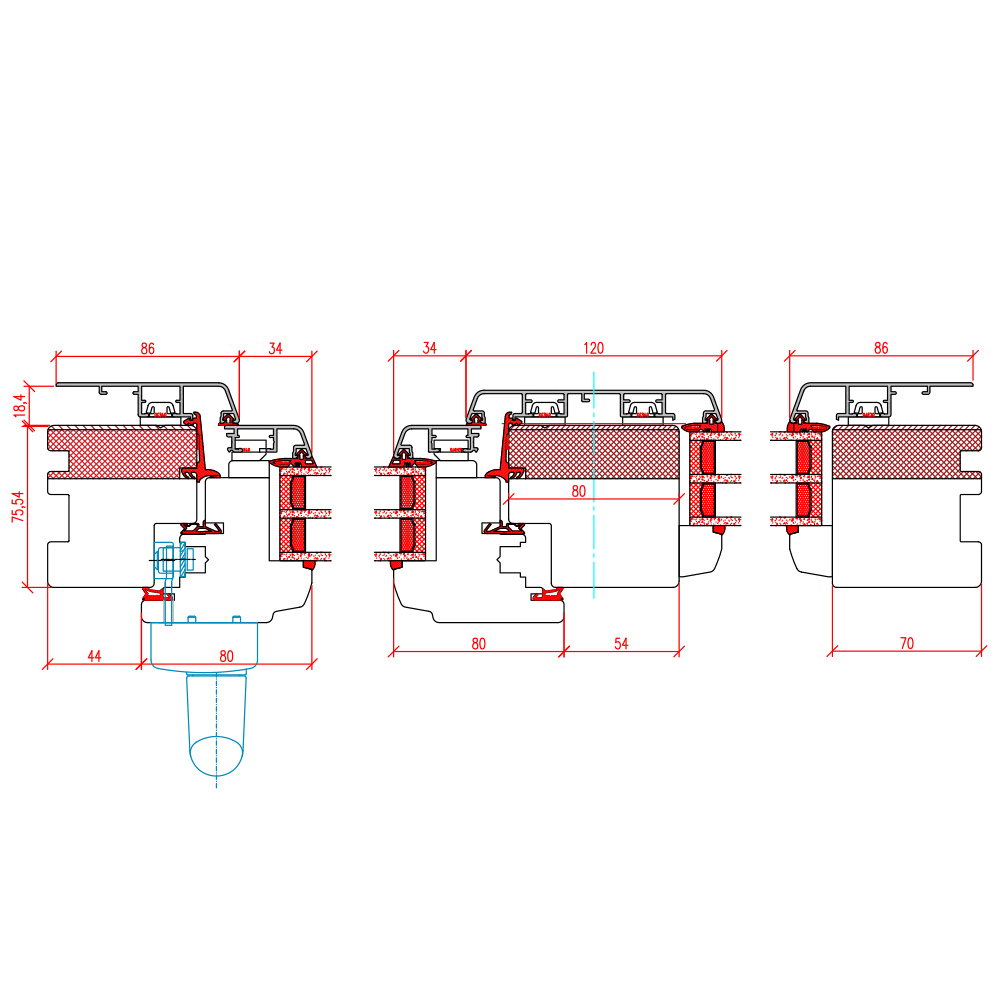

ECO IDEALU Classicline - horizontal cross-section
ECO IDEALU Classicline - horizontal cross-section

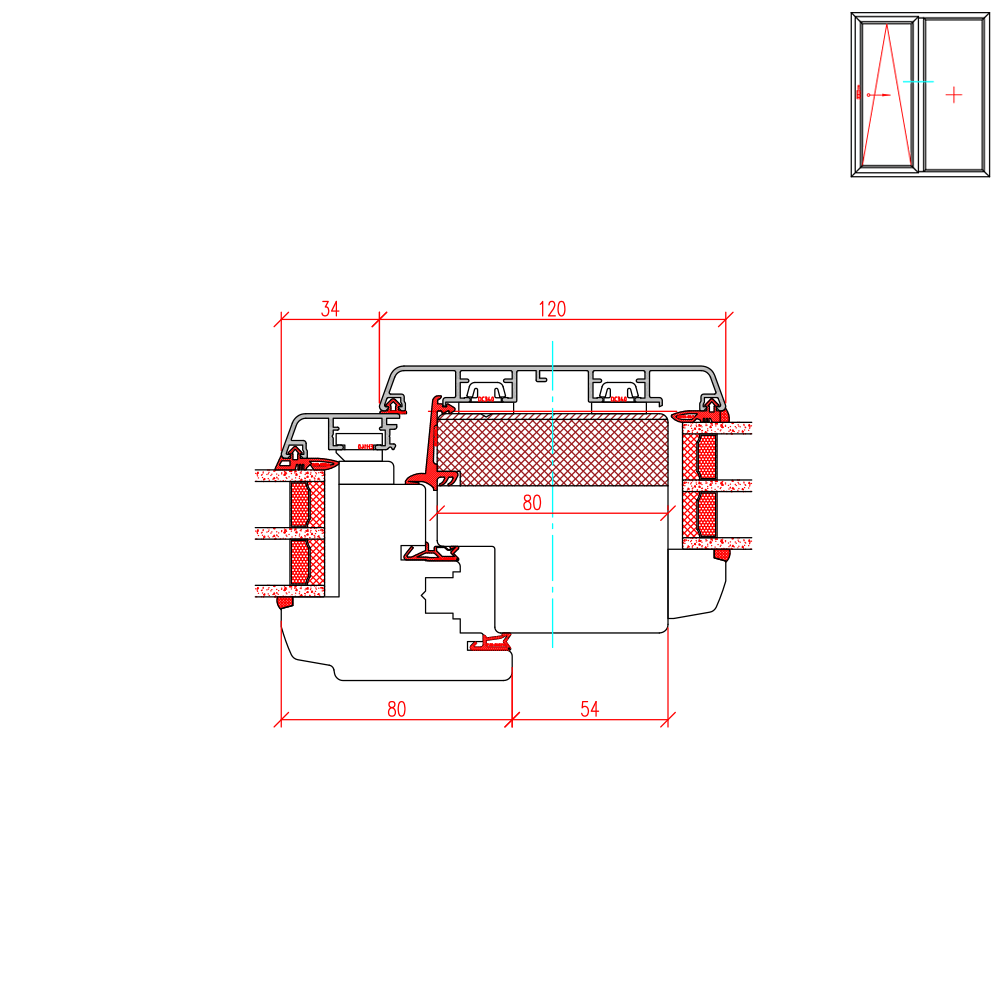

ECO IDEALU Classicline - detail of central mullion
ECO IDEALU Classicline - detail of central mullion

Frame Extensions

ECO Idealu Classicline - frame extension with aluminium cladding
ECO Idealu Classicline - frame extension with aluminium cladding

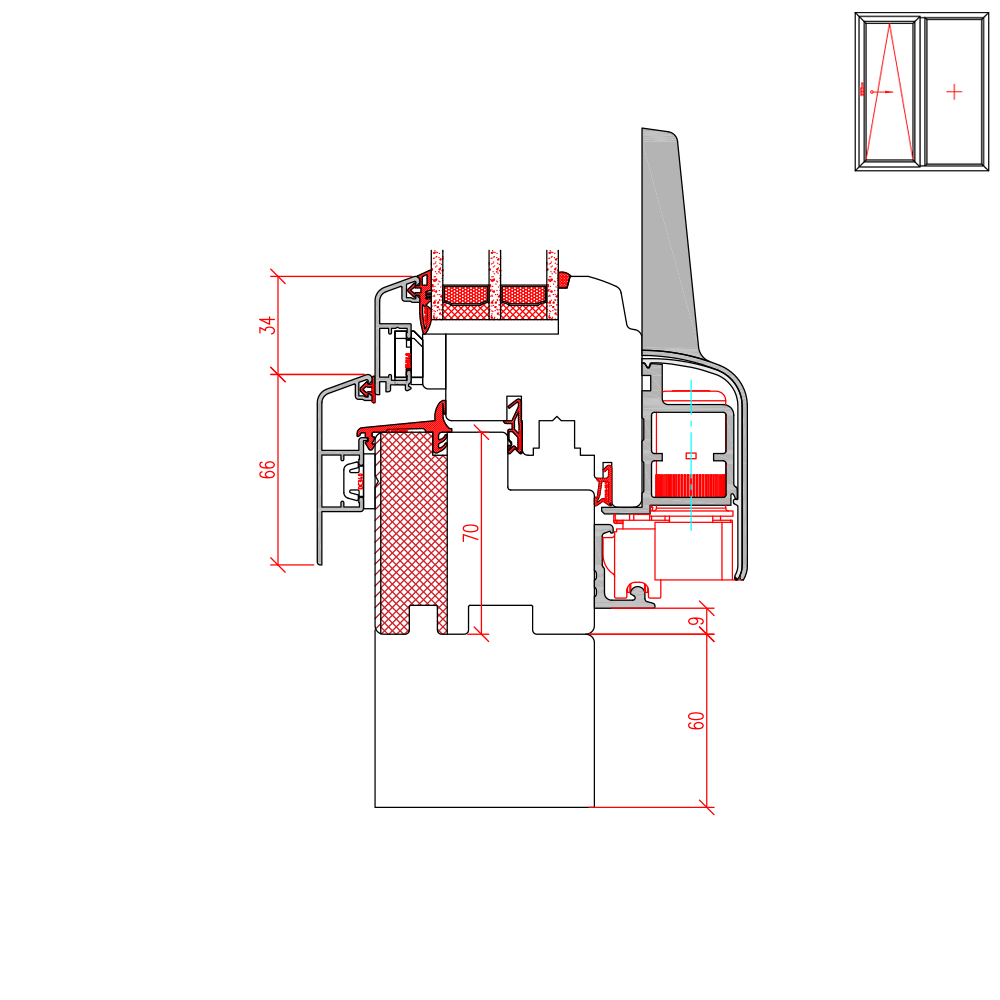

ECO Idealu Classicline - frame extension without aluminium cladding
ECO Idealu Classicline - frame extension without aluminium cladding

Roller Shutter Guide Rails

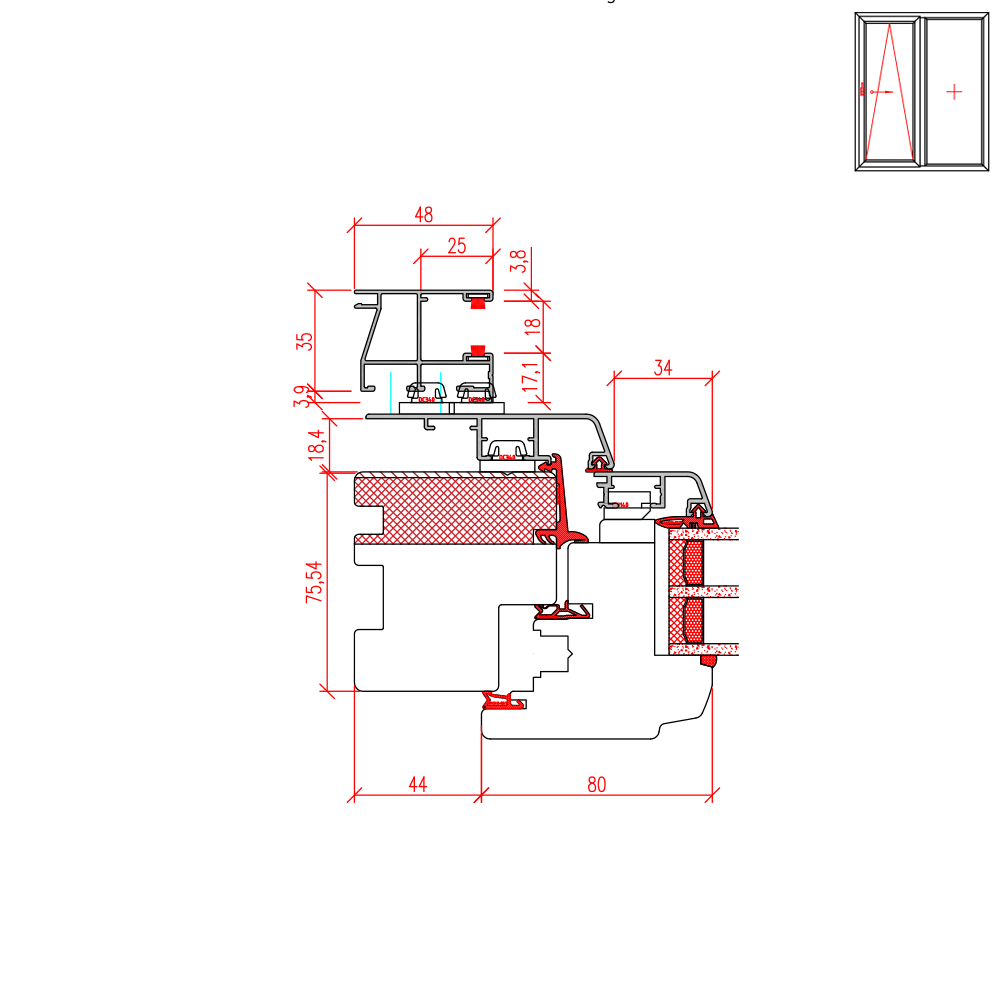

ECO IDEALU Classicline - roller shutter guide rails for new-builds
ECO IDEALU Classicline - roller shutter guide rails for new-builds

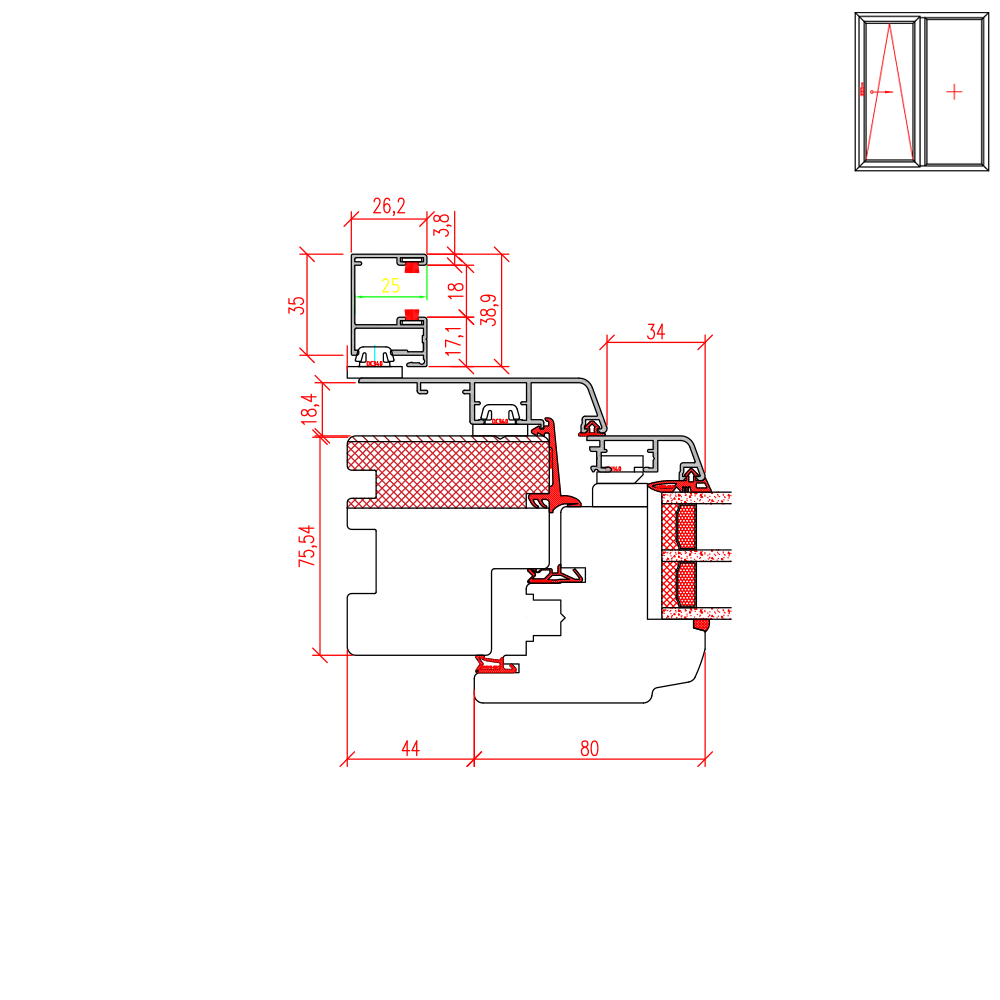

ECO IDEALU Classicline - roller shutter guide rails for older buildings
ECO IDEALU Classicline - roller shutter guide rails for older buildings
ECO IDEALU - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
ECO IDEALU - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters

To top of page

IDEAL ECO Plano

IDEAL ECO Plano - detail of the frame and sash with handle
IDEAL ECO Plano - detail of the frame and sash with handle
IDEAL ECO Plano - vertical cross-section
IDEAL ECO Plano - vertical cross-section
IDEAL ECO Plano - horizontal cross-section
IDEAL ECO Plano - horizontal cross-section
IDEAL ECO Plano - detail of central mullion
IDEAL ECO Plano - detail of central mullion

Sill Connection Profiles

IDEAL ECO Plano - 30 mm milling for a sill connection profile for older buildings
IDEAL ECO Plano - 30 mm milling for a sill connection profile for older buildings
IDEAL ECO Plano - 30 mm milling for a sill connection profile for new-builds
IDEAL ECO Plano - 30 mm milling for a sill connection profile for new-builds
IDEAL ECO Plano - 50 mm milling for a sill connection profile for older buildings
IDEAL ECO Plano - 50 mm milling for a sill connection profile for older buildings

Frame Extensions

IDEAL ECO Plano - frame extension with aluminium cladding
IDEAL ECO Plano - frame extension with aluminium cladding
IDEAL ECO Plano - frame extension without aluminium cladding
IDEAL ECO Plano - frame extension without aluminium cladding

Roller Shutter Guide Rails

IDEAL ECO Plano - roller shutter guide rails for older buildings
IDEAL ECO Plano - roller shutter guide rails for older buildings
IDEAL ECO Plano - roller shutter guide rails for new-builds
IDEAL ECO Plano - roller shutter guide rails for new-builds

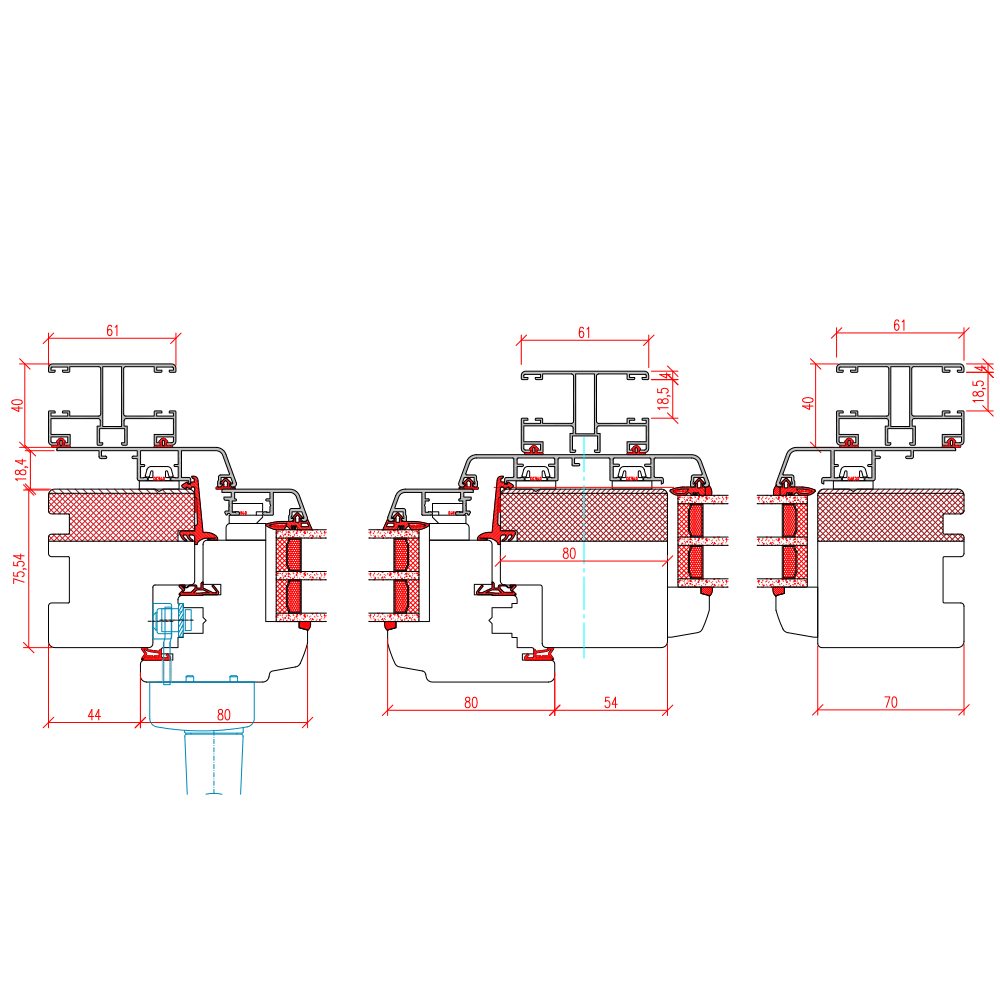

IDEAL ECO Plano - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters
IDEAL ECO Plano - horizontal cross-section of door sash and panel with guide rails for top-mounted roller shutters

To top of page

Bitte beachten Sie, dass es sich hierbei um Standardzeichnungen handelt. Wenn Sie vor dem Bestellvorgang genau wissen möchten, welche Profile, Modelle und Bauteile verbaut werden, kontaktieren Sie bitte unseren Kundenservice unter 0711 860 600 oder per E-Mail an info@fensterversand.com. Unsere Experten helfen Ihnen gerne bei der Konfiguration und beantworten Ihre Fragen zu unseren Produkten.
