ECO Plano wood-aluminium window profile sectionWood-Aluminium windowsProfile ECO Plano with stone bench connectionECO Plano wood-aluminium window detail drawingExterior view wood-aluminium windows
UW- value
≥ 0.72
ECO Plano wood-aluminium window profile section
ECO Plano wood-aluminium window profile section
Wood-Aluminium windows
Wood-Aluminium window
Profile ECO Plano with stone bench connection
Profile ECO Plano with stone bench connection
ECO Plano wood-aluminium window detail drawing
ECO Plano wood-aluminium window detail drawing

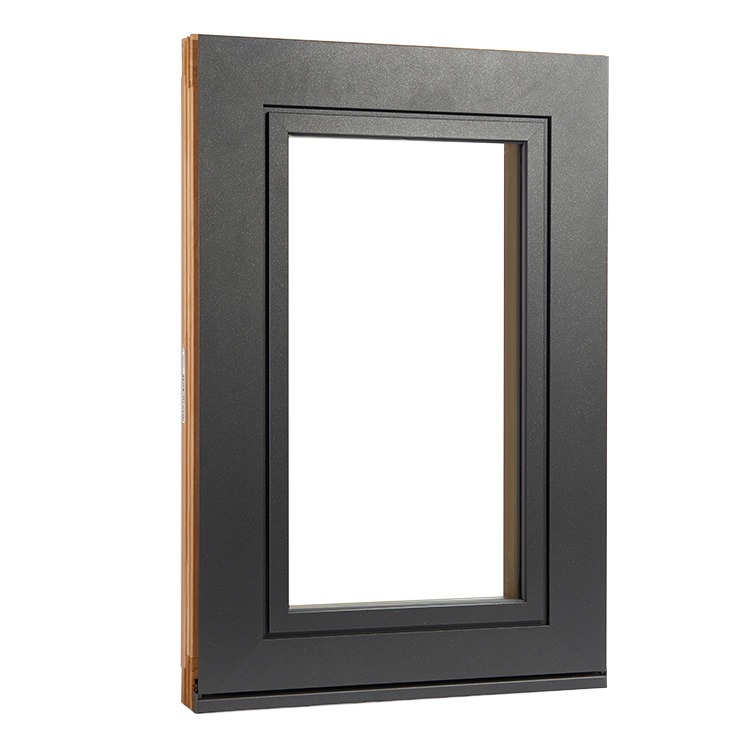

Exterior view wood-aluminium windows
Exterior view wood-aluminium window

ECO Plano aluminum clad windows

The elegant wood-aluminum energy saving system

from 256from 256

incl. 19% VAT, free delivery**

  • High quality system with flush design
  • Available in different wood species such as pine, spruce, larch, eucalyptus, oak and more
  • Extremely weather-resistant and low maintenance
Calculate Price
Estimated production time 6-9 weeks1
ECO Plano

Advantages at a Glance

Excellent insulation properties

10 Year guarantee

RAL Seal of approval for the aluminum cladding

High quality hydroplaned surfaces and special color options

Grade 1a wood

Made in Germany

High quality components from well-known manufacturers

Over 250,000 satisfied customers and counting

Cambridge, UK
Commercial building
Selwyn College Bartlam LibraryCambridge, UK
Composite windows

Wood-aluminium windows suitable for a public building, aligned with UK security and safety standards.

Madison Avenue New York, USA
Commercial building
295 Madison AvenueNew York, USA
Aluminium windows

Energy star windows with tilt-and-turn opening for the renovation of a historical building.

Childcare Australia
Commercial building
Torrens Childcare CenterAustralia
Passive house composite windows

Wood-aluminium windows and doors with elevated handles and meeting passive house standards for the renovation of a childcare centre.

Profile Description

  • Glazing: Triple glazing fitted as standard

  • Glass seal: The glass seal provides optimum protection against water penetration

  • Sash design: Modern flush-finish design

  • Insulating foam: Additional insulating foam layer within the wood laminate provides excellent thermal performance

  • Layer glued wood: Glued wood edge bands with continuous laminated top layer provide stability and durability

  • Sealing levels: Three sealing levels ensure both good thermal and noise insulation
Technical Details

ECO Plano Aluminum Clad Wood Windows - Description

GLAZING

  • Insulating glass can be combined with sun protection, sound reduction glazing (to class 4) as well as anti-burglar and ornamental glass options
  • UV-resistant seals
  • Wet glazing

SURFACES

  • Surface treatment increases durability and window life
  • Natural wood finishes and RAL paint colors available

FUNCTIONS

  • Custom feature combinations for insulation, noise reduction, security, opening method and location.

PHYSICAL REQUIREMENTS

  • Thermal insulation per DIN 4108 and EnEV standards
  • Sound insulation from levels II to V (per VDI 2719 SSK, SSK)
  • Anti-burglar level options up to Resistance Class 2 (DIN V ENV 1627-1630)
  • Wood windows with an RSG 10-year guarantee are only coated with products which conform to all European requirements.
TECHNICAL FEATURES

ECO Plano - Advantages in Detail


10 Year Guarantee

The excellent quality of our aluminum clad wood windows means that we offer a 10 year guarantee on the exterior aluminum shell and a 5 year guarantee on the wood surfaces of all our models. This window is perfectly suitable for all houses built in a modern architectural style as the  sash and frame are flush on the outside. We want you to enjoy your house and your matching windows for many years to come.

RAL Seal of Approval for aluminum casing from "Stemeseder Alto Nova"

The RAL-approved aluminum casing means that you can expect the highest quality. This is regularly monitored and tested by independent third parties. You as the consumer or end-user can rest assured that the windows and doors you receive are long-lasting and of excellent quality. By using welded corner units, the corners will not warp, even under heavy strain. This gives it an attractive look while being water tight at the same time. Aluminum as a working material is very weather resistant and can be supplied in virtually any RAL color. That gives you an extremely wide color selection and a maintenance-free product.

High quality hydroplaned surfaces and special interior color options

This new and innovative method of machine planing means that the wood surfaces are especially smooth and high quality. The wood fibers on the top surface are not only cut off but pressed flat leaving the pores open. The primer thereby penetrates deeply and permanently into the wood and protects it. This means an an attractive and high quality window for a long time to come.

Grade 1a Wood

In order to manufacture wood windows, it is necessary to have high quality wood without knots, coloring or excessive resin. While the main reason is usually cosmetic,  these properties can also negatively affect the stability, durability and functionality of the wood. All wood profiles are manufactured in continuous glued laminated layers. No jointed wood is used in the production of our windows. This guarantees warp-free frames with clean, smooth, rigid joints.

Quality Made in Germany

All of our windows and doors are manufactured in Germany. We are members of the German Association of Window and Façade Manufactures. Being based in Germany is not just due to high quality craftsmanship and manufacturing, but also important for economic reasons. Our customers receive the best possible quality at an excellent price-performance ratio.

High Quality components from well-known manufacturers

We use only the highest quality components from well-known manufacturers into our windows and doors. This is another way of guaranteeing only the best quality. Handles made by Hoppe, glazing supplied by Fandel and fittings from Siegenia Aubi and Winkhaus are just a few of the high quality components we use. To ensure you get the longest possible life out of your new windows and doors and are completely satisfied with your purchases, we focus on offering only the best products, Made in Germany

Wood-aluminium window ECO Plano

The ECO Plano wood-aluminium window is available in pine, larch and oak and is extremely easy to maintain.

ImageProfileModelProduct TypeWidthHeight
PlanoECO PlanoWood-aluminium window from 51 cm from 51 cm
LogoBrandAvailabilityConditionColourPrice
windows24.com available New White, Mahogany, Teak,
Chestnut
, Walnut,
RAL colours
from € 256

Order wood-aluminium windows online at low prices

Configure wood aluminium windows now
