Detailed Drawings – Wood-Aluminium Windows & French Doors

Overview

IDEALU Classicline IV 68

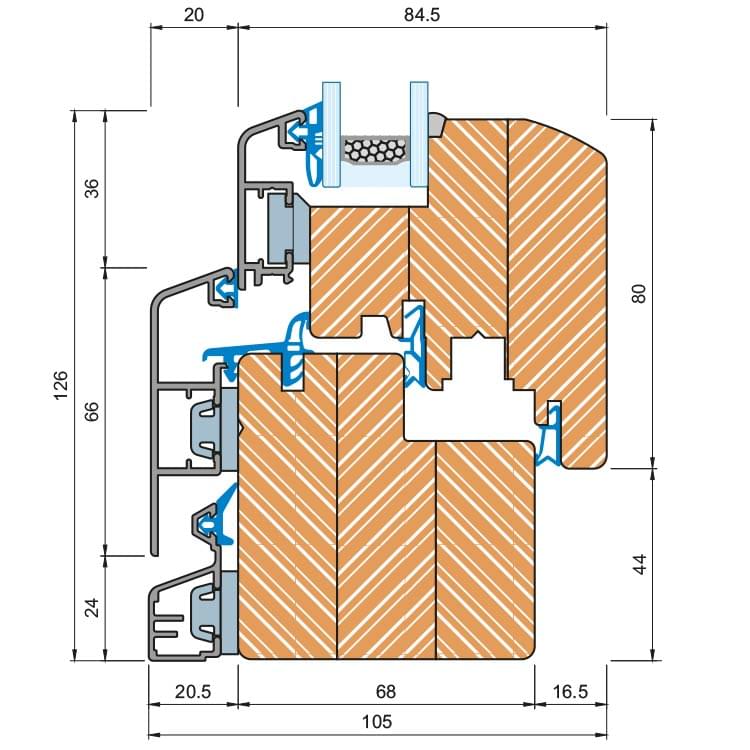

IDEALU IV 68 Classicline - profile section

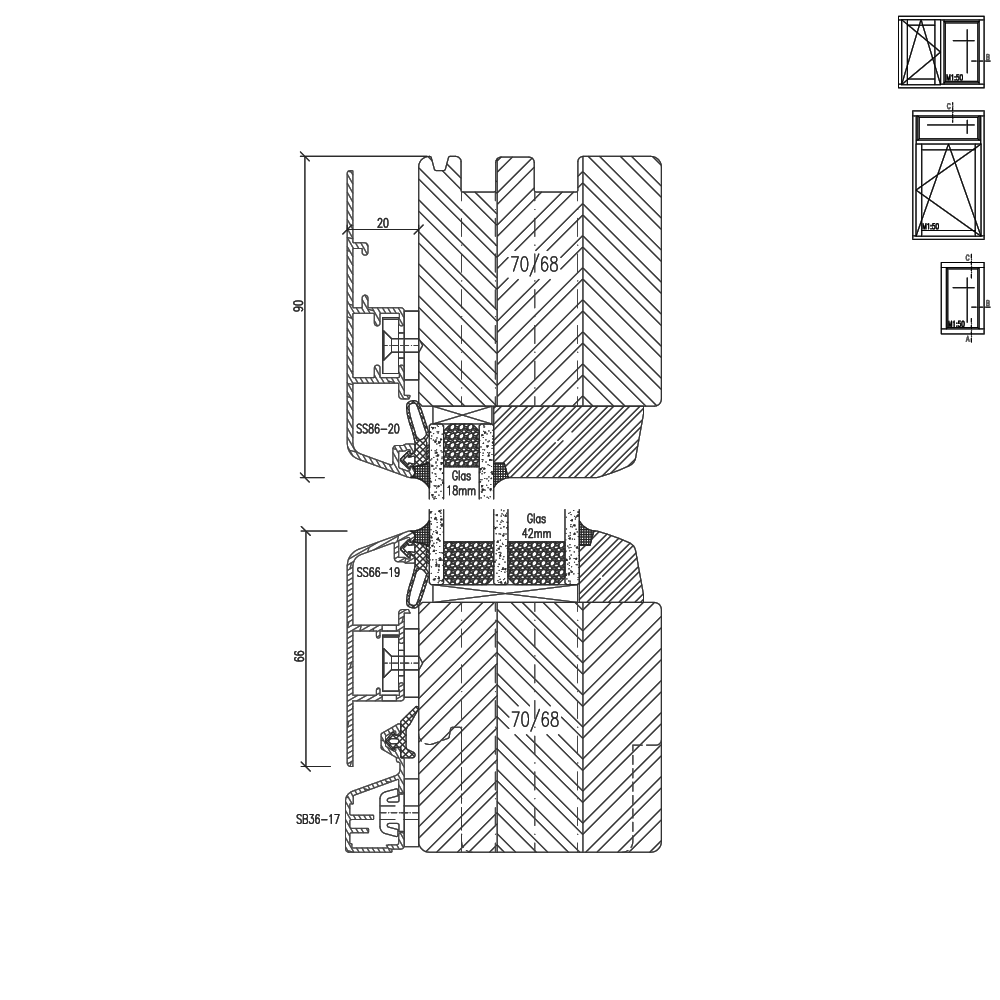

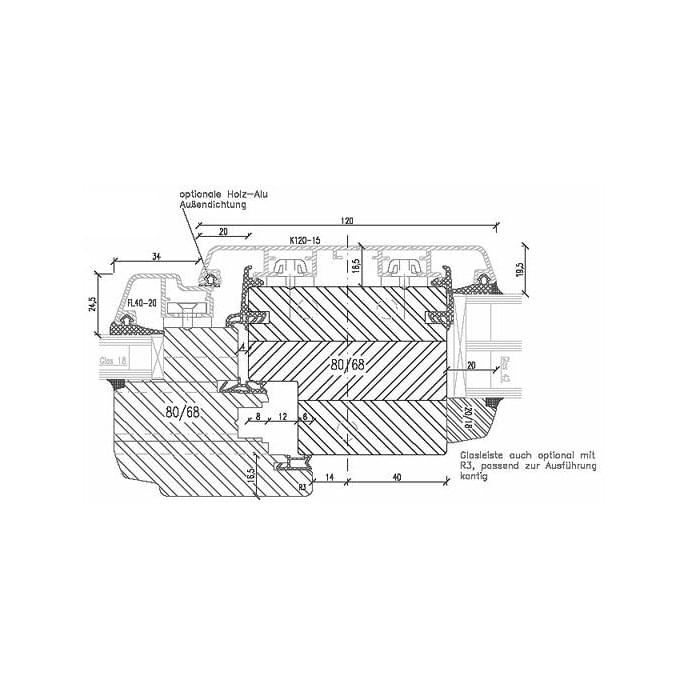

IDEALU Classicline IV 68 - fixed glazing

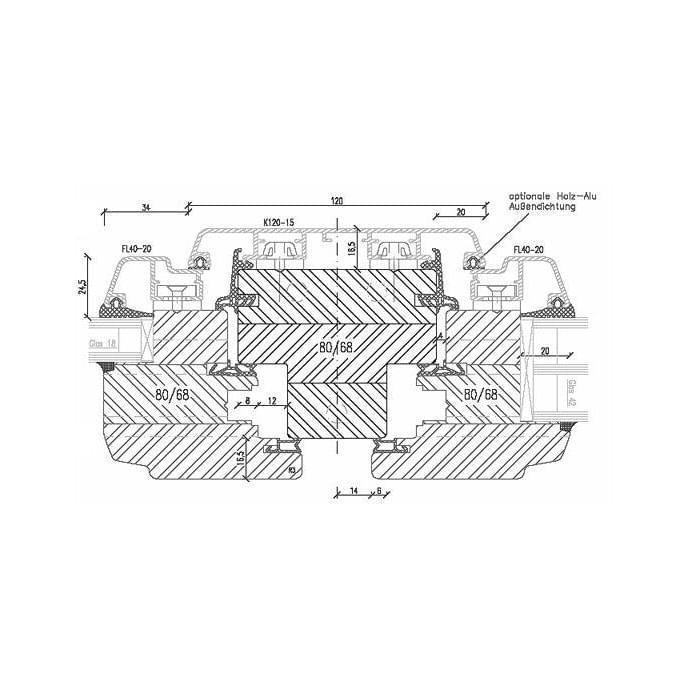

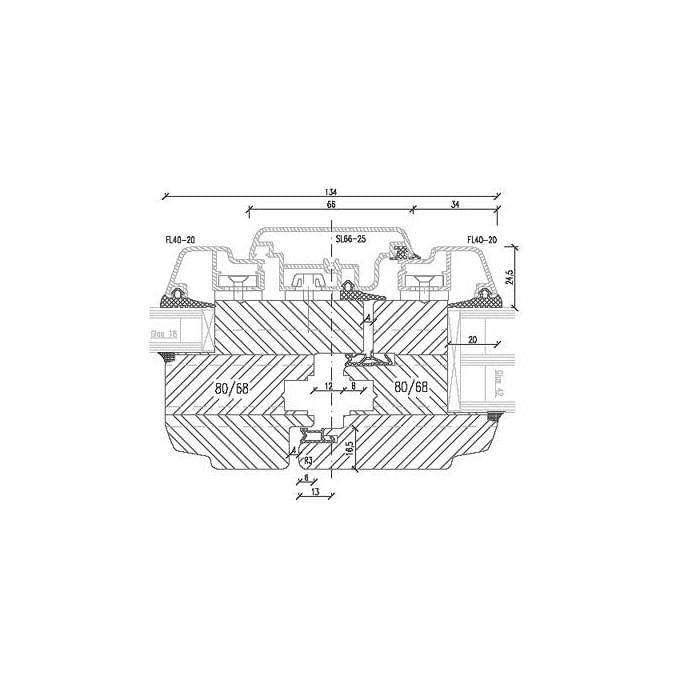

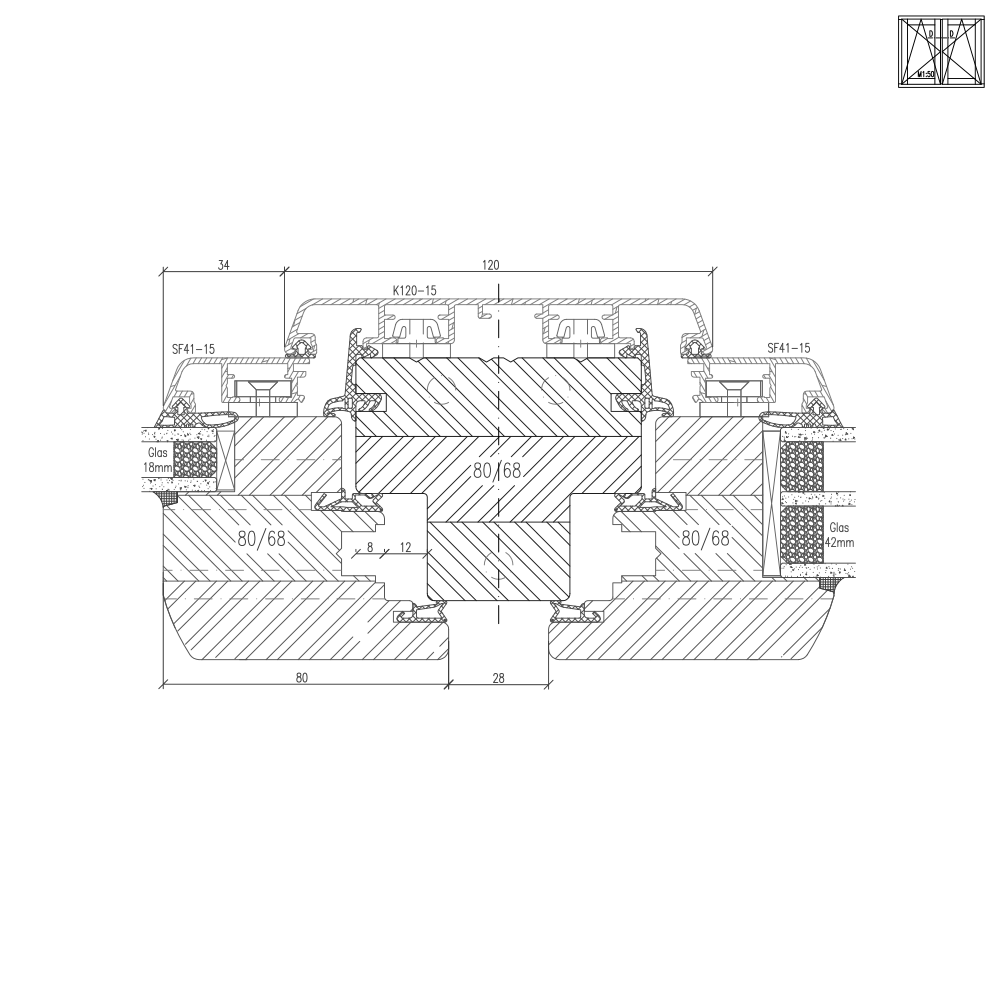

IDEALU Classicline IV 68 - central mullion

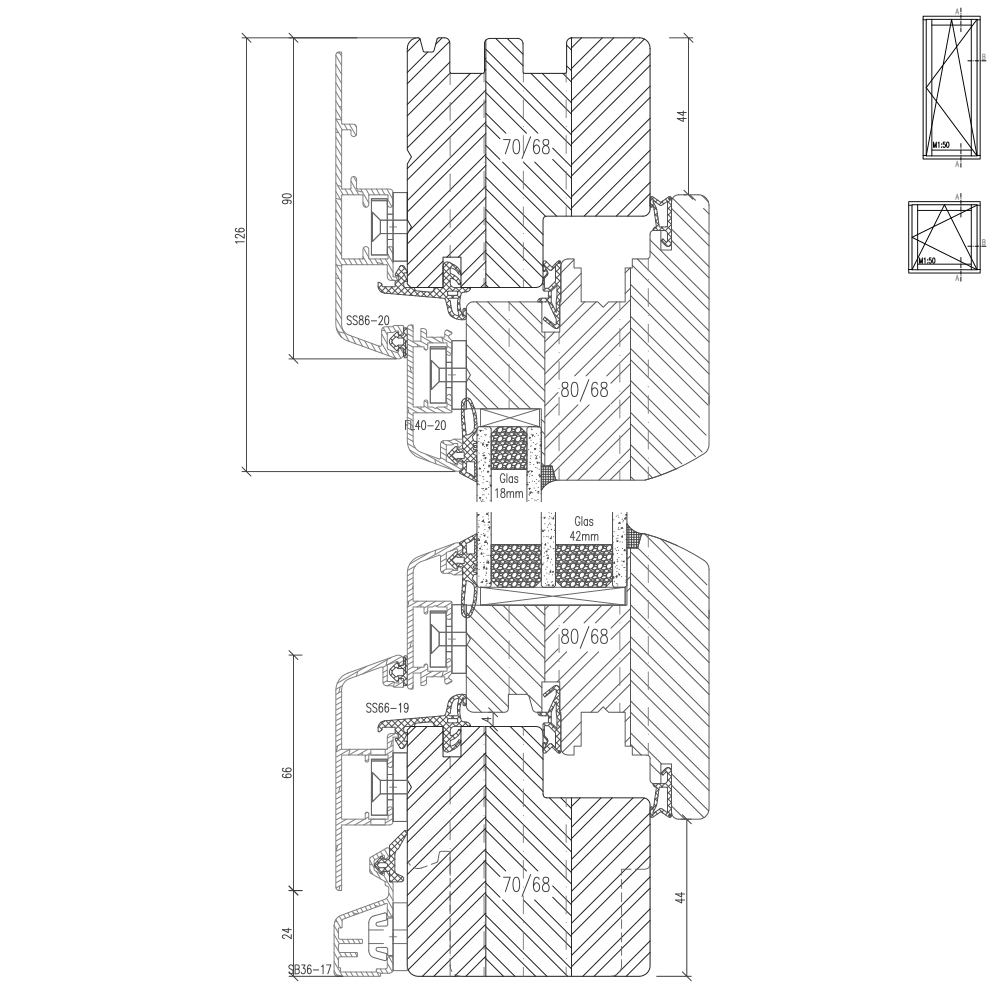

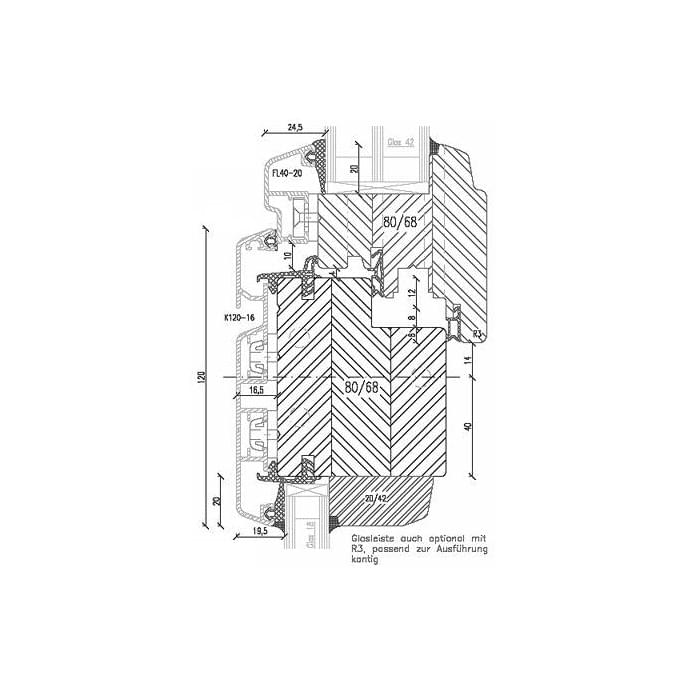

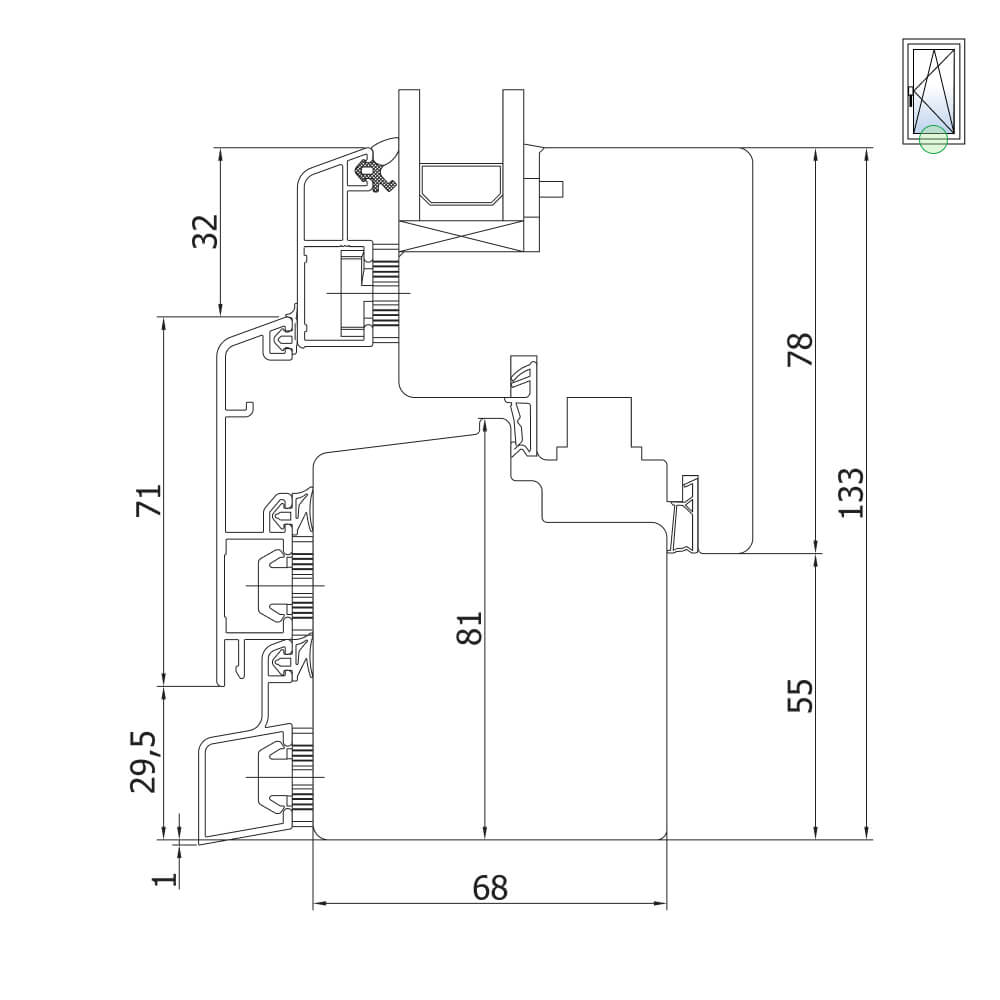

IDEALU Classicline IV 68 - cross section

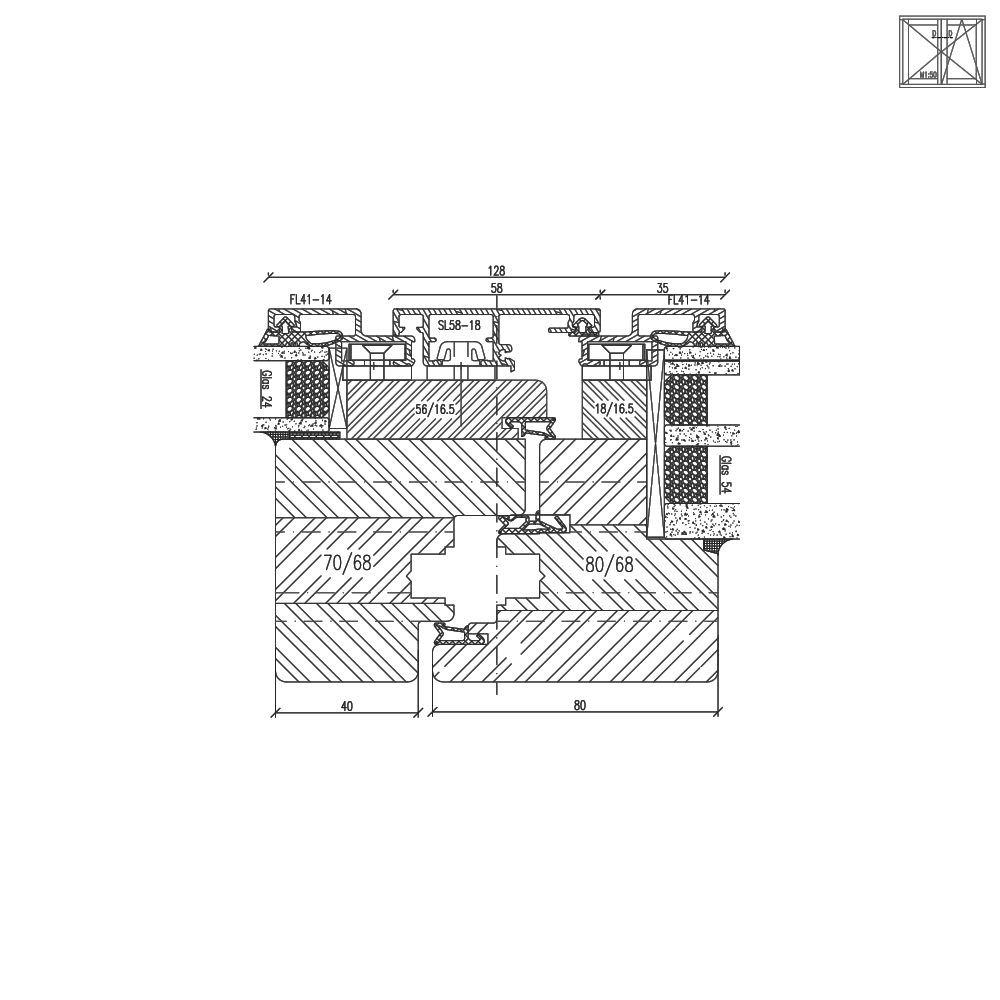

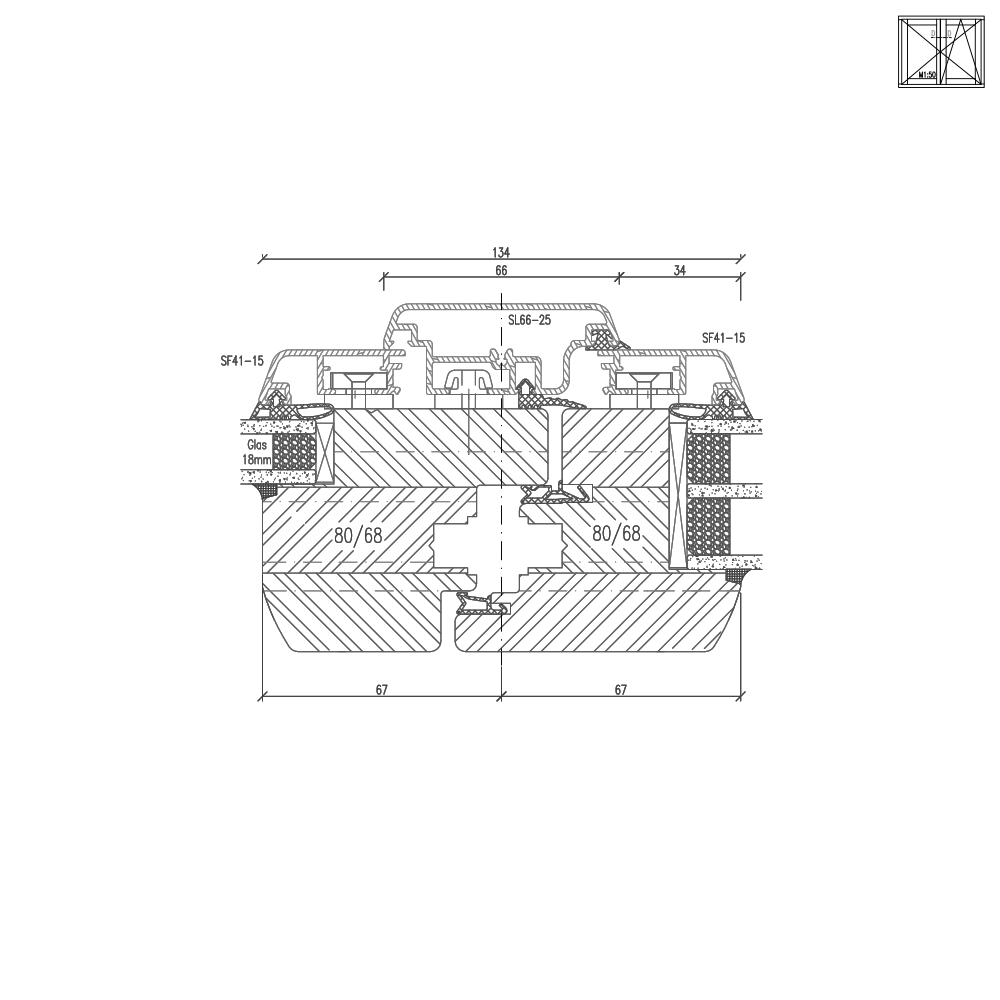

IDEALU Classicline IV 68 - flying mullion

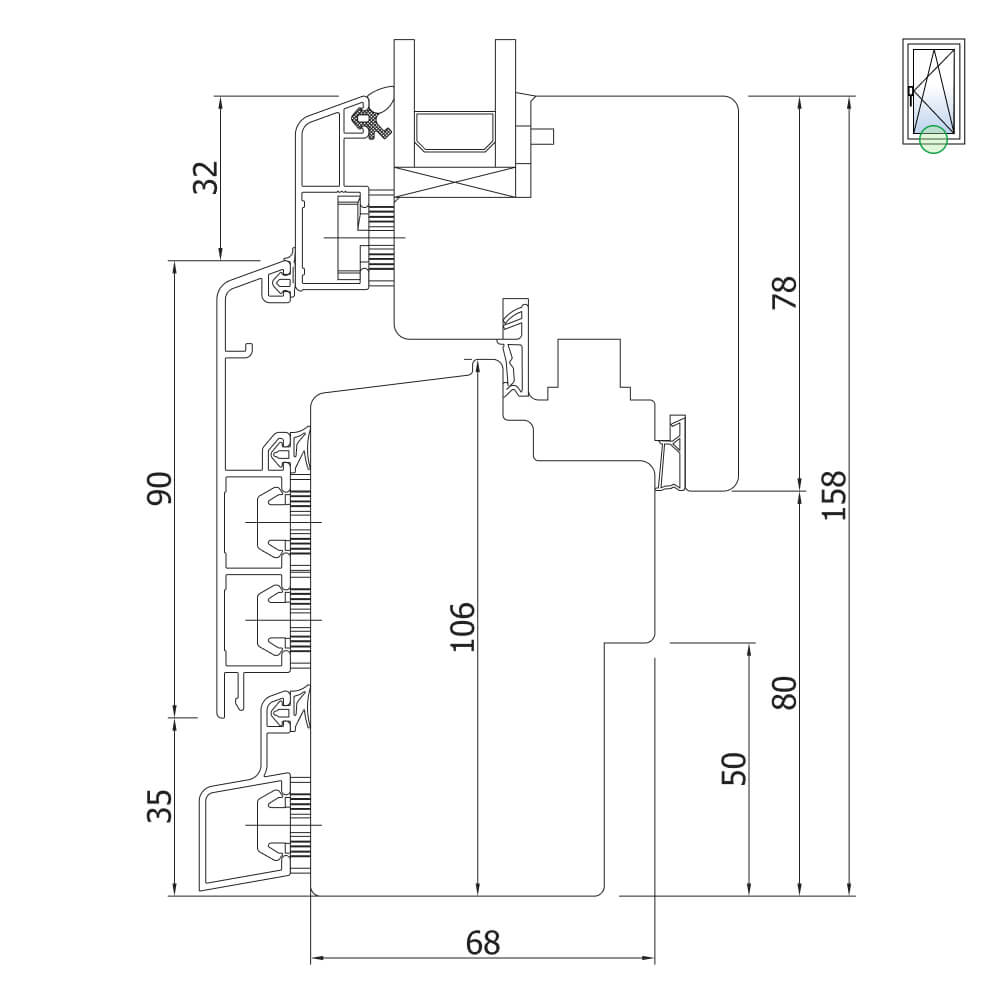

IDEALU Classicline IV 68 - 50 mm montage for older buildings

To top of page

IDEALU Trendline IV 68

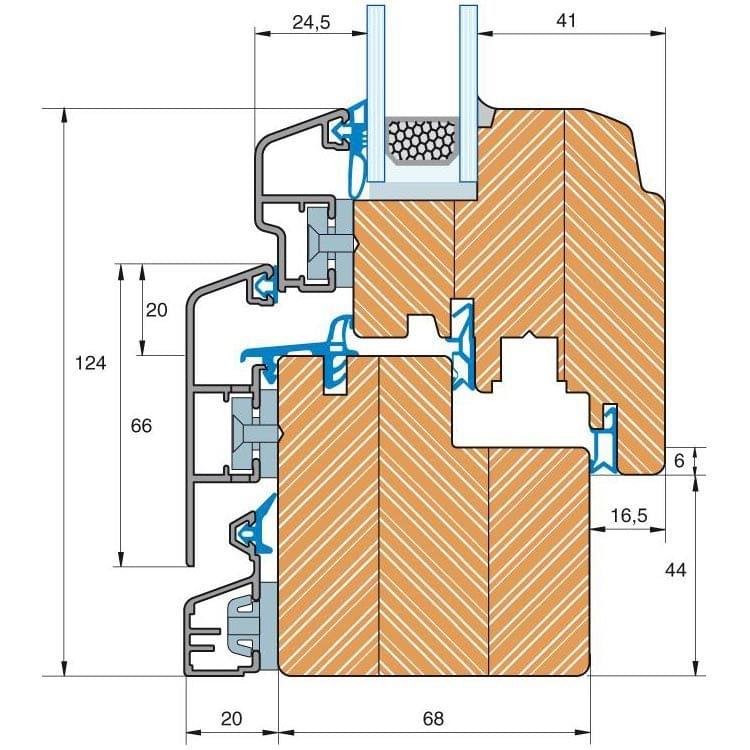

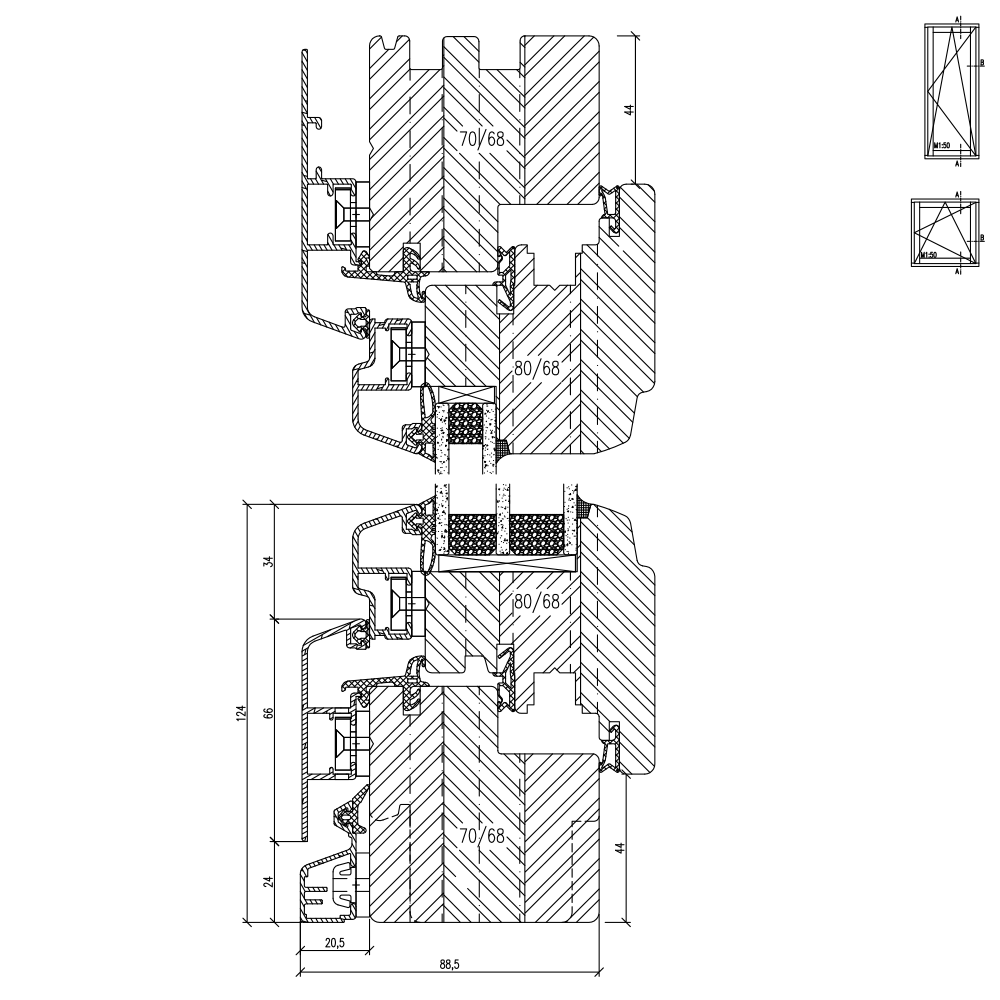

IDEALU IV 68 Trendline - profile section

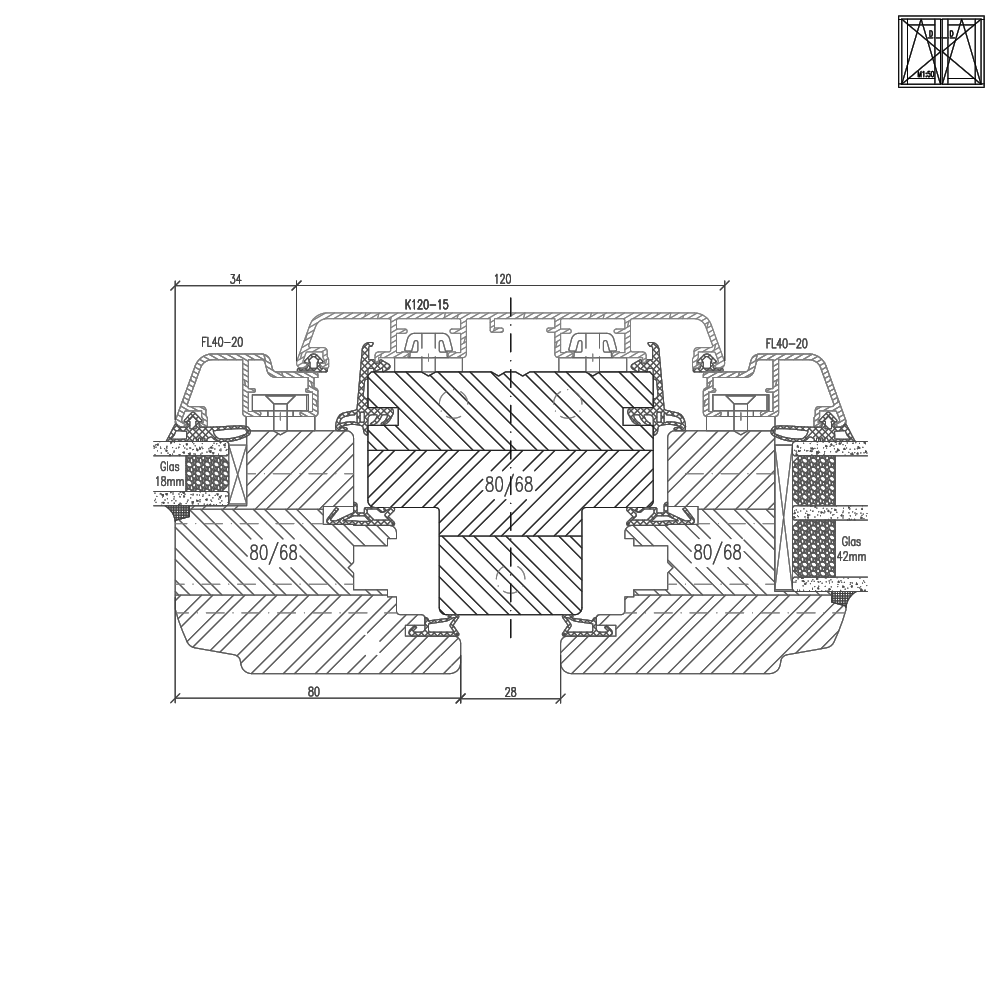

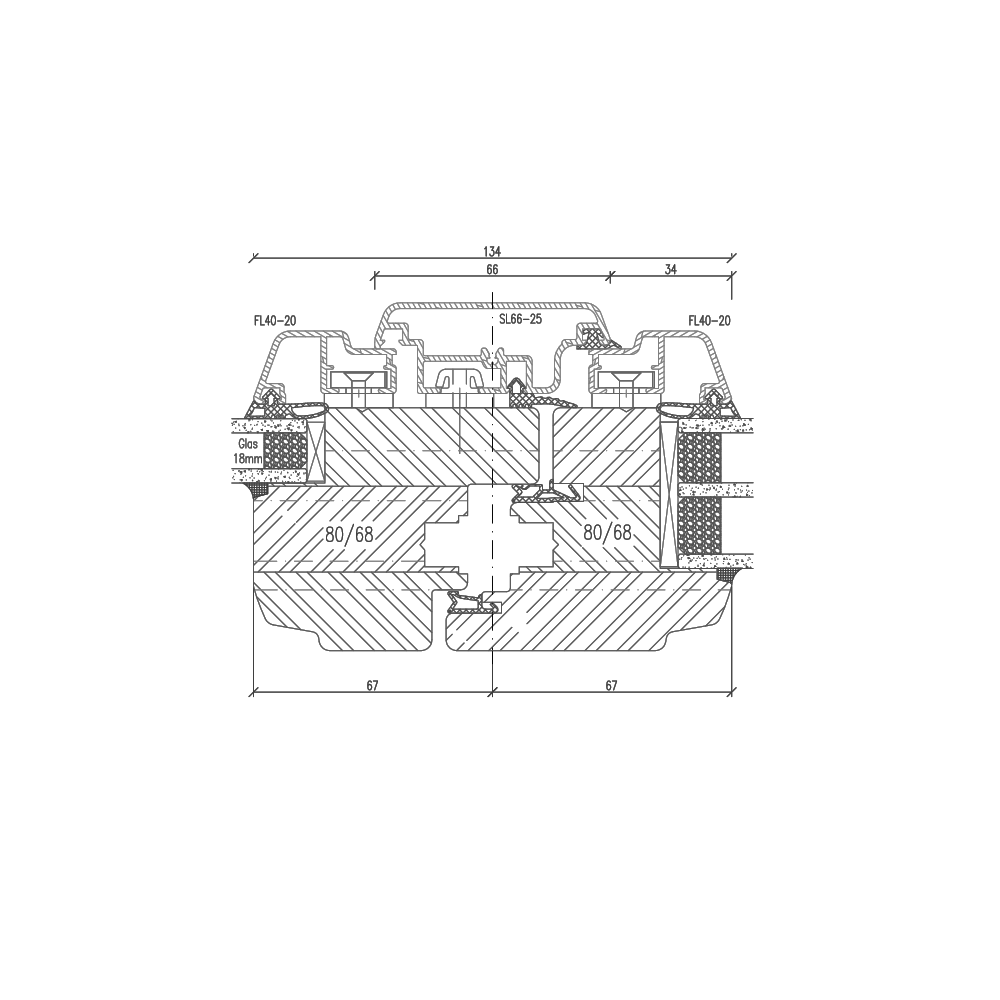

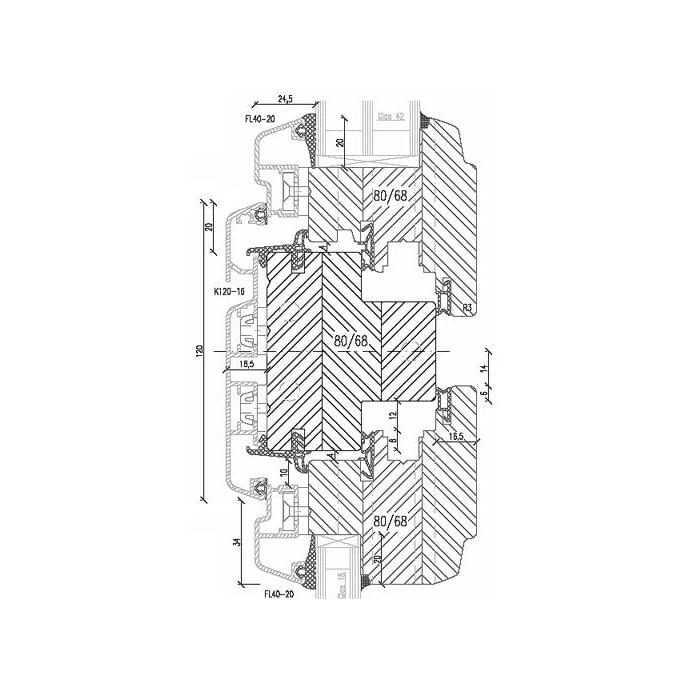

IDEALU Trendline IV 68 - central mullion

To top of page

IDEAL PLANO

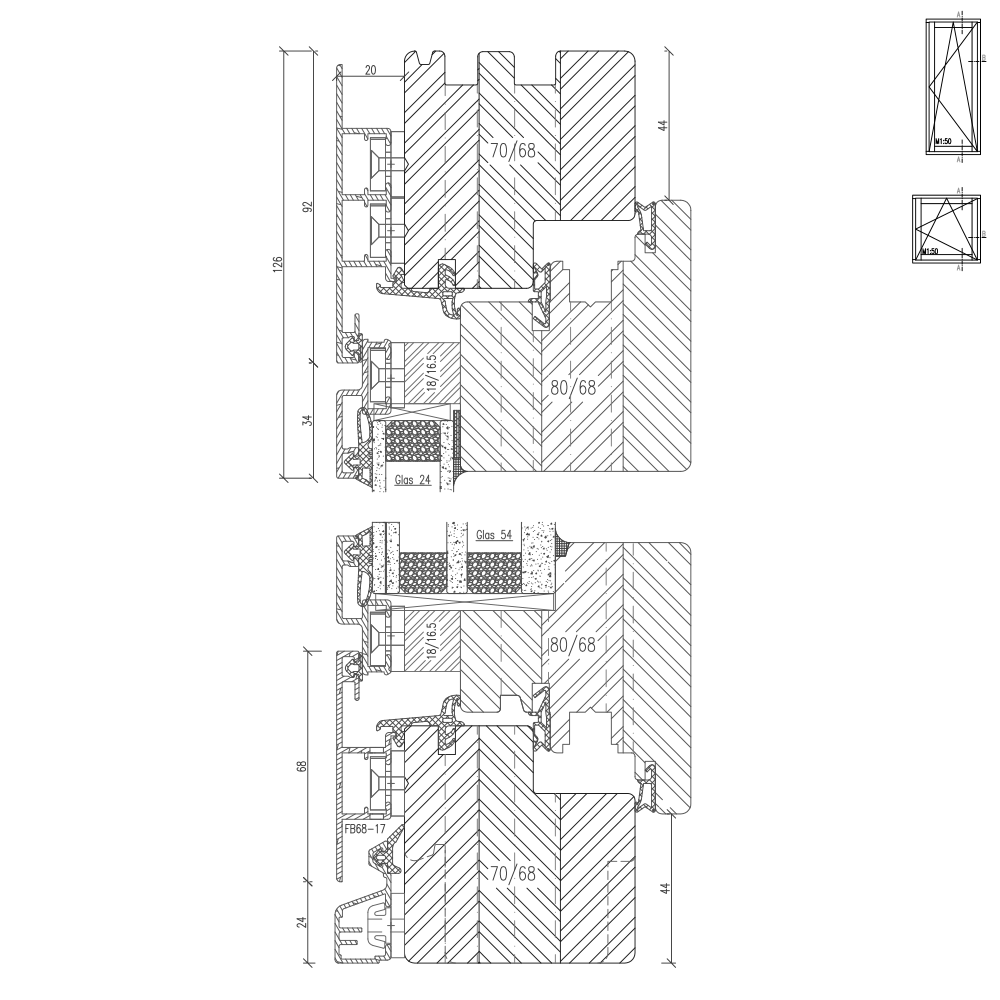

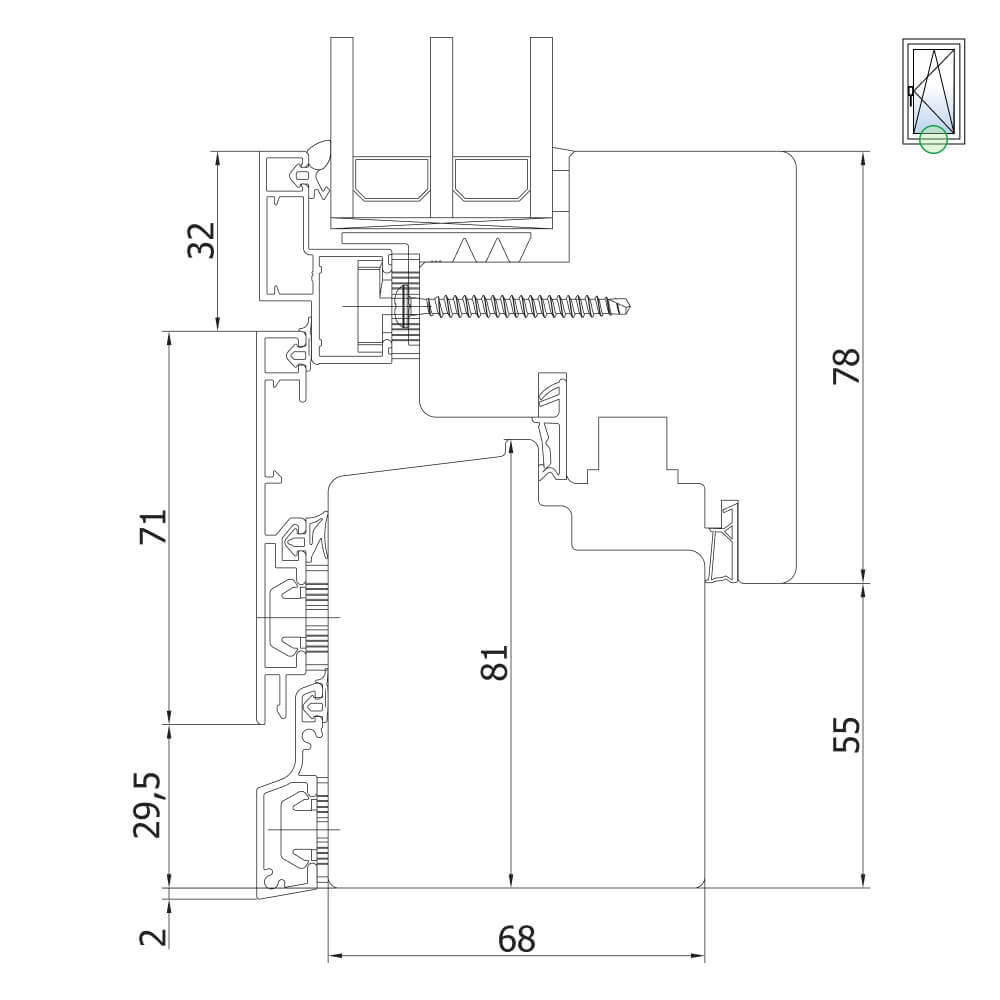

IDEAL PLANO - profile section

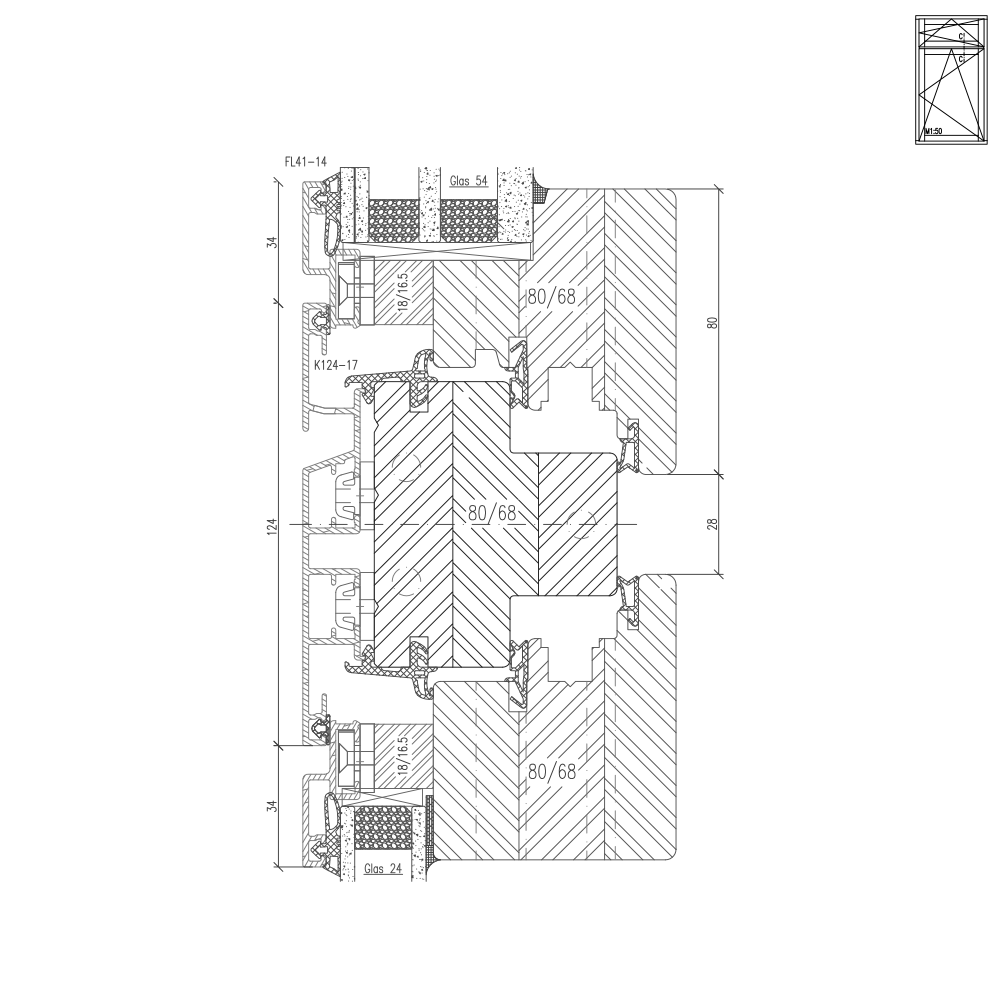

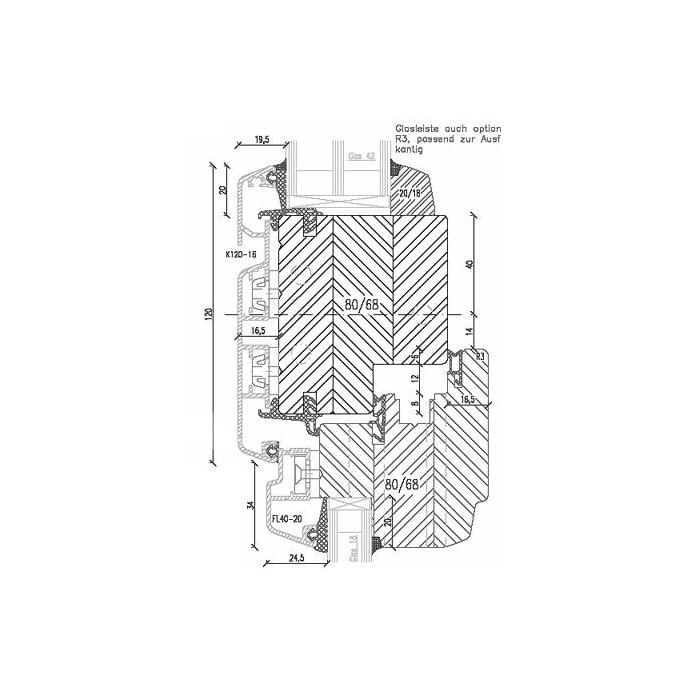

IDEAL PLANO - transom profile

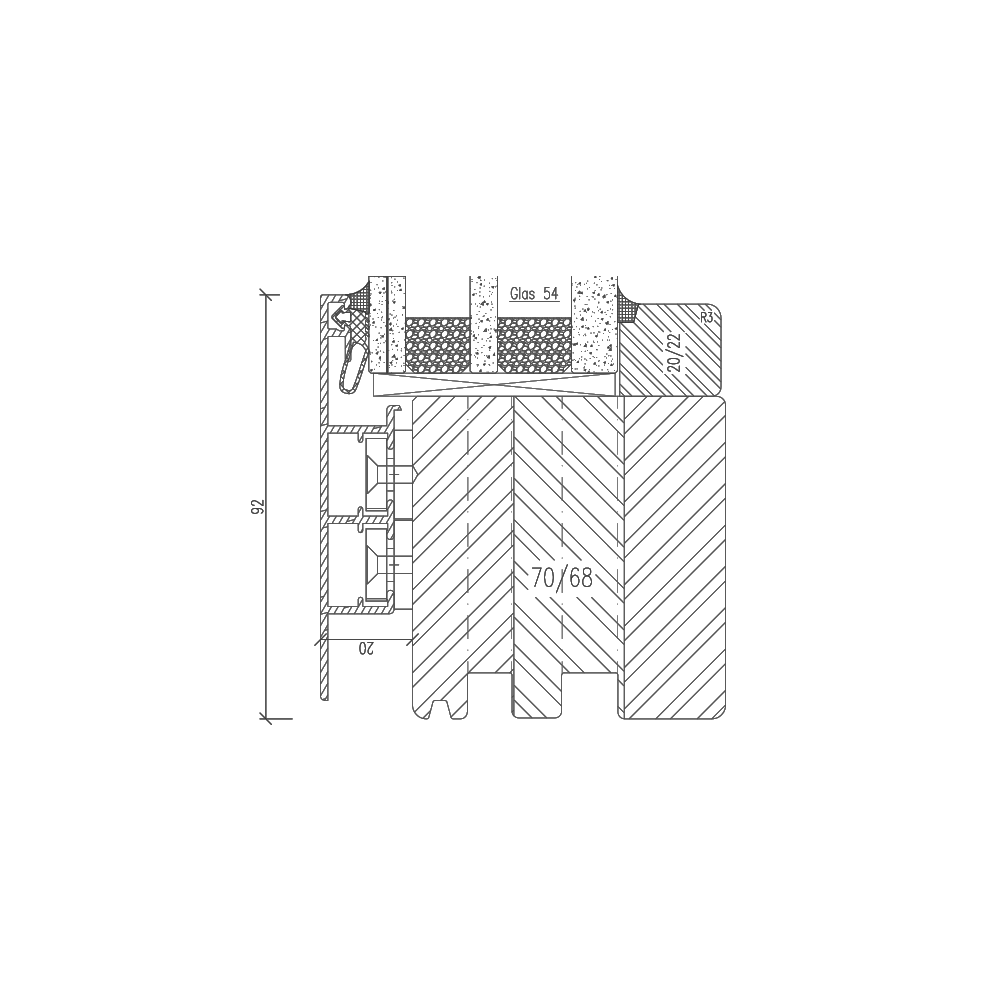

IDEAL PLANO - fixed glazing profile section

To top of page

IDEALU IV 78 Classicline / Trendline & IDEAL ECO PLANO

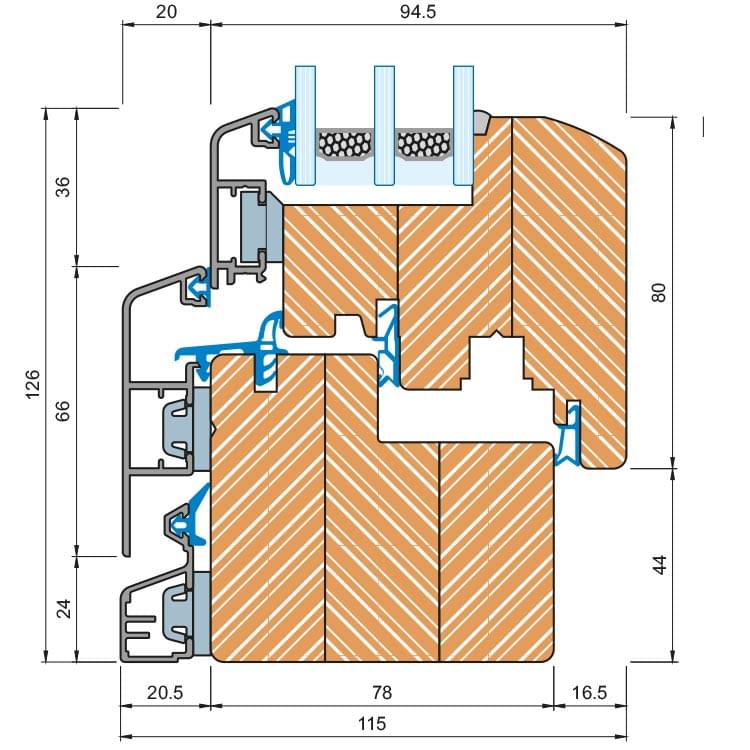

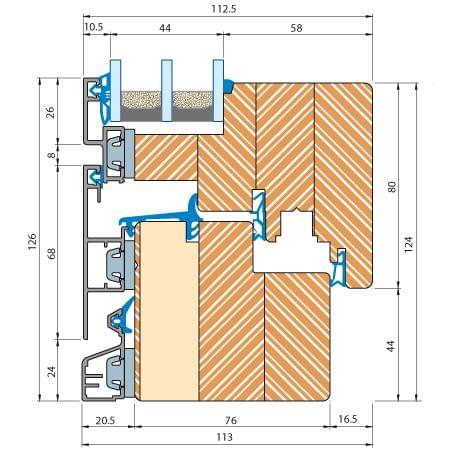

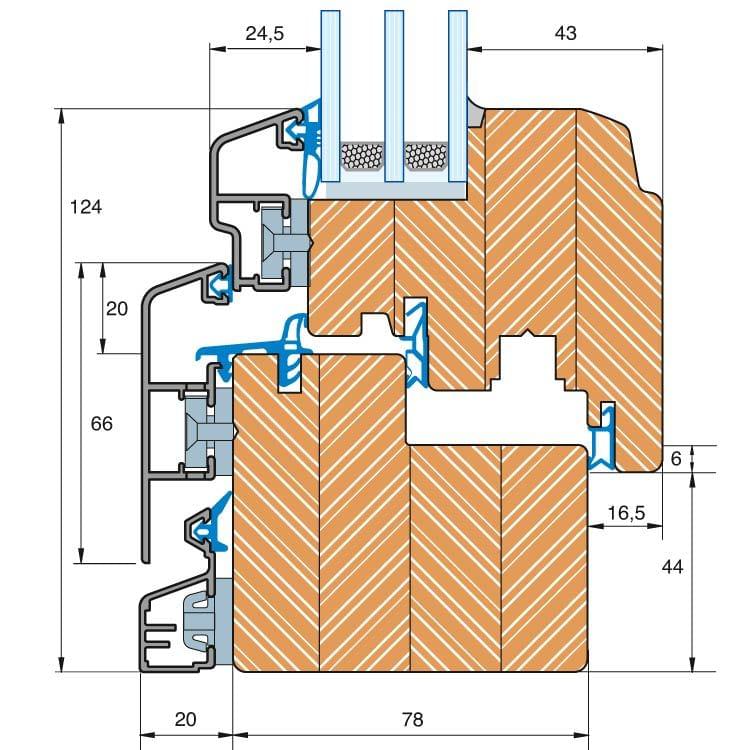

IDEALU Classicline IV 78 - profile section

IDEALU Trendline IV 78 - profile section

IDEAL ECO PLANO - profile section

To top of page

French Doors

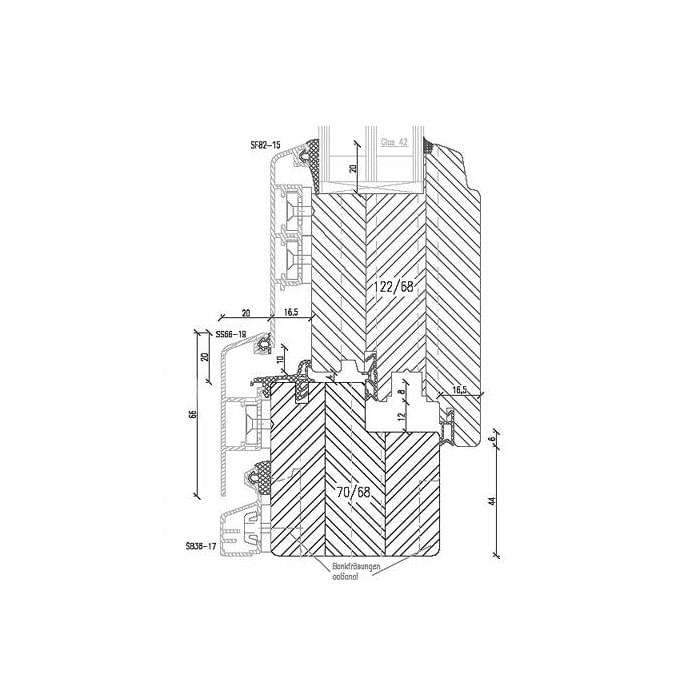

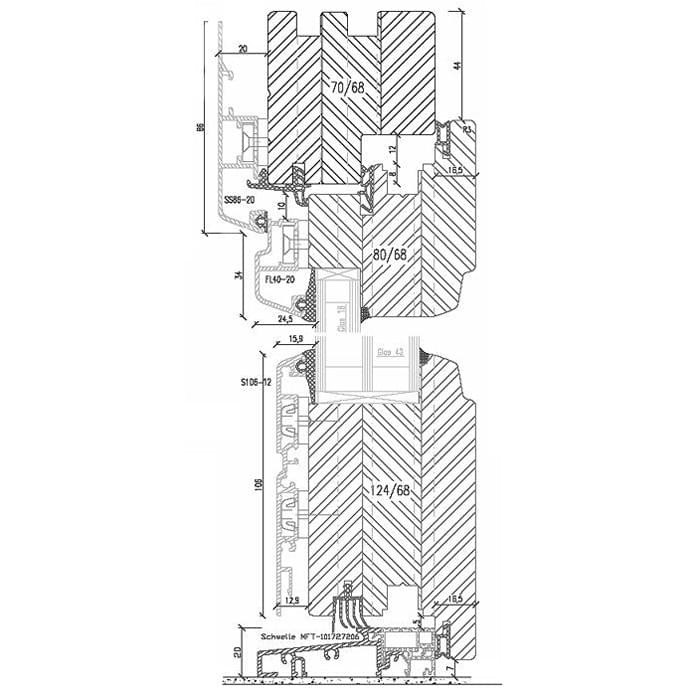

Wood-aluminium French door with door hardware

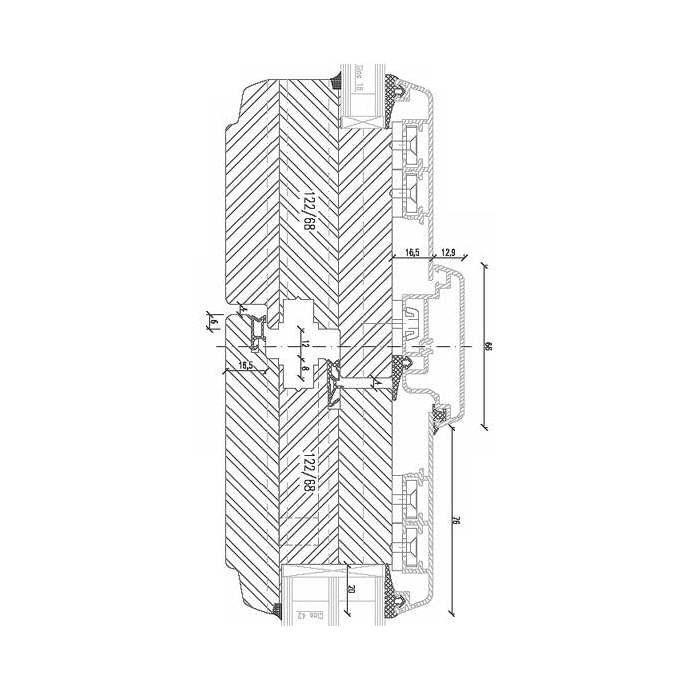

Wood-aluminium double French door with door hardware

To top of page

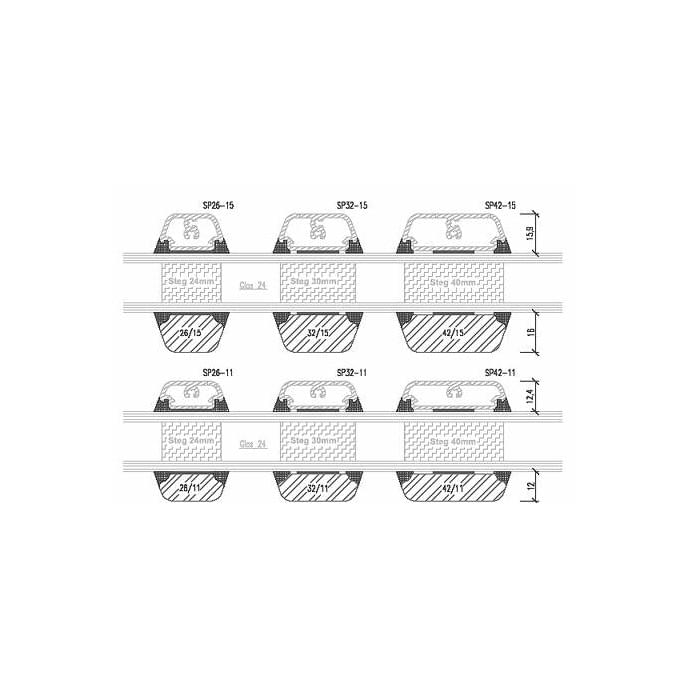

Glazing Bars

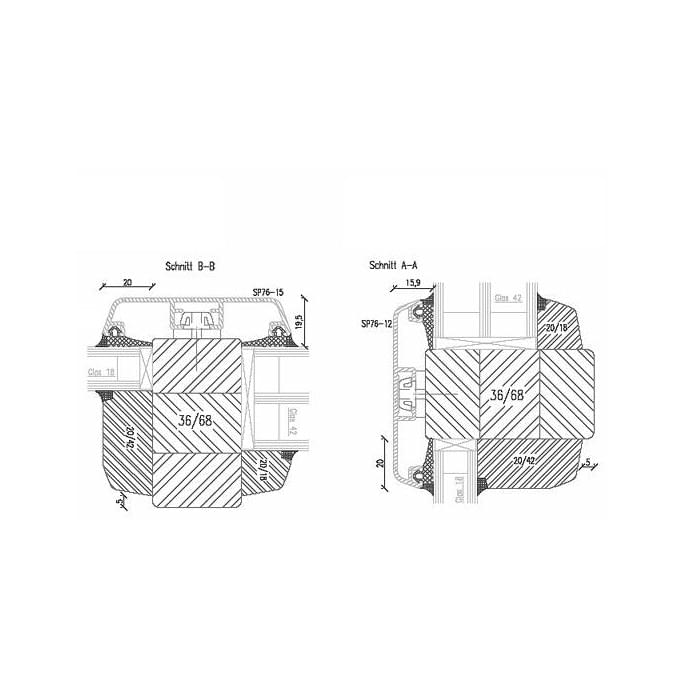

Wood-aluminium windows & French doors - 76 mm partitioning bar

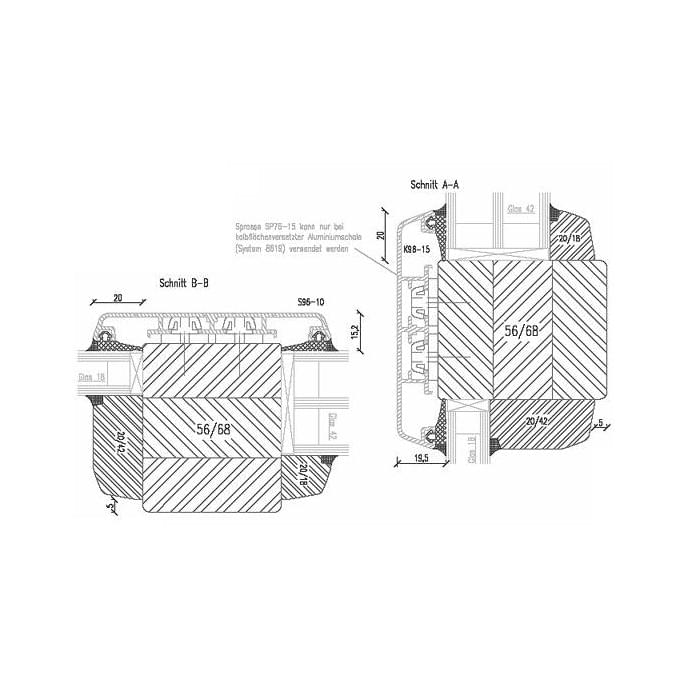

Wood-aluminium windows & French doors - 96 mm partitioning bar

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
