Detail Drawings – uPVC-Aluminium Windows & French Doors

Detailed drawings

Detailed drawings - TwinSet 4000

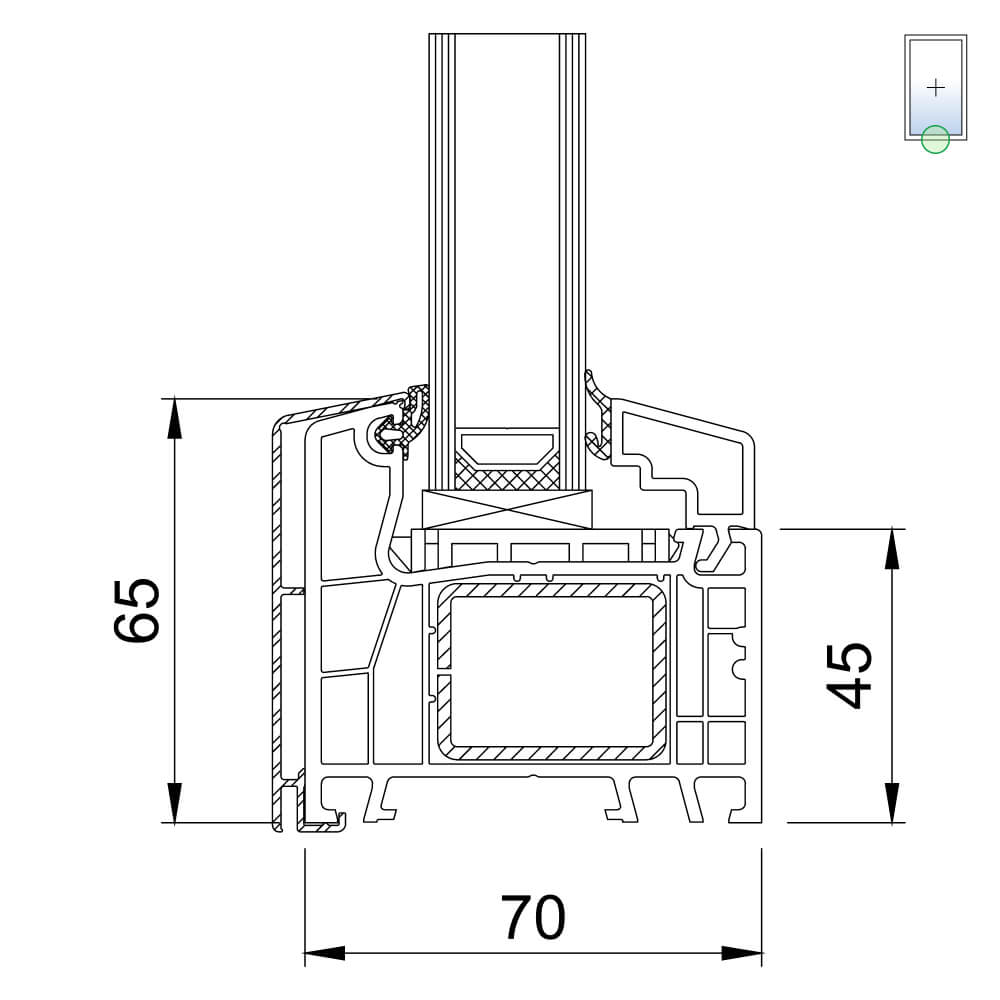

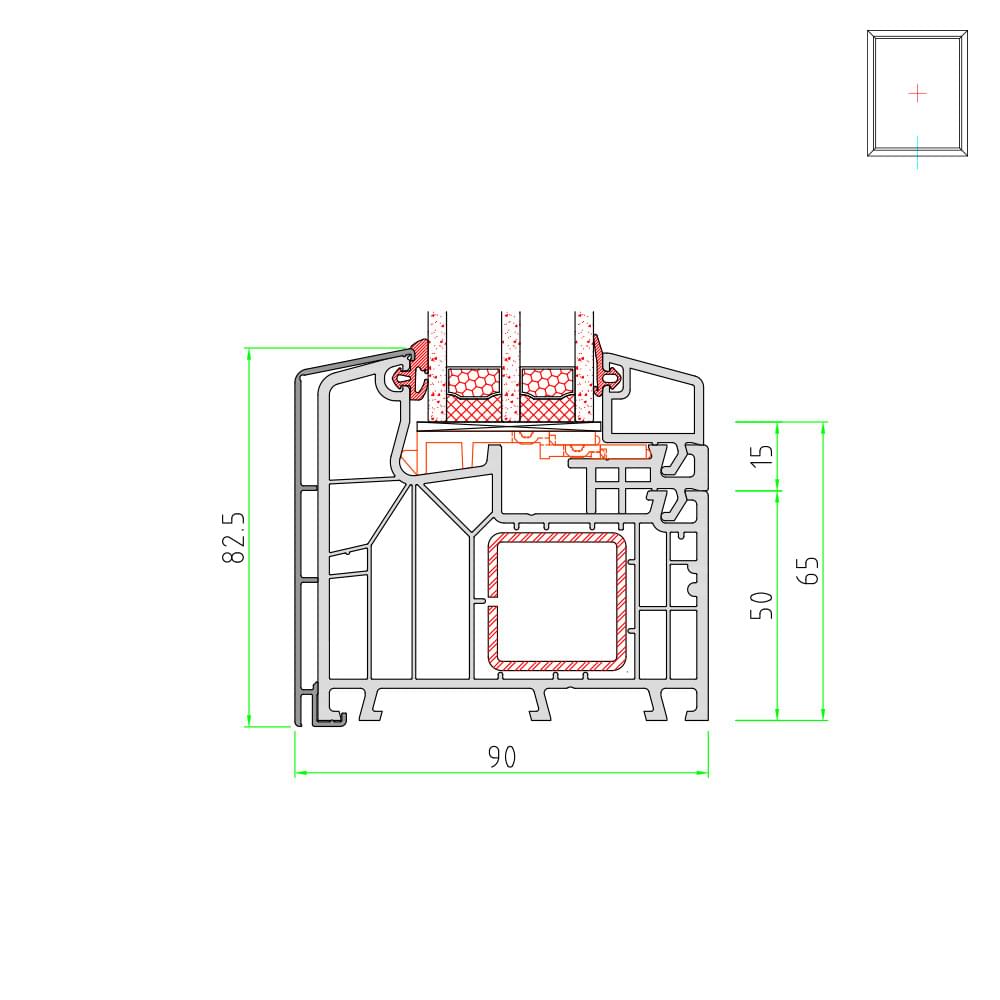

TwinSet 4000 - fixed glazing
TwinSet 4000 - fixed glazing

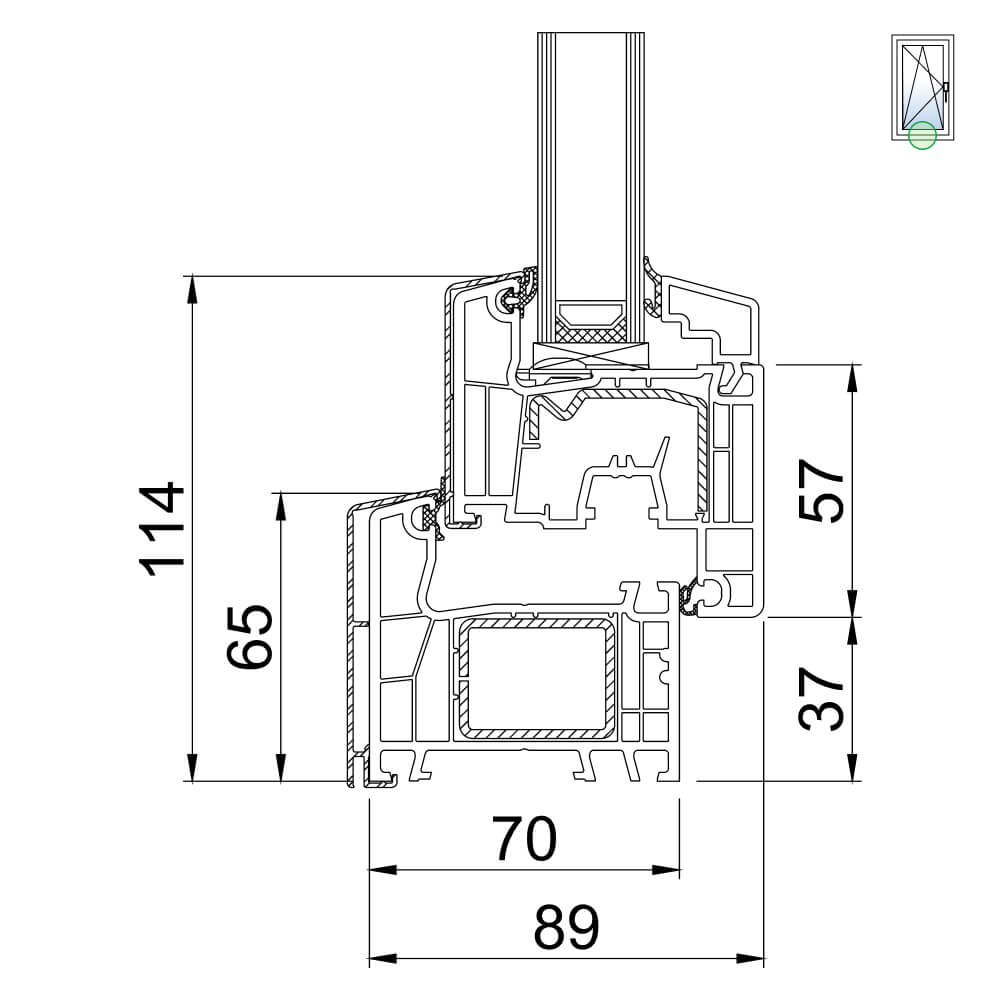

TwinSet 4000 - frame and sash
TwinSet 4000 - frame and sash

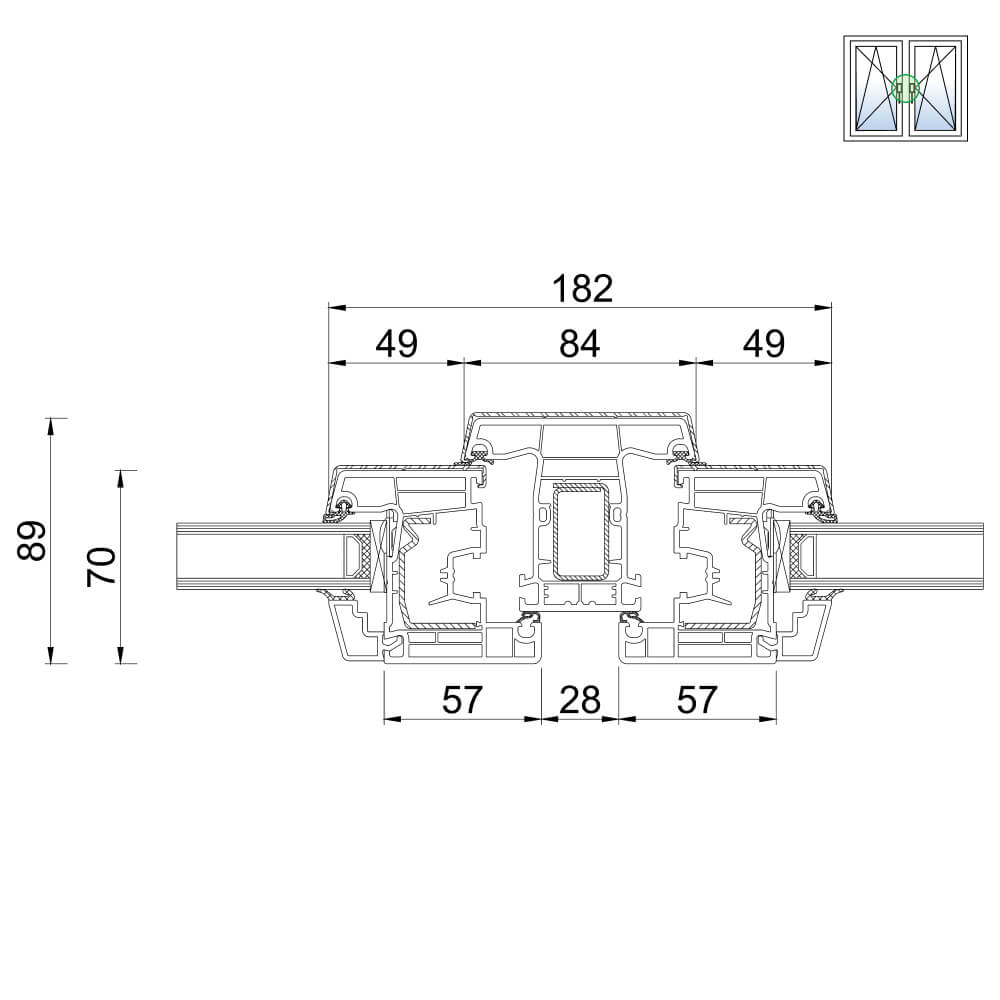

TwinSet 4000 - central mullion with sashes
TwinSet 4000 - central mullion with sashes

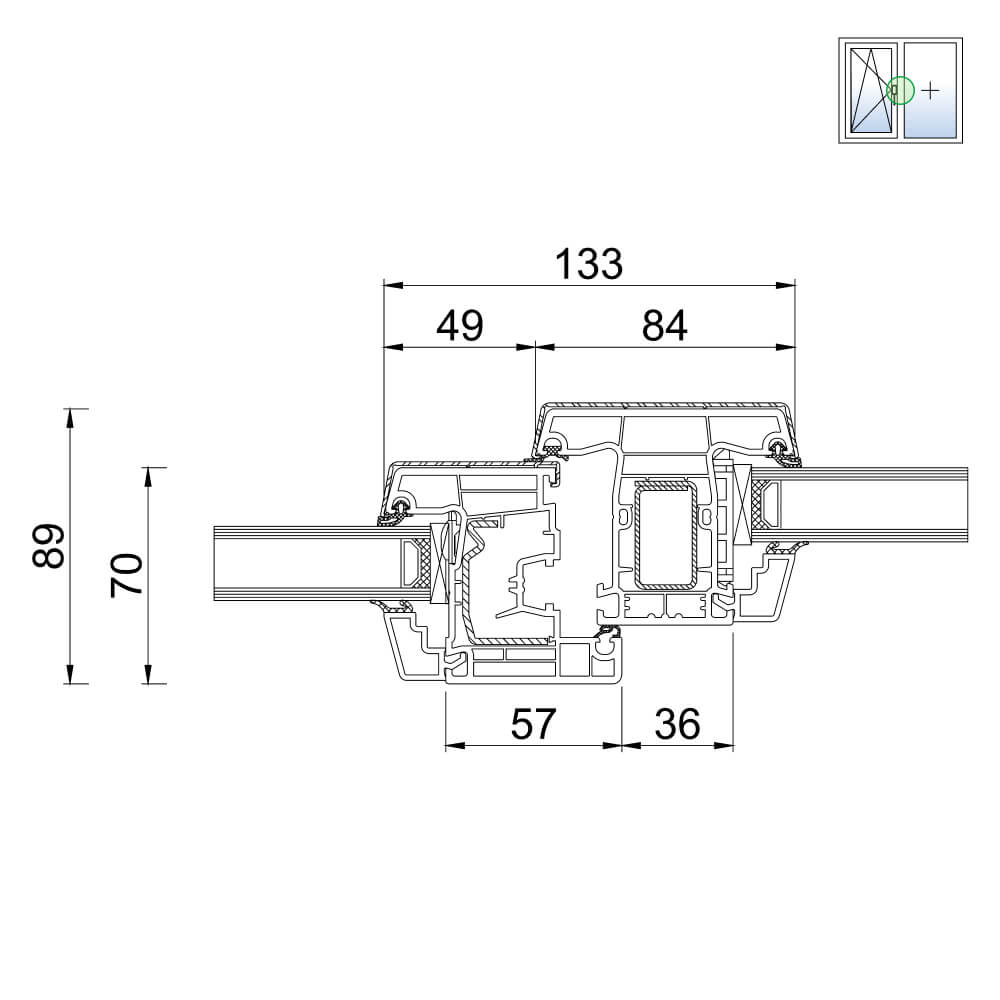

TwinSet 4000 - central mullion with one fixed and one openable sash
TwinSet 4000 - central mullion with one fixed and one openable sash

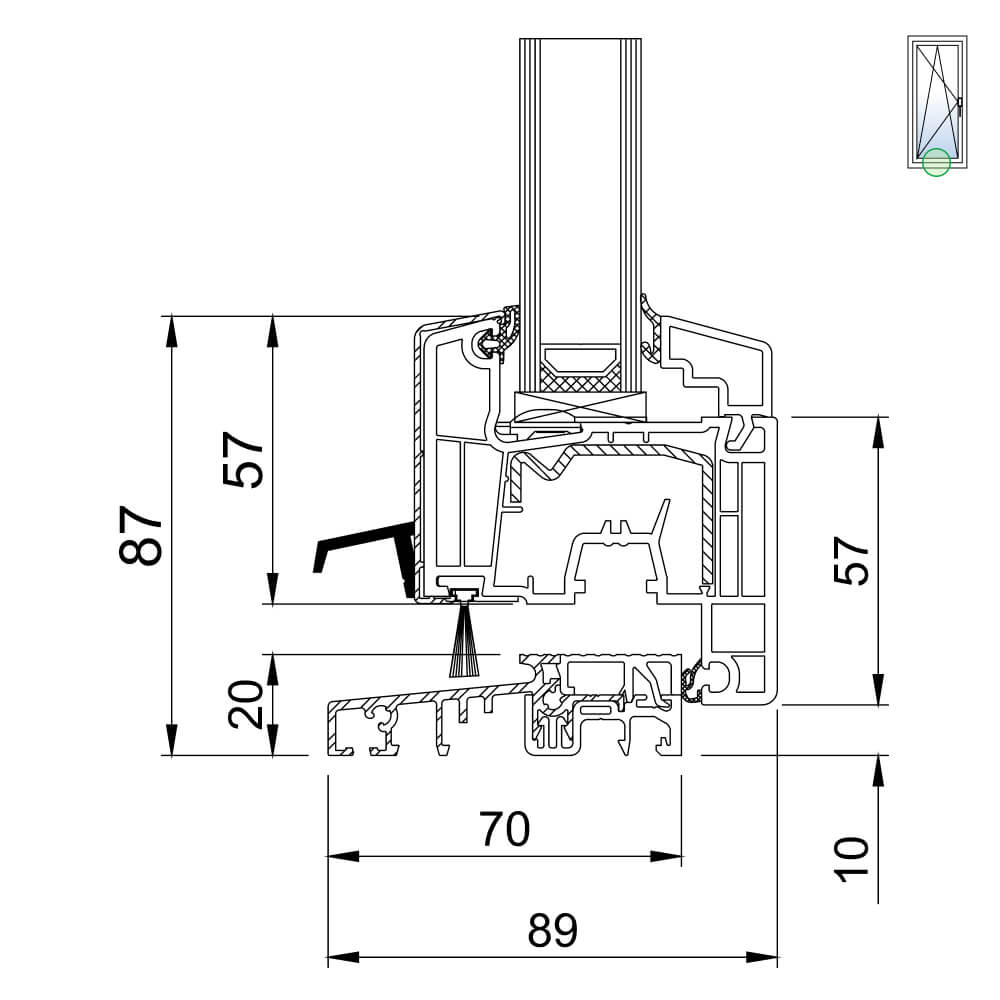

TwinSet 4000 - French door with threshold
TwinSet 4000 - French door with threshold

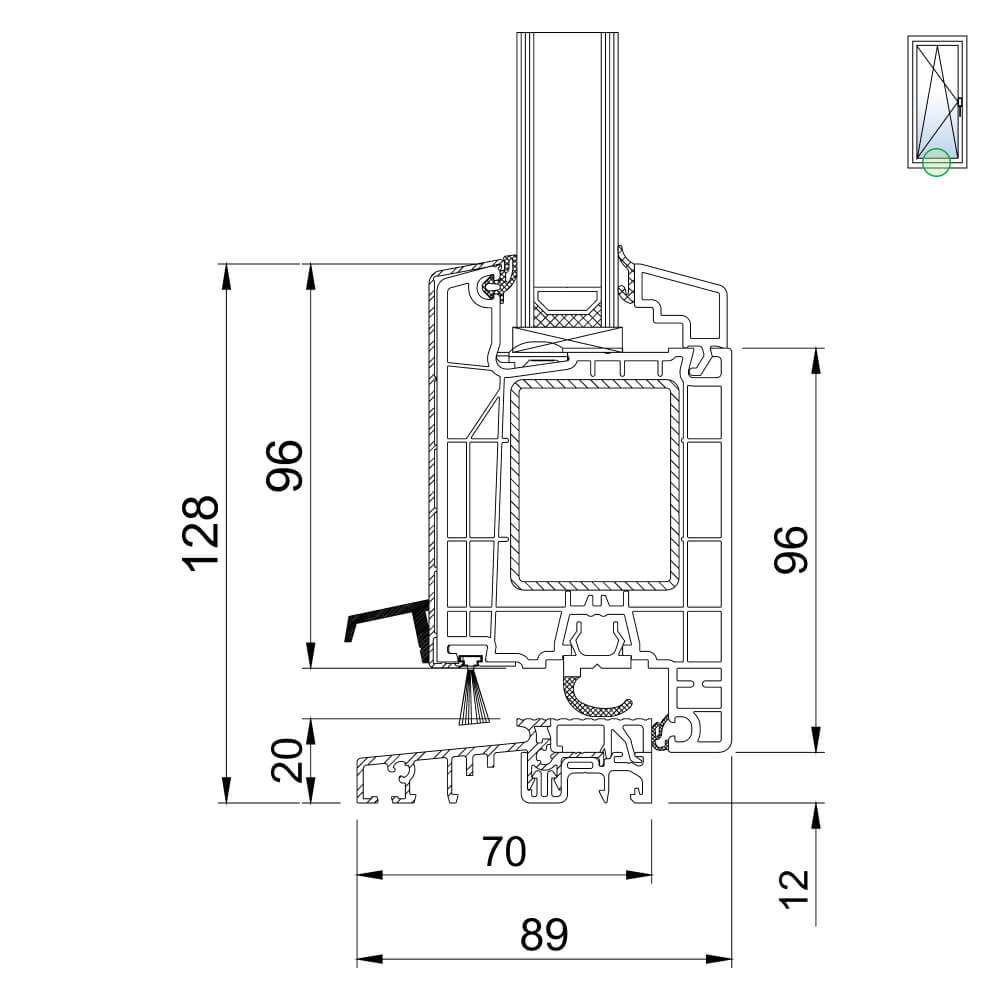

TwinSet 4000 - large French door with threshold
TwinSet 4000 - large French door with threshold

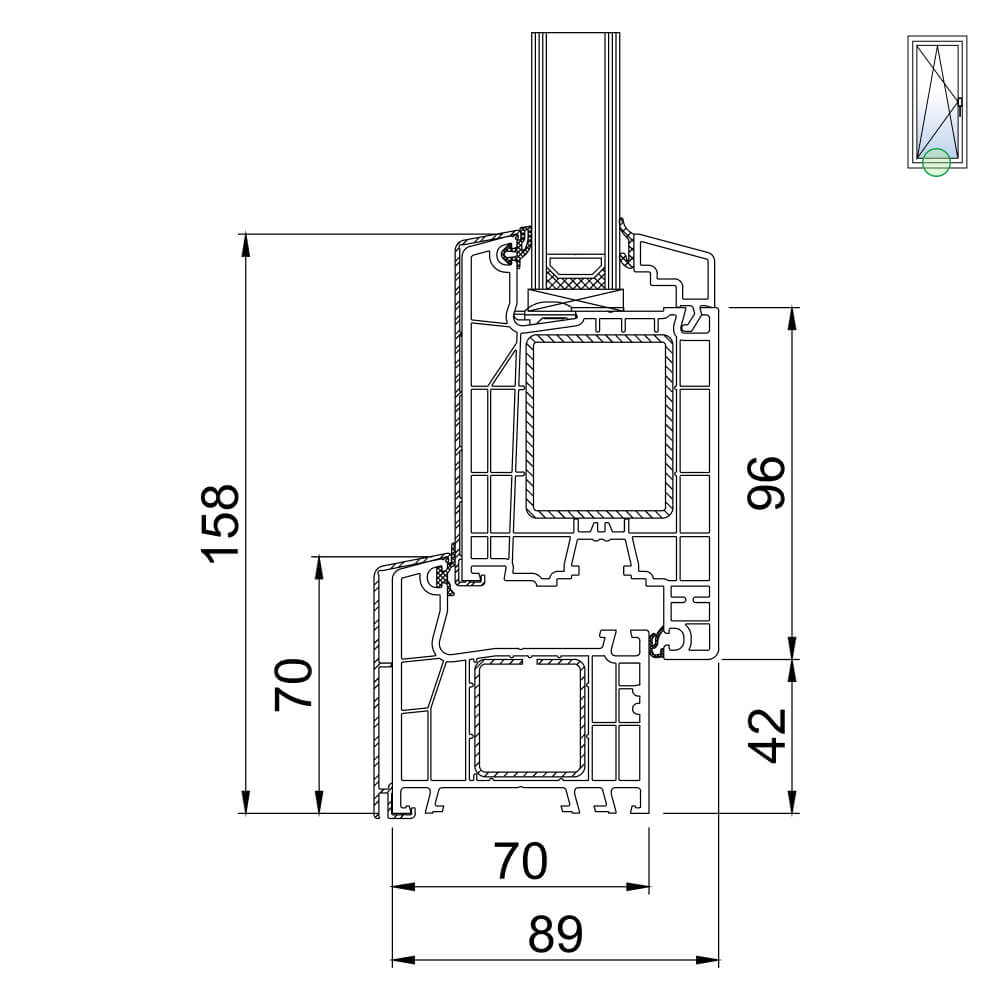

TwinSet 4000 - large French door with frame and sash
TwinSet 4000 - large French door with frame and sash
TwinSet 4000 - central mullion
TwinSet 4000 - central mullion

To top of page

Detailed drawings - TwinSet 8000

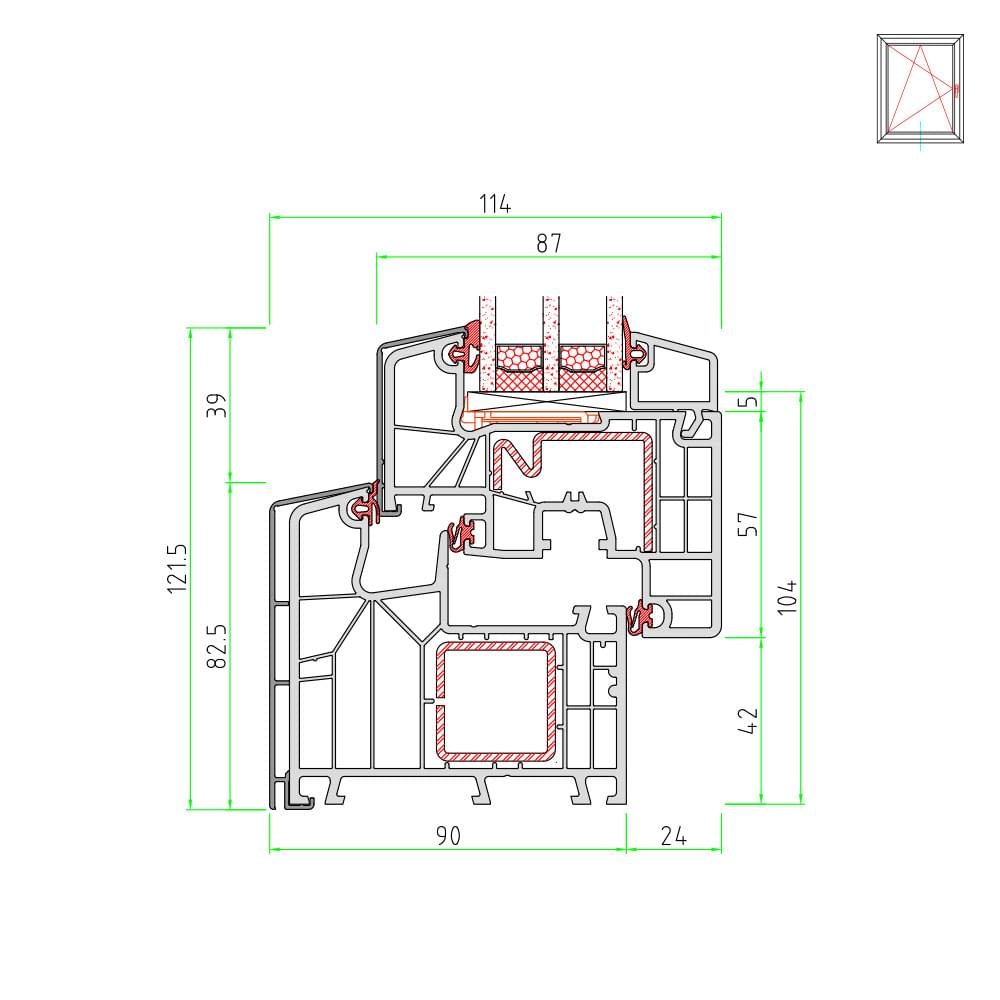

Twinset 8000 - frame and sash
Twinset 8000 - frame and sash

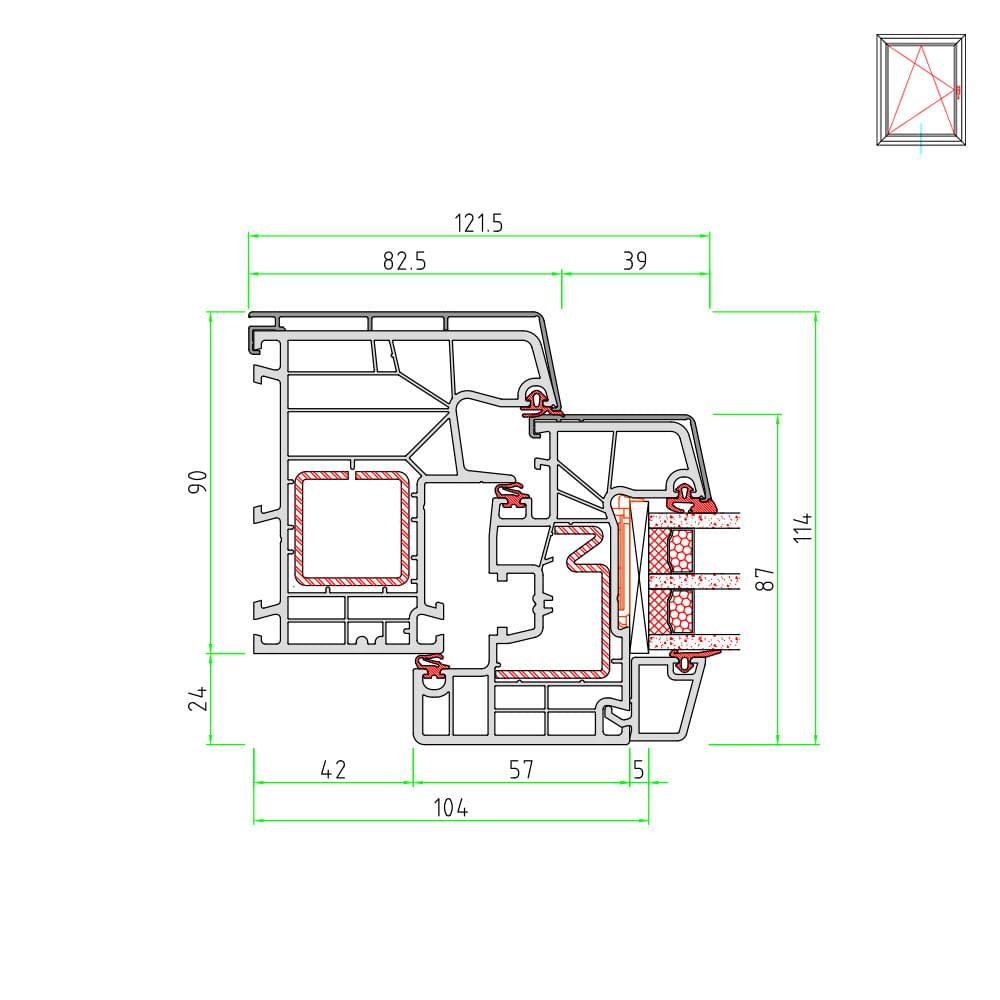

Twinset 8000 - profile section
Twinset 8000 - profile section

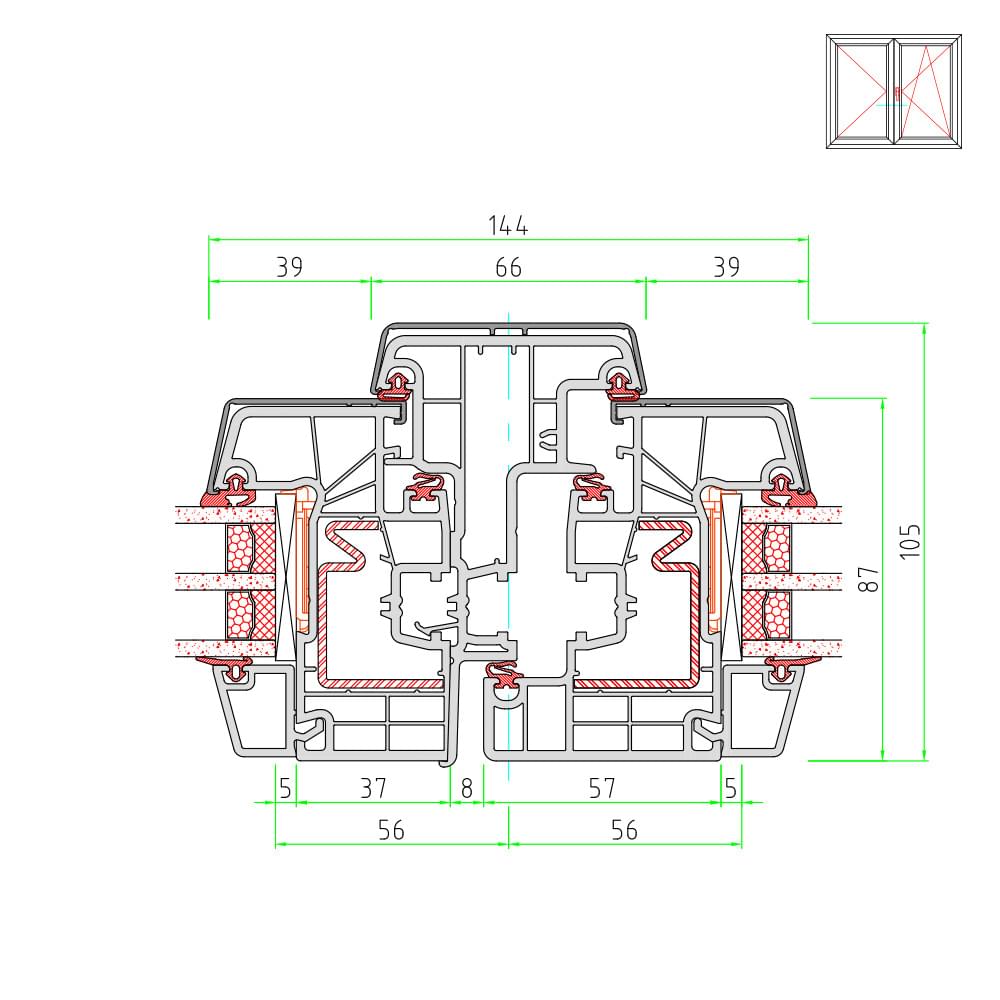

Twinset 8000 - central mullion
Twinset 8000 - central mullion

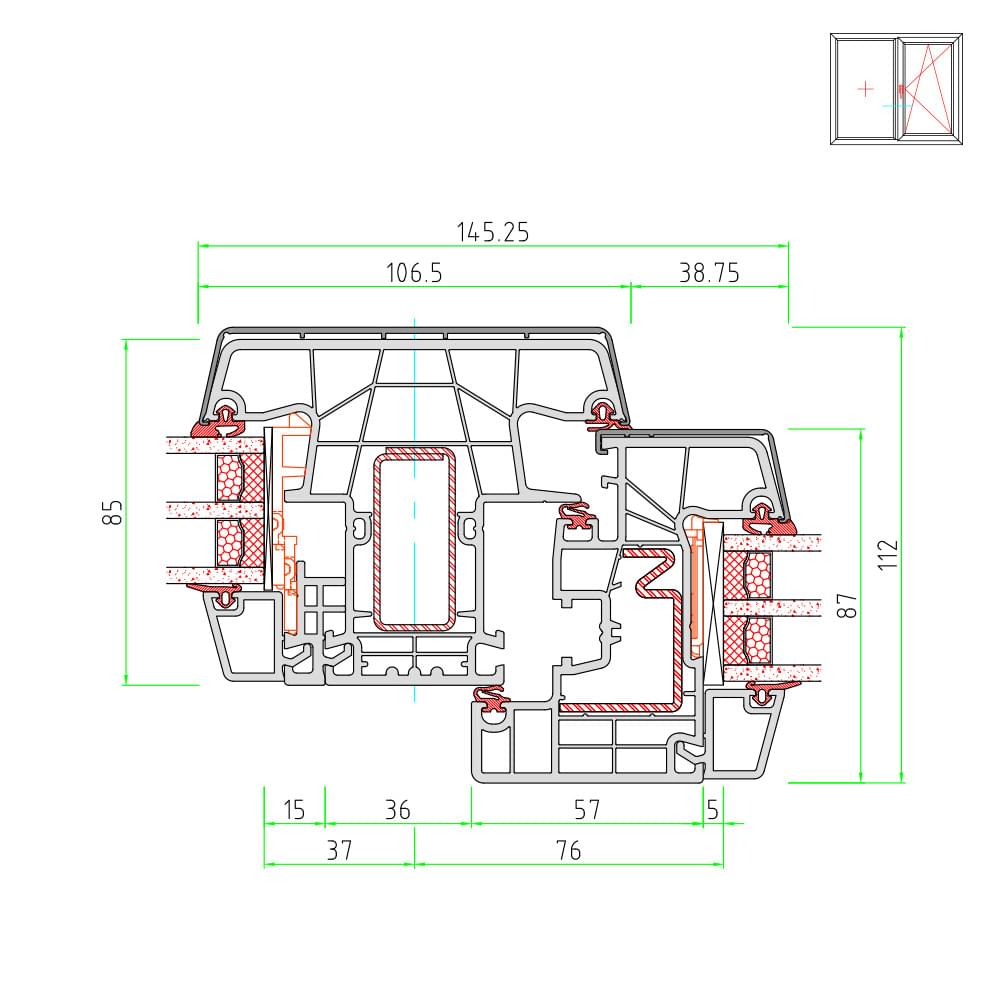

Twinset 8000 - central mullion with one fixed glazed sash and one openable sash
Twinset 8000 - central mullion with one fixed glazed sash and one openable sash
Twinset 8000 - central mullion fixed glazed sashes
Twinset 8000 - central mullion fixed glazed sashes

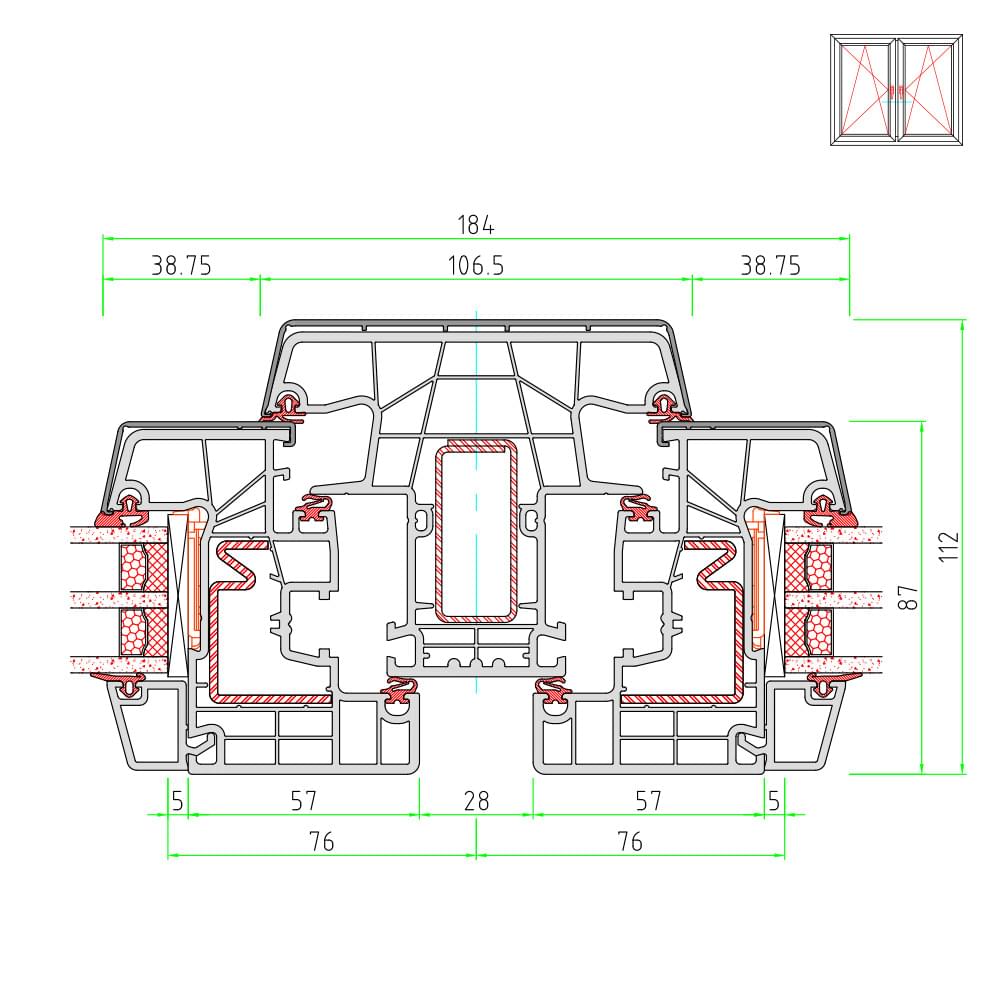

TwinSet 8000 - central mullion with openable sashes
TwinSet 8000 - central mullion with openable sashes

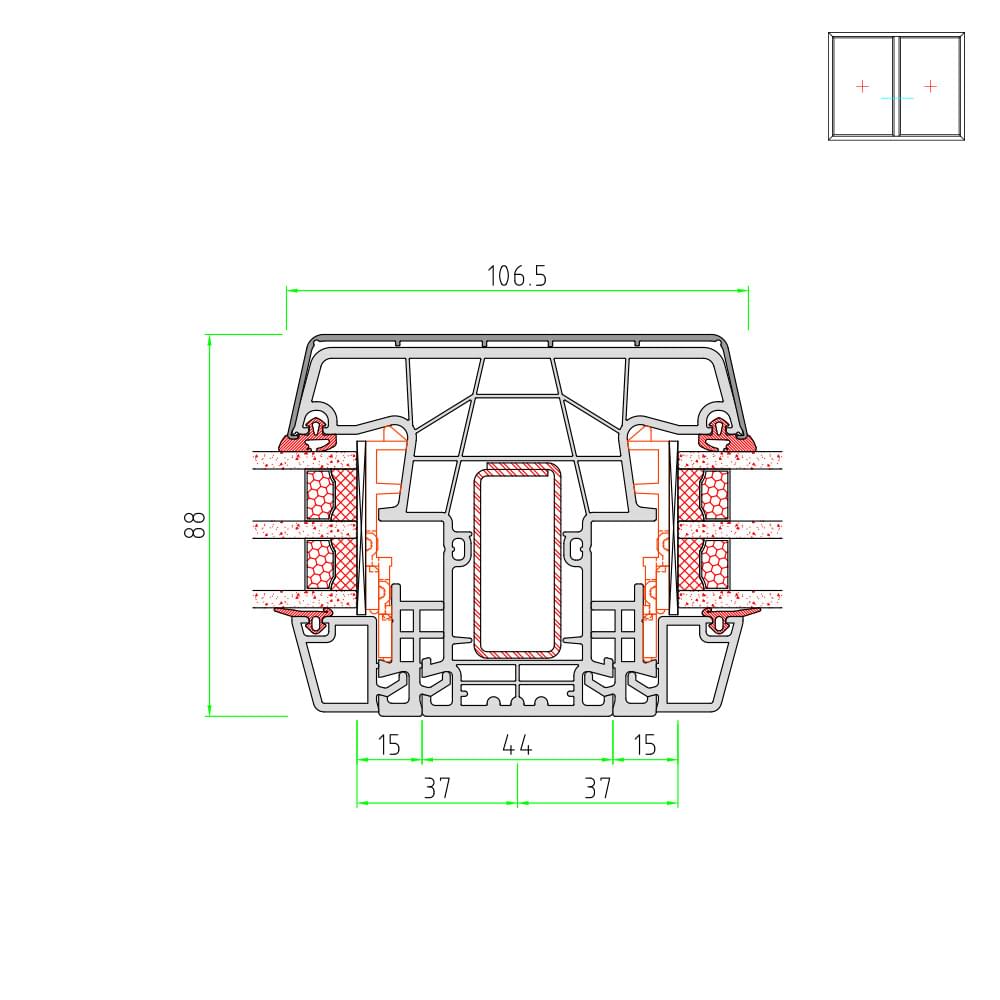

TwinSet 8000 - central mullion with fixed glazing
TwinSet 8000 - central mullion with fixed glazing

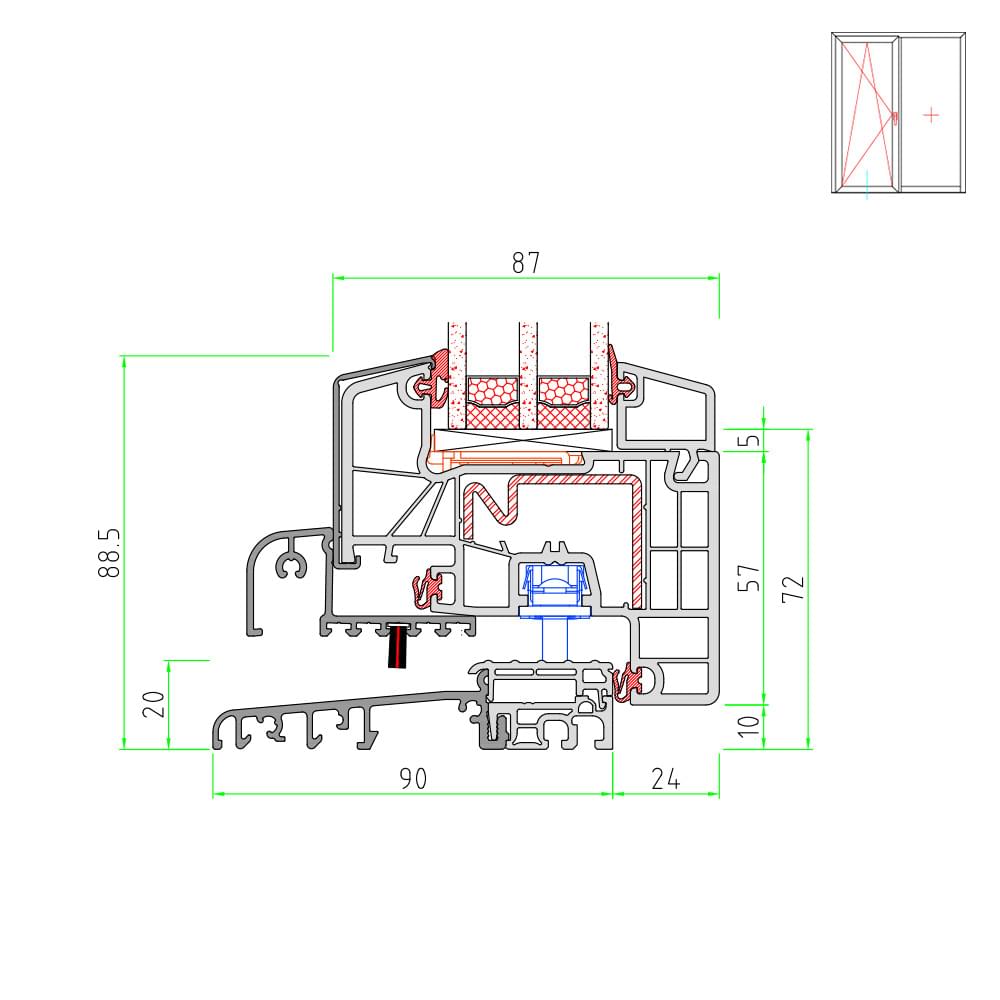

TwinSet 8000 - French door with flat threshold
TwinSet 8000 - French door with flat threshold

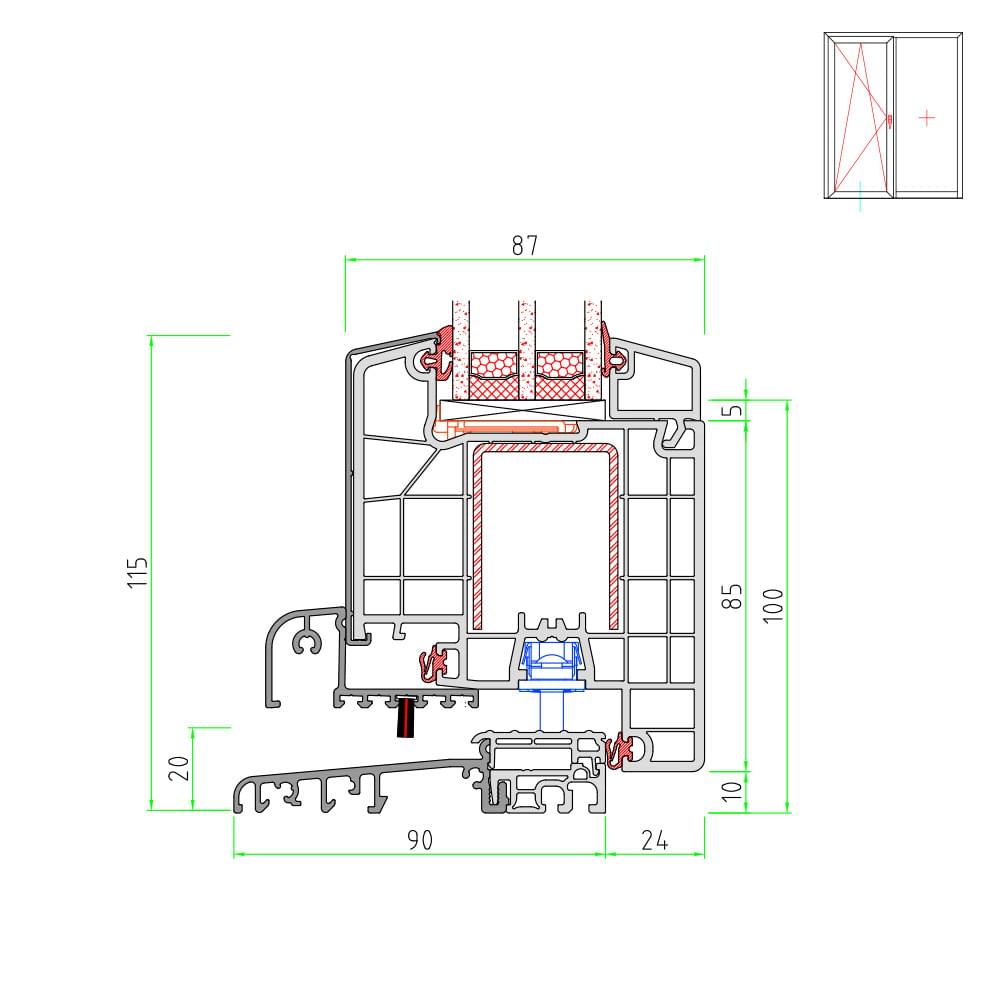

TwinSet 8000 - openable French door with threshold
TwinSet 8000 - openable French door with threshold
TwinSet 8000 - French door with central mullion and openable sashes
TwinSet 8000 - French door with central mullion and openable sashes

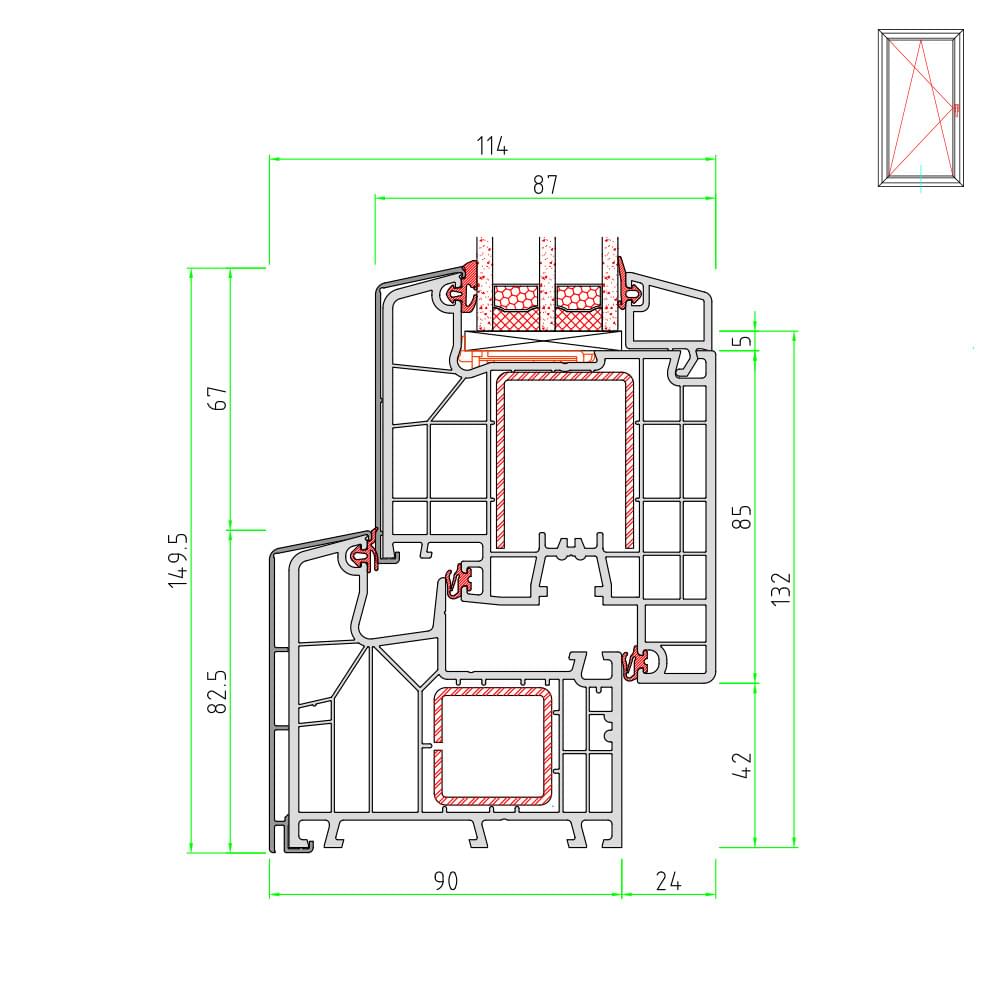

TwinSet 8000 - openable French door
TwinSet 8000 - openable French door

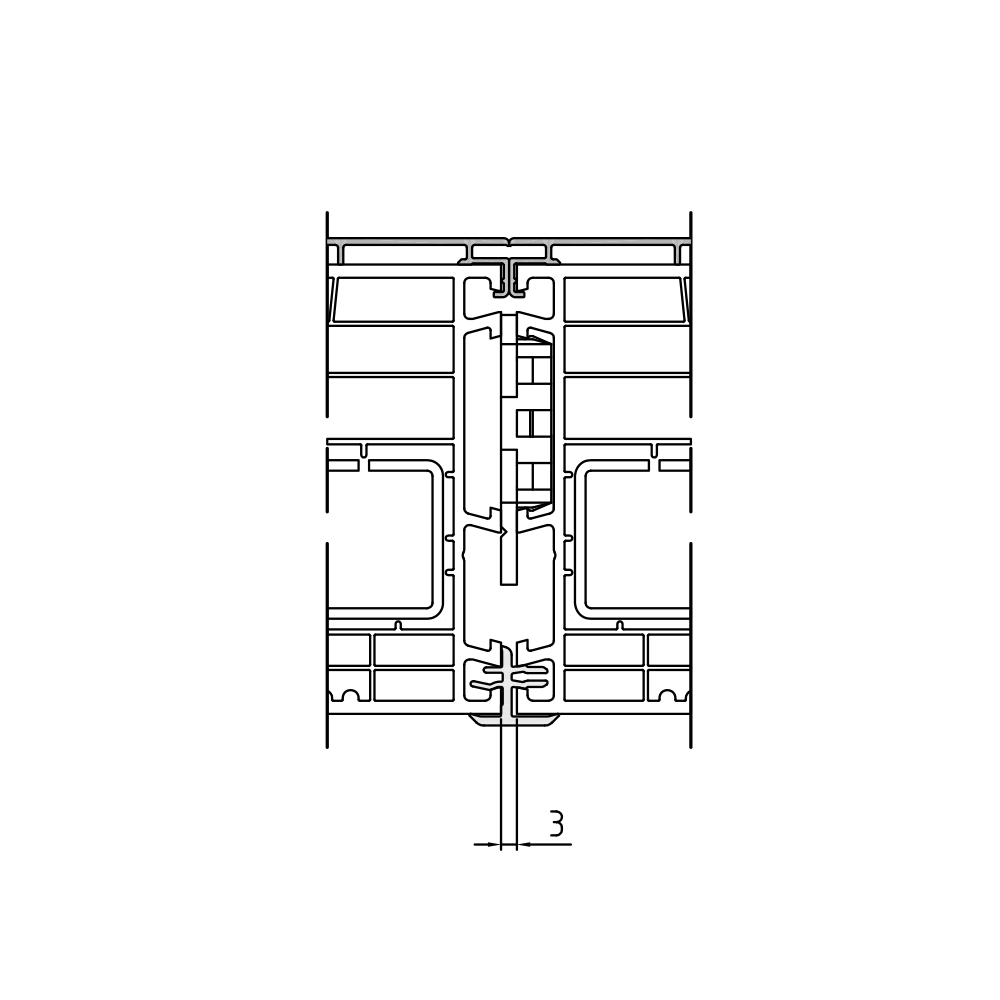

Twinset 8000 - 90 mm coupling spring
Twinset 8000 - 90 mm coupling spring
Twinset 8000 - 90 mm static coupling 1
Twinset 8000 - 90 mm static coupling 1
Twinset 8000 - 90 mm static coupling 2
Twinset 8000 - 90 mm static coupling 2

To top of page

Detailed drawings - energeto TwinSet 8000 ED

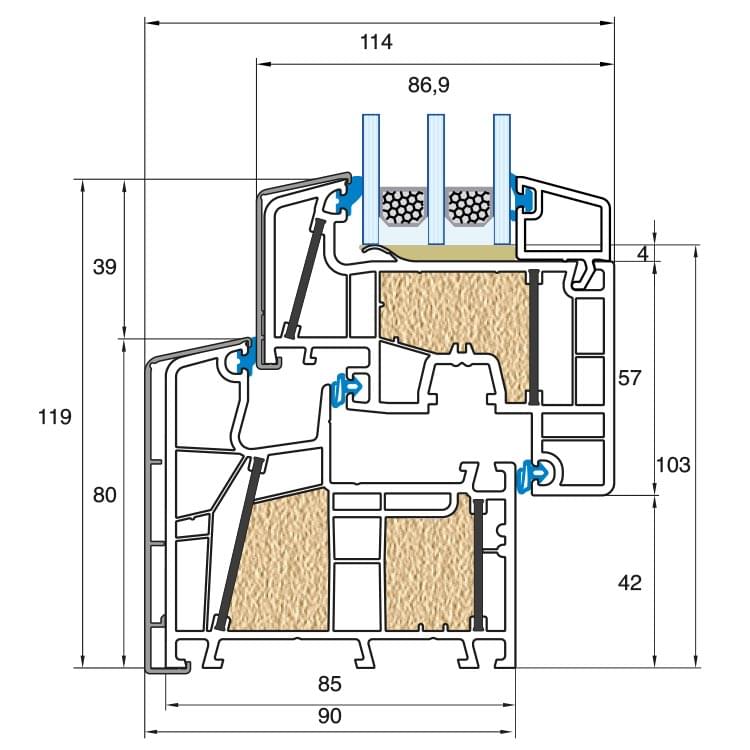

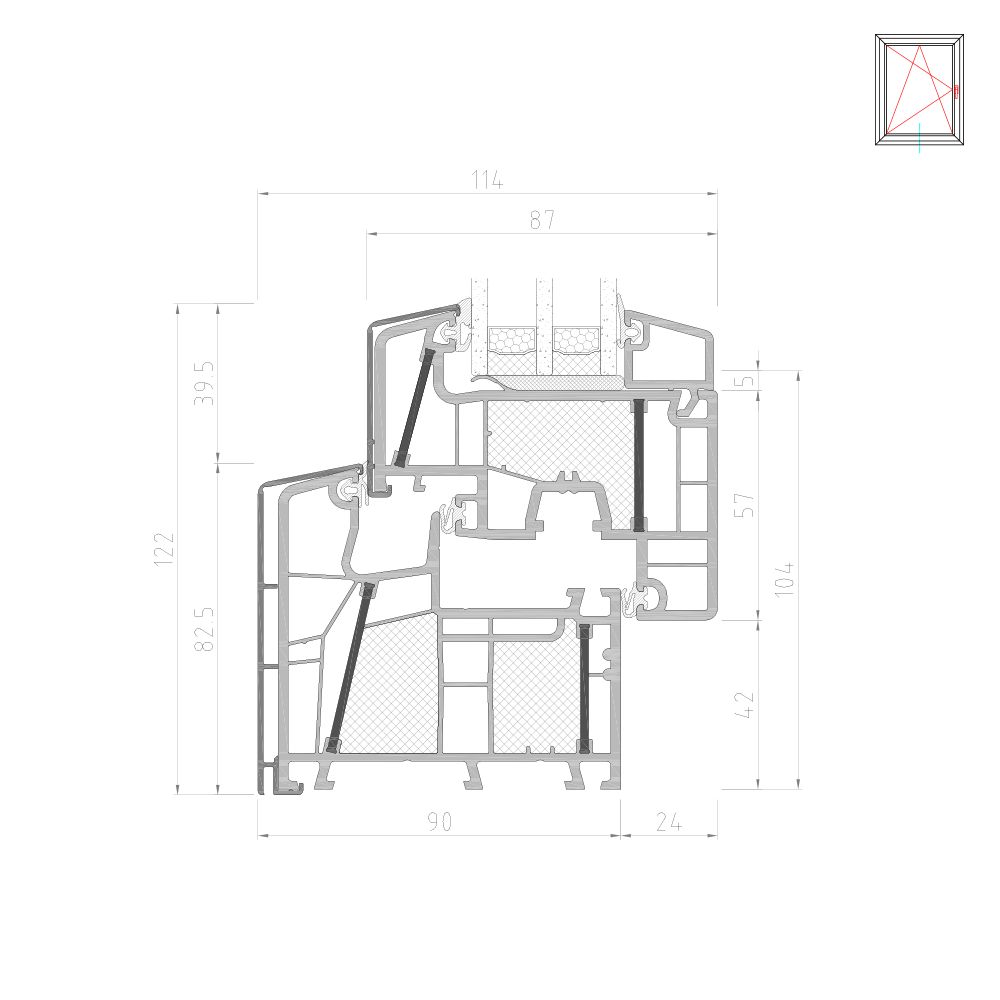

energeto TwinSet 8000 ED - frame and sash
energeto TwinSet 8000 ED - frame and sash

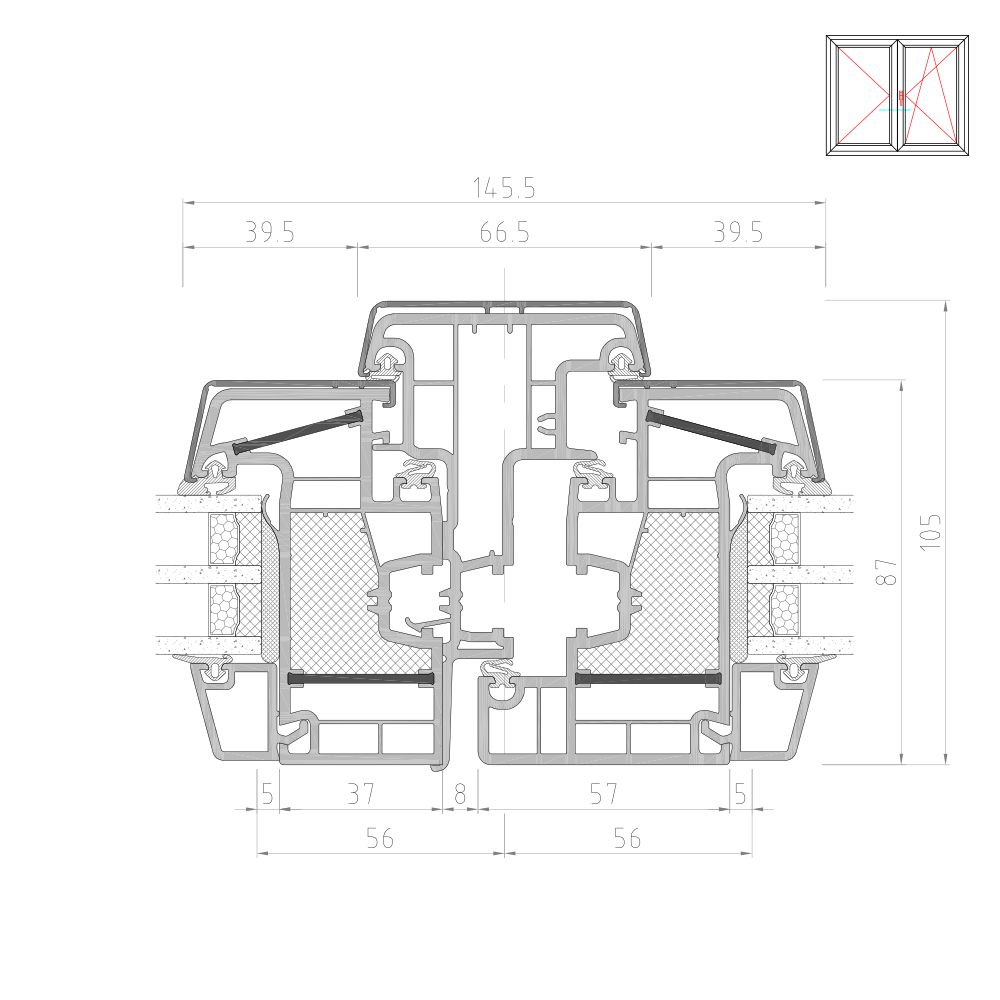

energeto TwinSet 8000 ED - central mullion
energeto TwinSet 8000 ED - central mullion

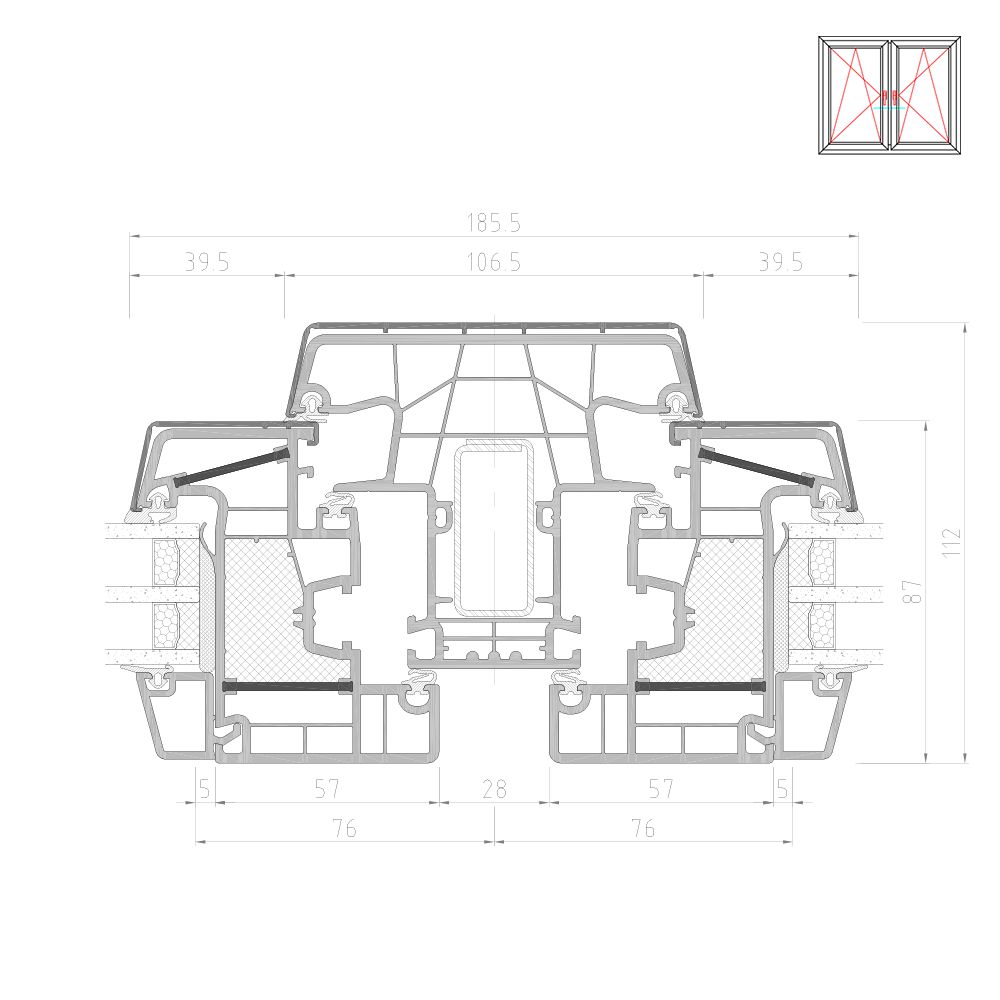

energeto TwinSet 8000 ED - central mullion with openable sashes
energeto TwinSet 8000 ED - central mullion with openable sashes

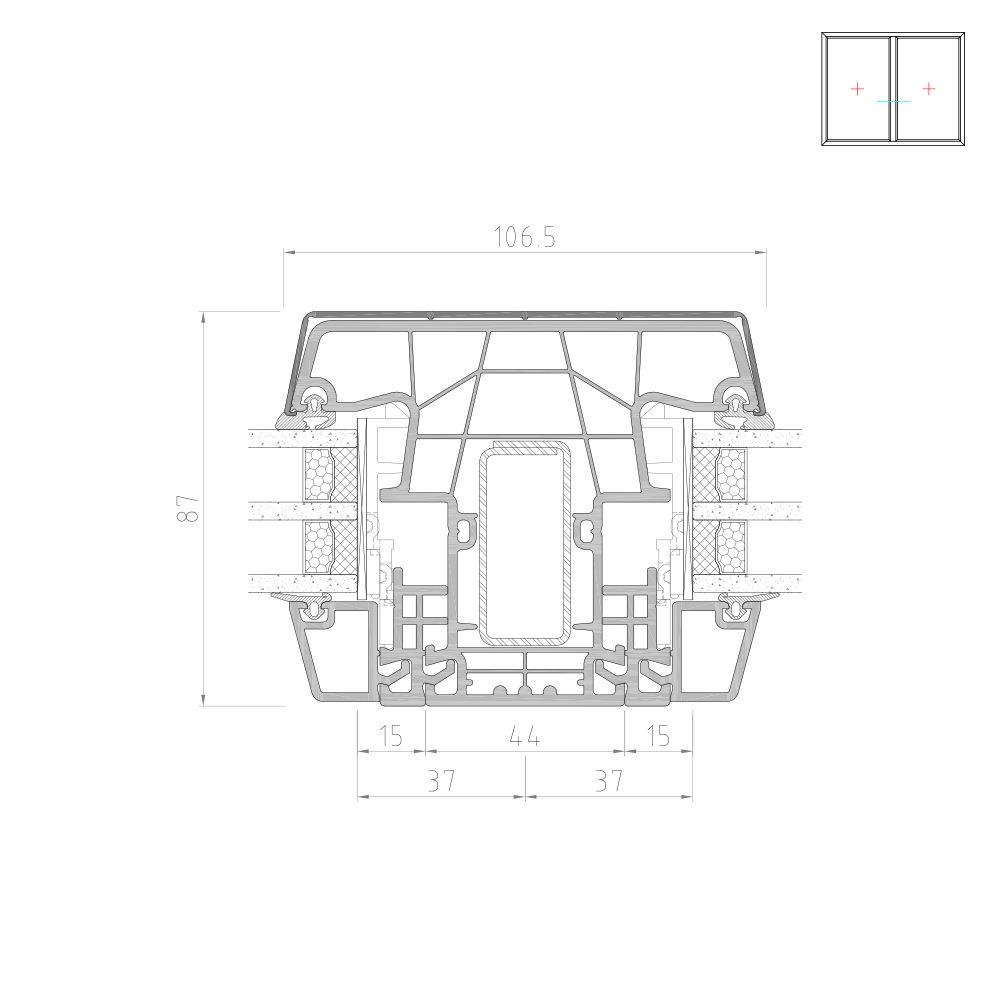

energeto TwinSet 8000 ED - central mullion with fixed glazing
energeto TwinSet 8000 ED - central mullion with fixed glazing

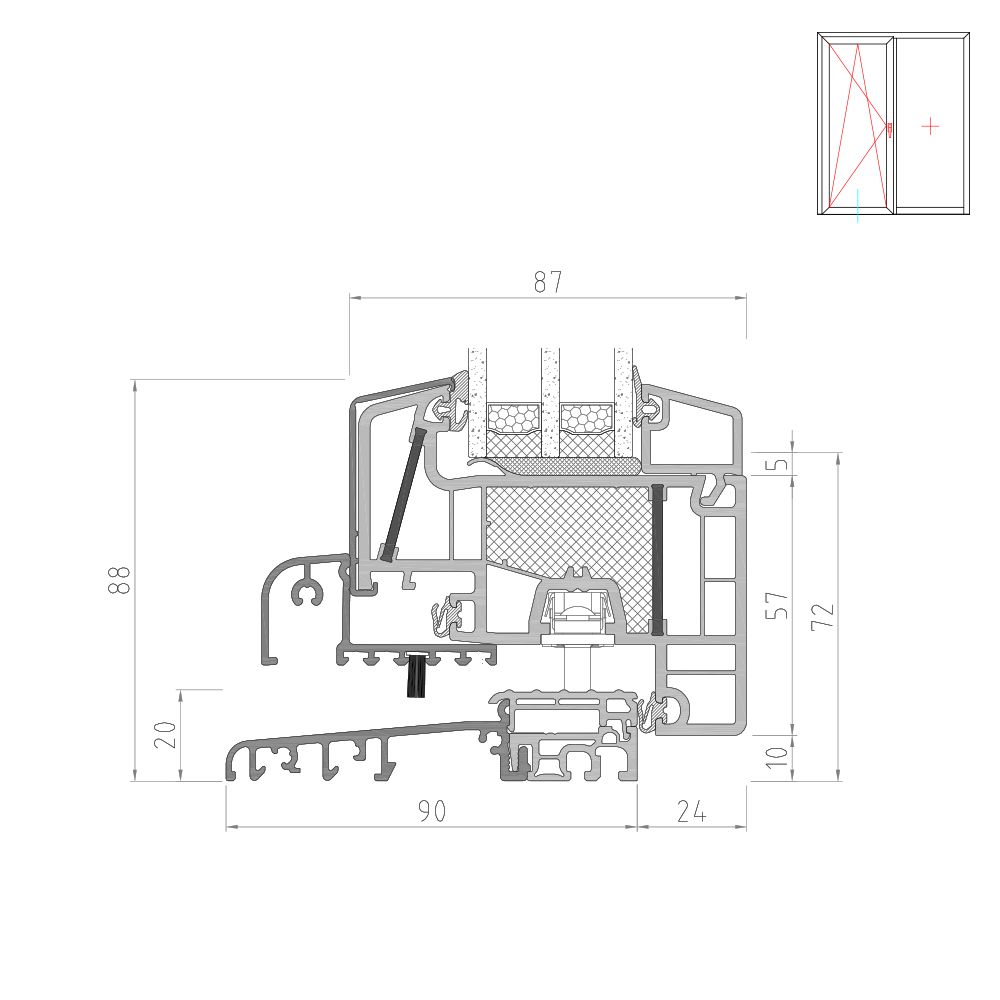

energeto TwinSet 8000 ED - French door with flat threshold
energeto TwinSet 8000 ED - French door with flat threshold
energeto TwinSet 8000 ED - 90 mm coupling spring
energeto TwinSet 8000 ED - 90 mm coupling spring

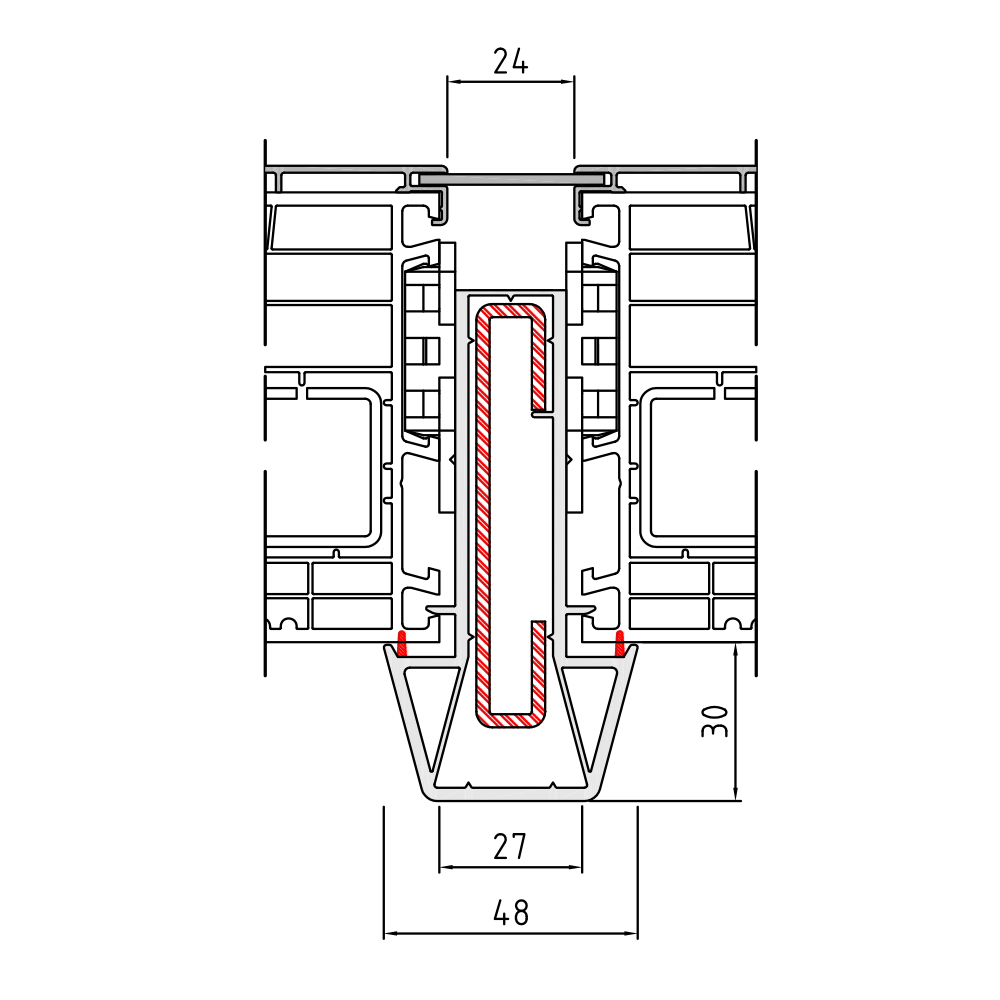

energeto TwinSet 8000 ED - 90 mm static coupling 1
energeto TwinSet 8000 ED - 90 mm static coupling 1

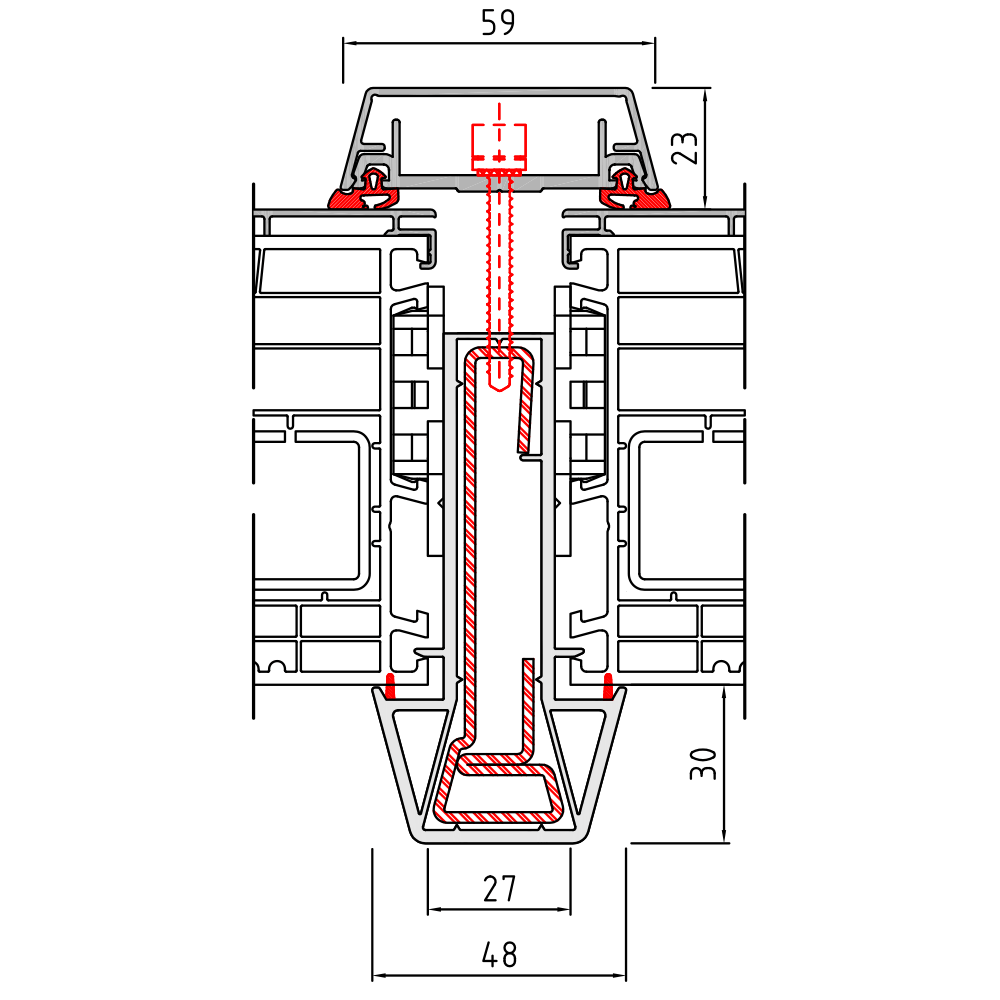

energeto TwinSet 8000 ED - 90 mm static coupling 2
energeto TwinSet 8000 ED - 90 mm static coupling 2

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
