Wood-aluminium tilt and slide patio door - ECO Idealu Classicline

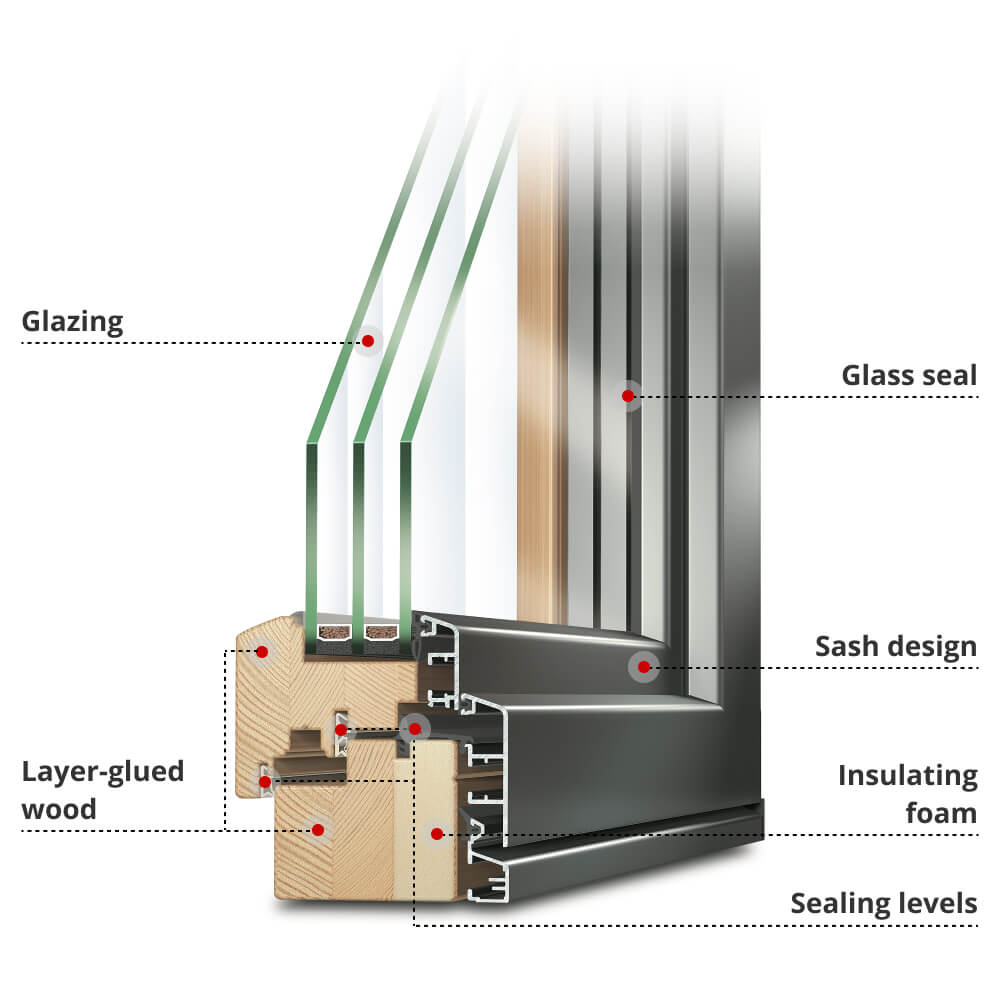

• Glazing: Triple glazing fitted as standard.

• Glass seal: The glass seal provides optimum protection against water penetration.

• Sash design: Classical semi-recessed design.

• Insulating foam: Additional insulating foam layer within the timber laminate provides excellent thermal performance.

• Layer glued wood: Glued wood edge bands with continuous laminated top layer provide stability and durability.

• Sealing levels: Three sealing levels ensure both good thermal and noise insulation.

Glazing

• Use of branded insulating glass, can be combined with sun protection, sound insulation (up to class 4) as well as safety glass and ornamental glass
• UV resistant seal
• General wet glazing

Surface

• The surface treatment ensures the longevity of the components
• A colourless surface is also possible for wood-aluminium windows

Functionality

• Normal windows, thermal insulation, soundproof and security windows, sliding elements, balcony and patio doors
• Insulating foam: The additional insulating foam between the aluminium shell and the wood ensures excellent thermal insulation

Physical Requirements

• Physical Requirements
• Thermal insulation according to DIN 4108 and GEG
• Sound insulation according to VDI 2719 SSK, SSK II to V
• Burglar resistance according to DIN V ENV 1627-1630 up to resistance class 2
• Wood-aluminium windows with a 10-year guarantee are only coated with products that have been tested according to all European requirements without exception

Fitting

• Parallel slide and tilt hardware with malfunction lock
• Basic security with two mushroom-head locking bolts and two safety strike plates
• Intuitive operation and elegant, smooth sliding of the sash into the closed position
• Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
