U_W- value

≥ 0.67

Schüco AWS 70.HI profile

Aluminium window

Open aluminium window

Aluminium window with fly screen

White aluminium windows in office

Tilted aluminium window

Aluminium window with turning handle

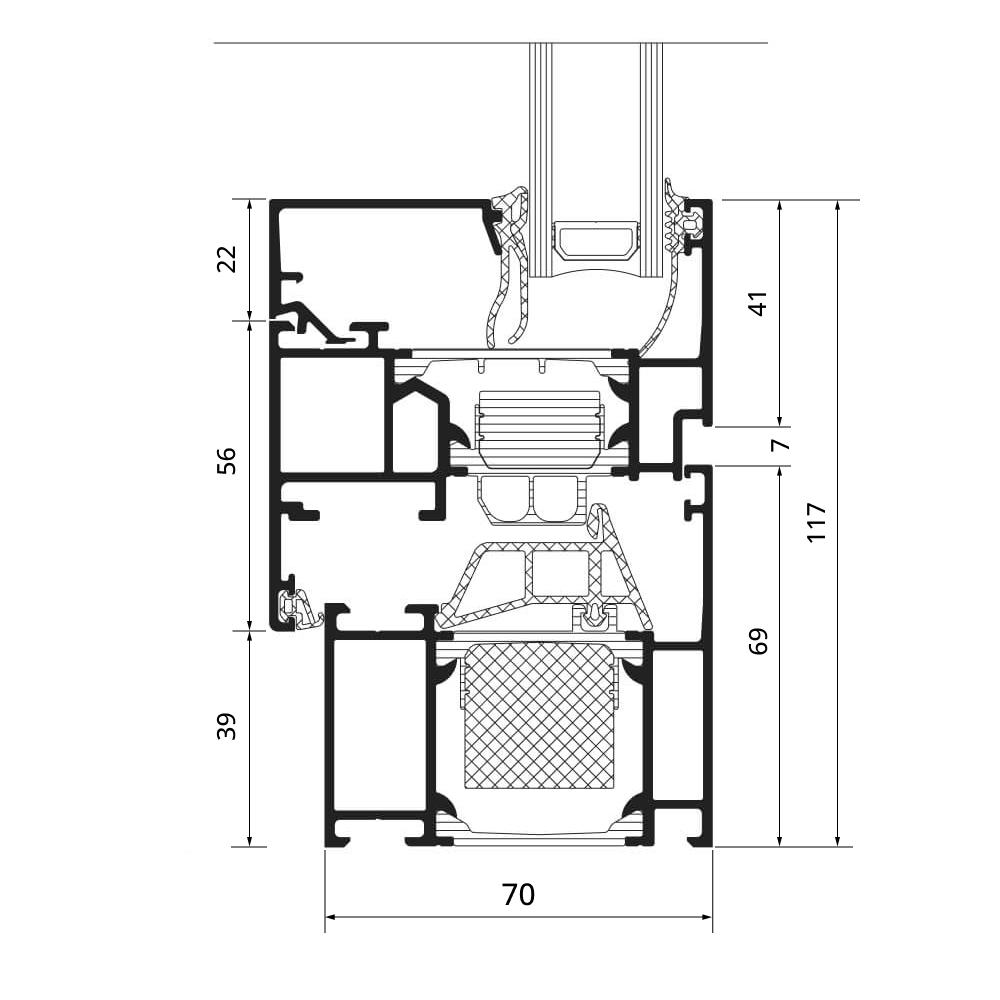

Schüco AWS 70.HI detail drawing

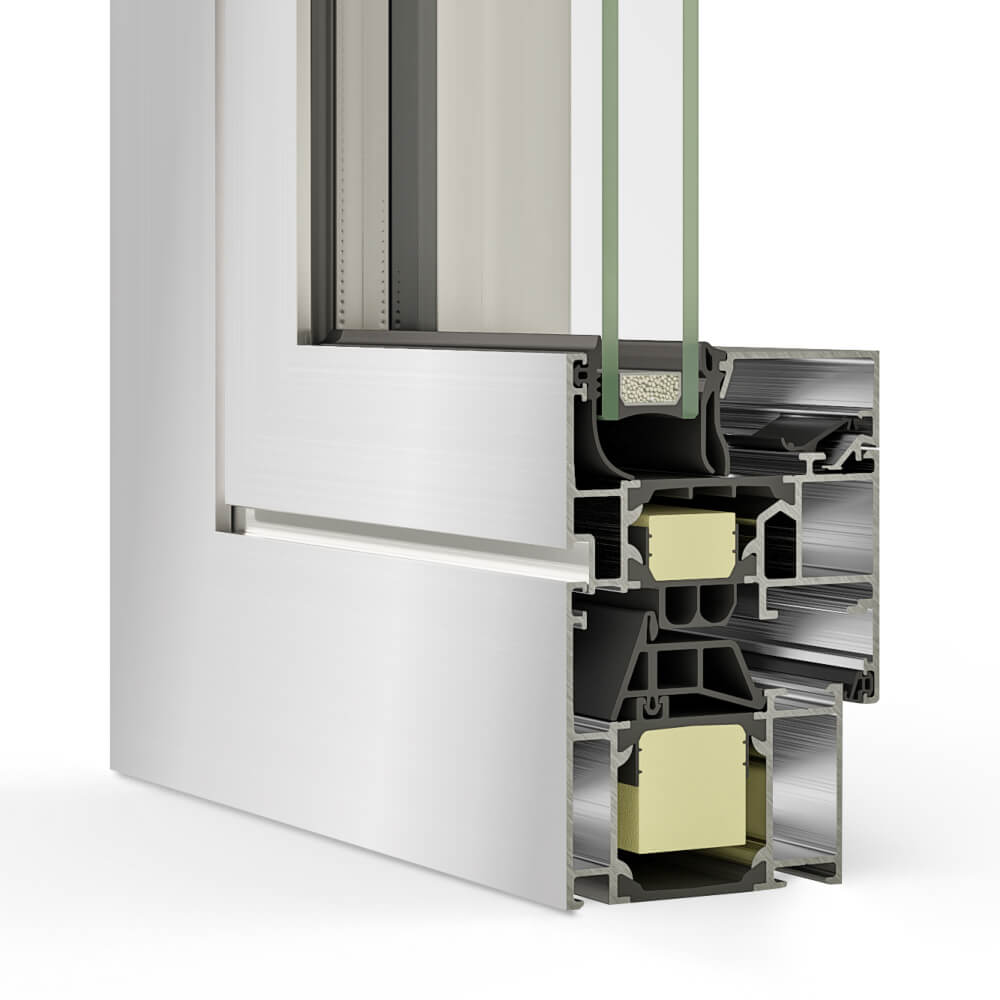

Schüco AWS 70.HI Aluminium Window

Name: Schüco AWS 70.HI aluminium window
Brand: windows24.com
Price: 215 EUR
Availability: InStock

Premium energy-saving system

from € 215~~from € 215~~

incl. 19% VAT, free delivery^**

Sleek contemporary design
70 mm thick frame
Available with double and triple glazing

Calculate Price

Estimated production time 2-5 weeks¹

Uw-value AWS 70.HI

Detailed drawings AWS 70.HI

Product data sheet AWS 70.HI

The benefits

70 mm thick frame
Excellent thermal insulation: U_f-value = 1.7 W/m²K
Compatible with "Schüco AvanTec SimplySmart OpenSecure“ (break-in protection for tilt and turn windows – resistance class RC2)
Available with many different RAL colours
Two processes for the surface finish: RAL powder coating, and anodising
Sleek inside and out
Certified Schüco brand quality

Over 250,000 satisfied customers and counting

Residential building

Jack’s PointOtago, New Zealand

Wood-alu windows and doors for a passive house

“windows24.com brought windows and doors with amazing quality to our project. The products are well-built and certified for passive house values.”

Residential building

ColoradoUSA

Wood-alu and aluminium windows and doors

"We love our new windows and doors! The windows24 team gave us great advice and recommendations and was so patient with all changes to our project."

Residential building

HeathmontMelbourne, Australia

Composite windows and doors for a passive house

“We spent more than a year searching for a window manufacturer with high product quality and maximum design flexibility. At windows24.com we found the perfect solution for us.”

View all projects

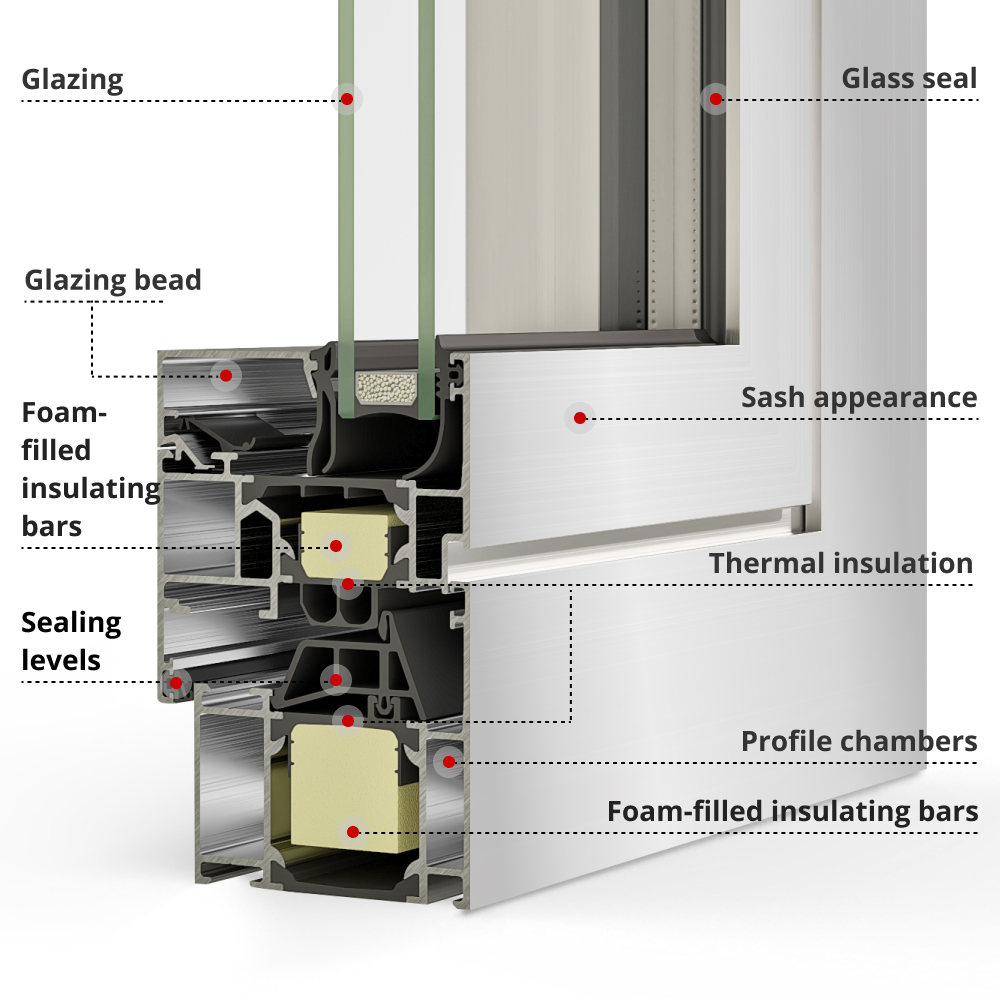

Profile description

Glazing: Choose between double or triple glazing
Glass seal: The glass seal ensures optimal protection against water infiltration
Sash appearance: The sash creates a modern, sleek flush design
Glazing bead: Ensures the necessary contact pressure between the seals and glass
Sealing levels: Good thermal and sound insulation due to two sealing layers in the core
Profile chambers: Profiles are divided into several insulating chambers
Thermal insulation: A built-in technically complex core provides good insulation
Foam-filled insulating bars: An extended insulation zone acts as a thermal break in the frame

Schüco AWS 70.HI – the details

The perfect choice for sturdy, secure windows

Windows with Schüco AWS 70. HI profiles are an excellent choice for those searching for a robust product. Durable and weather-resistant, they require little to no maintenance which makes them highly practical and saves costs.

When fitted with Schüco’s own "AvanTec SimplySmart Open Secure" tilt mechanism, Schüco AWS 70.HI windows provide additional break-in protection, even when left open. Windows fitted with the system can open 175 mm and be left tilted overnight without a second thought, ensuring protection and pleasant air circulation.

Excellent thermal properties

Schüco AWS 70.HI windows provide an innovative solution to aluminium’s naturally high thermal conductivity which can cause heat loss. The profiles are manufactured, for example, to feature a technically complex core containing foam and multiple chambers which act as a thermal break.

This technical make-up means that new aluminium windows, such as those with Schüco profiles, come with good thermal insulation. The Schüco AWS 70.HI model can achieve Uw-values as low as 0.67 W/(m²k), for example.

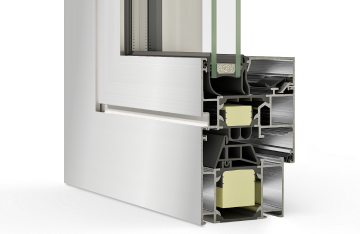

Schüco AWS 70.HI aluminium window

Schüco AWS 70.HI aluminium windows have a technically complex built-in core, or break, featuring an extended insulation zone and foam-filled thermal bars.

Image	Profile	Model	Product Type	Width	Height
	Schüco	AWS 70.HI	Aluminium window	from 50 cm	from 50 cm
Logo	Brand	Availability	Condition	Colour	Price
	windows24.com	available	New	White	from € 215

Order Schüco aluminium windows online at low prices

Configure aluminium windows now
