uPVC tilt and slide patio doors - aluplast IDEAL® 7000

Overview of features

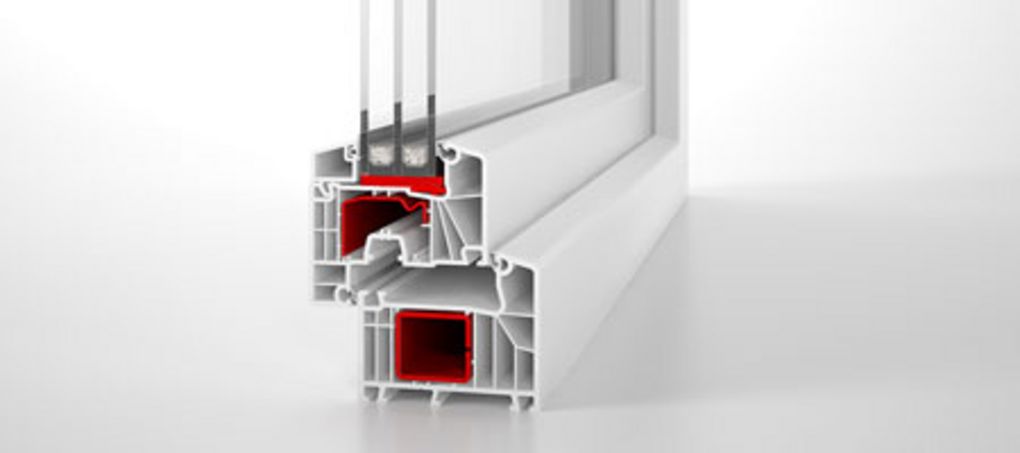

Energy-efficient 6-chamber profile

Standard glazing from a Ug value of 1.1 W/m²K

Offset optics

Security features can be upgraded

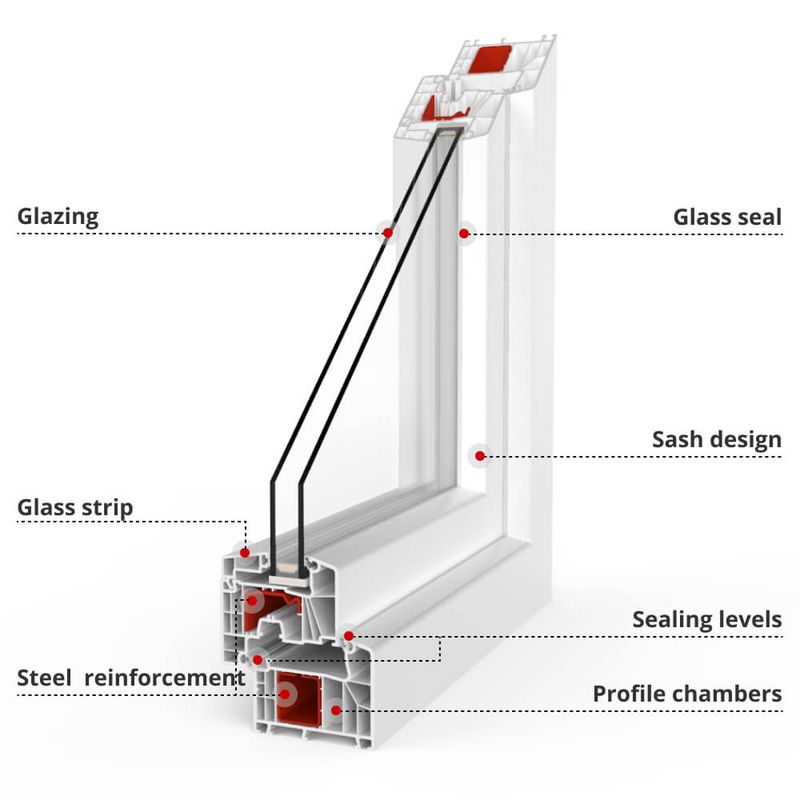

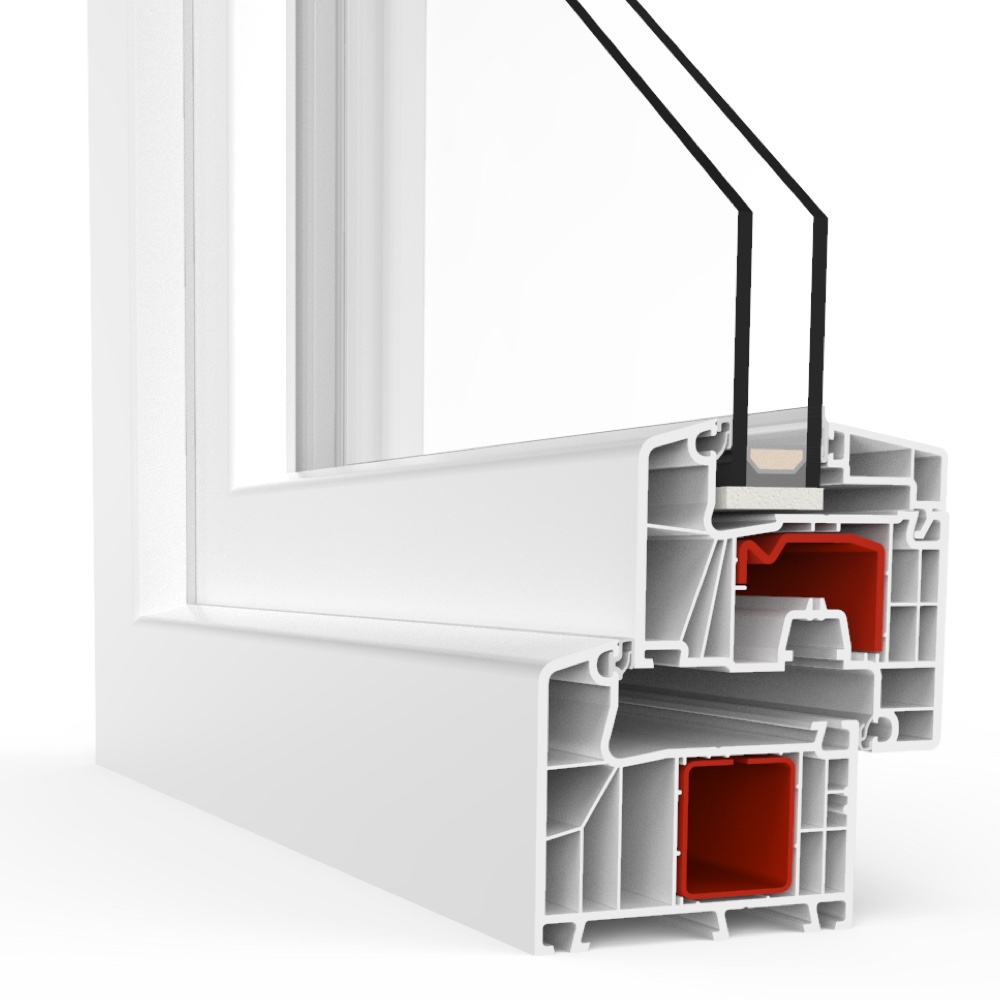

• Glazing: Depending on your requirements, you can choose between double or triple glazing.

• Glass seal: The glass seal provides reliable protection against water penetration.

• Sash design: The casement comes in a classical, recessed design.

• Glass strip: It provides the required contact pressure between the gaskets and the glass.

• Sealing levels: Two sealing levels assure very good heat and noise insulation.

• Steel reinforcement: Due to steel reinforcement, long term stability is ensured.

• Profile chambers: To achieve very effective thermal insulation, these profiles are divided into several chambers.

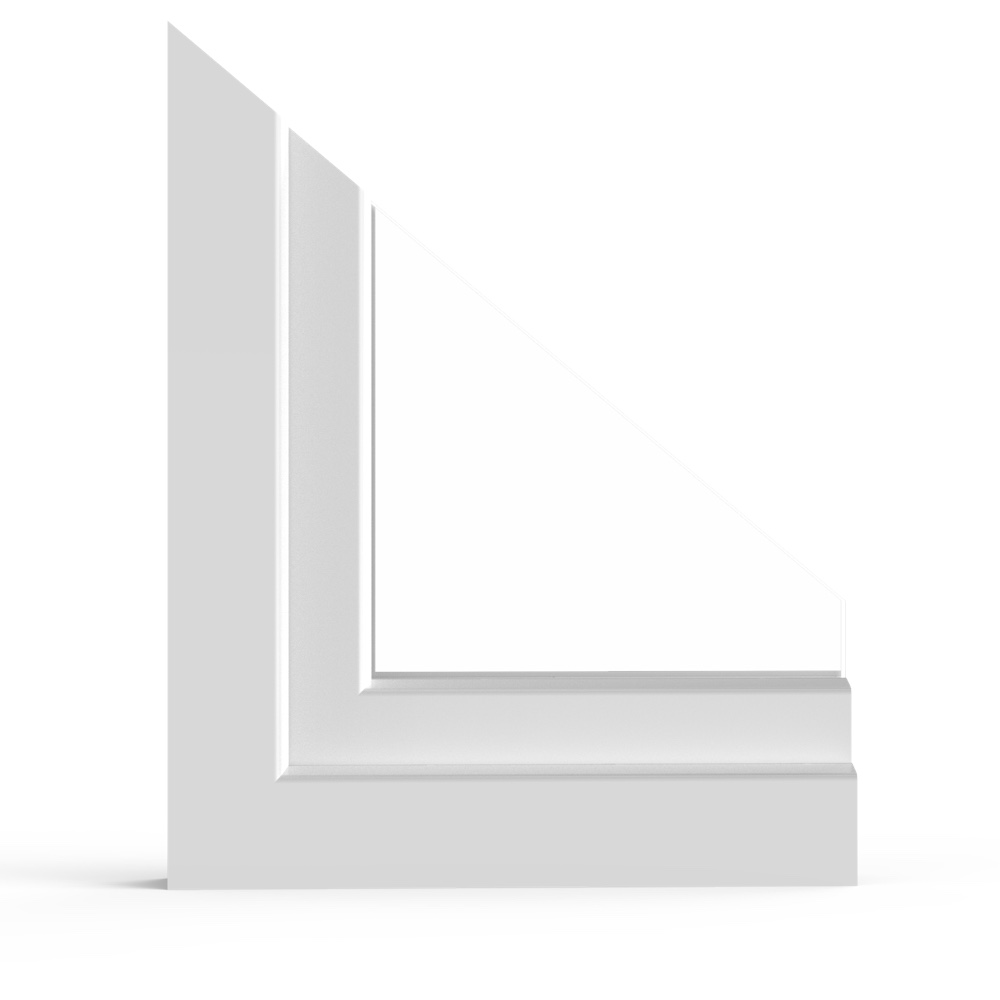

• Classic line profile in offset design

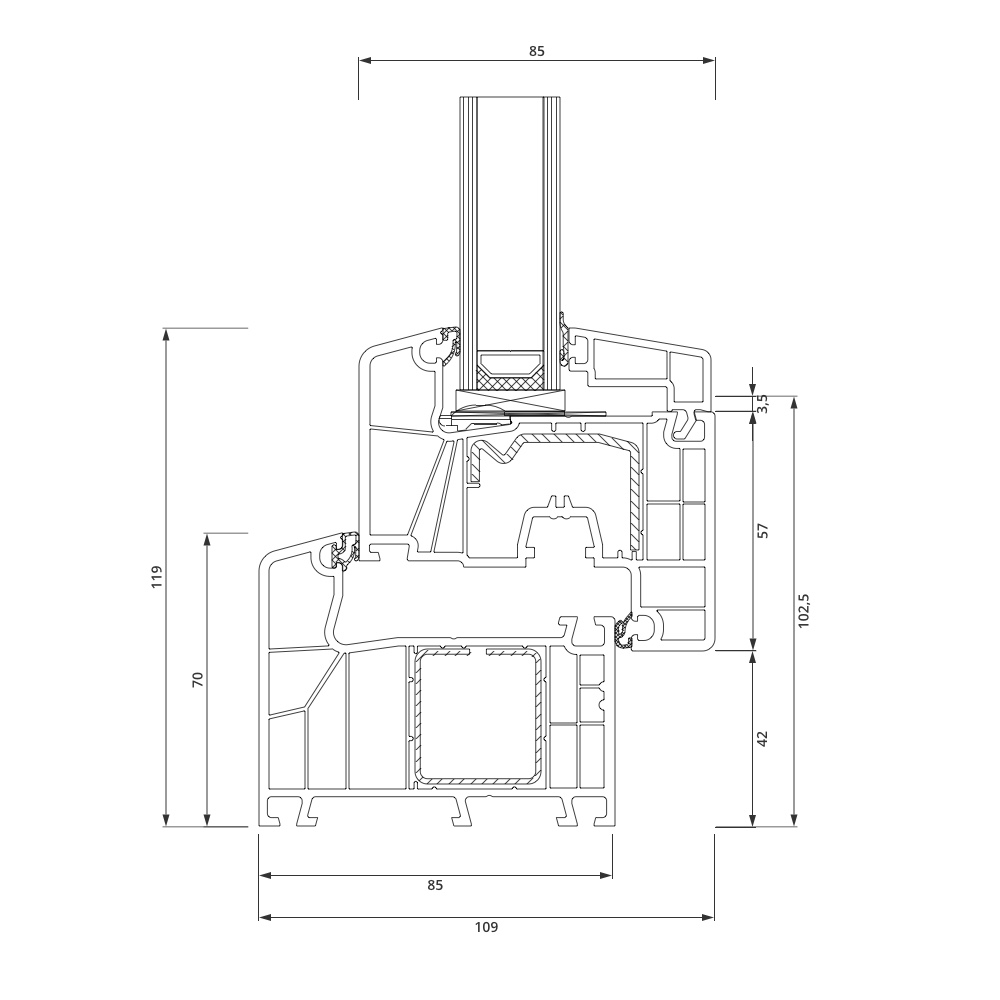

• 85 mm construction depth
• Uf value = 1.1 W/m²K
• With standard glazing Ug 1.1 W/m²K, with triple glazing up to Ug value 0.4 W/m²K
• Depending on the glazing, thermal insulation can be up to Uw 0.70 W / m²K
• Optional Energy-saving Ultradur High-Speed® reinforcement
• Two seal system
• Frame with steel insert for high stability

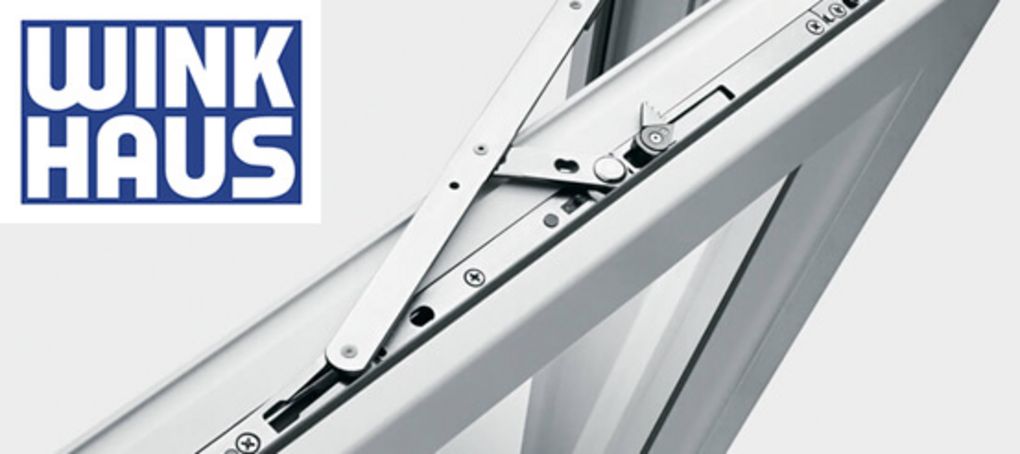

• Security fittings with two burglary-resistant points per window sash
• Turn-tilt mechanism with malfunction lock
• Sound insulation up to 46dB (sound insulation class 4)
• Pane thickness up to 51 mm

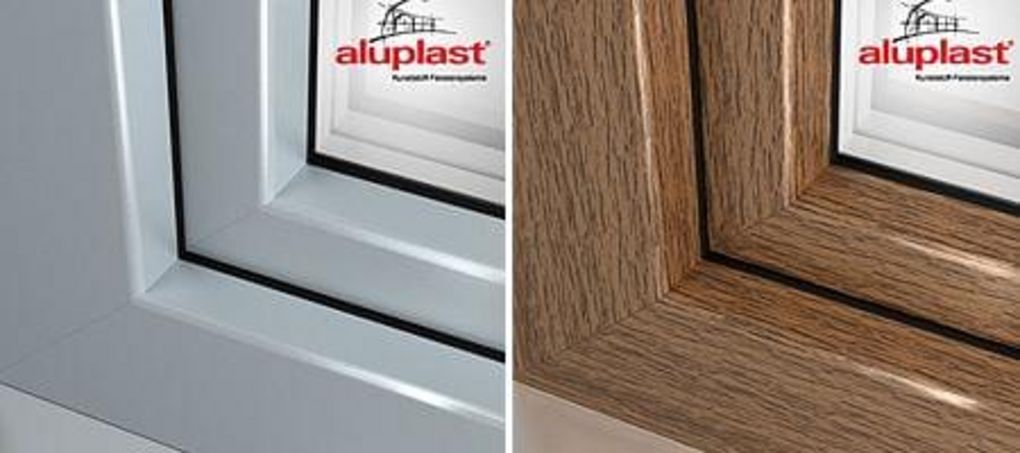

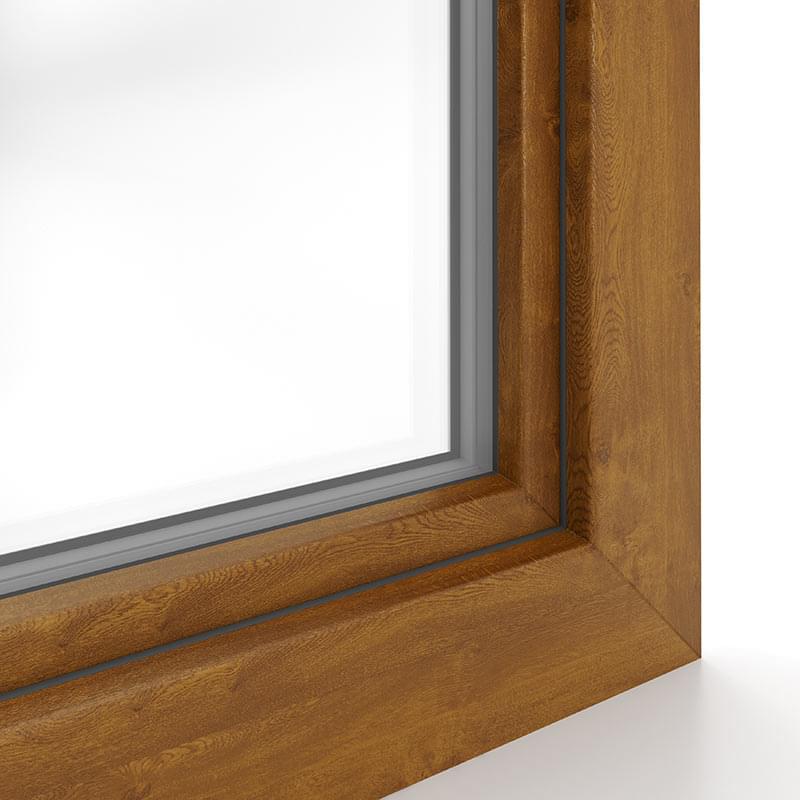

• Available in white or decor
• Weather-resistant thanks to the uPVC with modern additive technology
• Made from up to 97% recyclable materials
• Optional heat, safety and soundproof glazing is available.

The uPVC window Ideal 7000 enables a completely new type of energy-saving building and living. The fittings, with two burglary-resistant points per window sash, also offer good break-in protection. The level of protection can be increased by using safety glass.
