Detailed Drawings – uPVC Tilt & Slide Patio Doors

Detailed drawings – uPVC tilt and slide patio doors

Below is a collection of technical drawings for our uPVC tilt and slide patio door profiles, including accurate cross sections and CAD plans. These drawings allow the precise dimensions and details of the doors to be seen, which helps during both the initial product configuration and final installation.

Detailed Drawings – IDEAL 4000

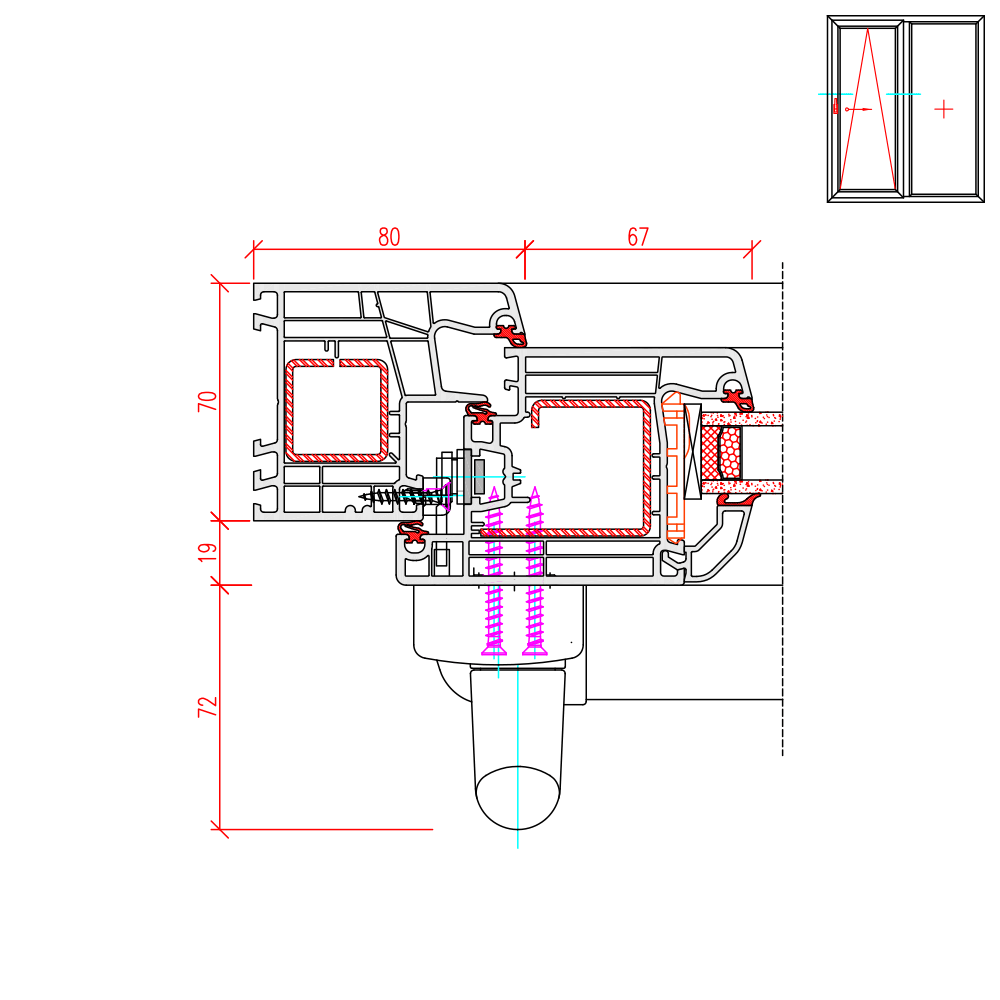

IDEAL 4000 - detail of the frame and sash with handle
IDEAL 4000 - detail of the frame and sash with handle

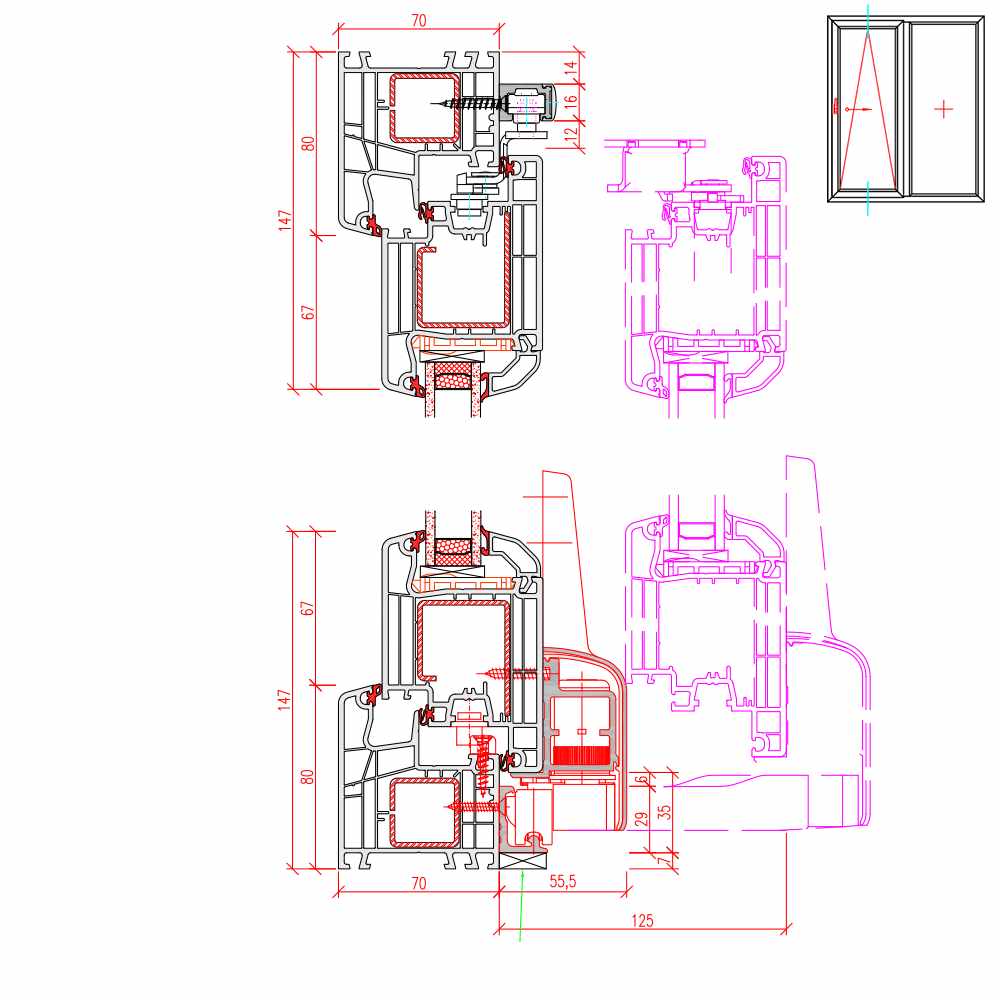

IDEAL 4000 - vertical cross-section
IDEAL 4000 - vertical cross-section

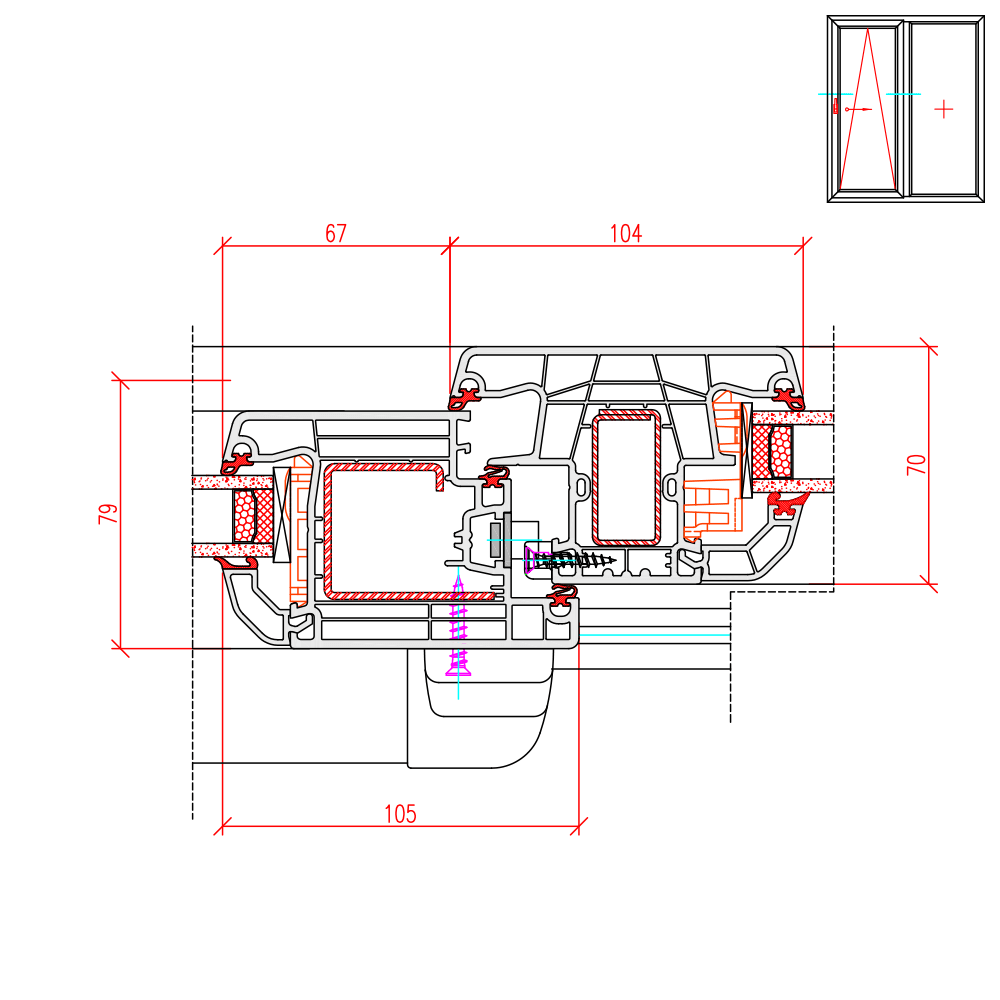

IDEAL 4000 - detail of central mullion
IDEAL 4000 - detail of central mullion

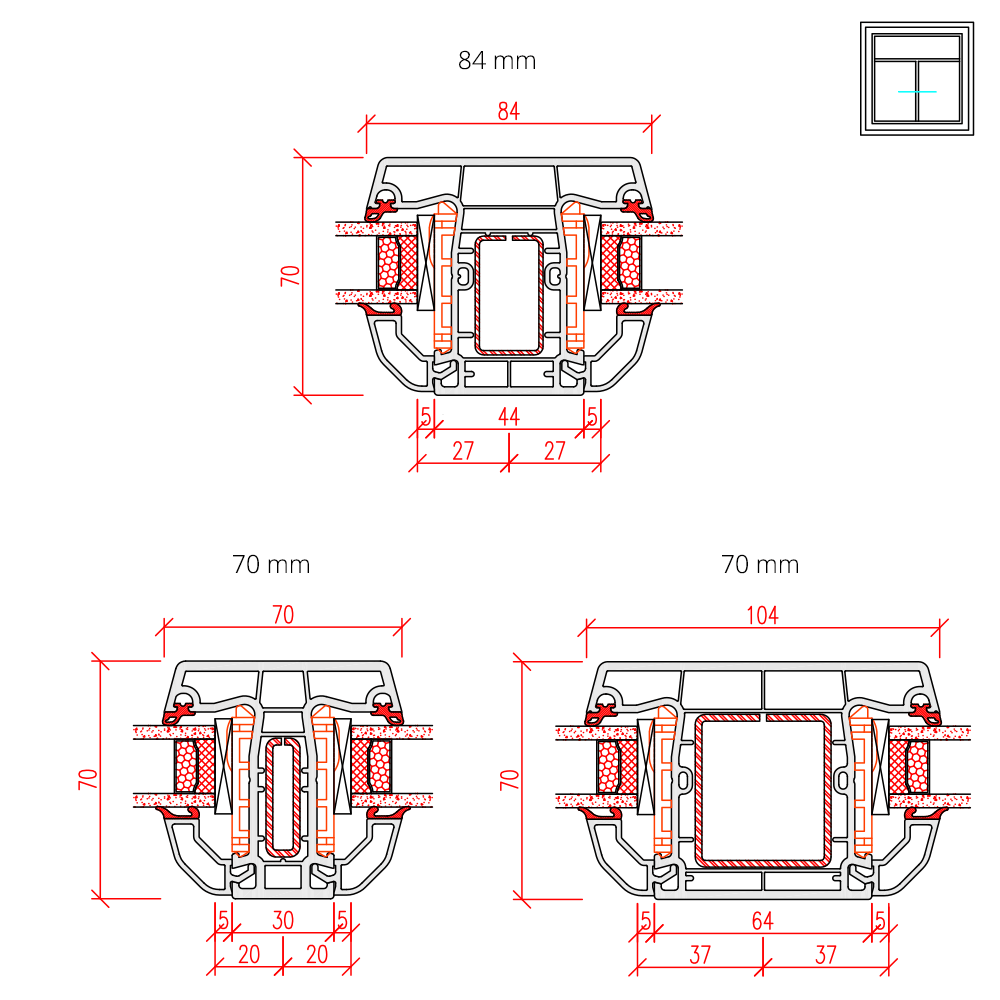

IDEAL 4000 - detail of glass dividing glazing bars of different thicknesses
IDEAL 4000 - detail of glass dividing glazing bars of different thicknesses

Sill Connection Profiles

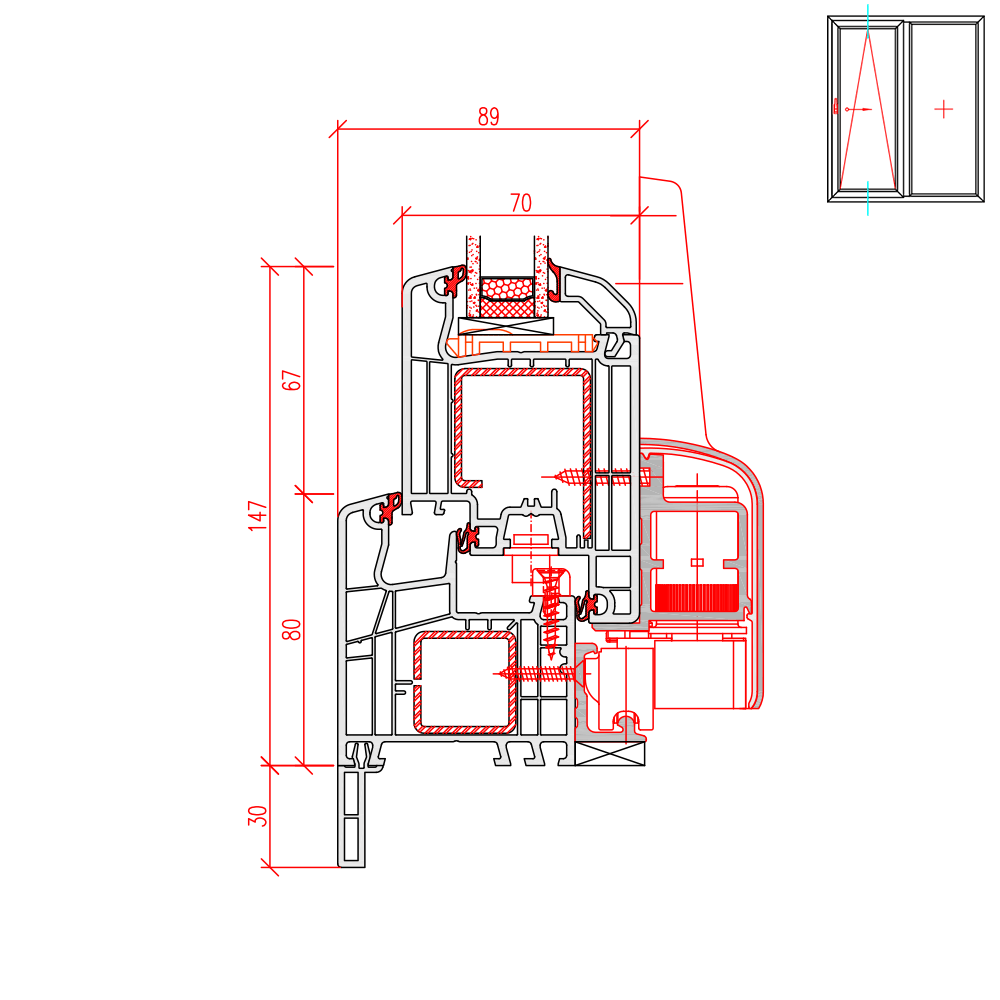

IDEAL 4000 - 30 mm milling for a connection profile for stone sills
IDEAL 4000 - 30 mm milling for a connection profile for stone sills

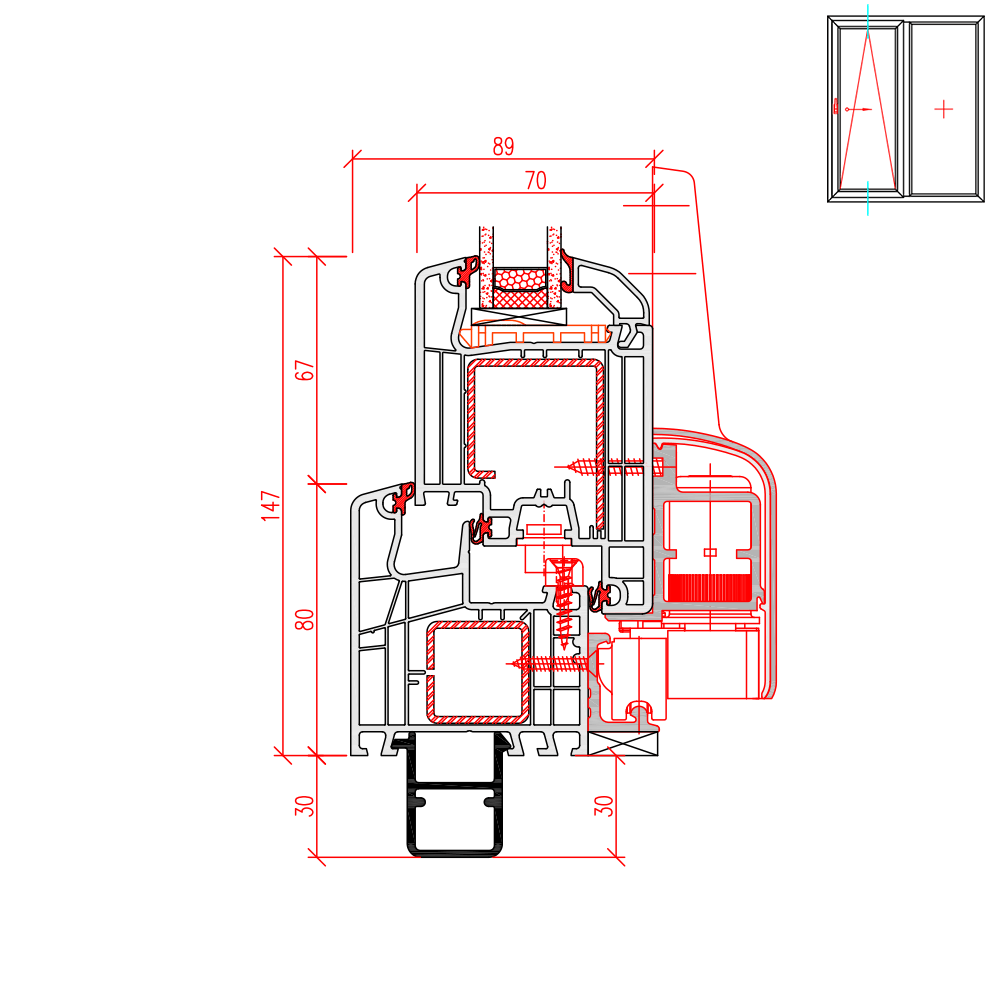

IDEAL 4000 - 30 mm milling for a sill connection profile for new-builds
IDEAL 4000 - 30 mm milling for a sill connection profile for new-builds

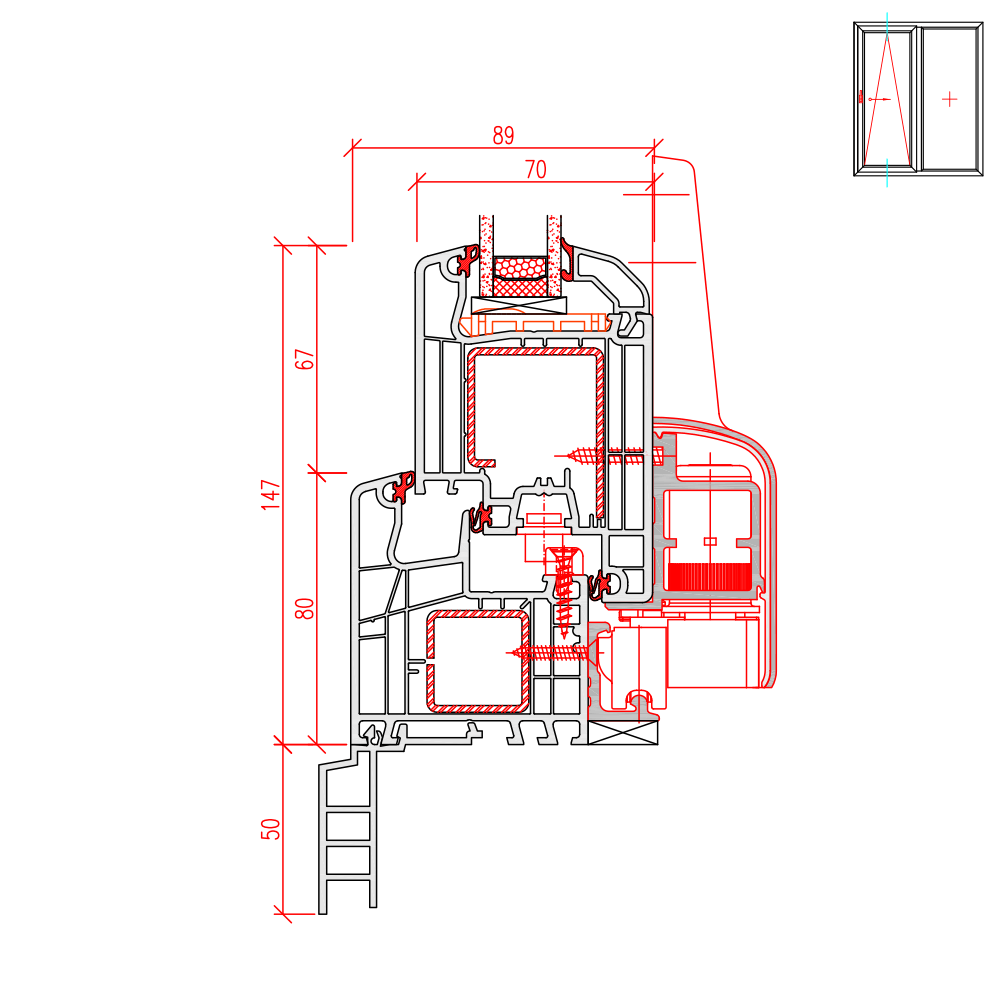

IDEAL 4000 - 50 mm milling for a connection profile for stone sills
IDEAL 4000 - 50 mm milling for a connection profile for stone sills

Frame Extensions

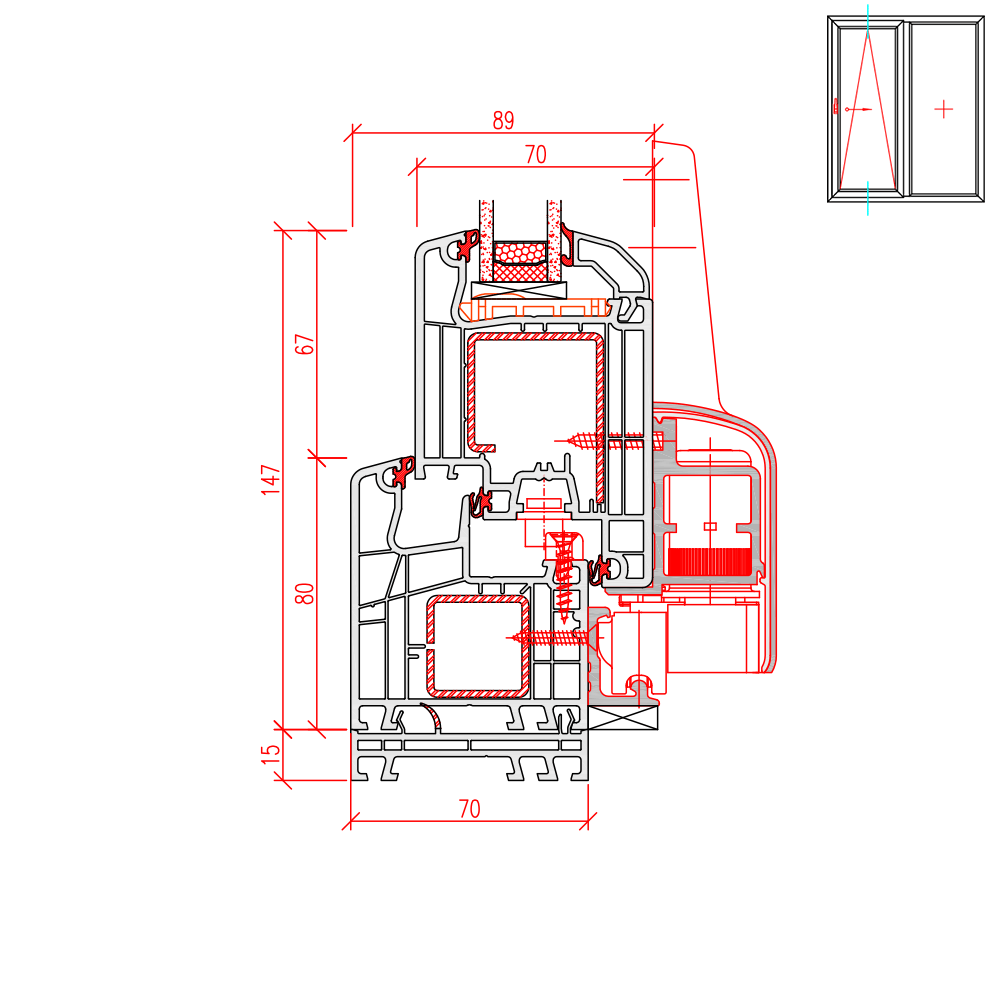

IDEAL 4000 - 15 mm frame extension
IDEAL 4000 - 15 mm frame extension

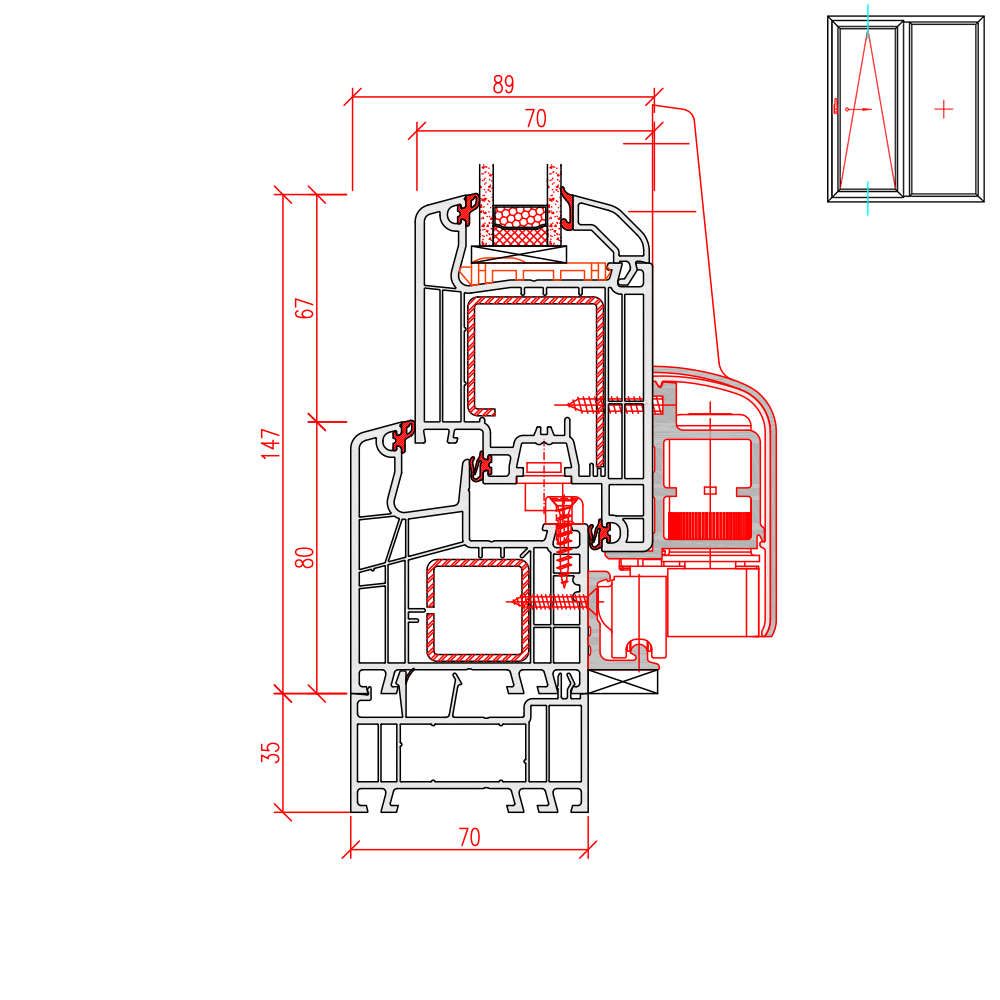

IDEAL 4000 - 35 mm frame extension
IDEAL 4000 - 35 mm frame extension

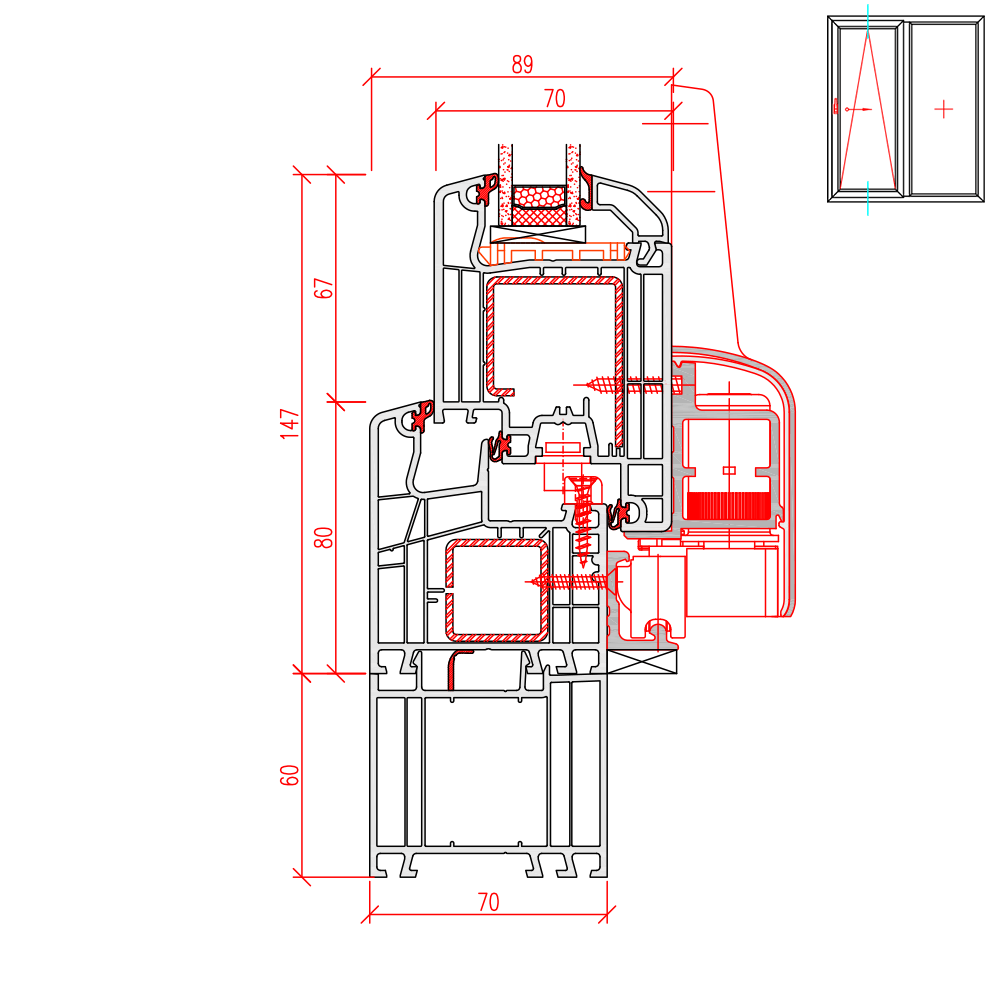

IDEAL 4000 - 60 mm frame extension
IDEAL 4000 - 60 mm frame extension

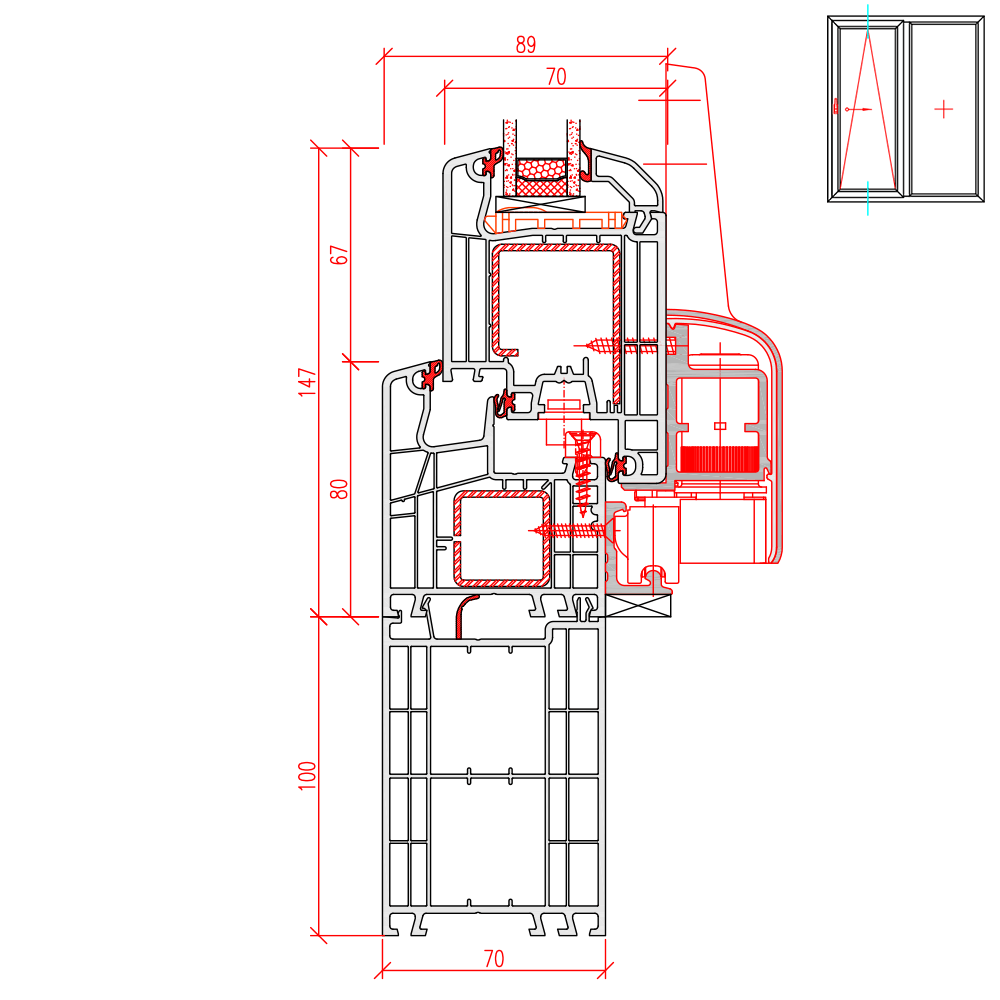

IDEAL 4000 - 100 mm frame extension
IDEAL 4000 - 100 mm frame extension

Roller Shutters

IDEAL 4000 - with a top-mounted roller shutter with a 210 mm box height
IDEAL 4000 - with a top-mounted roller shutter with a 210 mm box height
IDEAL 4000 - with a top-mounted roller shutter with a 240 mm box height
IDEAL 4000 - with a top-mounted roller shutter with a 240 mm box height

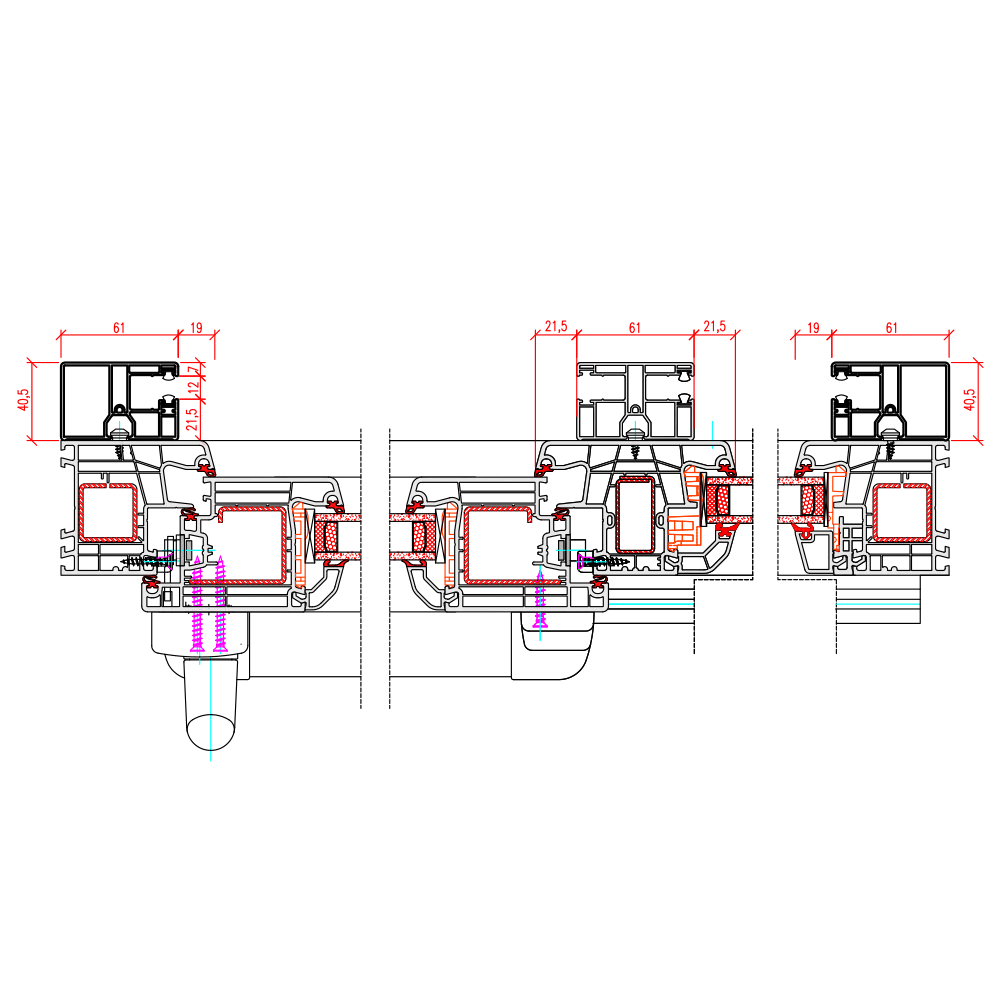

IDEAL 4000 - horizontal view of top-mounted roller shutter
IDEAL 4000 - horizontal view of a top-mounted roller shutter
IDEAL 4000 - with a front-mounted roller shutter
IDEAL 4000 - with a front-mounted roller shutter

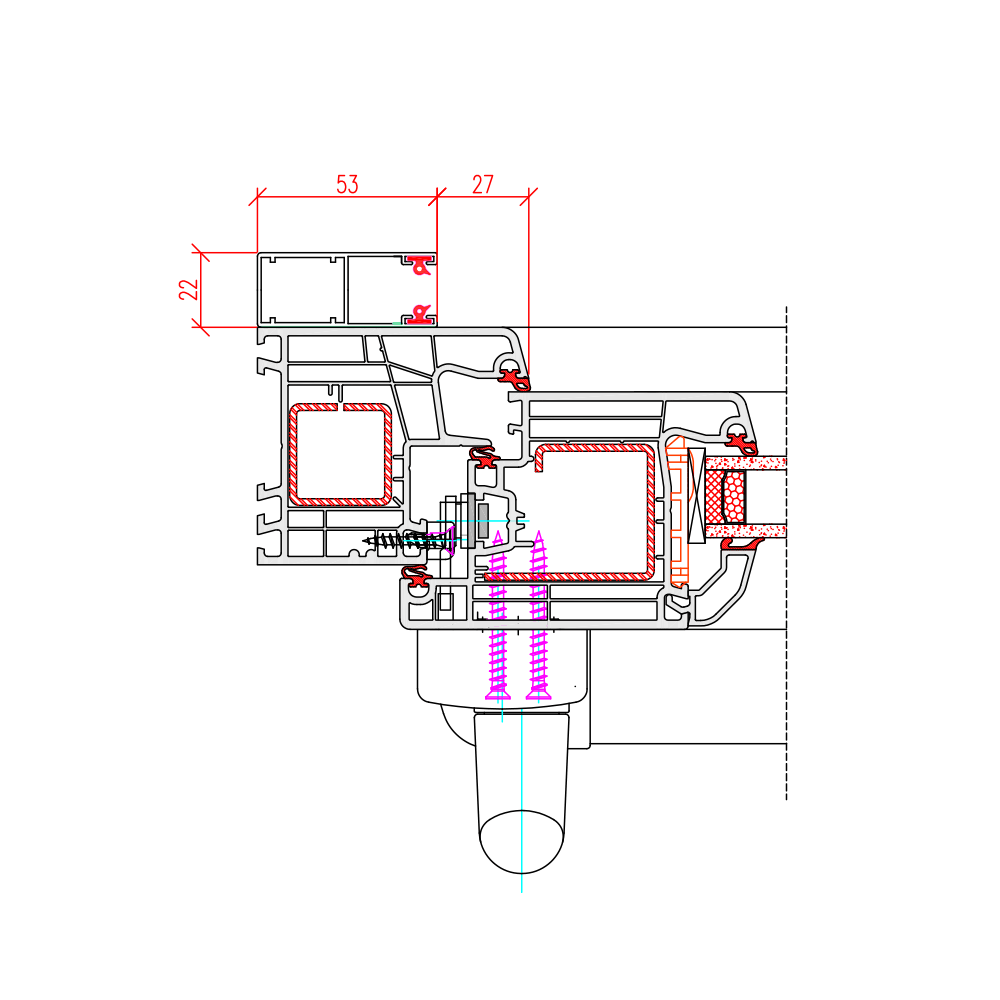

IDEAL 4000 - horizontal view of a front-mounted roller shutter
IDEAL 4000 - horizontal view of a front-mounted roller shutter

Roller Shutter Guide Rails

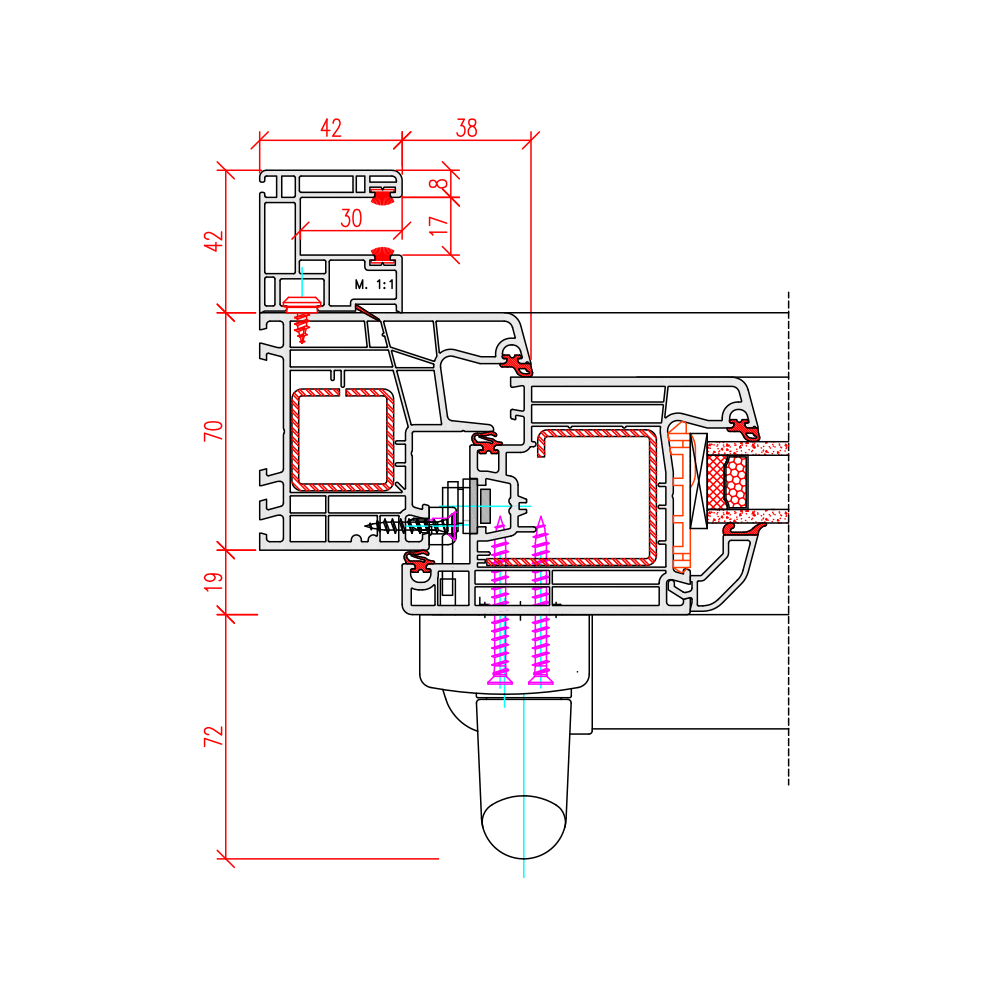

IDEAL 4000 - roller shutter guide rails for new-builds
IDEAL 4000 - roller shutter guide rails for new-builds

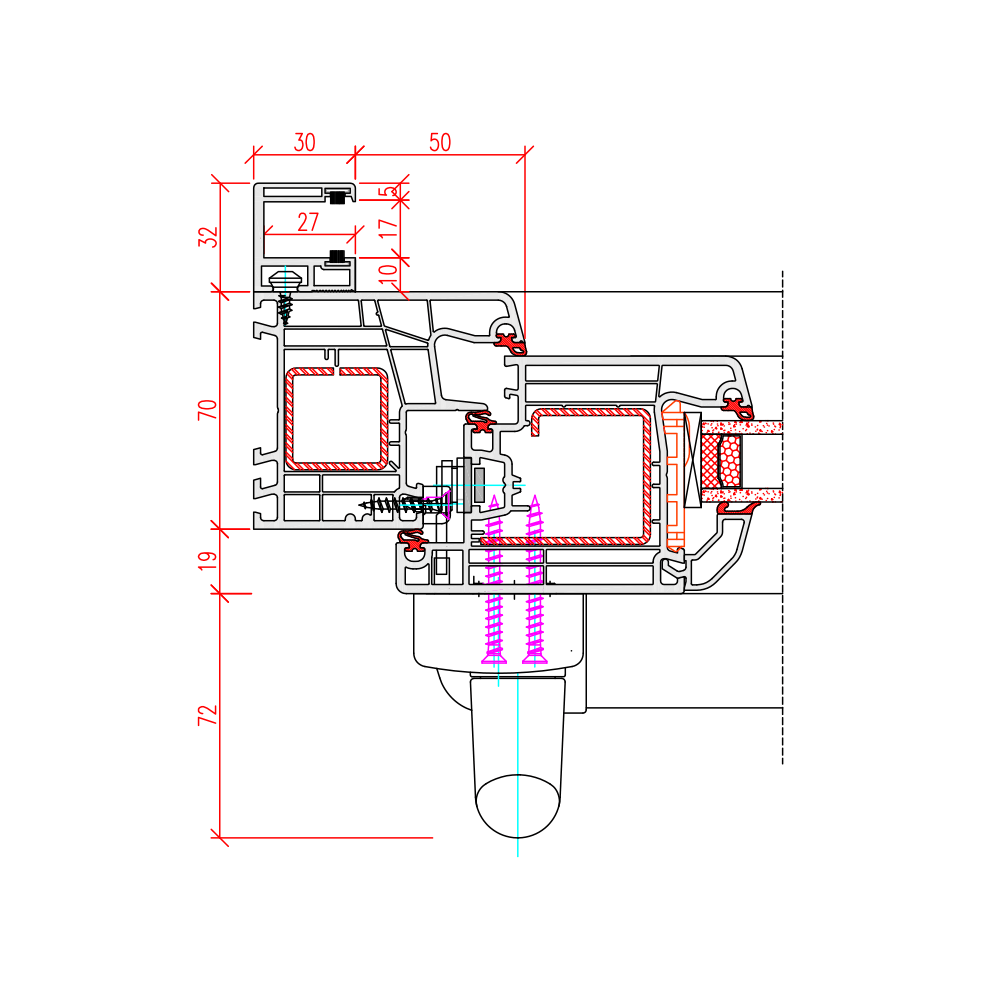

IDEAL 4000 - roller shutter guide rails for older buildings
IDEAL 4000 - roller shutter guide rails for older buildings

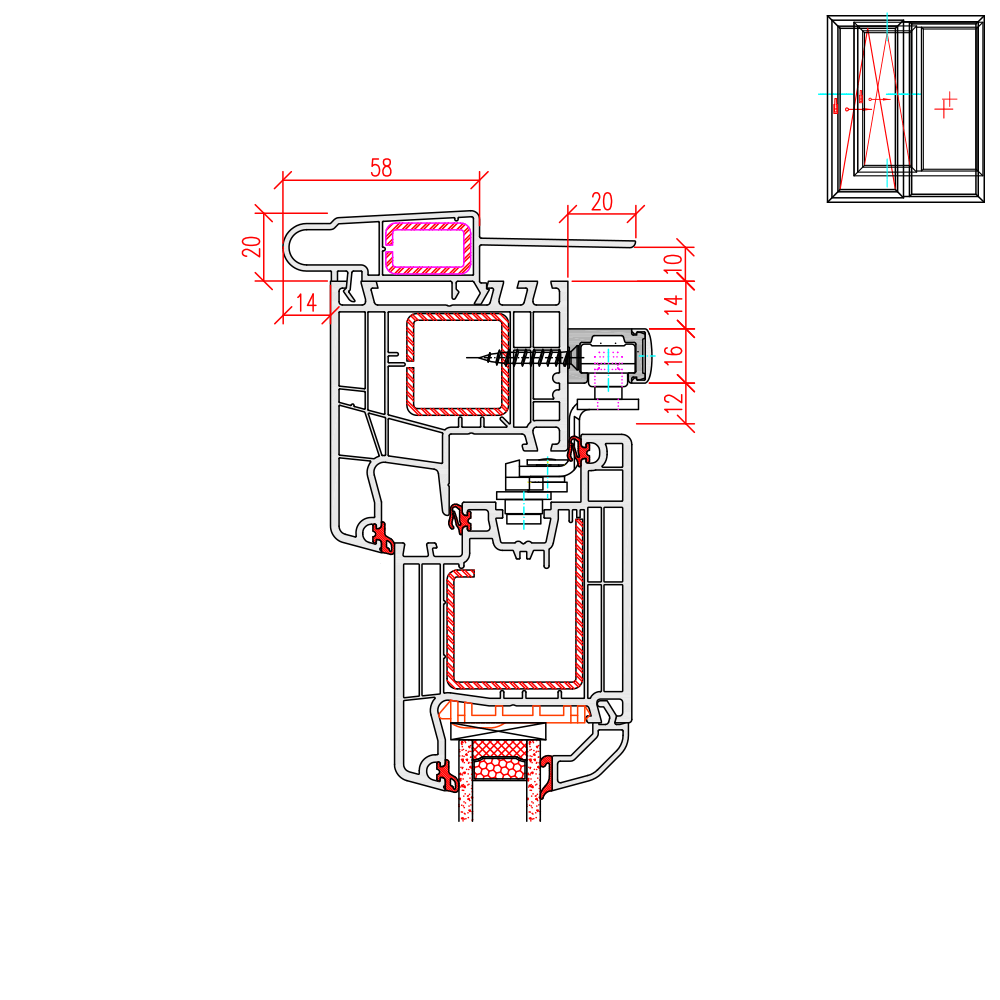

IDEAL 4000 - roller shutter traverse for new-builds
IDEAL 4000 - roller shutter traverse for new-builds

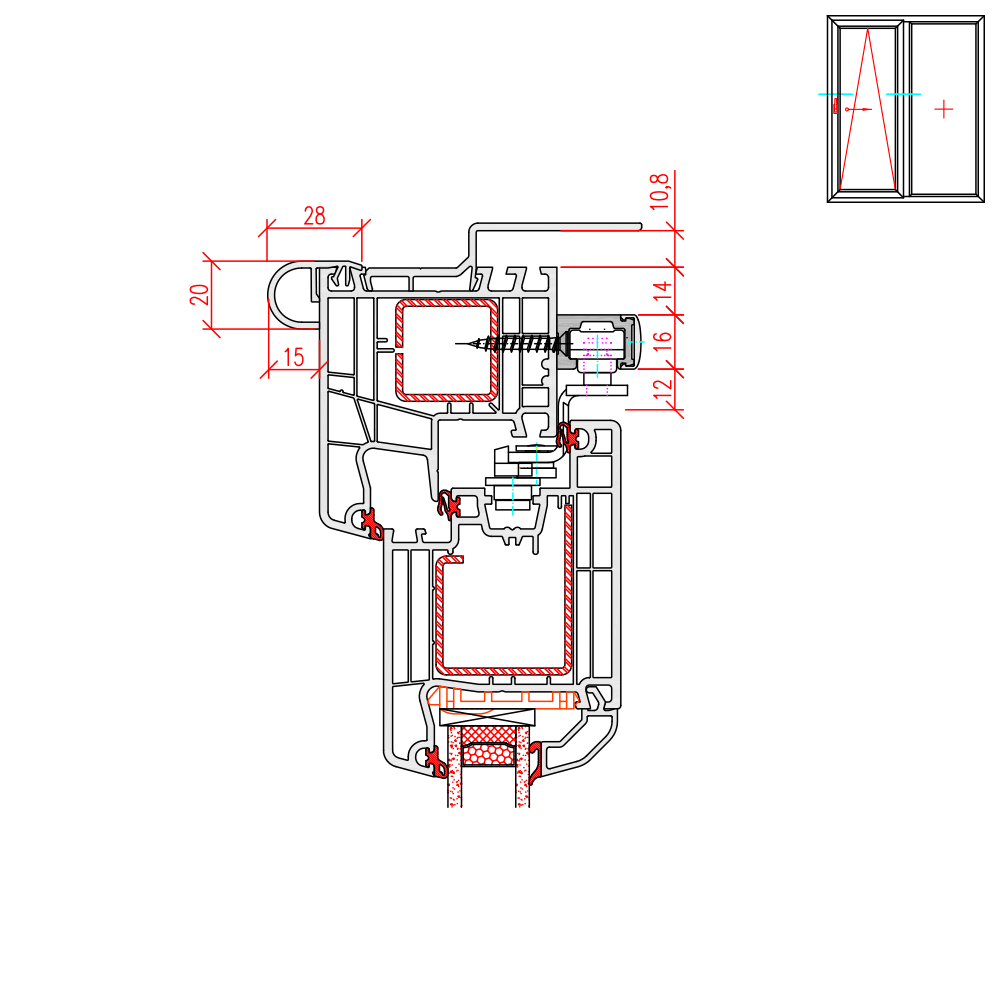

IDEAL 4000 - roller shutter traverse for older buildings
IDEAL 4000 - roller shutter traverse for older buildings

To top of page

Detailed Drawings – IDEAL 5000

Sill Connection Profiles

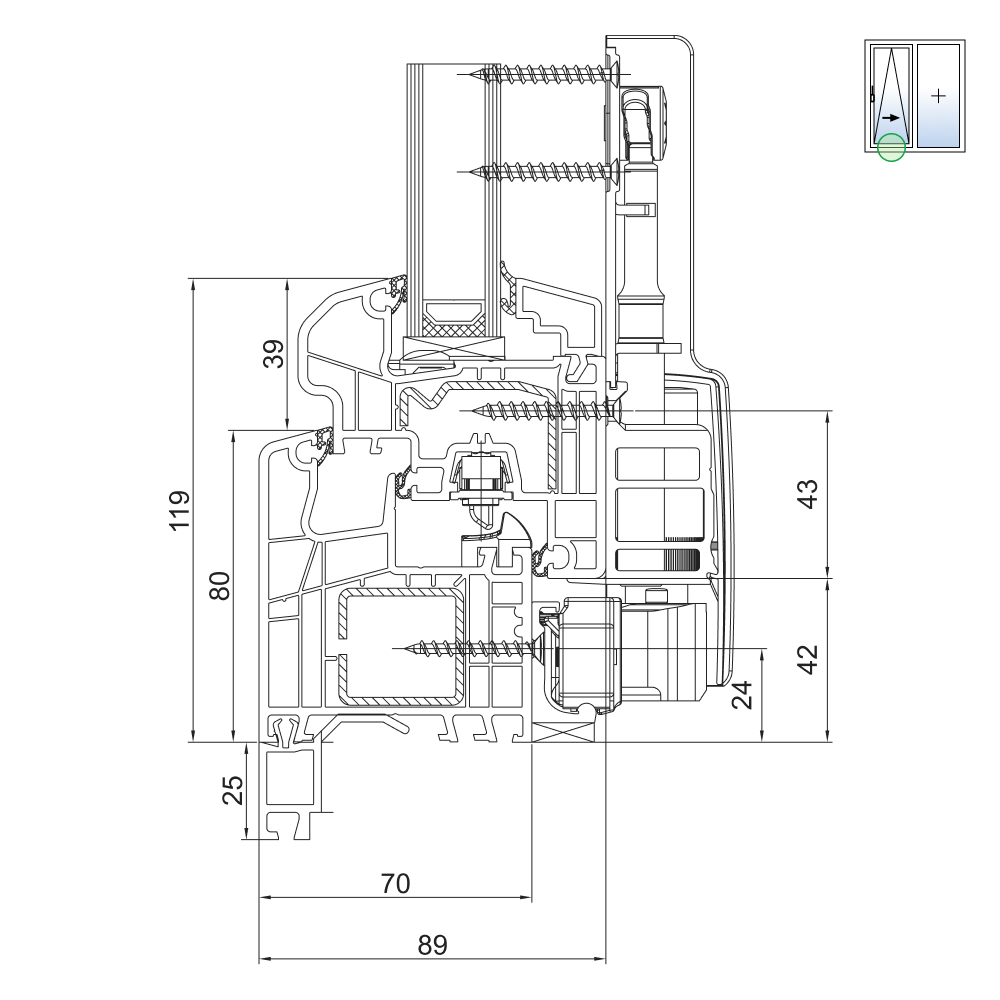

IDEAL 5000 - 25 mm milling for a connection profile for stone sills
IDEAL 5000 - 25 mm milling for a connection profile for stone sills

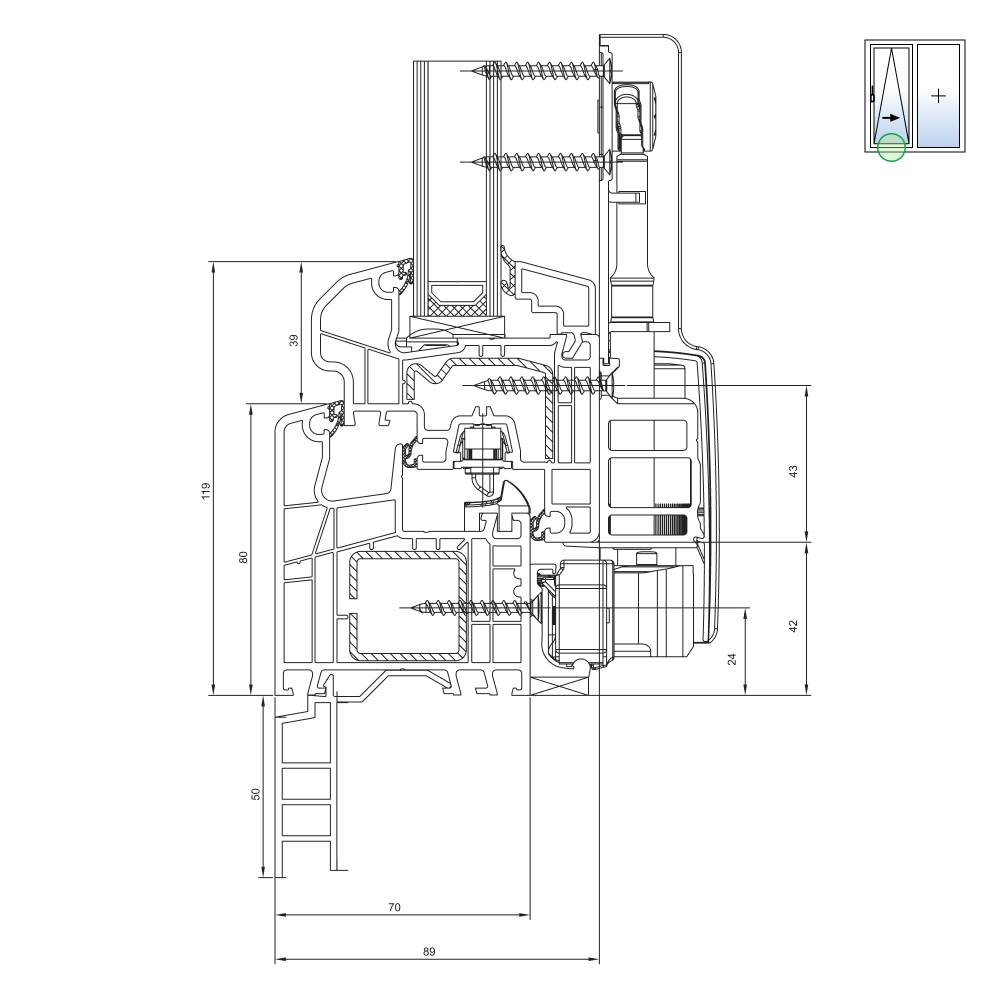

IDEAL 5000 - 50 mm milling for a connection profile for stone sills
IDEAL 5000 - 50 mm milling for a connection profile for stone sills

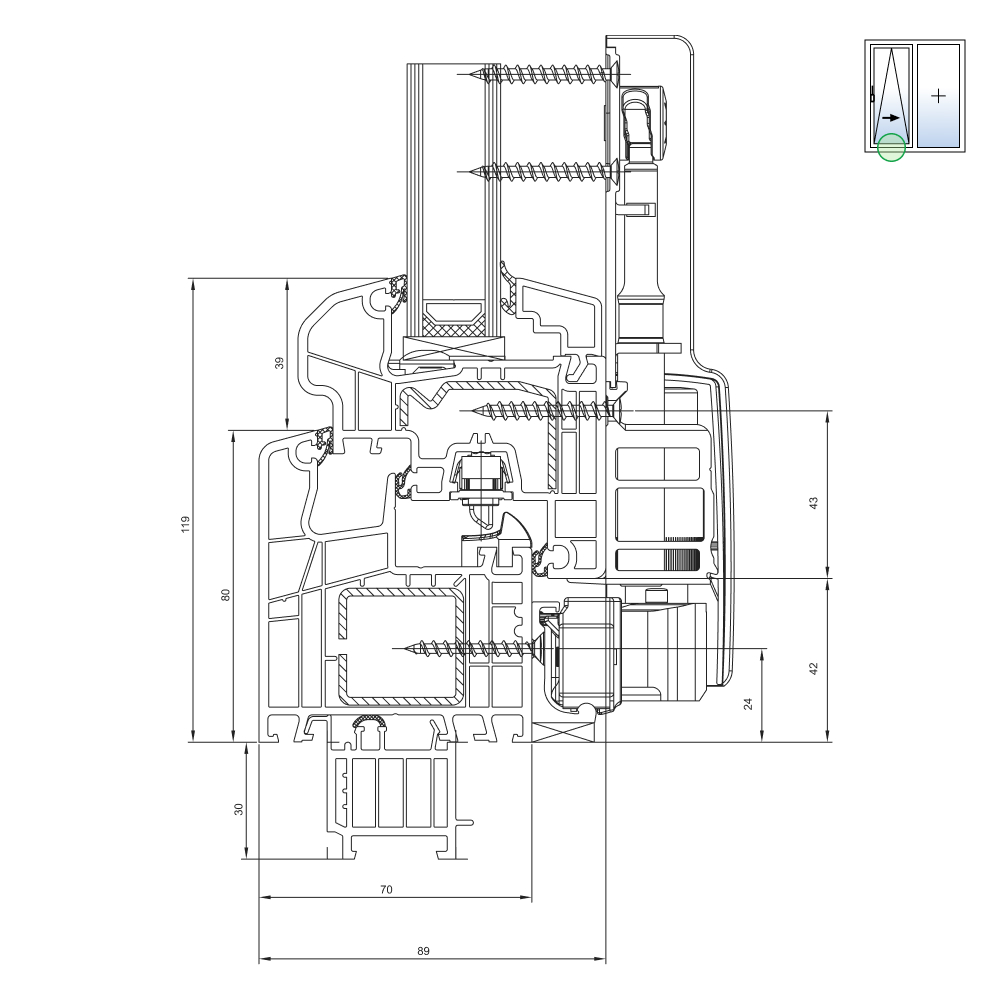

IDEAL 5000 - 30 mm milling for a sill connection profile for new-builds
IDEAL 5000 - 30 mm milling for a sill connection profile for new-builds

Frame Extensions

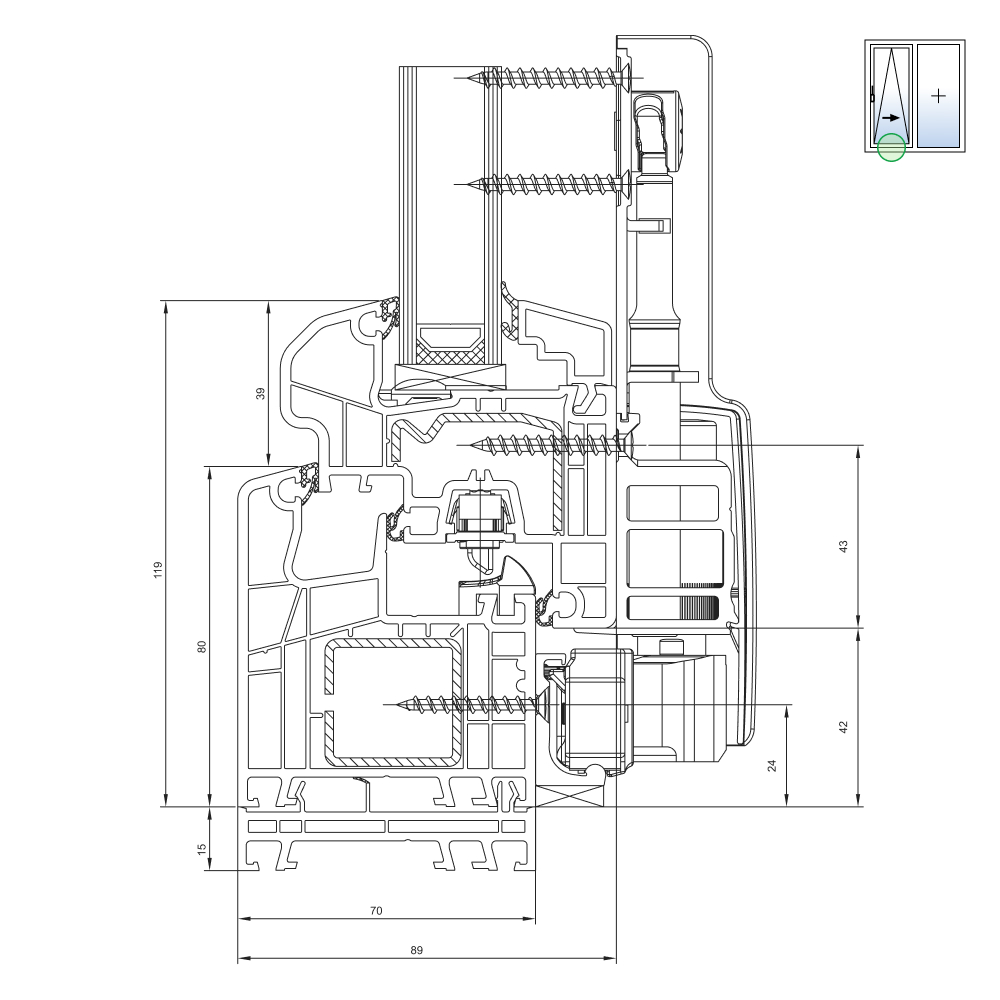

IDEAL 5000 - 15 mm frame extension
IDEAL 5000 - 15 mm frame extension

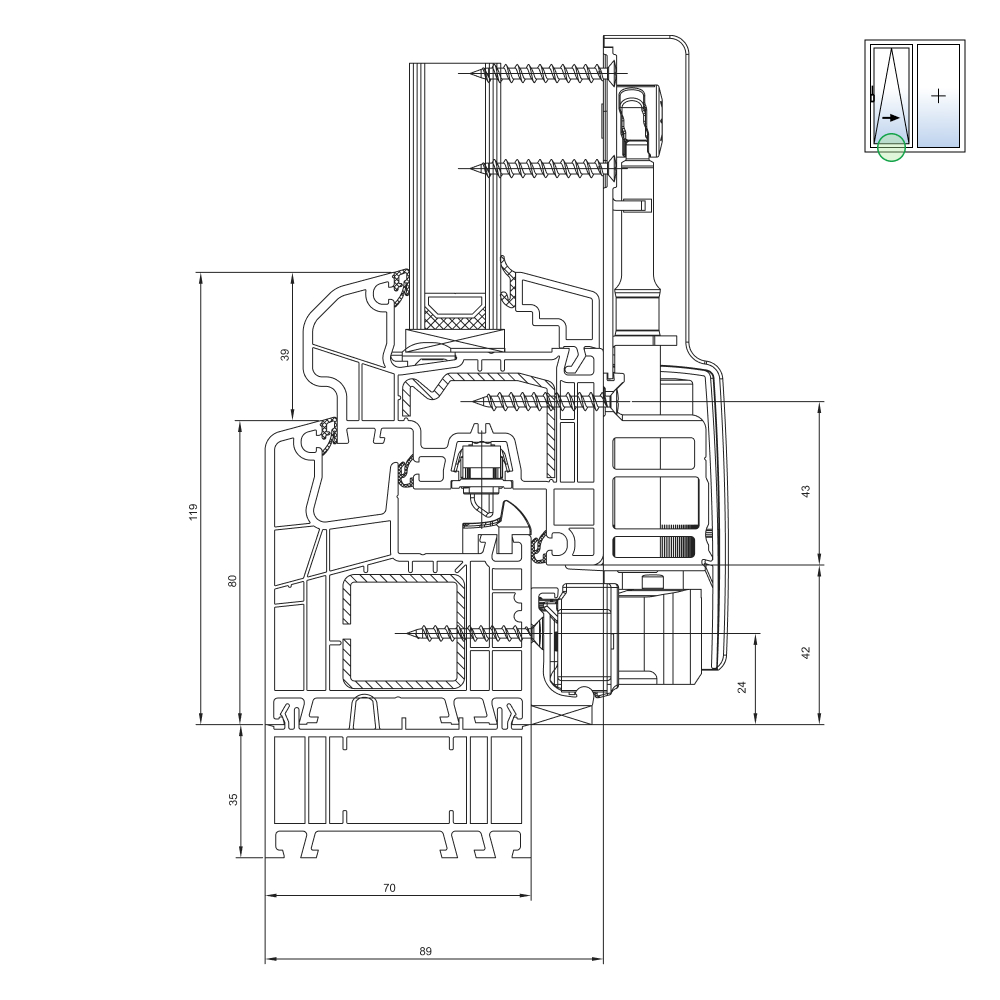

IDEAL 5000 - 35 mm frame extension
IDEAL 5000 - 35 mm frame extension

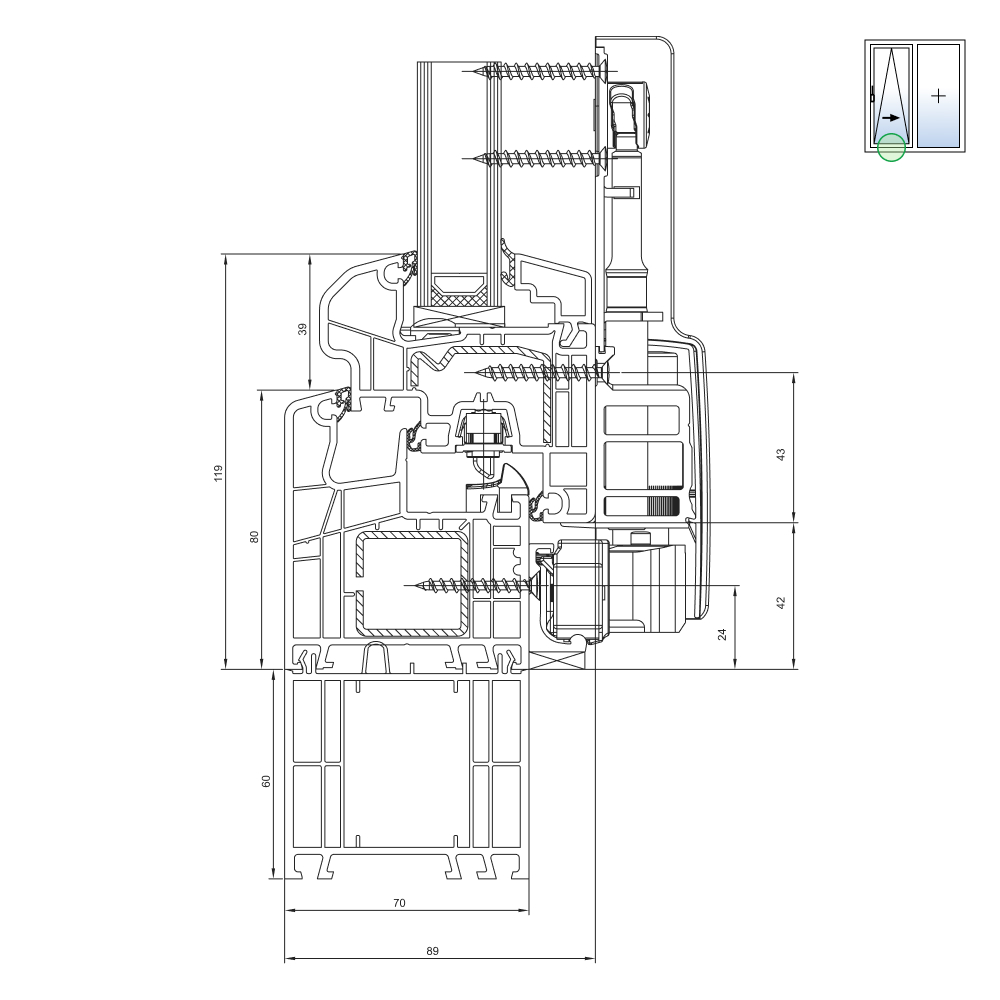

IDEAL 5000 - 60 mm frame extension
IDEAL 5000 - 60 mm frame extension

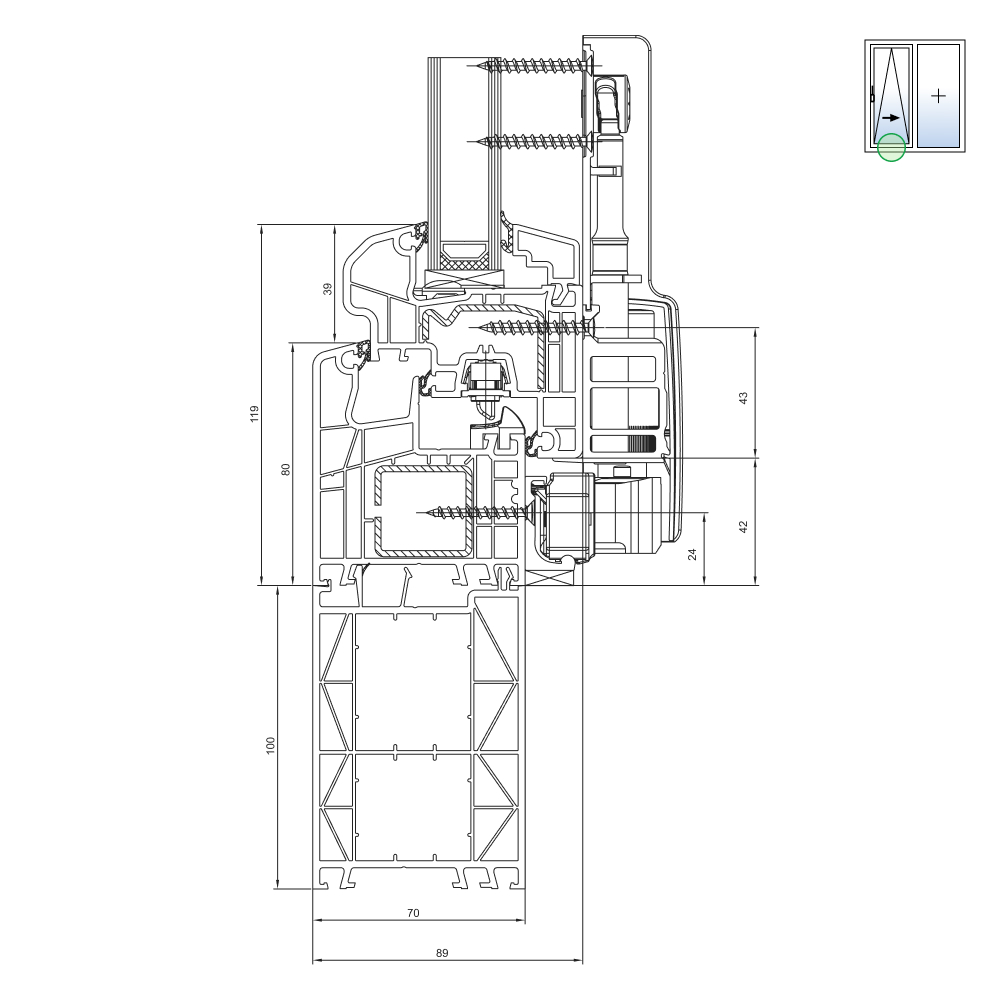

IDEAL 5000 - 100 mm frame extension
IDEAL 5000 - 100 mm frame extension

Roller Shutter Guide Rails

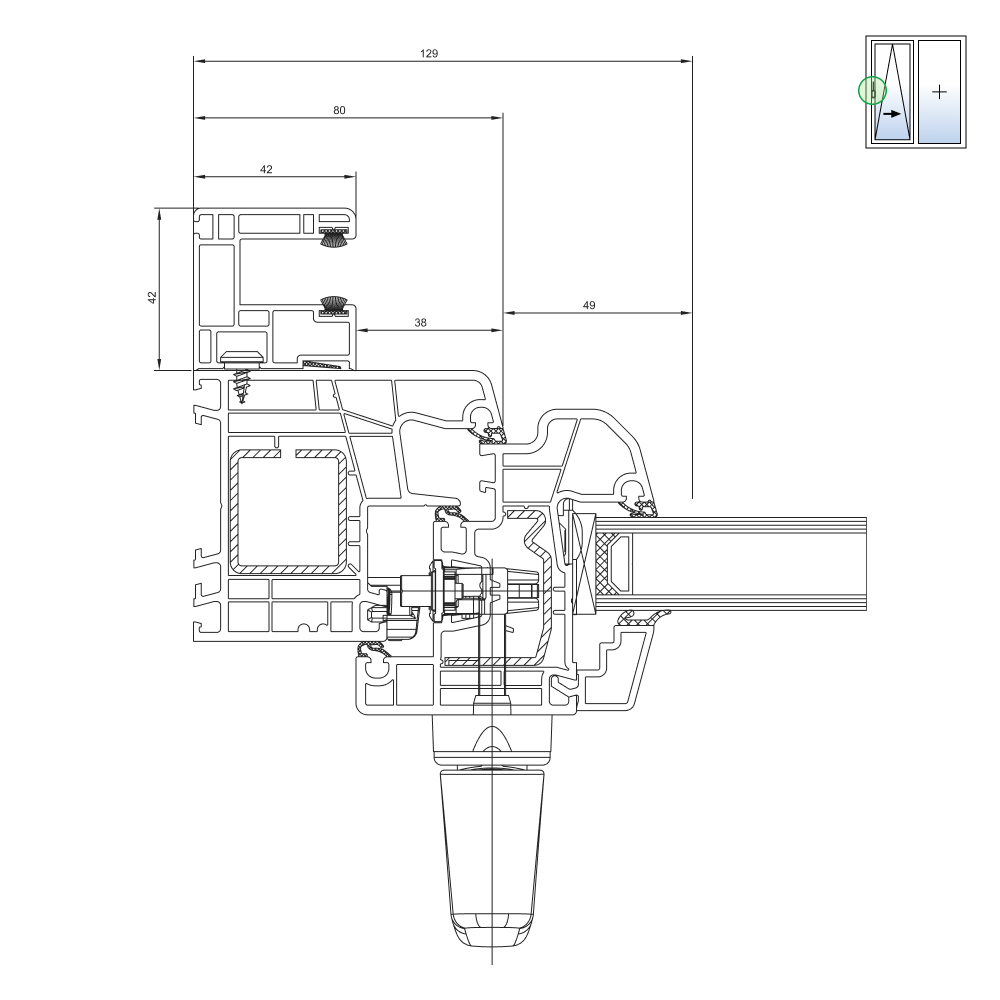

IDEAL 5000 - roller shutter guide rails for new-builds
IDEAL 5000 - roller shutter guide rails for new-builds

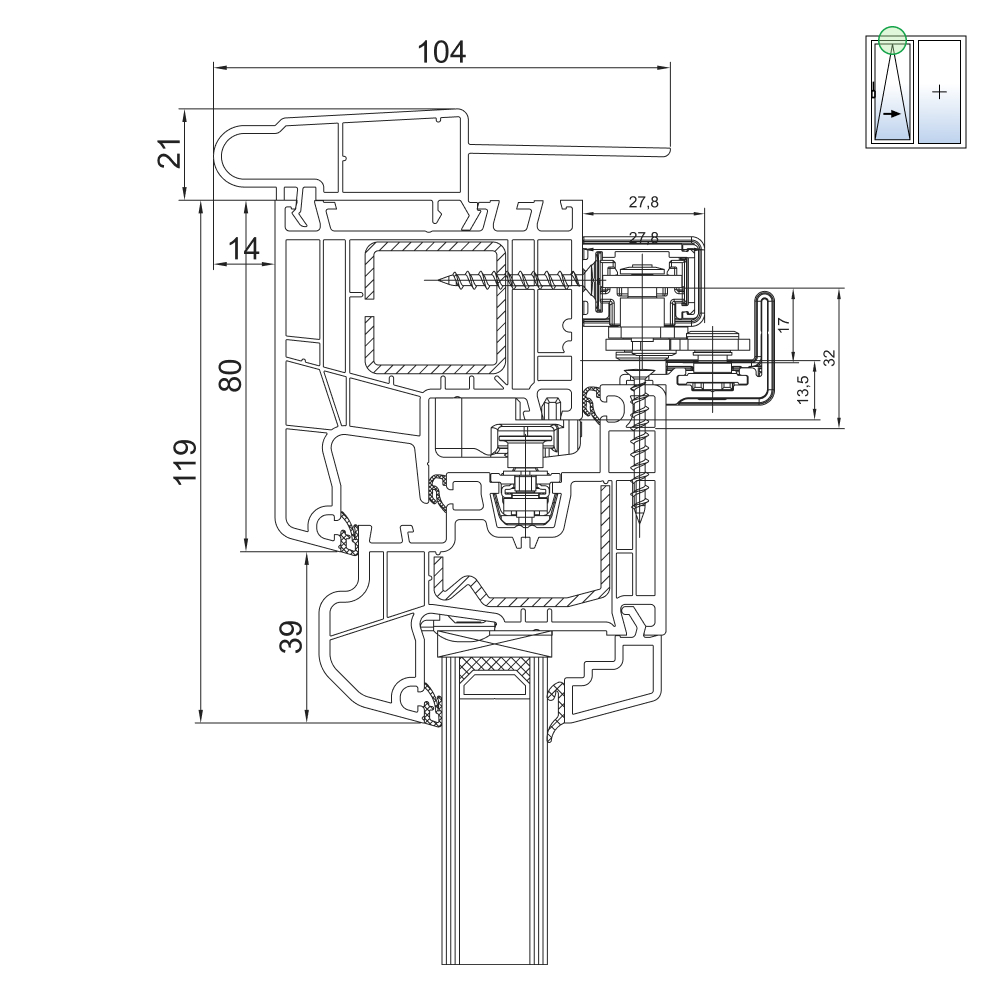

IDEAL 5000 - roller shutter traverse for new-builds
IDEAL 5000 - roller shutter traverse for new-builds

To top of page

Detailed Drawings – IDEAL 7000

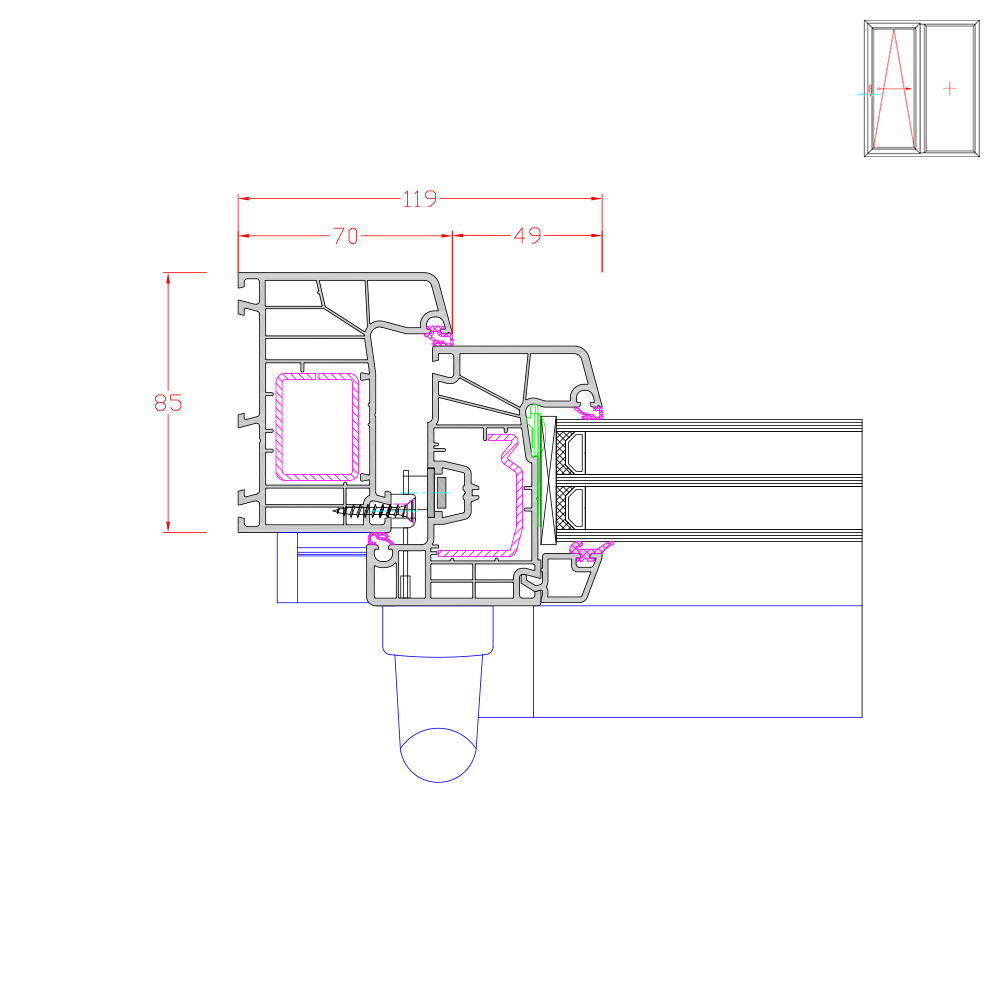

IDEAL 7000 - detail of the frame and sash with handle
IDEAL 7000 - detail of the frame and sash with handle

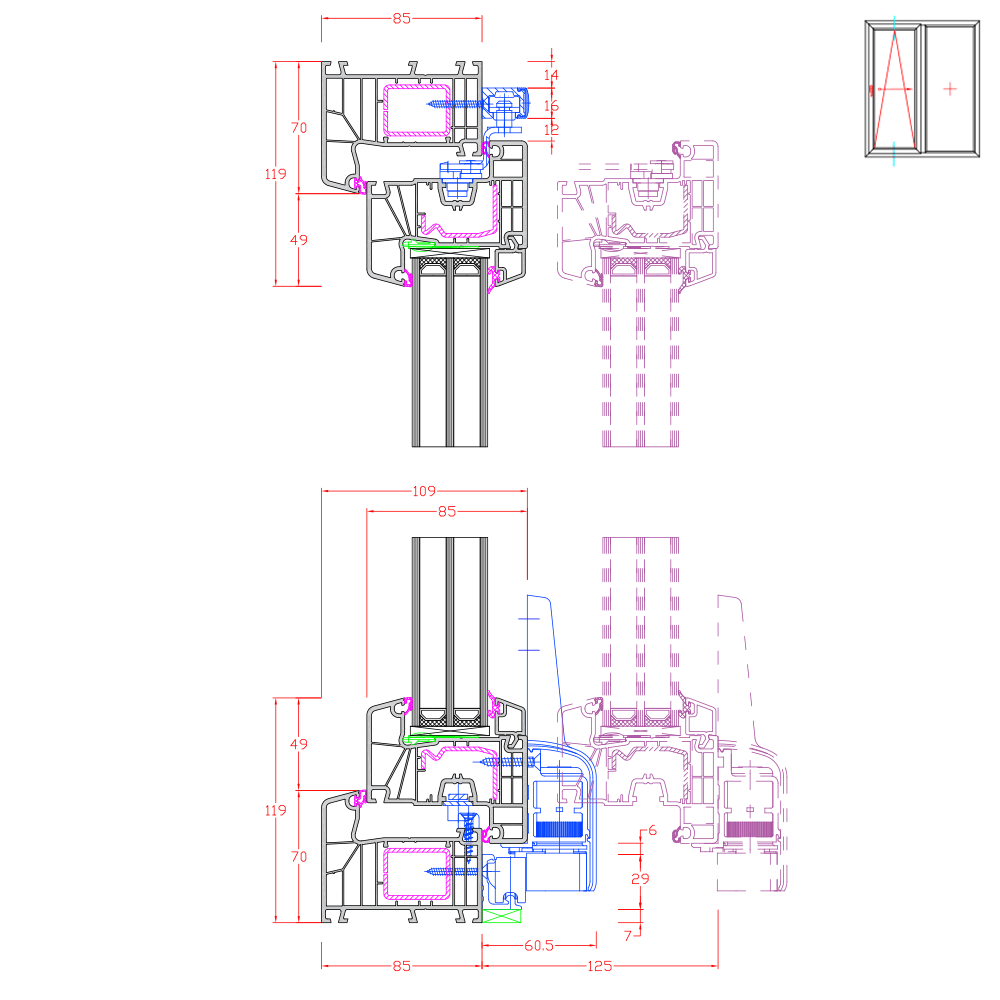

IDEAL 7000 - vertical cross-section
IDEAL 7000 - vertical cross-section

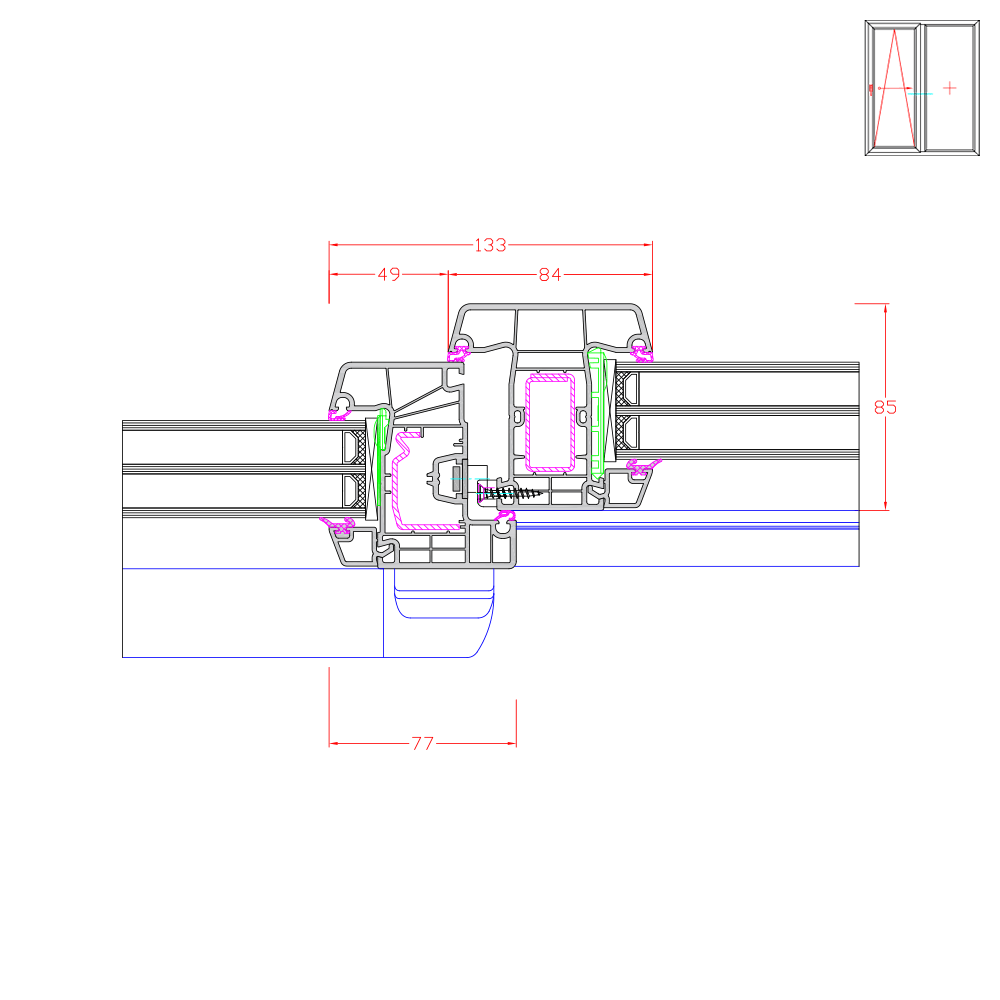

IDEAL 7000 - detail of central mullion
IDEAL 7000 - detail of central mullion

Sill Connection Profiles

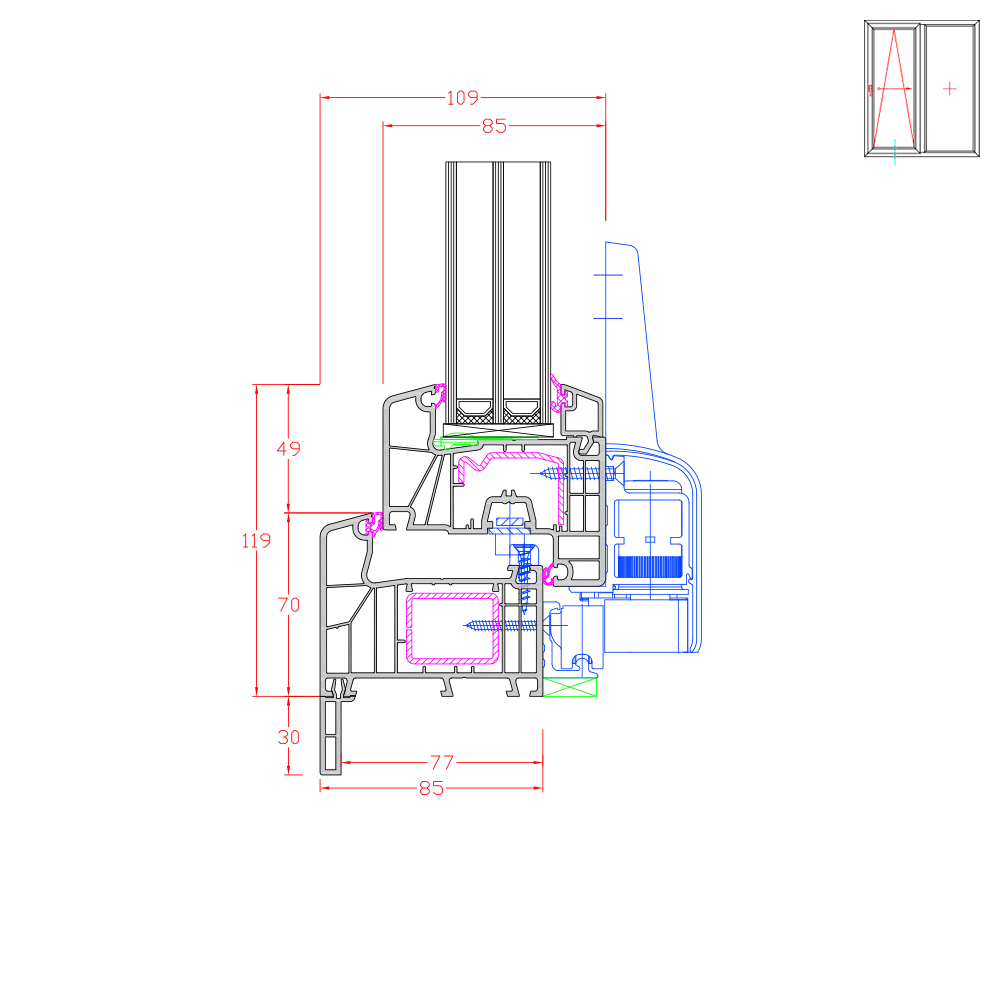

IDEAL 7000 - 30 mm milling for a connection profile for stone sills
IDEAL 7000 - 30 mm milling for a connection profile for stone sills

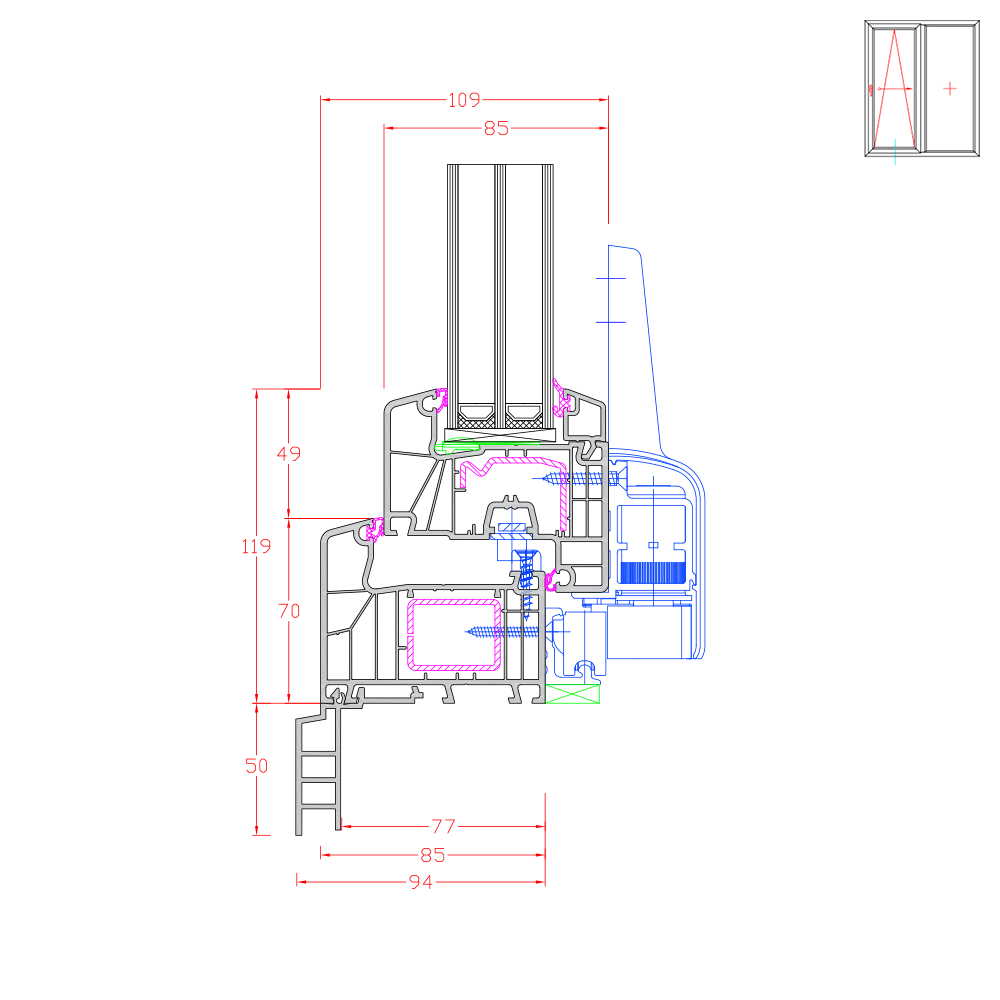

IDEAL 7000 - 50 mm milling for a connection profile for stone sills
IDEAL 7000 - 50 mm milling for a connection profile for stone sills

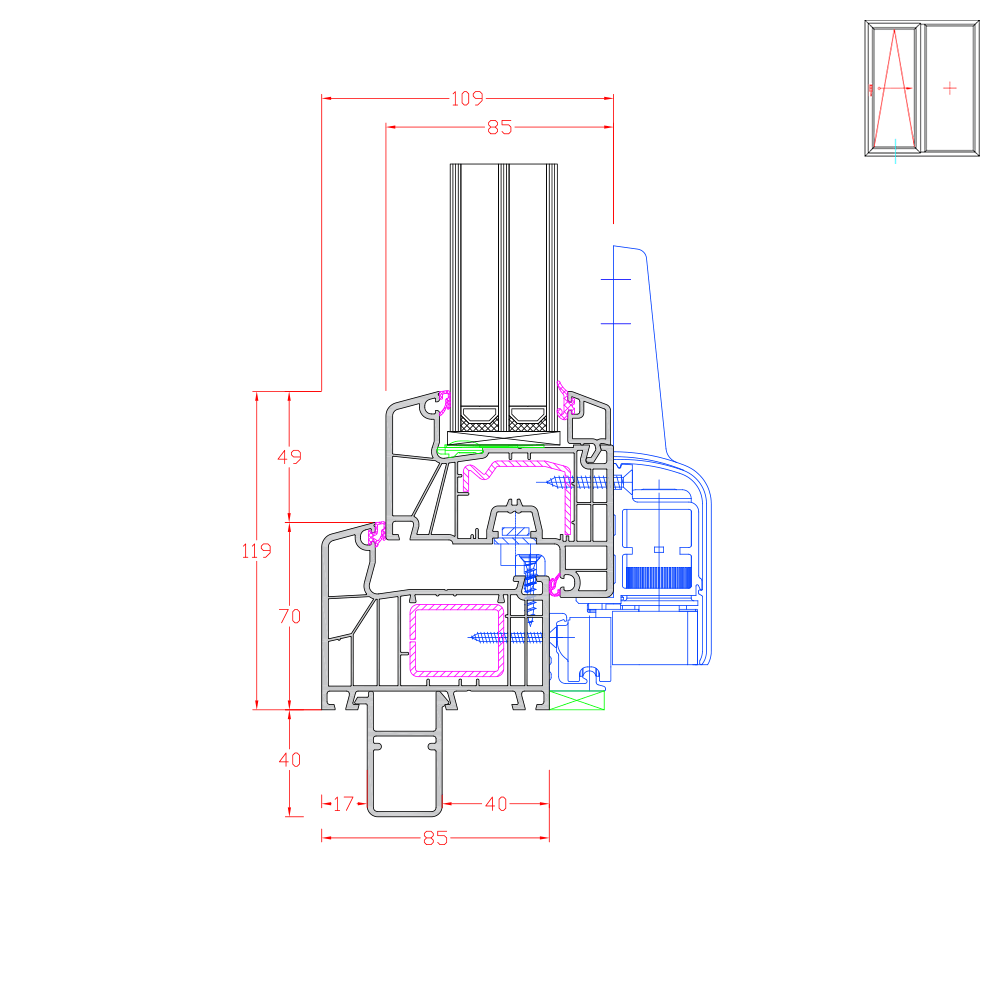

IDEAL 7000 - 40 mm milling for a sill connection profile for new-builds
IDEAL 7000 - 40 mm milling for a sill connection profile for new-builds

Frame Extensions

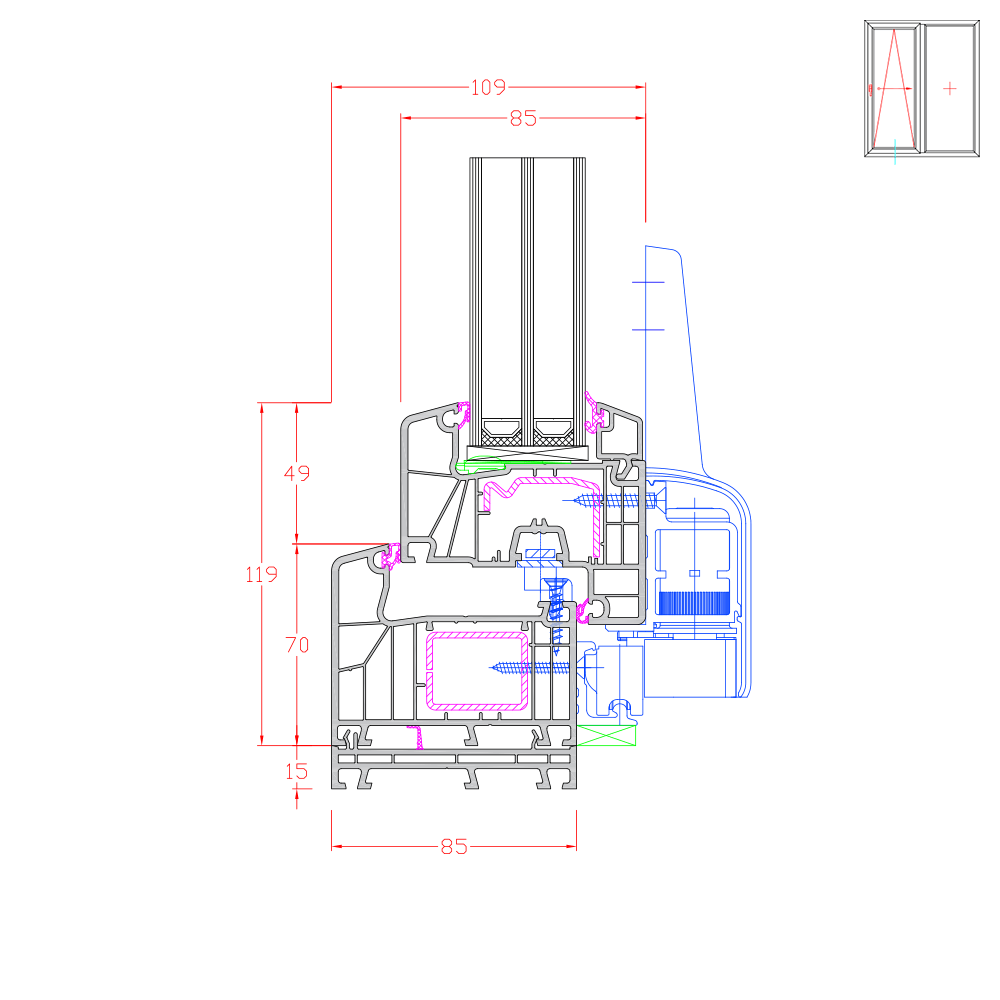

IDEAL 7000 - 15 mm frame extension
IDEAL 7000 - 15 mm frame extension

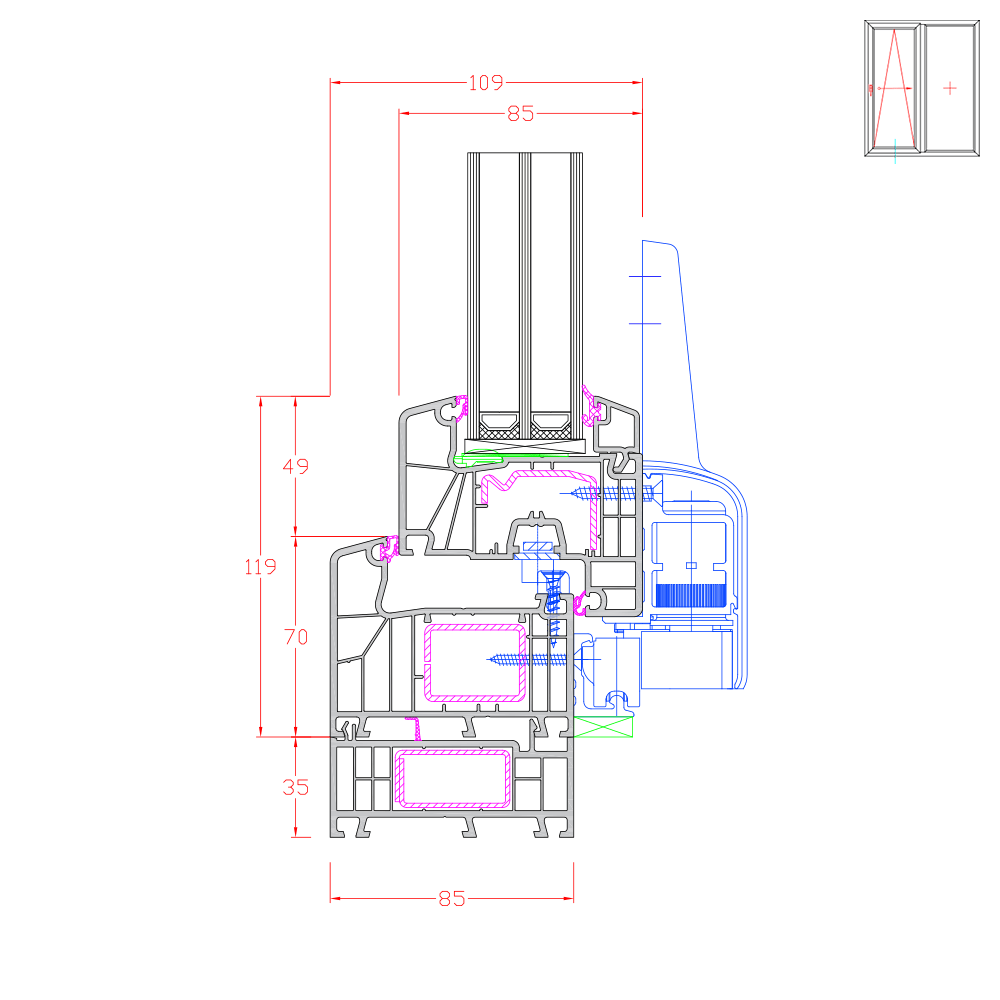

IDEAL 7000 - 35 mm frame extension
IDEAL 7000 - 35 mm frame extension

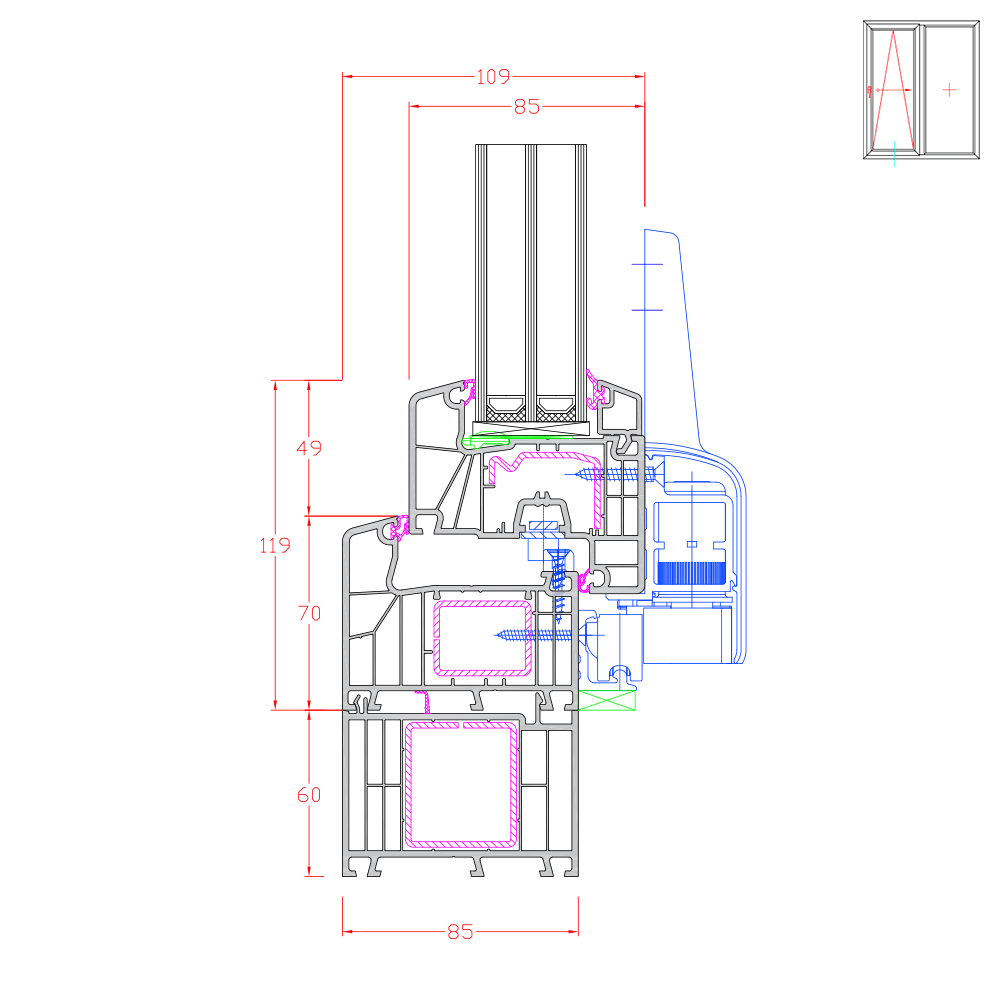

IDEAL 7000 - 60 mm frame extension
IDEAL 7000 - 60 mm frame extension

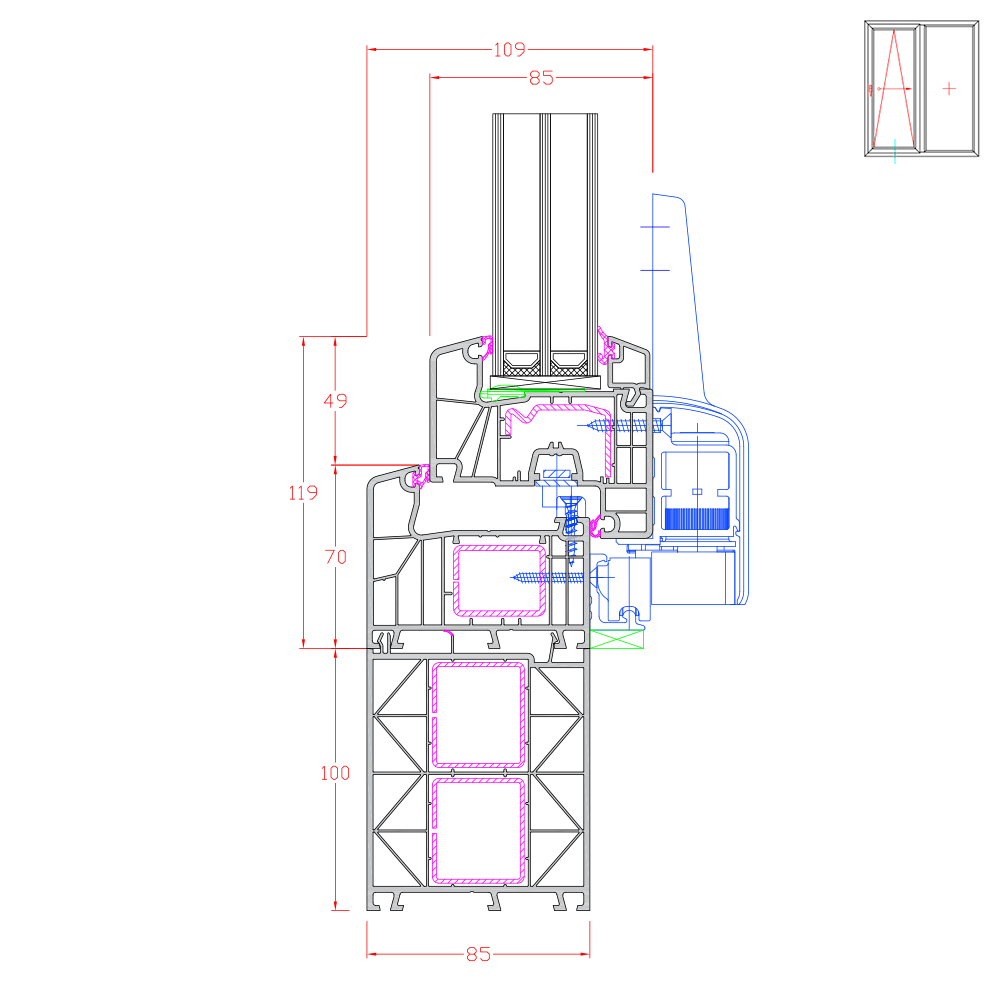

IDEAL 7000 - 100 mm frame extension
IDEAL 7000 - 100 mm frame extension

Roller Shutter Guide Rails

IDEAL 7000 - roller shutter guide rails for new-builds
IDEAL 7000 - roller shutter guide rails for new-builds

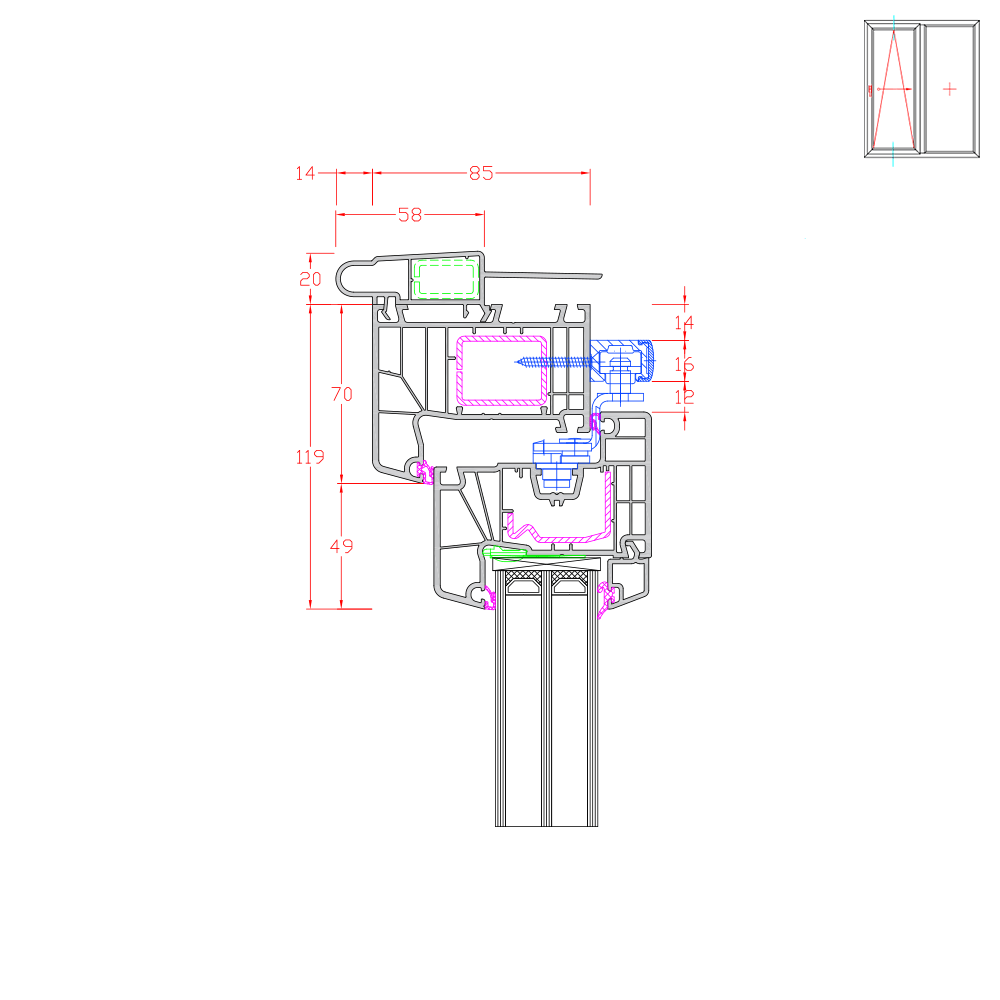

IDEAL 7000 - roller shutter traverse for new-builds
IDEAL 7000 - roller shutter traverse for new-builds

To top of page

Detailed Drawings – IDEAL 8000

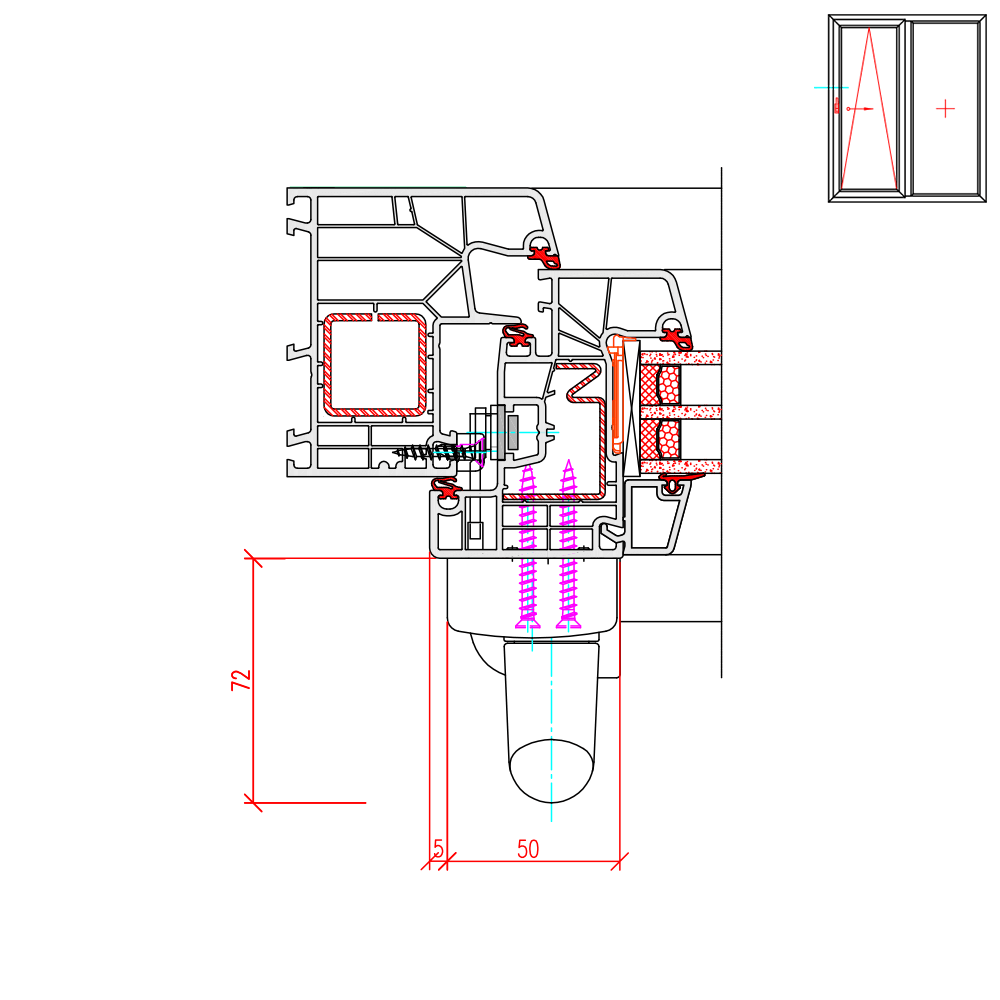

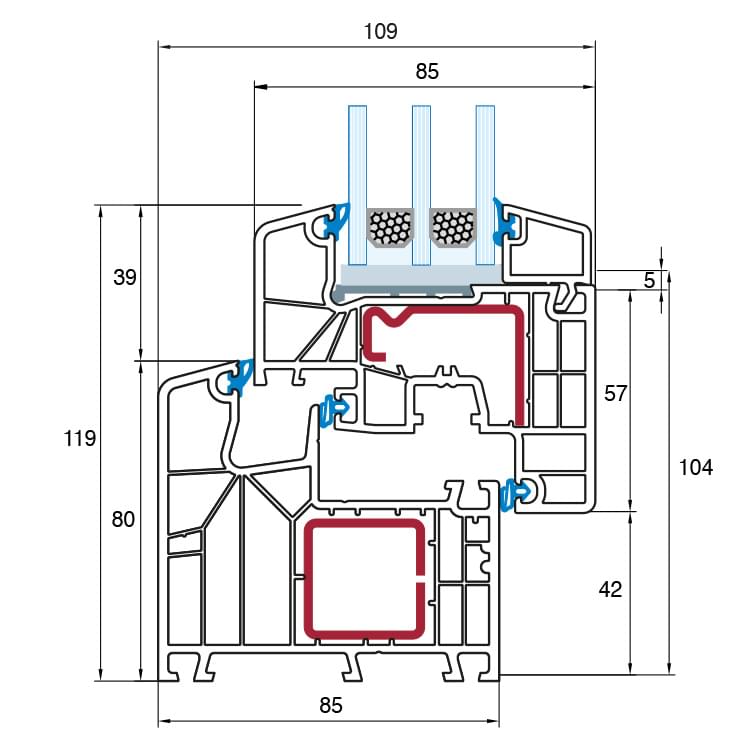

IDEAL 8000 - detail of the frame and sash with handle
IDEAL 8000 - detail of the frame and sash with handle

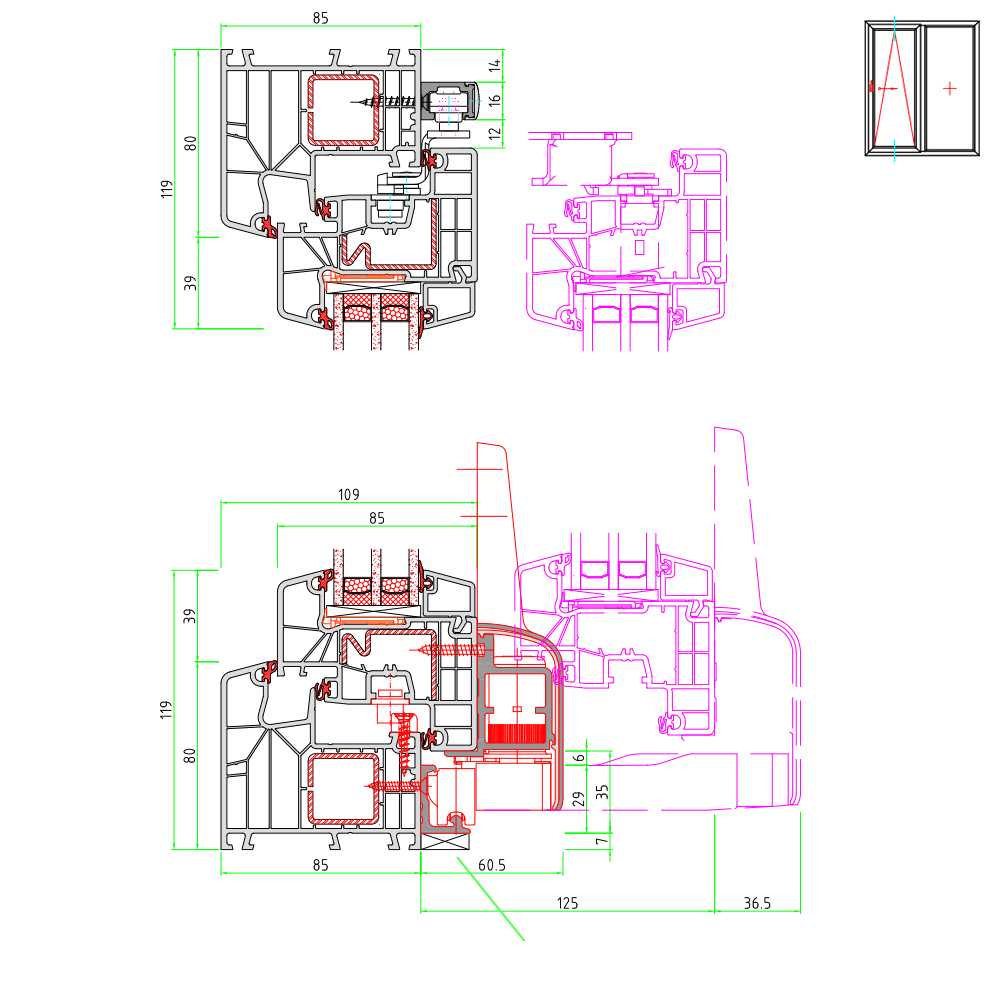

IDEAL 8000 - vertical cross-section
IDEAL 8000 - vertical cross-section

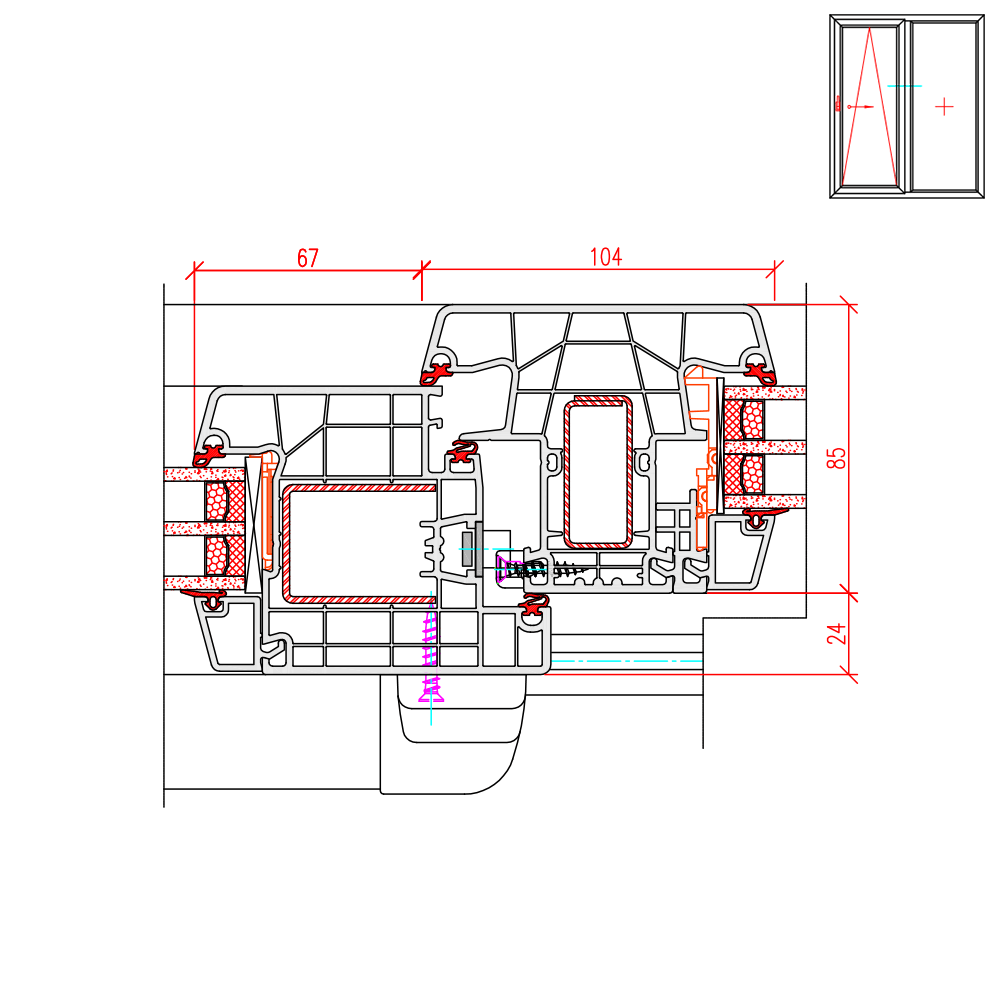

IDEAL 8000 - detail of central mullion
IDEAL 8000 - detail of central mullion

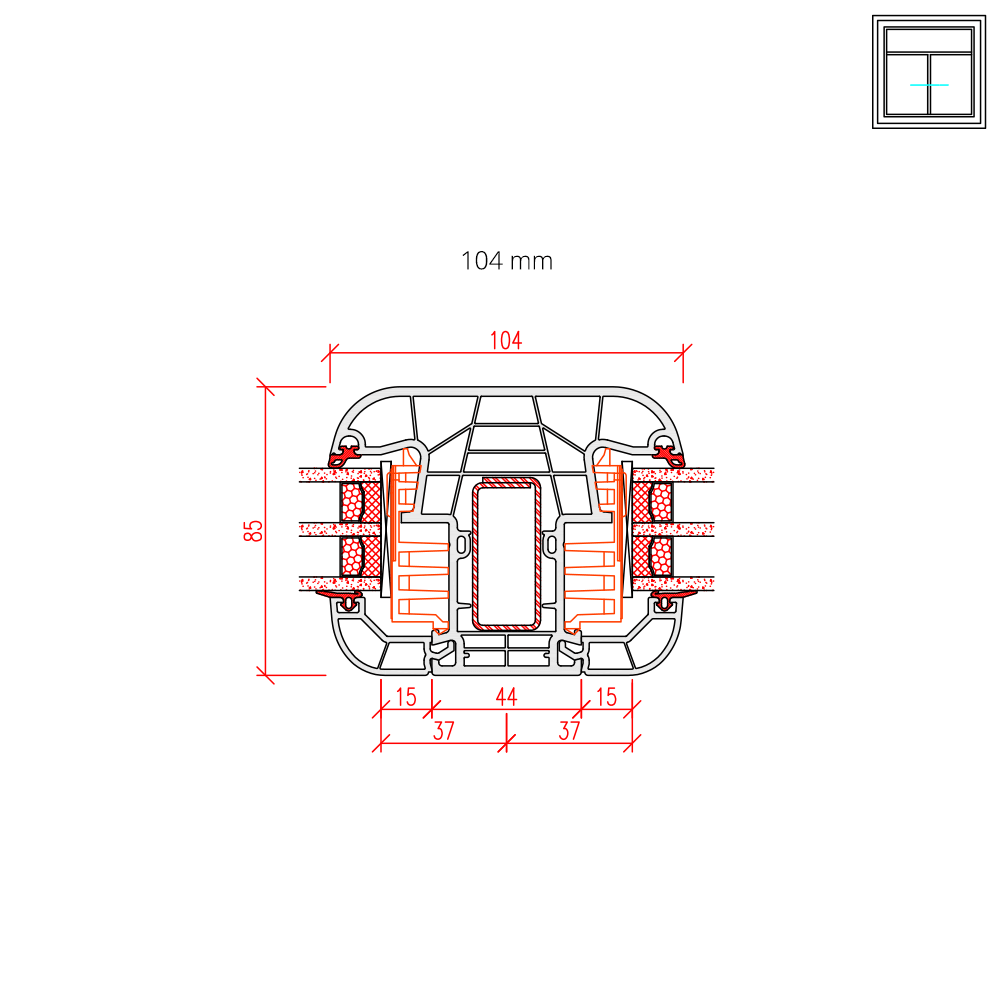

IDEAL 8000 - detail of glass dividing glazing bar
IDEAL 8000 - detail of a glass dividing glazing bar

Sill Connection Profiles

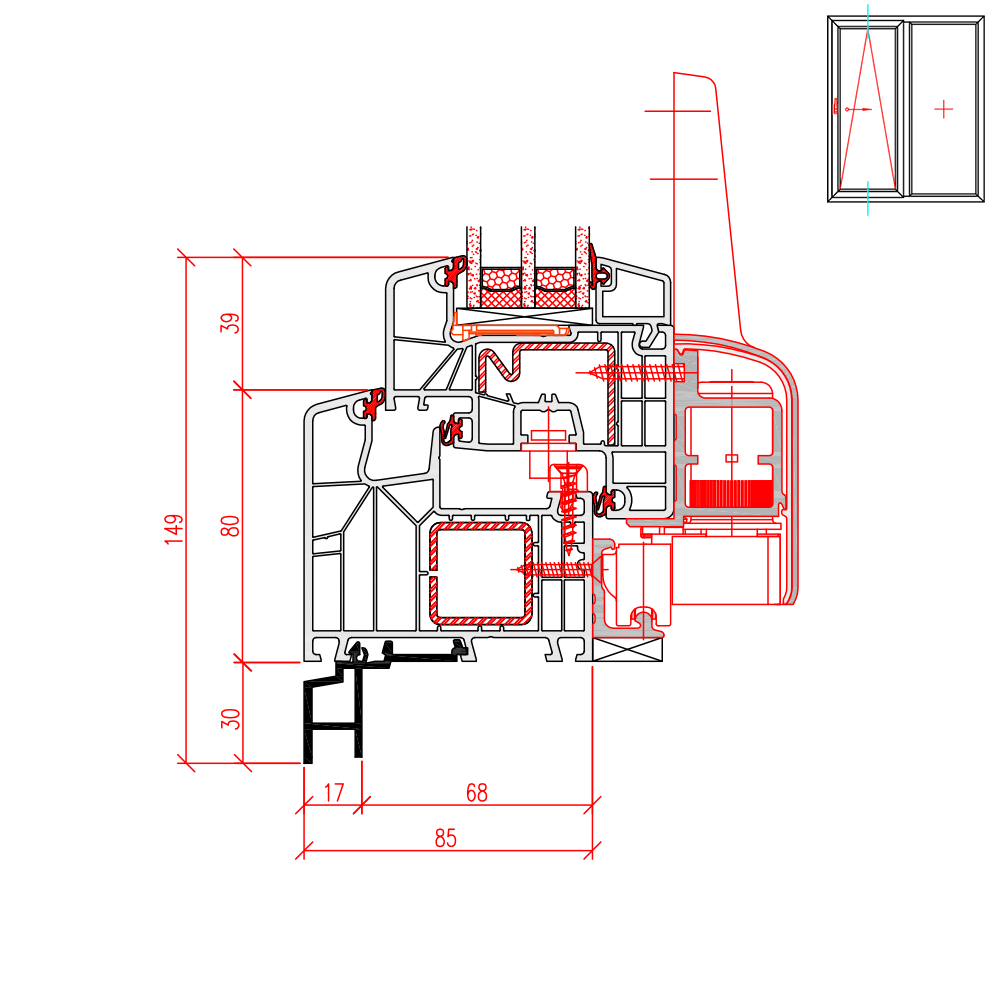

IDEAL 8000 - 30 mm milling for a connection profile for stone sills
IDEAL 8000 - 30 mm milling for a connection profile for stone sills

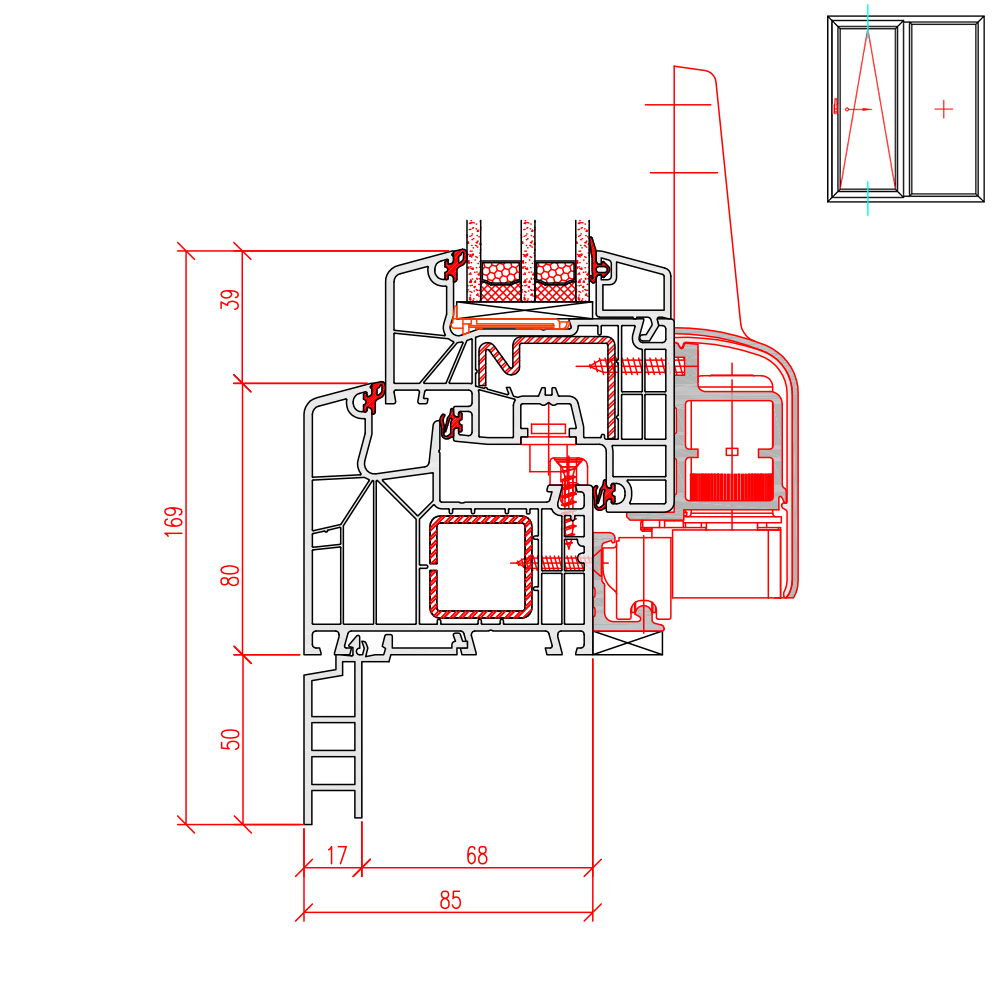

IDEAL 8000 - 50 mm milling for a connection profile for stone sills
IDEAL 8000 - 50 mm milling for a connection profile for stone sills

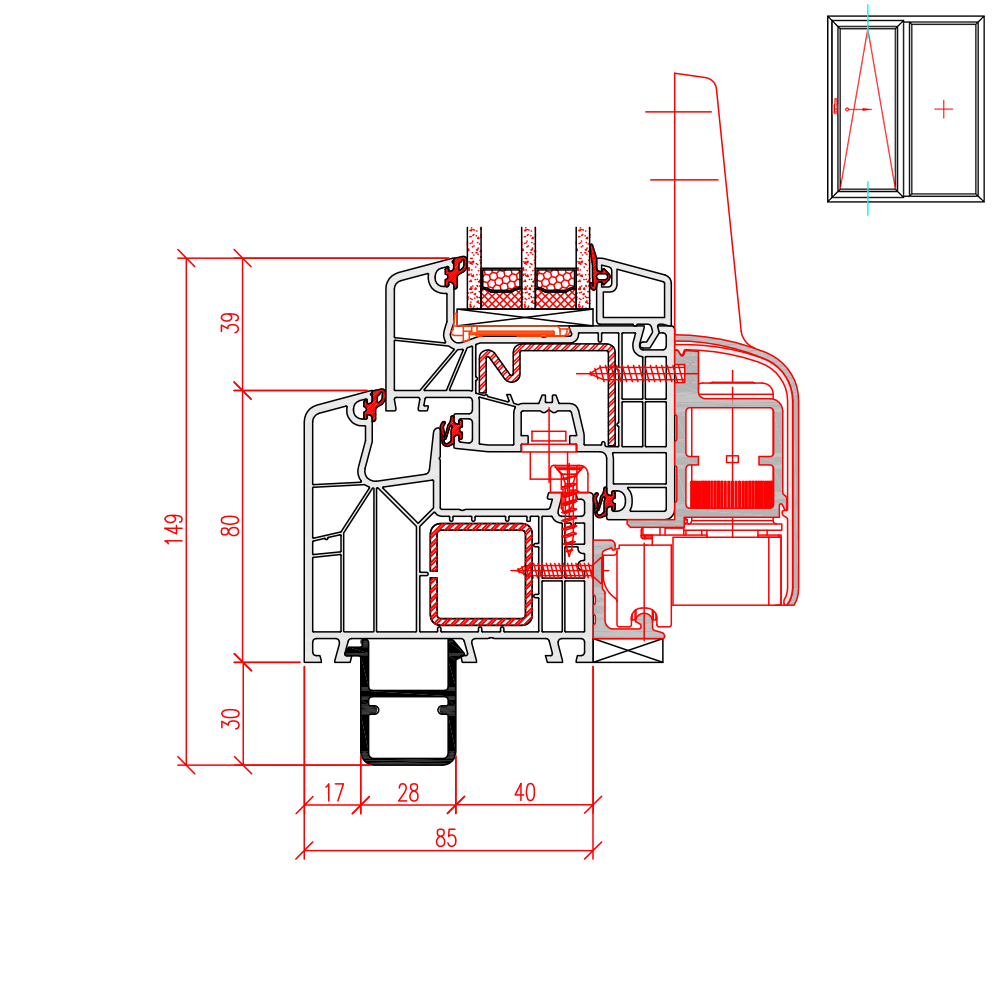

IDEAL 8000 - 30 mm milling for a sill connection profile for new-builds
IDEAL 8000 - 30 mm milling for a sill connection profile for new-builds

Frame Extensions

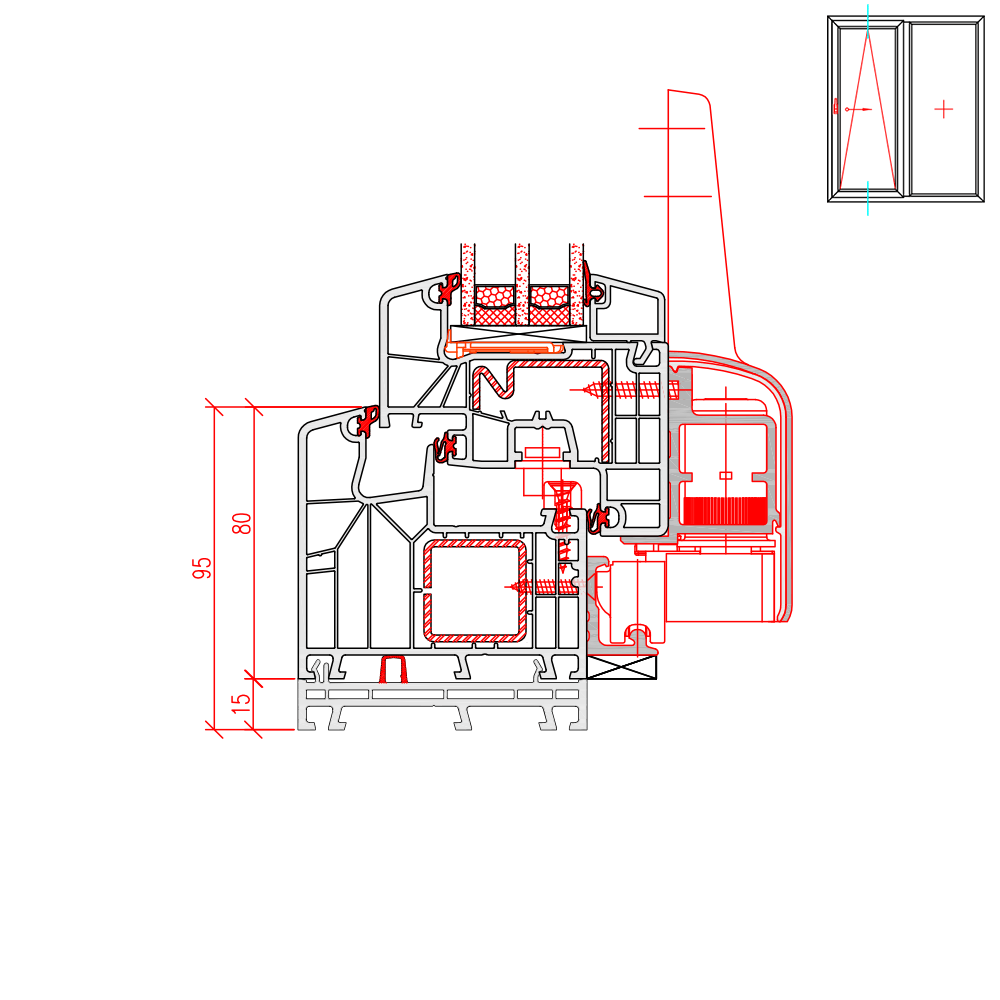

IDEAL 8000 - 15 mm frame extension
IDEAL 8000 - 15 mm frame extension

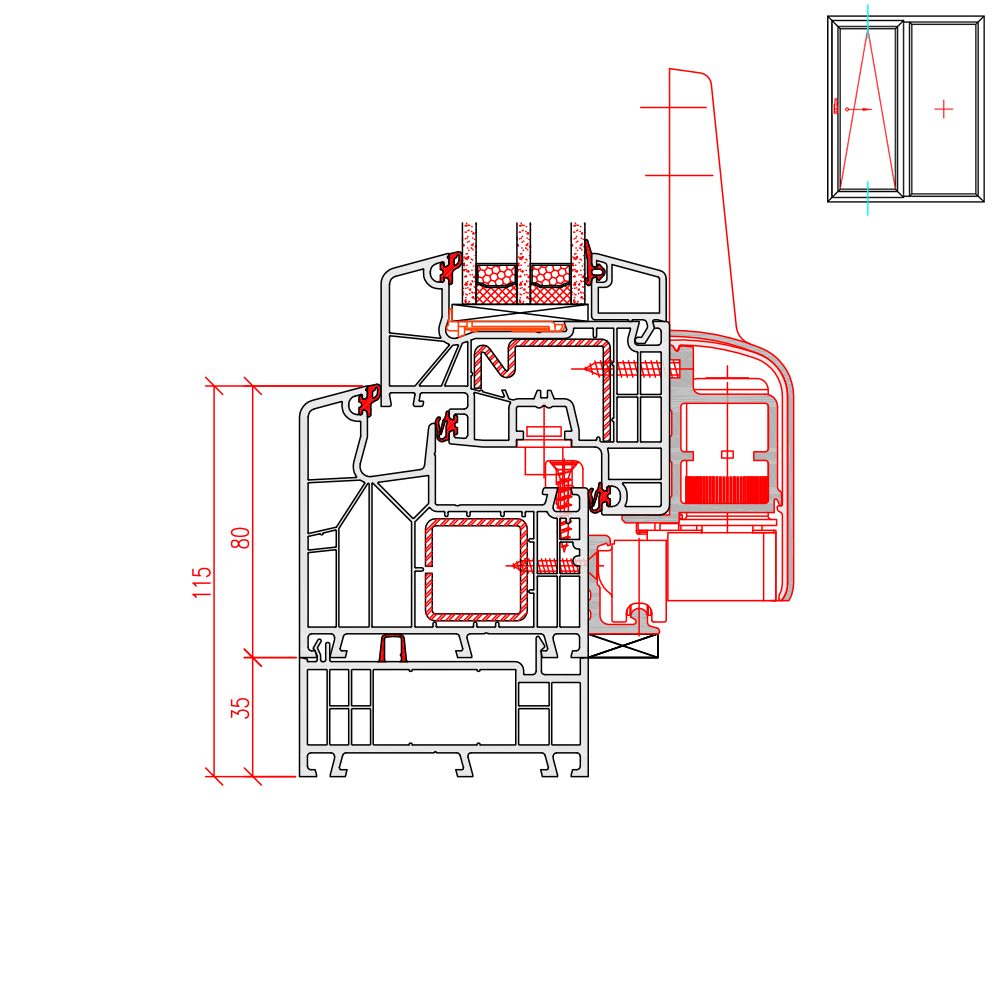

IDEAL 8000 - 35 mm frame extension
IDEAL 8000 - 35 mm frame extension

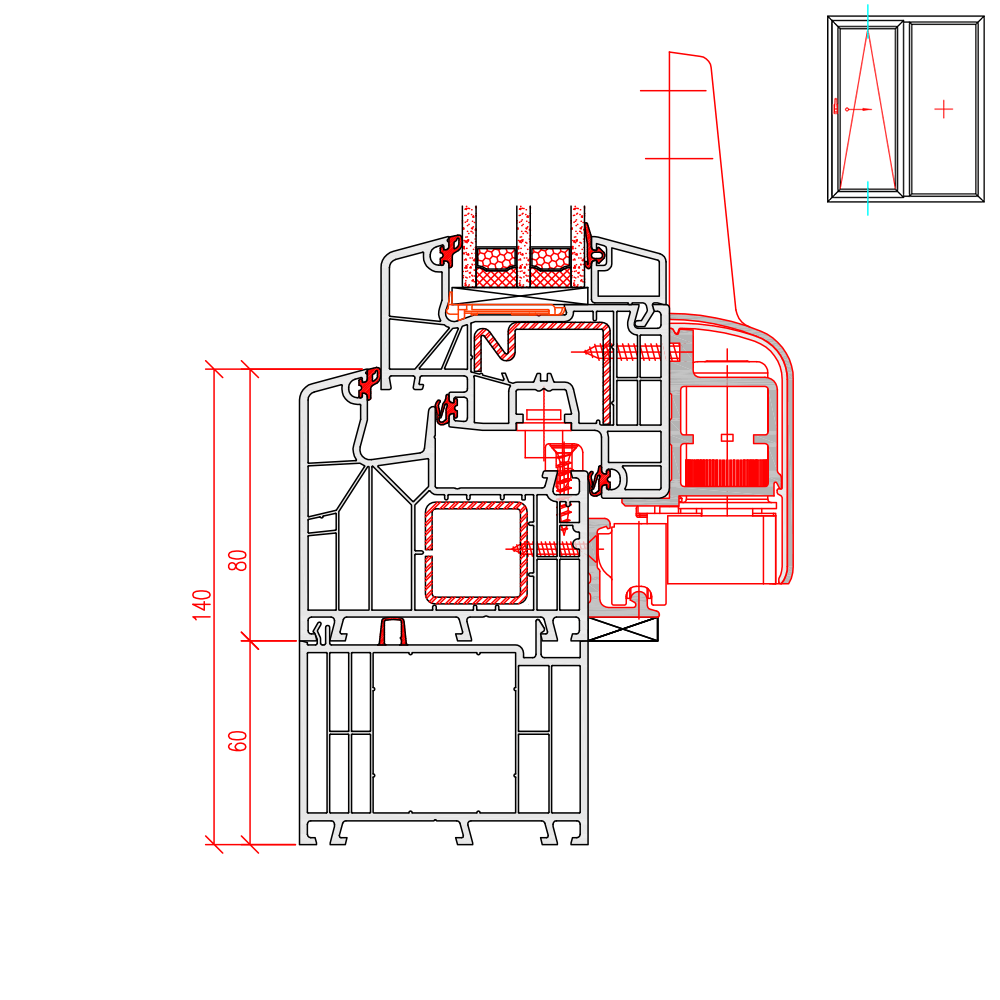

IDEAL 8000 - 60 mm frame extension
IDEAL 8000 - 60 mm frame extension

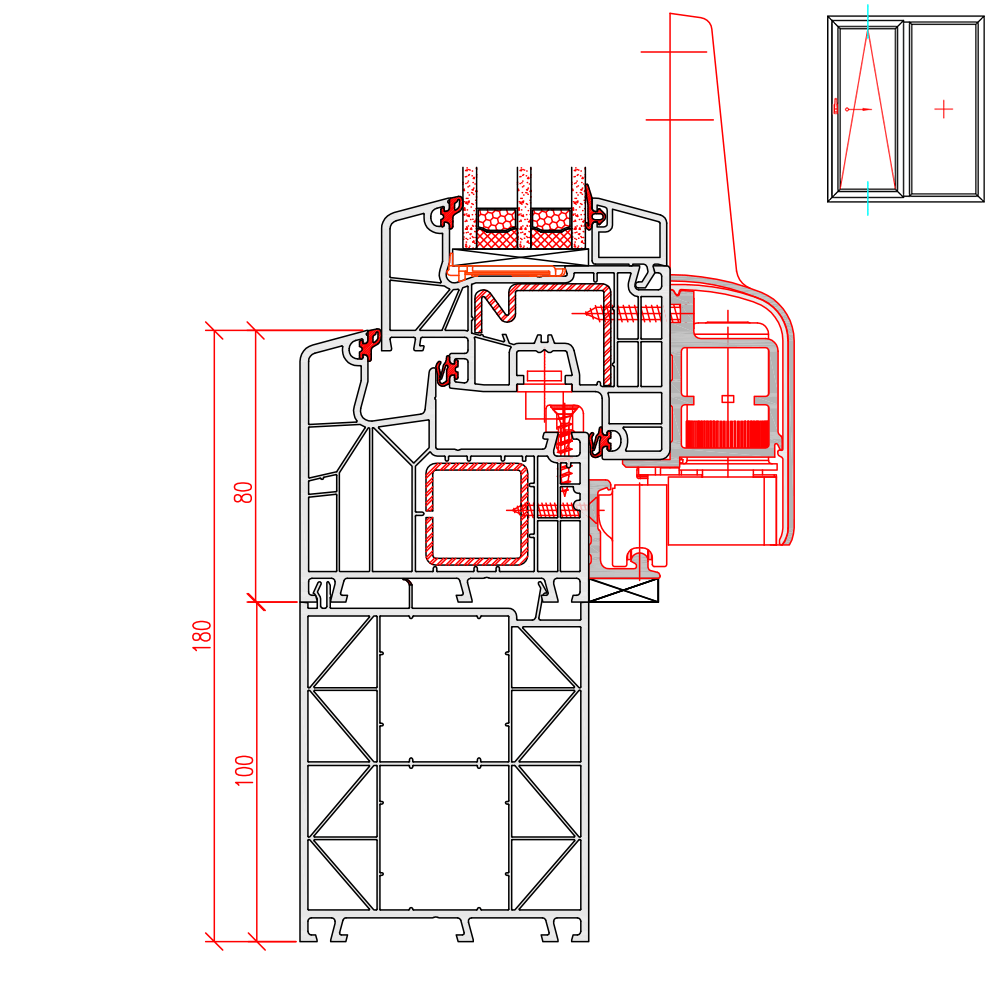

IDEAL 8000 - 100 mm frame extension
IDEAL 8000 - 100 mm frame extension

Roller Shutters

IDEAL 8000 - with a top-mounted roller shutter with a 210 mm box height
IDEAL 8000 - with a top-mounted roller shutter with a 210 mm box height
IDEAL 8000 - with a top-mounted roller shutter with a 240 mm box height
IDEAL 8000 - with a top-mounted roller shutter with a 240 mm box height

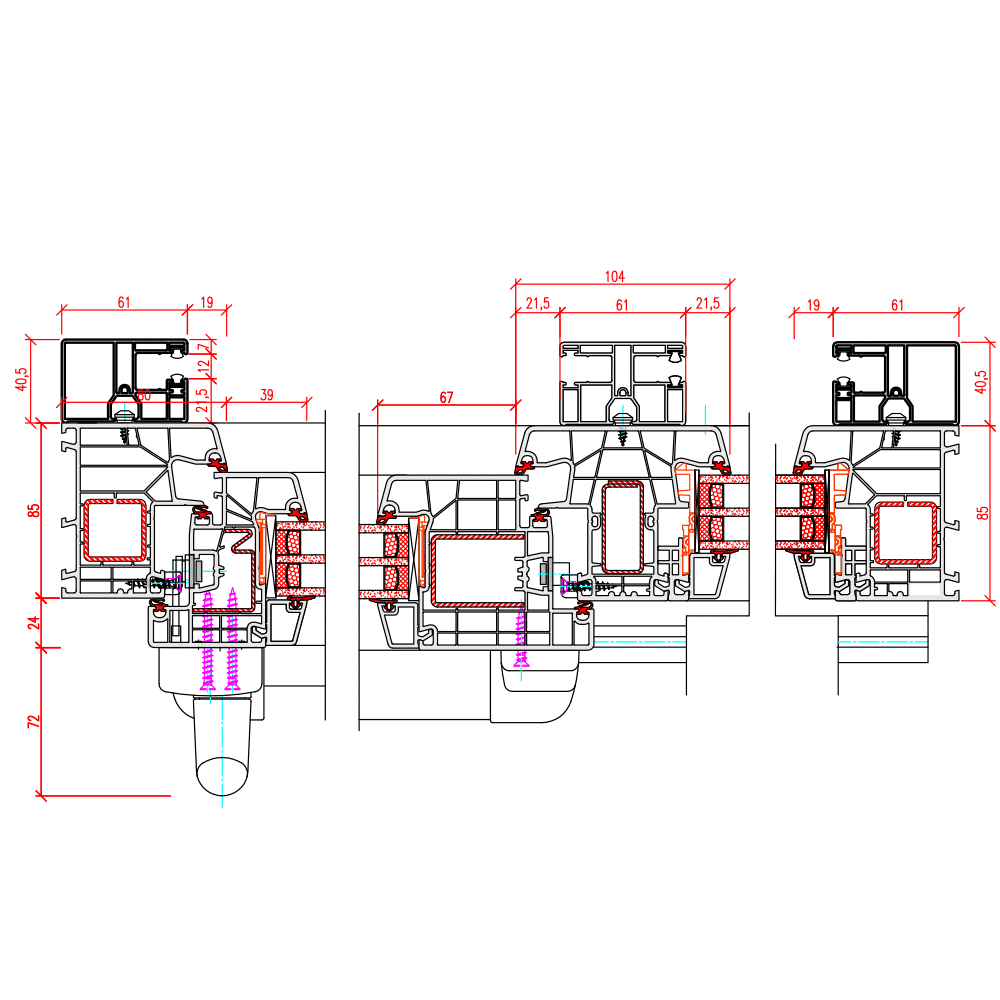

IDEAL 8000 - horizontal view of a top-mounted roller shutter
IDEAL 8000 - horizontal view of a top-mounted roller shutter
IDEAL 8000 - with a front-mounted roller shutter
IDEAL 8000 - with a front-mounted roller shutter

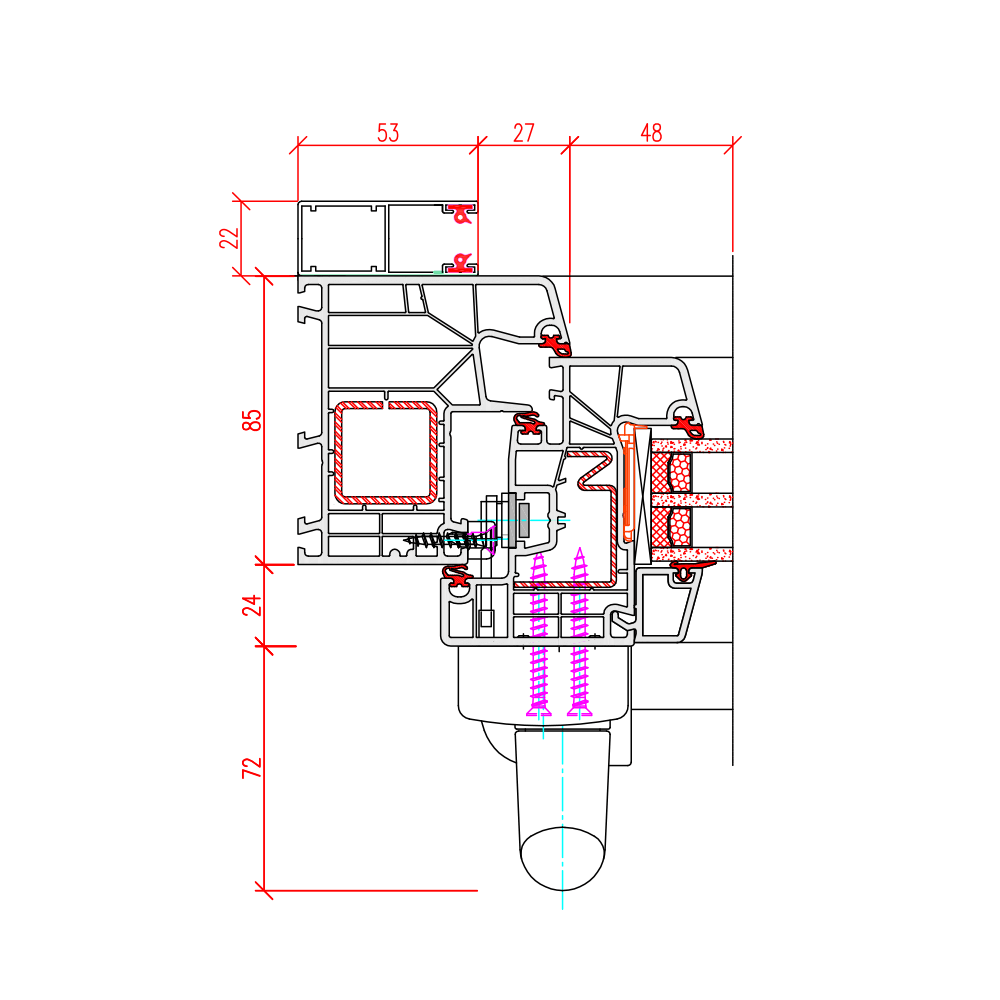

IDEAL 8000 - horizontal view of a front-mounted roller shutter
IDEAL 8000 - horizontal view of a front-mounted roller shutter

Roller Shutter Guide Rails

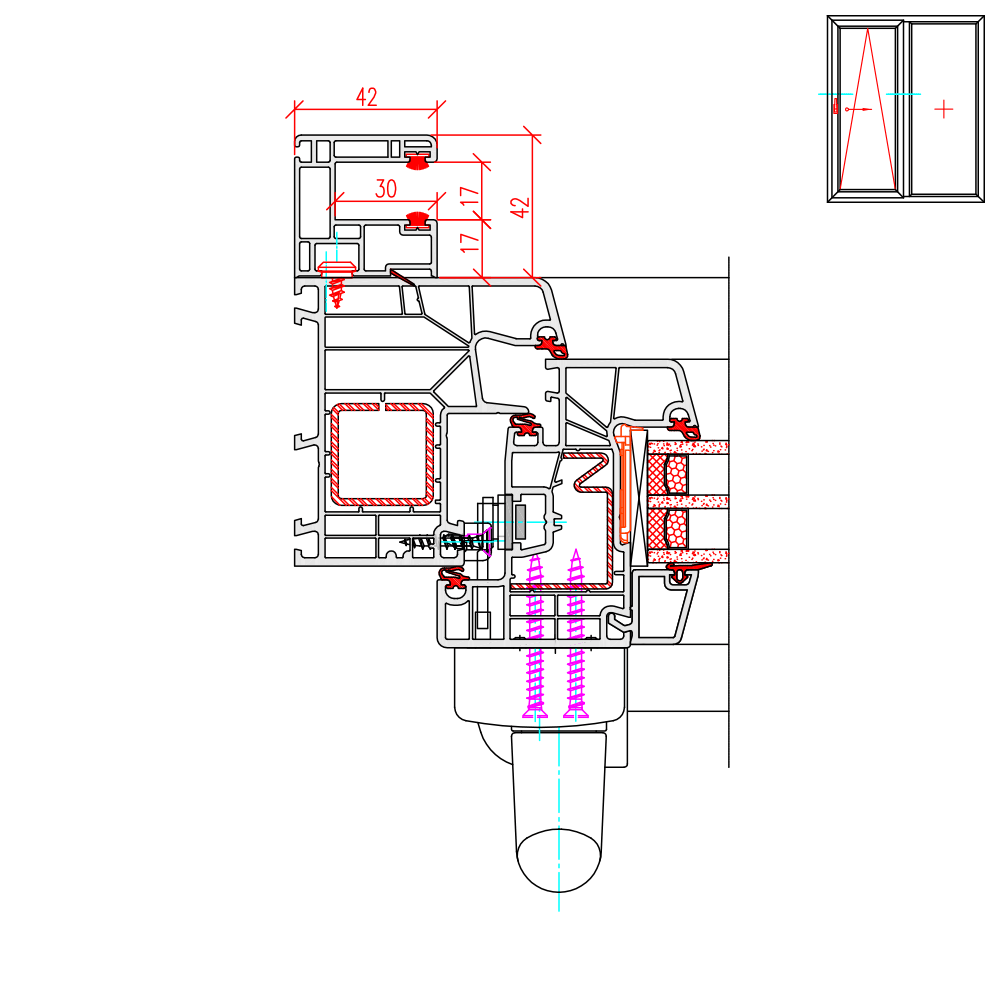

IDEAL 8000 - roller shutter guide rails for new-builds
IDEAL 8000 - roller shutter guide rails for new-builds

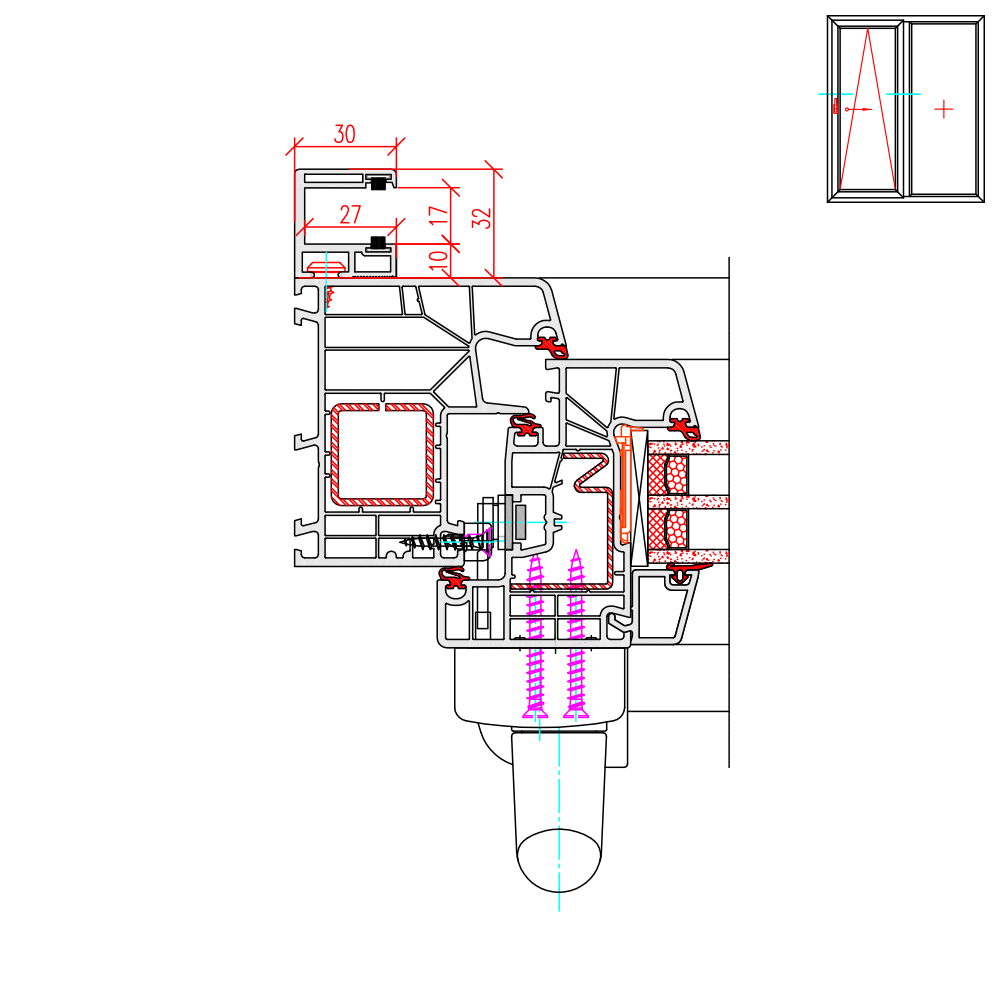

IDEAL 8000 - roller shutter guide rails for older buildings
IDEAL 8000 - roller shutter guide rails for older buildings

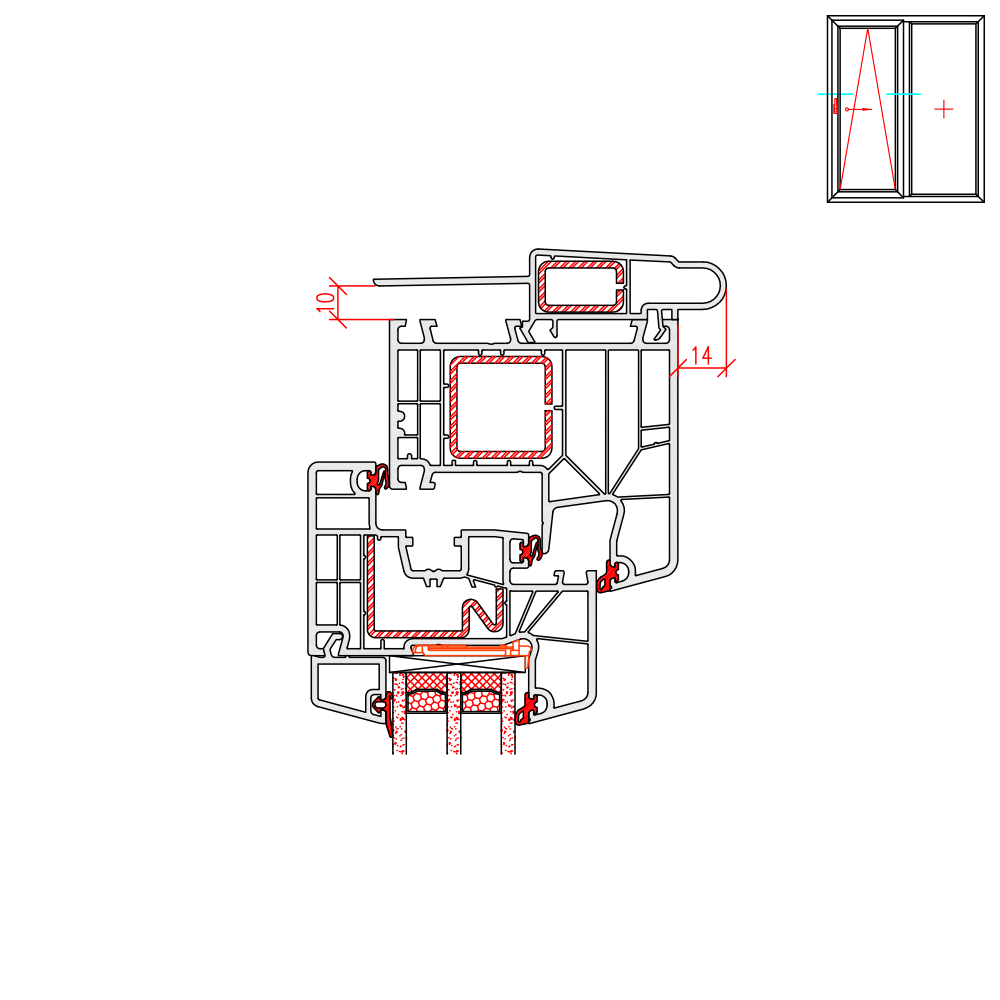

IDEAL 8000 - roller shutter traverse for new-builds
IDEAL 8000 - roller shutter traverse for new-builds

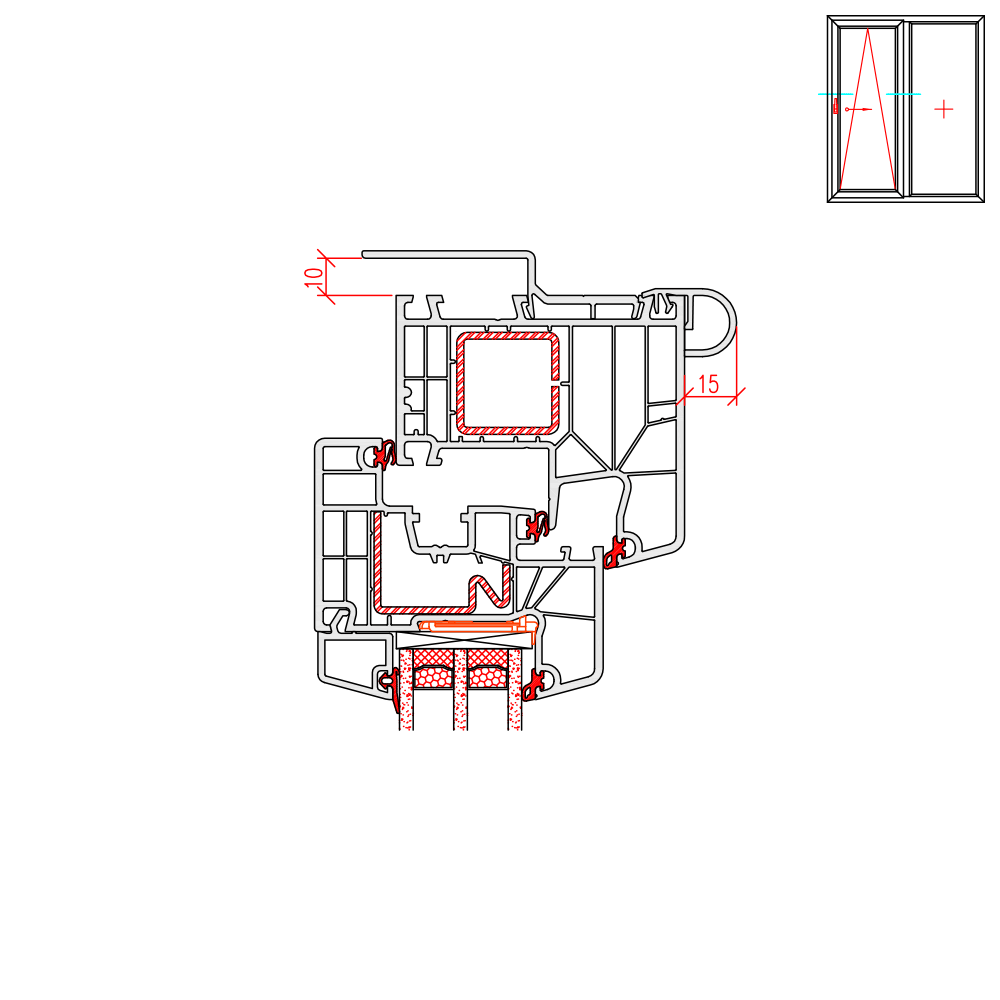

IDEAL 8000 - roller shutter traverse for older buildings
IDEAL 8000 - roller shutter traverse for older buildings

To top of page

Please note that these are standard drawings. If you would like to know exactly which profiles and components are installed prior to delivery, please contact our customer service on +49 711 860 60 200 or by email at info@windows24.com. Our experts would be happy to assist you with configuration and to answer any questions about our products.
