aluplast IDEAL Smart-Slide

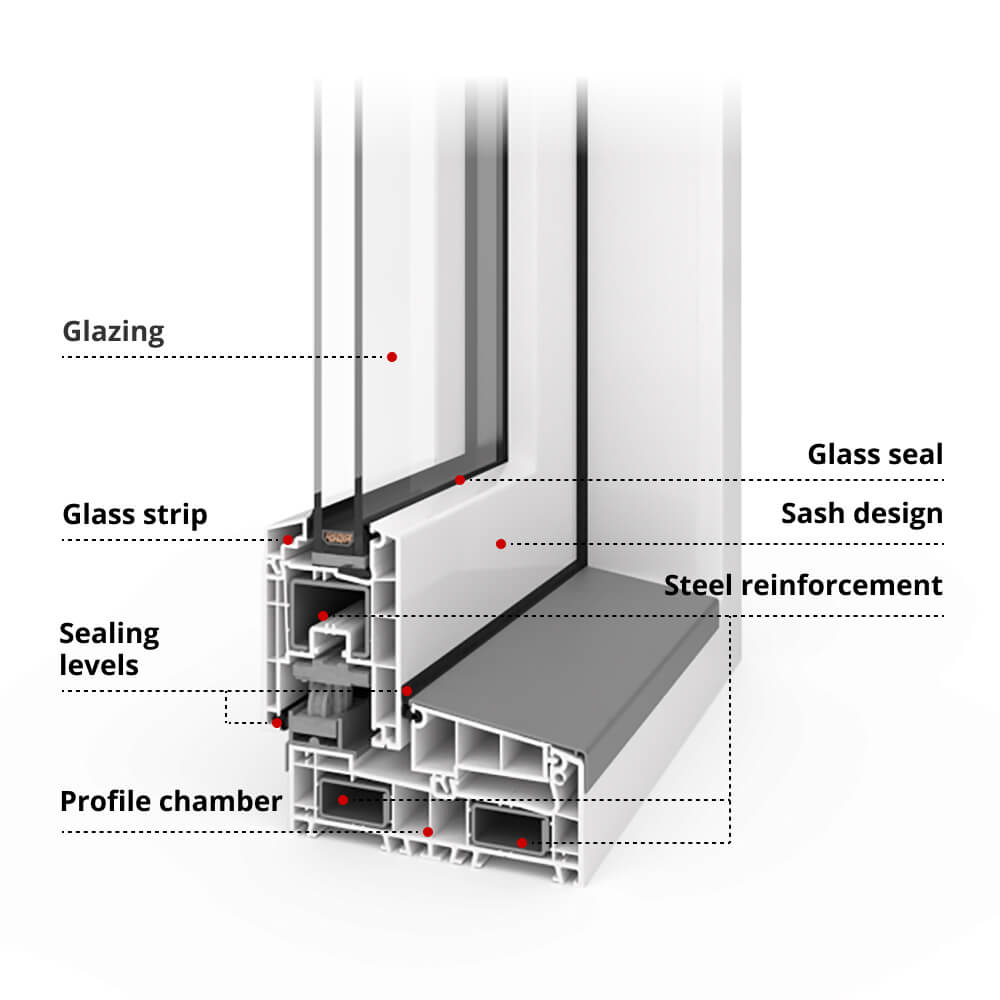

• Glazing: You can choose double or triple glazing to suit your needs

• Glass seal: The glass seal ensures optimal protection against the ingress of water

• Sash design: The sash is available in a modern design with classic lines

• Glass strip: Ensures the necessary contact pressure between the seals and the glass

• Sealing levels: The two sealing levels provide good thermal and acoustic insulation

• Steel reinforcement: The steel reinforcement enables an excellent level of stability

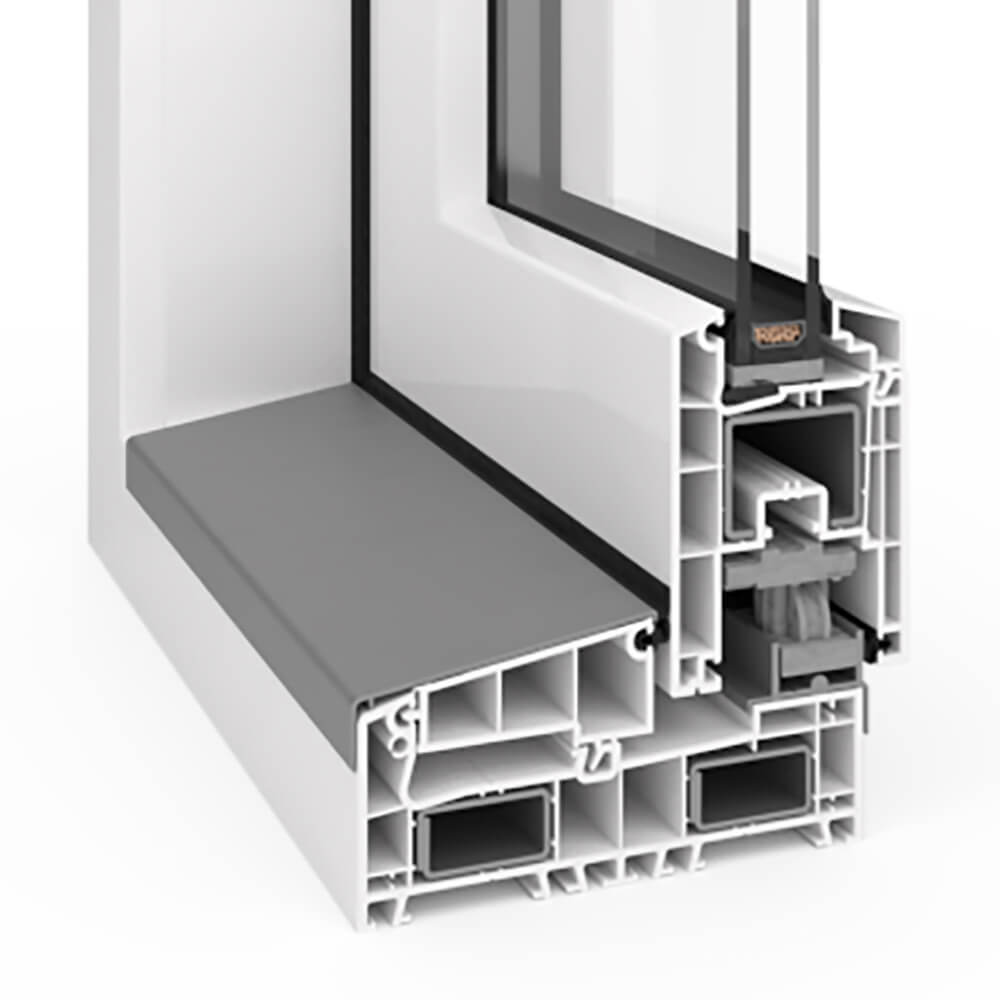

• Profile chambers: The profiles are divided up into several chambers to achieve good levels of thermal insulation


• 140 mm construction depth / 70 mm sash depth
• Uw-value of up to 0.95 W/m²K
• Triple glazing with a Ug-value of up to 0.6 W/m²K
• Glazing unit thicknesses ranging from 20-41 mm
• Steel reinforcement in the profile
• Concealed fitting technology thanks to Roto Patio Inowa hardware
• Innovative closing movement transverse to the frame

• External aluminium step protection in silver
• Sashes produce very little noise while in motion
• Surrounding seals
• Multiple active closure points

Optional

• Can be fitted with thermal, security and noise control glazing
• Integrated door lock, lockable from inside and outside

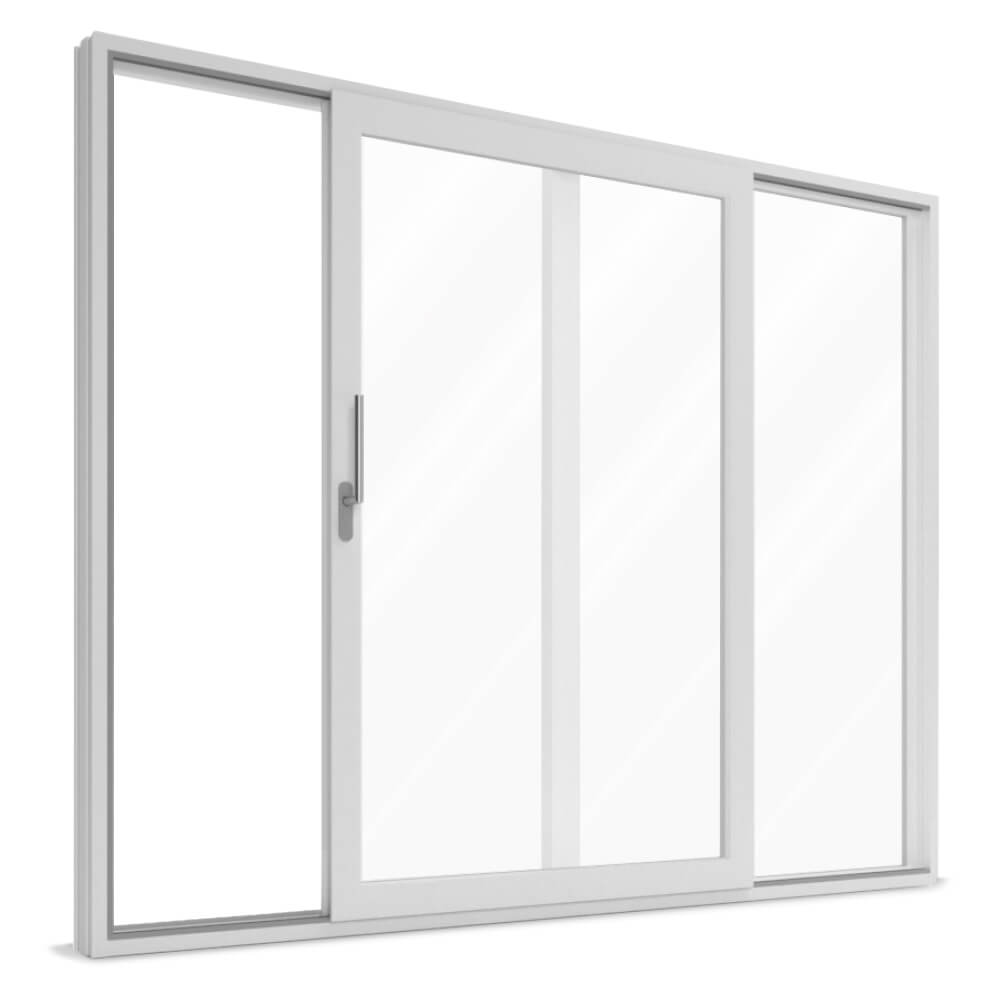

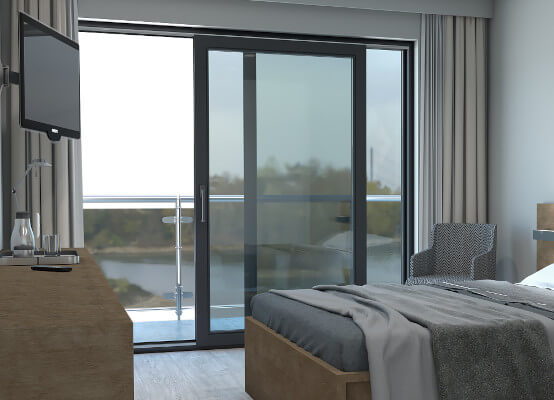

The aluplast Smart-Slide sliding door is characterised by easy operation and outstanding convenience. The sashes, which can be opened and closed with very little effort, have a smooth self-closing mechanism. Smart-Slide is an ideal alternative to the traditional tilt and slide or lift and slide models.

With a glass thickness of up to 41 mm, optional lockable handles, additional locking points and triple glazing, the aluplast Smart-Slide sliding door offers a high level of security. The high-quality sealing levels and the innovative closing mechanism ensure excellent results in air, wind and driving rain tests.

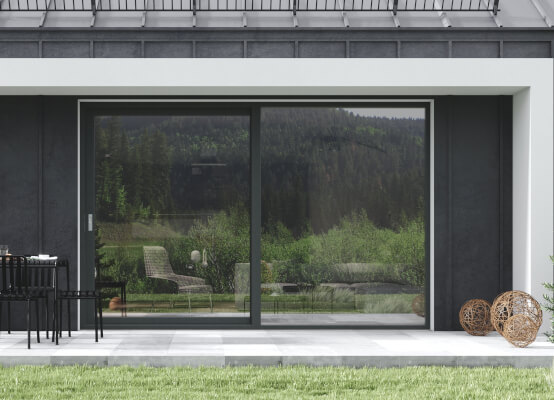

Thanks to the solid fittings and the innovative locking mechanism, high stability is guaranteed, even under heavy loads. The Smart-Slide system is specially designed for large glass elements, and is therefore ideal for large connecting passages to the garden, balcony or terrace. The low overall construction depth of the frame of 140 mm, and the sash which has a depth of 70 mm ensure high compatibility with a wide variety of building projects. The Smart-Slide benefits at a glance:

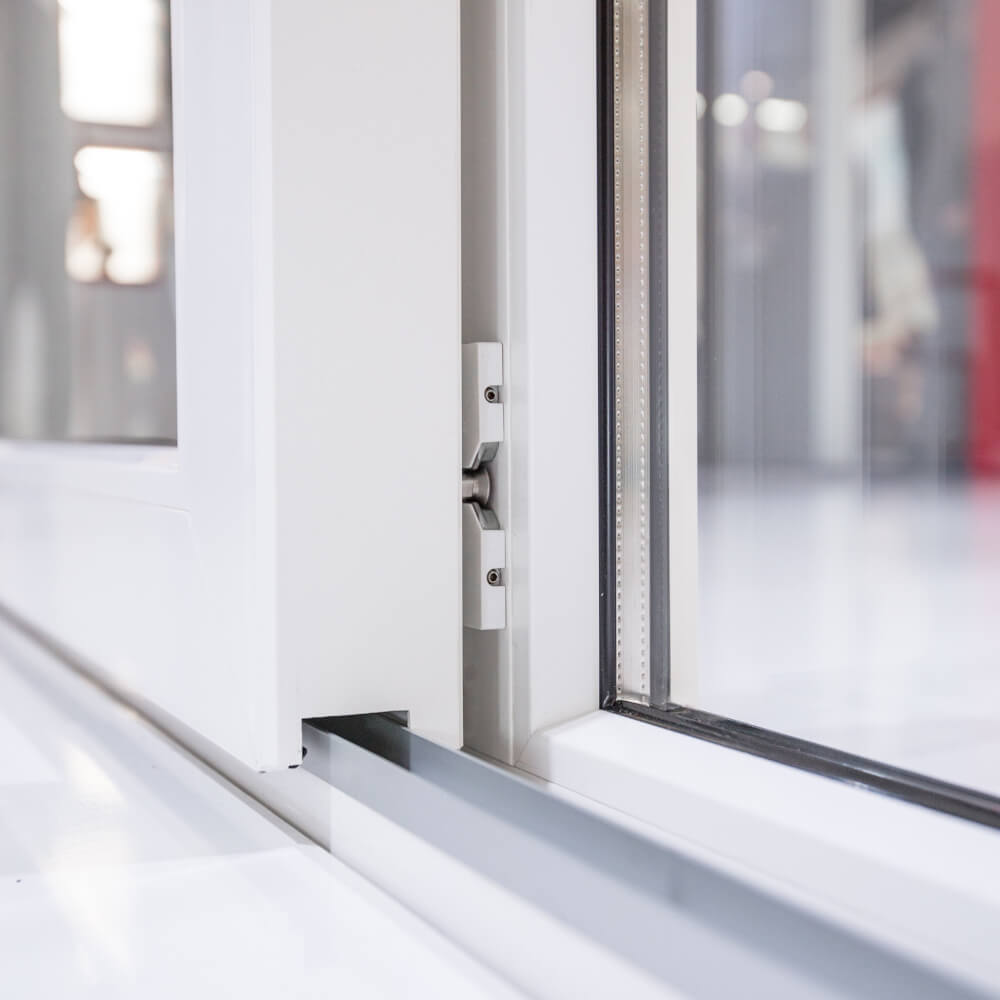

• Innovative self-closing locking mechanism
• Construction depth of the frame 140 mm
• Construction depth of the sash 70 mm
• Modern and elegant design

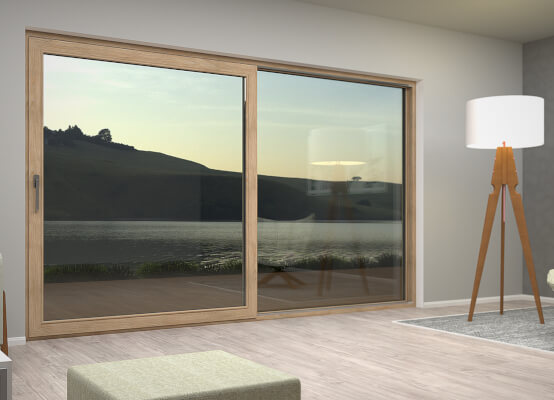

The Smart-Slide sliding door, which is made solely from uPVC, is characterised by low thermal conductivity. The excellent _Uw values are therefore already provided by the material. These profile values are reinforced by high-quality sealing levels without brush seals. In addition to its low conductivity, uPVC is very resistant to environmental influences.

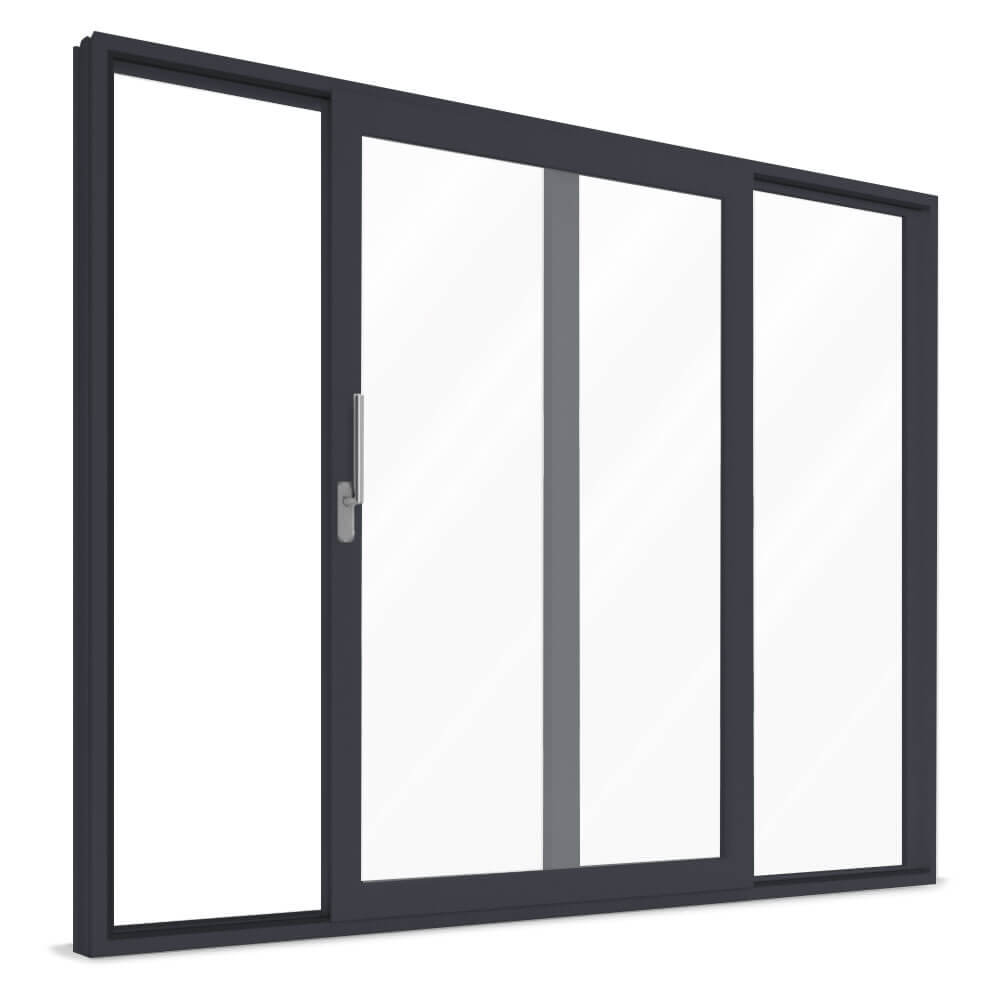

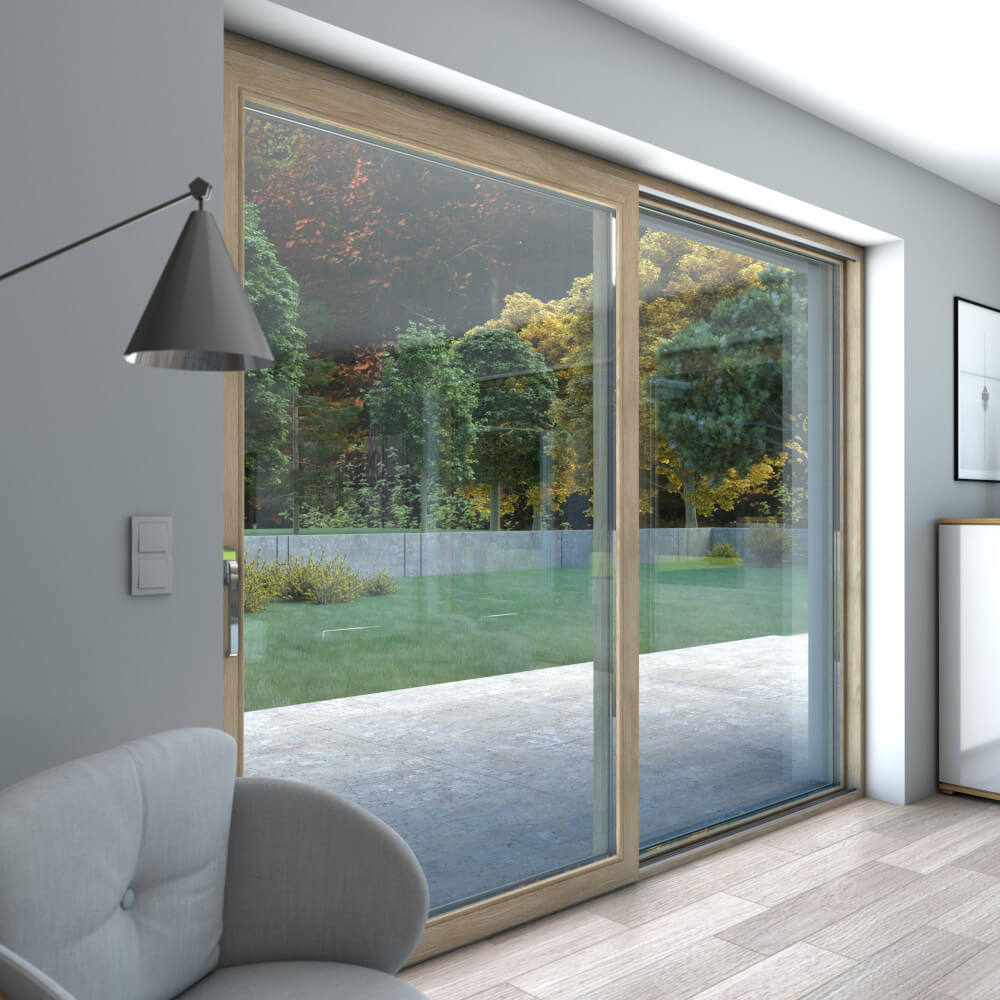

High-quality products such as the Smart-Slide sliding door are protected from discolouration by the sun's rays by so-called stabilisers. Smart-Slide is available in many colours and decors. The standard colours include anthracite, basalt grey and white. We also offer attractive wood-look decors such as golden oak or walnut.
