Detail Drawings – Smart-Slide Patio Door

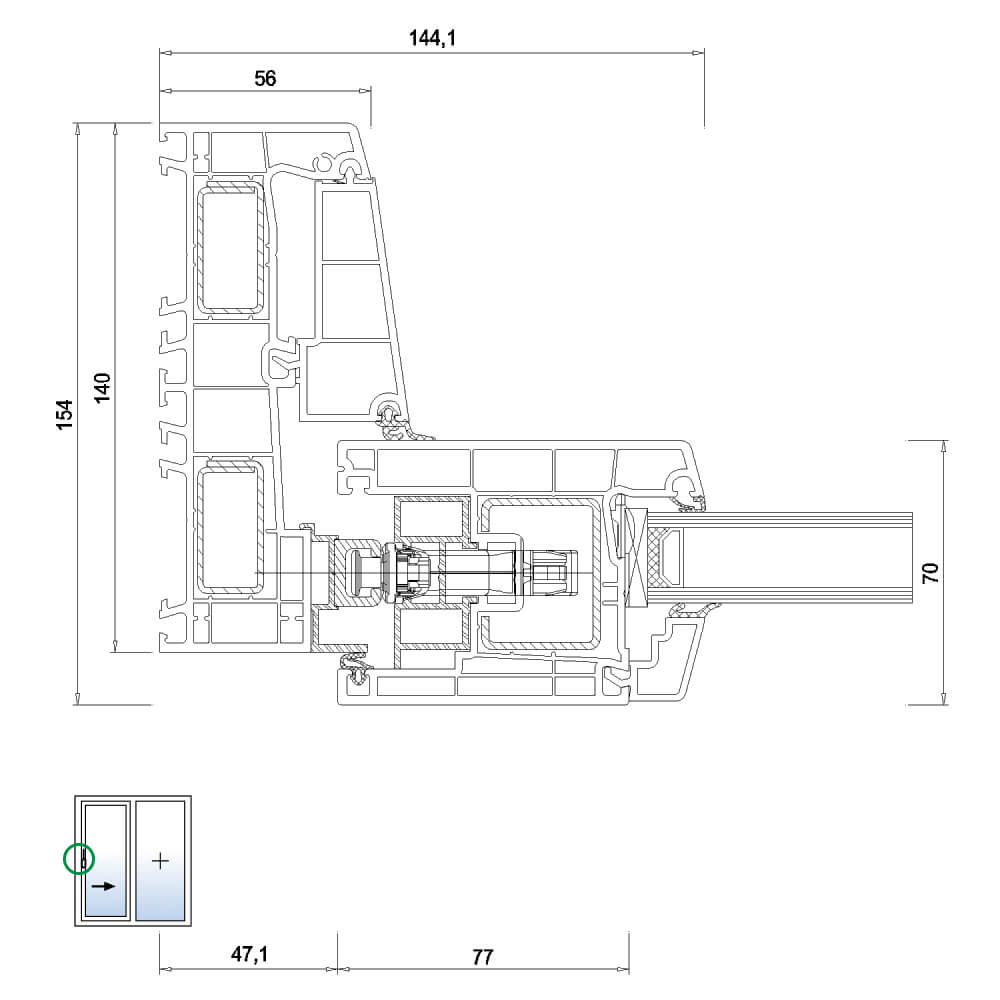

IDEAL Smart-Slide - left-side detail of inner sliding sash
IDEAL Smart-Slide - left-side detail of inner sliding sash

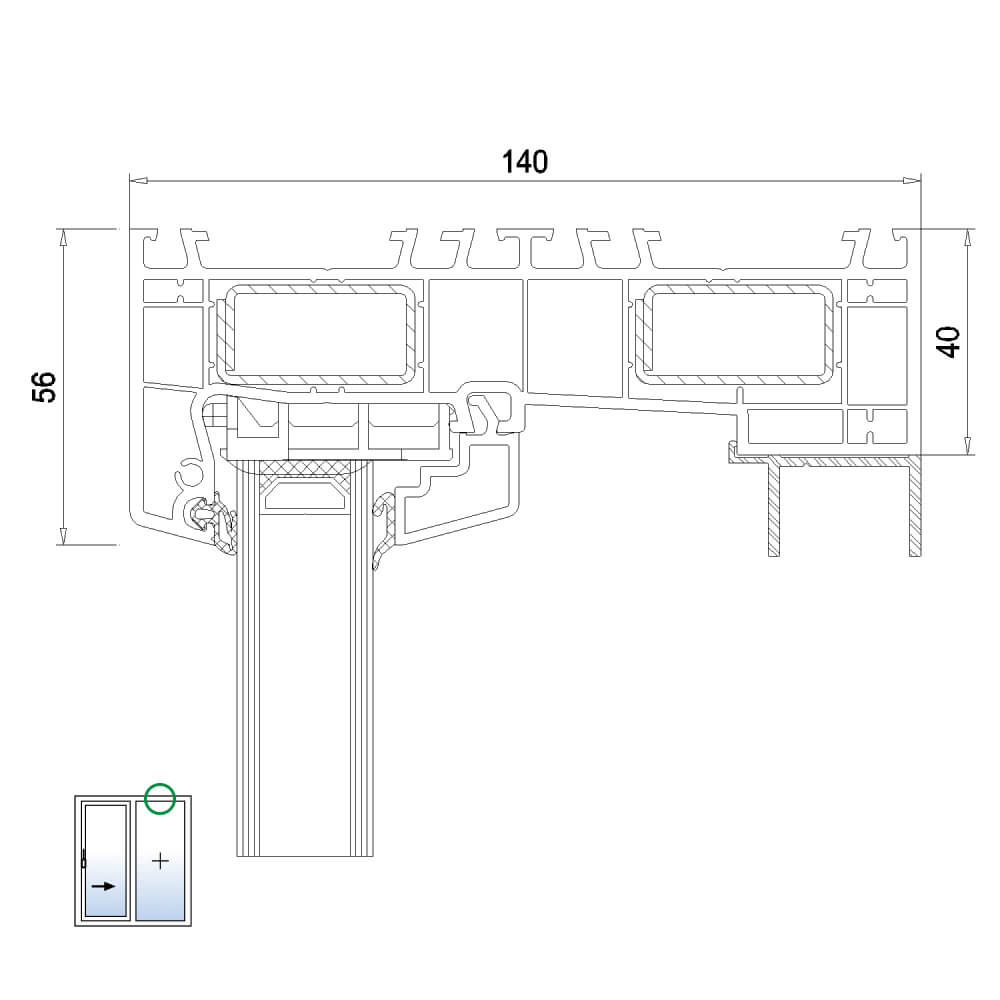

IDEAL Smart-Slide - top detail of fixed panel
IDEAL Smart-Slide - top detail of fixed panel

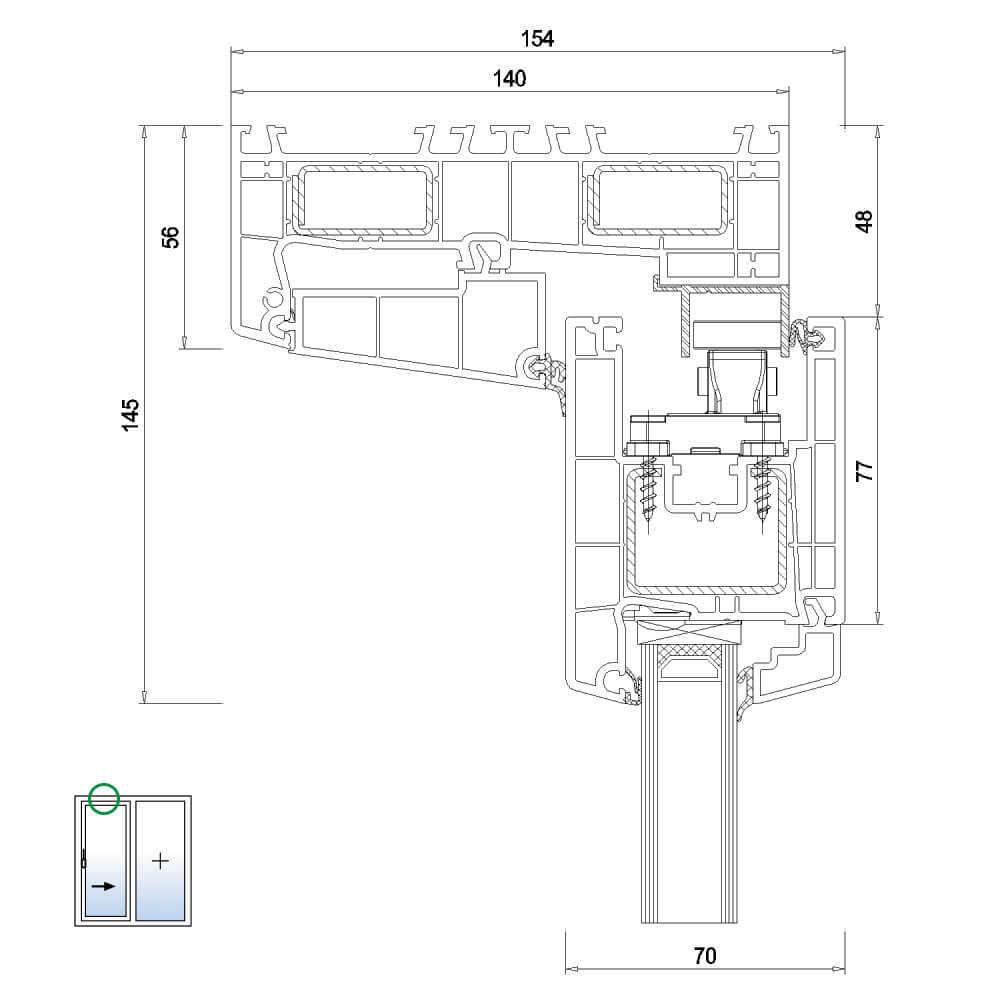

IDEAL Smart-Slide - top detail of inner sliding sash
IDEAL Smart-Slide - top detail of inner sliding sash

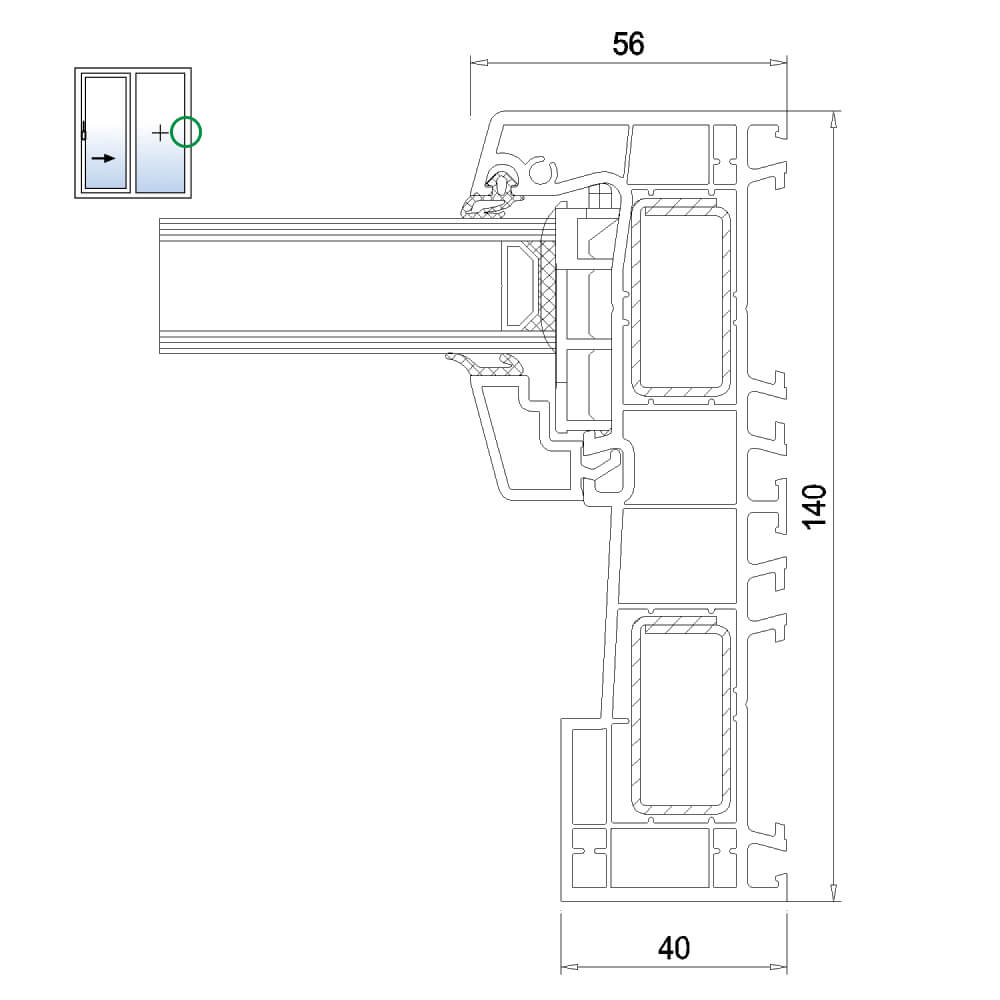

IDEAL Smart-Slide - right-side detail of fixed panel
IDEAL Smart-Slide - right-side detail of fixed panel

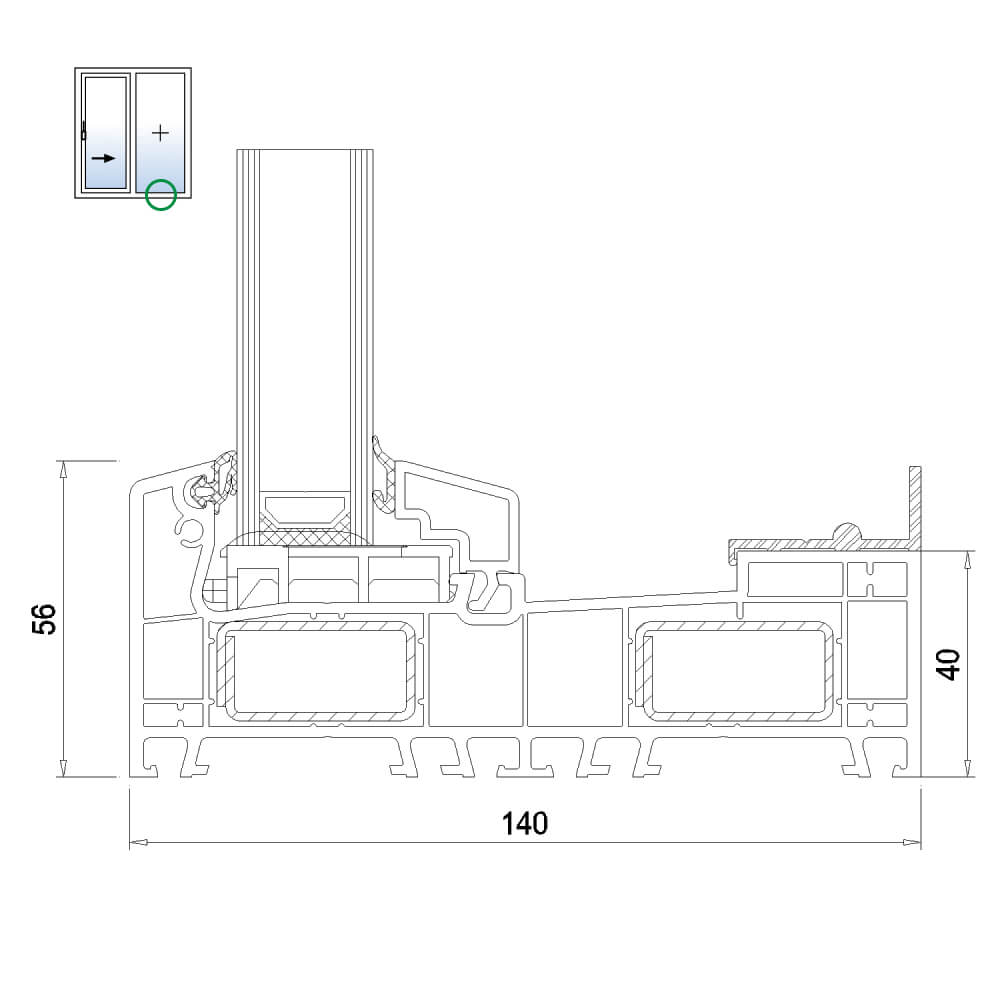

IDEAL Smart-Slide - lower detail of fixed panel
IDEAL Smart-Slide - lower detail of fixed panel

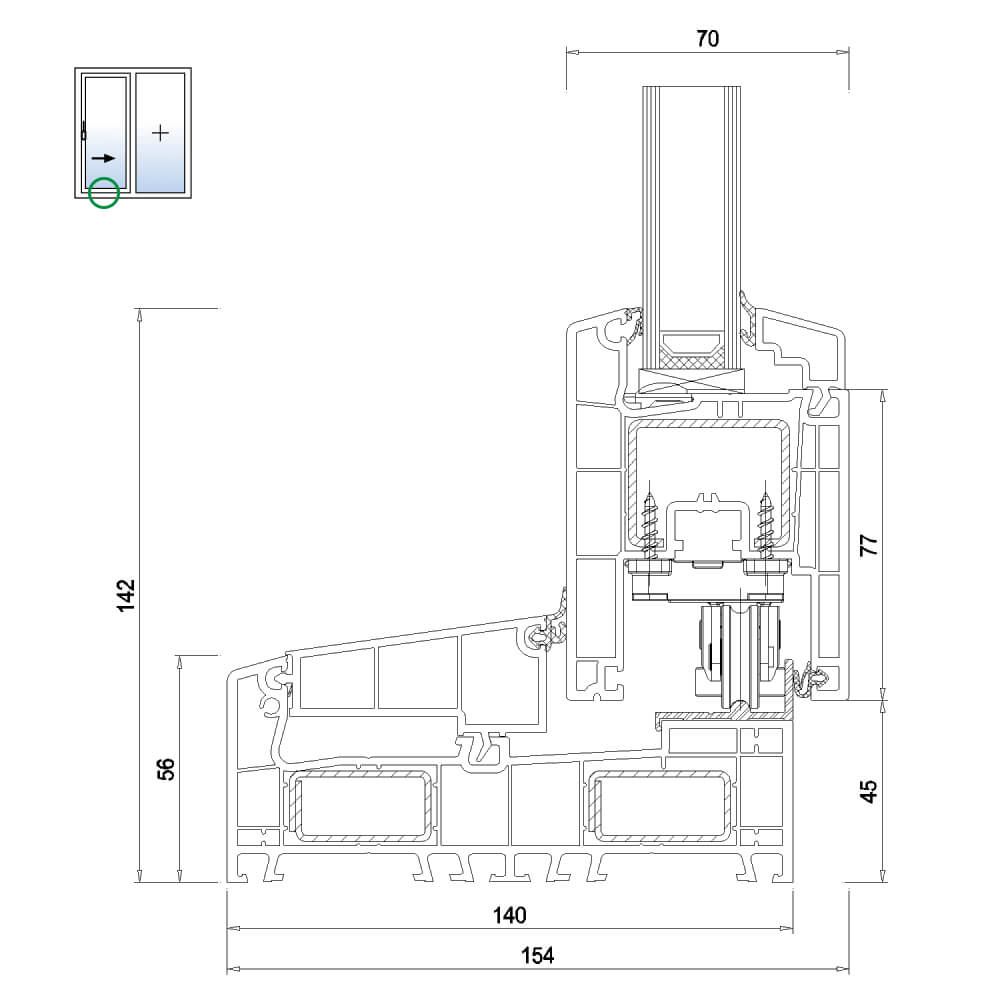

IDEAL Smart-Slide - lower detail of inner sliding sash
IDEAL Smart-Slide - lower detail of inner sliding sash

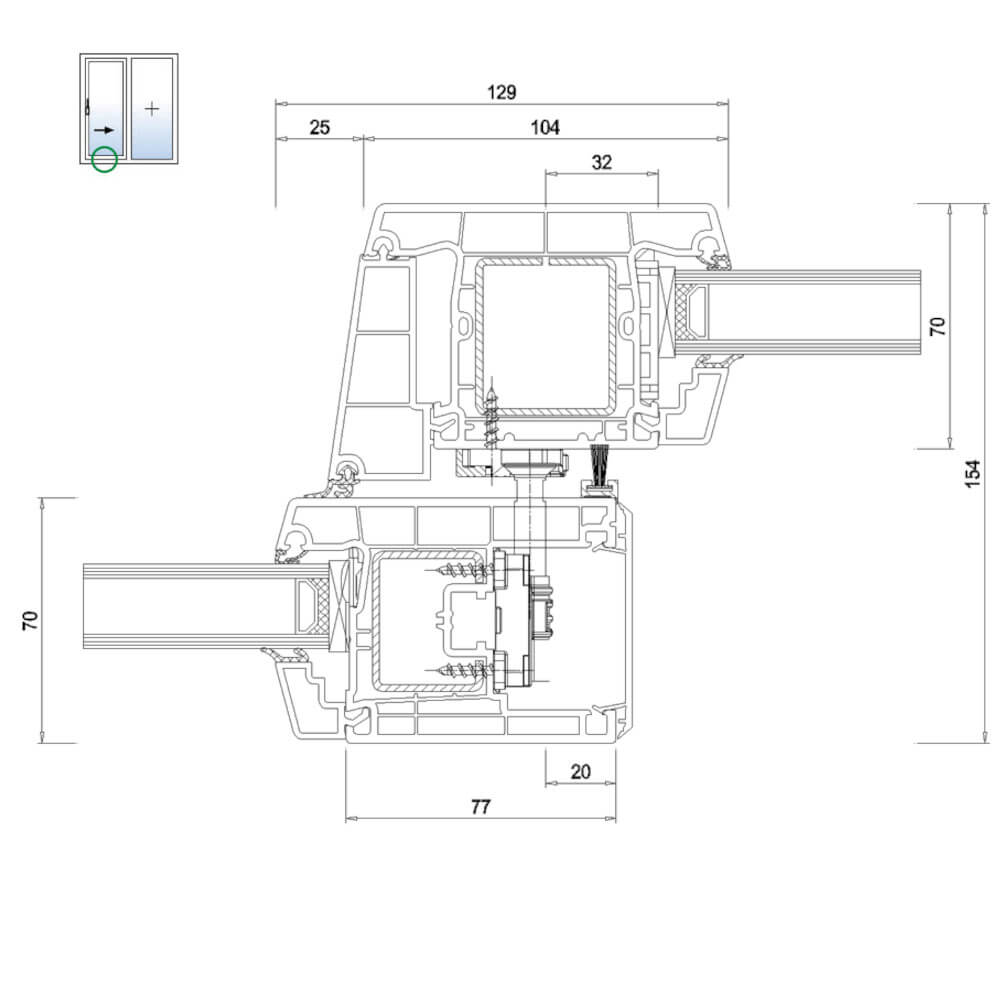

IDEAL Smart-Slide - centre joint
IDEAL Smart-Slide - centre joint

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
