Detailed Drawings – Wooden Lift and Slide Patio Doors

Detailed Drawings

Overview

  1. IV 68
  2. IV 78

IV 68

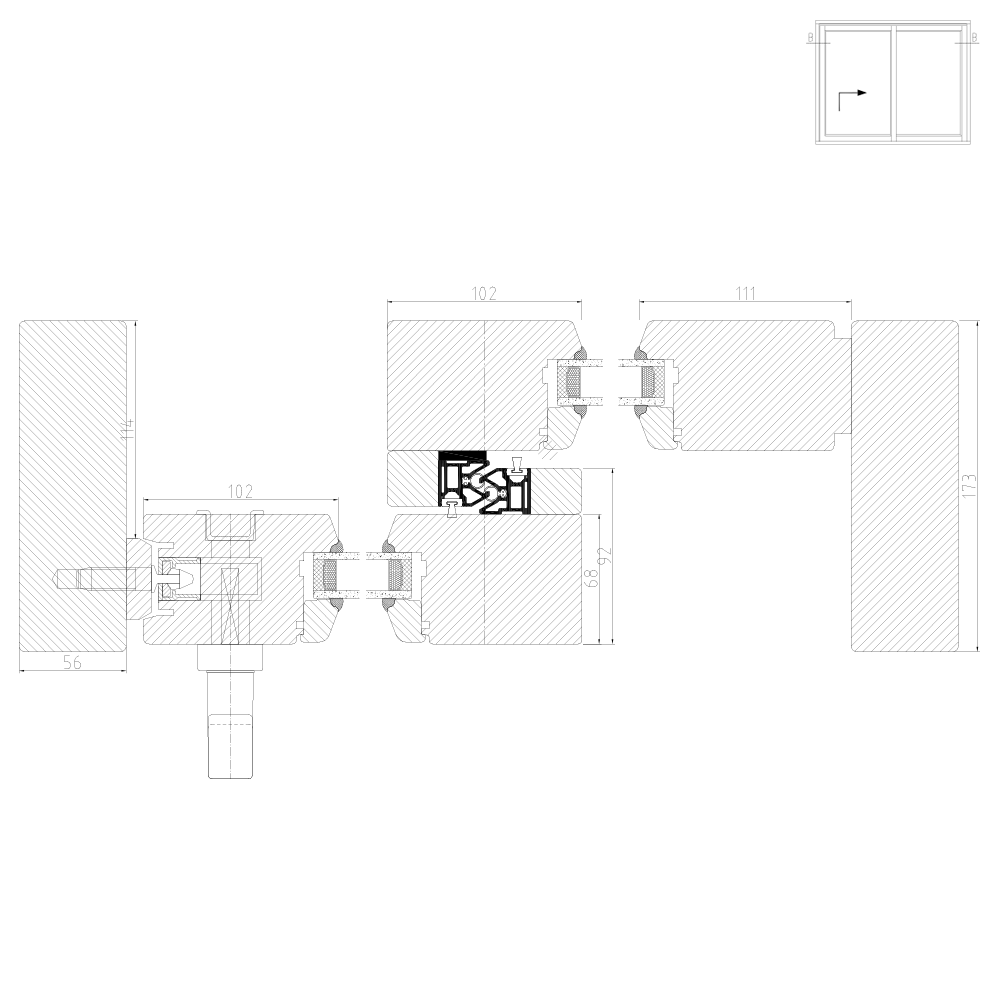

IV68 - scheme A horizontal cross section
IV 68 - scheme A horizontal cross section

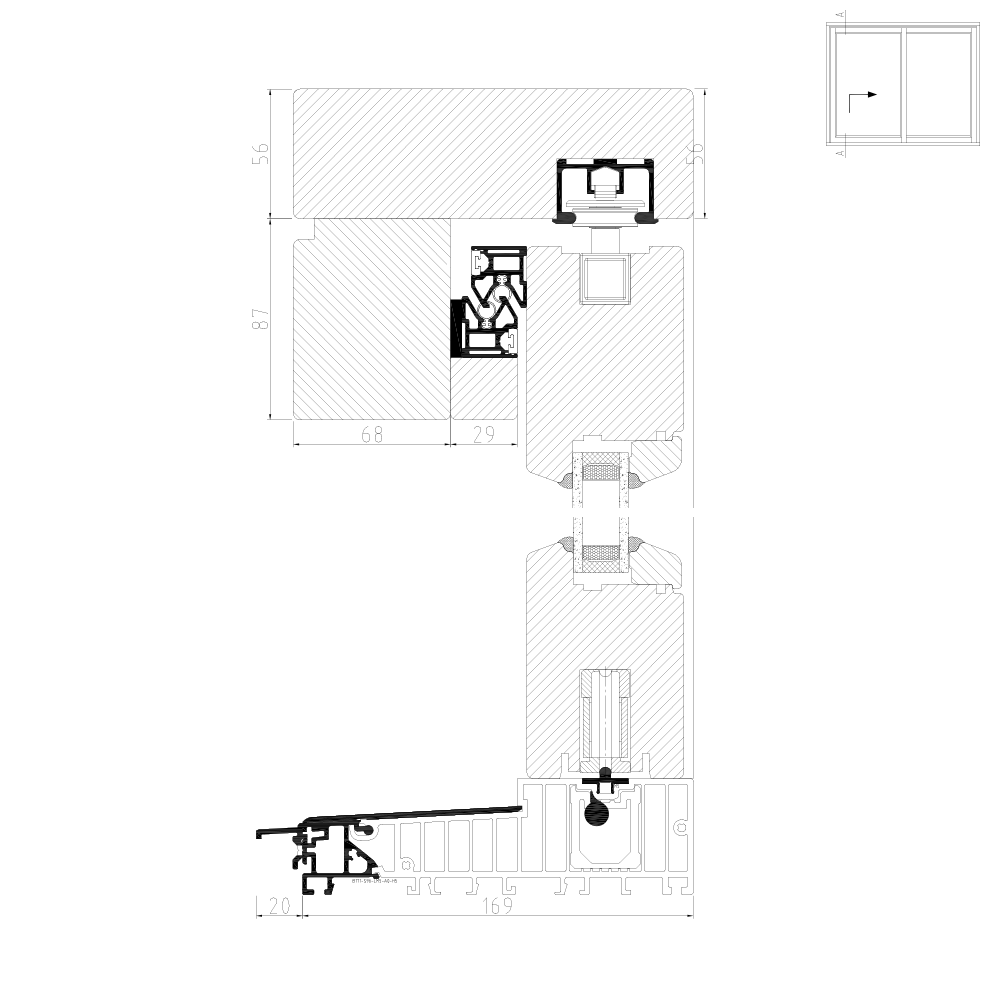

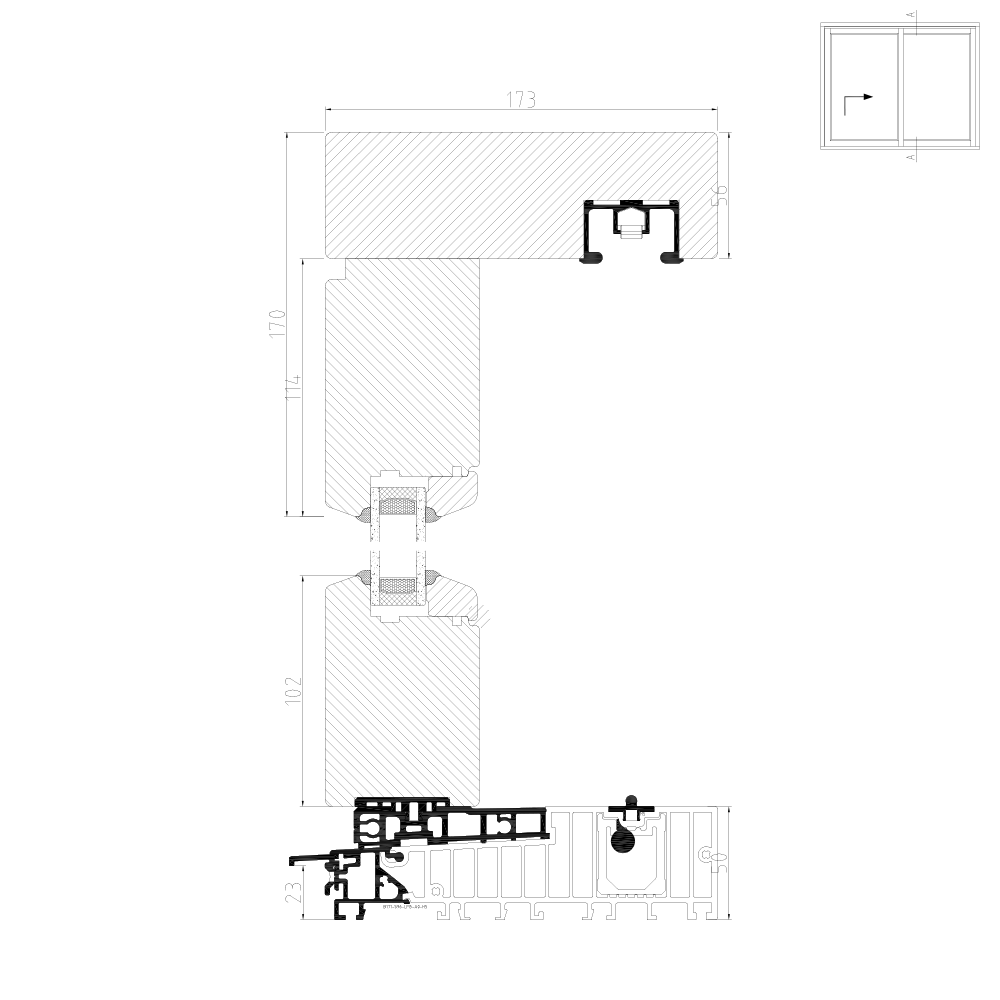

IV68 - scheme A vertical section of sliding sash
IV 68 - scheme A vertical section of sliding sash
IV68 - Scheme A vertical section of fixed panel
IV 68 - Scheme A vertical section of fixed panel

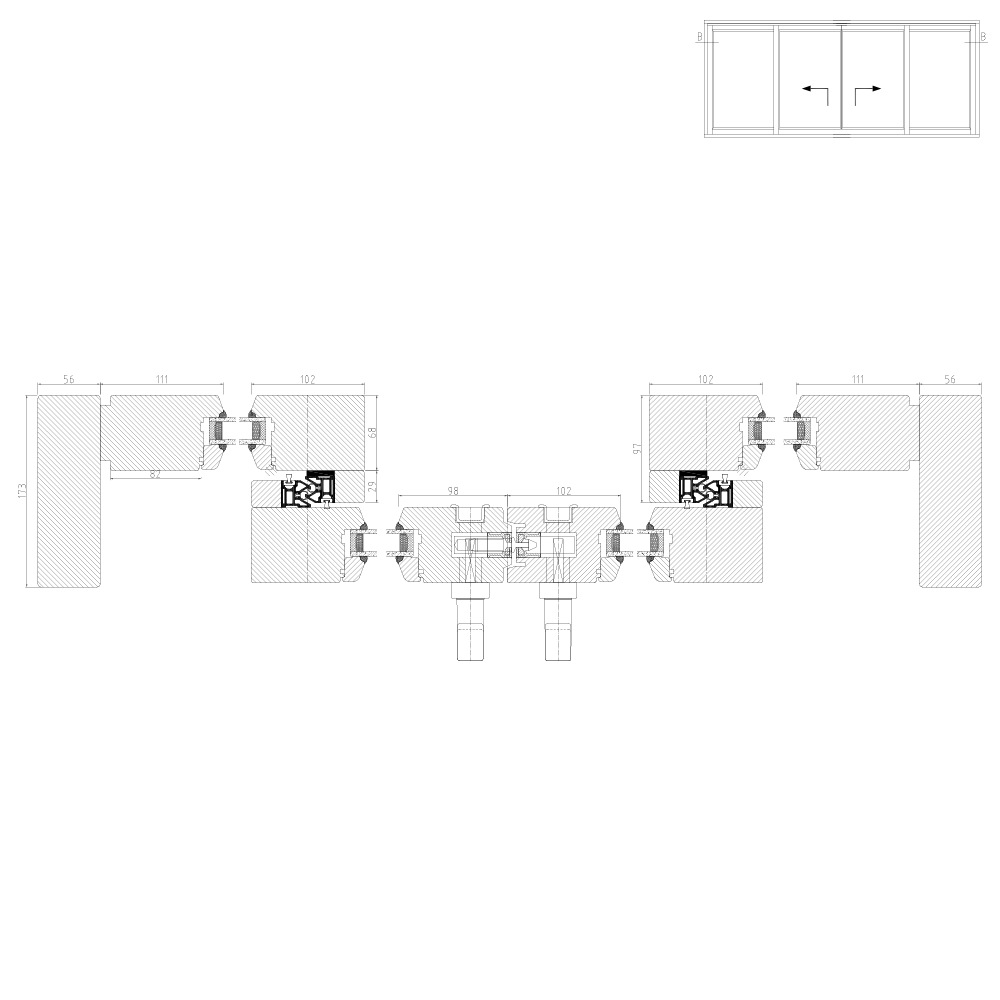

IV68 - scheme C horizontal cross section
IV 68 - scheme C horizontal cross section

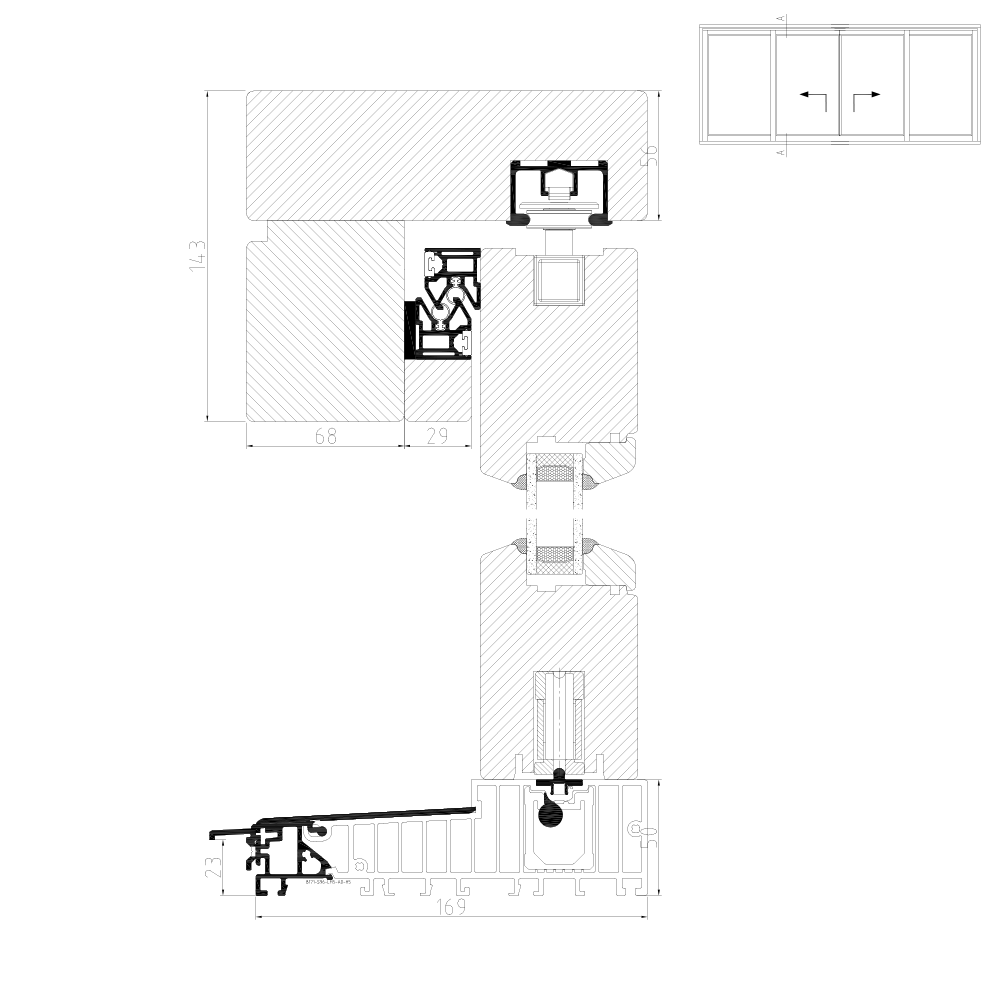

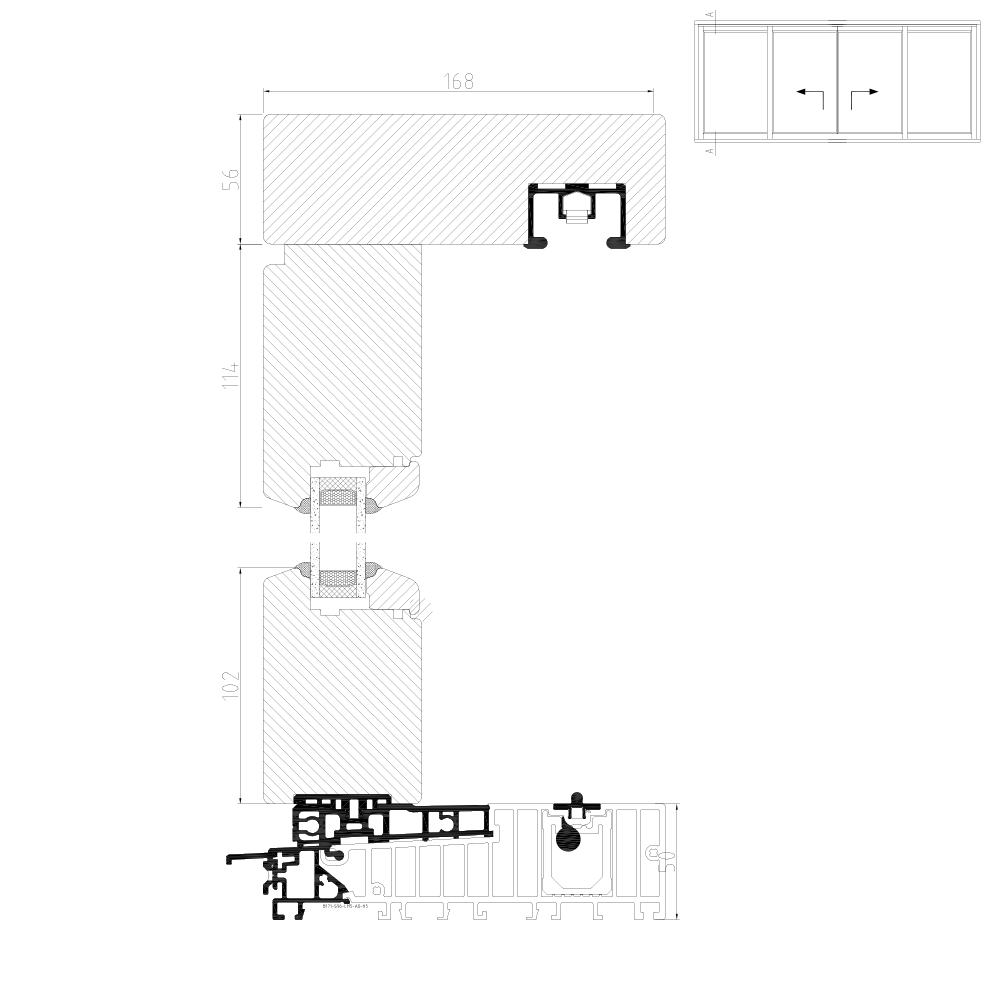

IV68 - scheme C vertical section of sliding sash
IV 68 - scheme C vertical section of sliding sash
IV68 - scheme C vertical section of sliding sash
IV 68 - scheme C vertical section of sliding sash

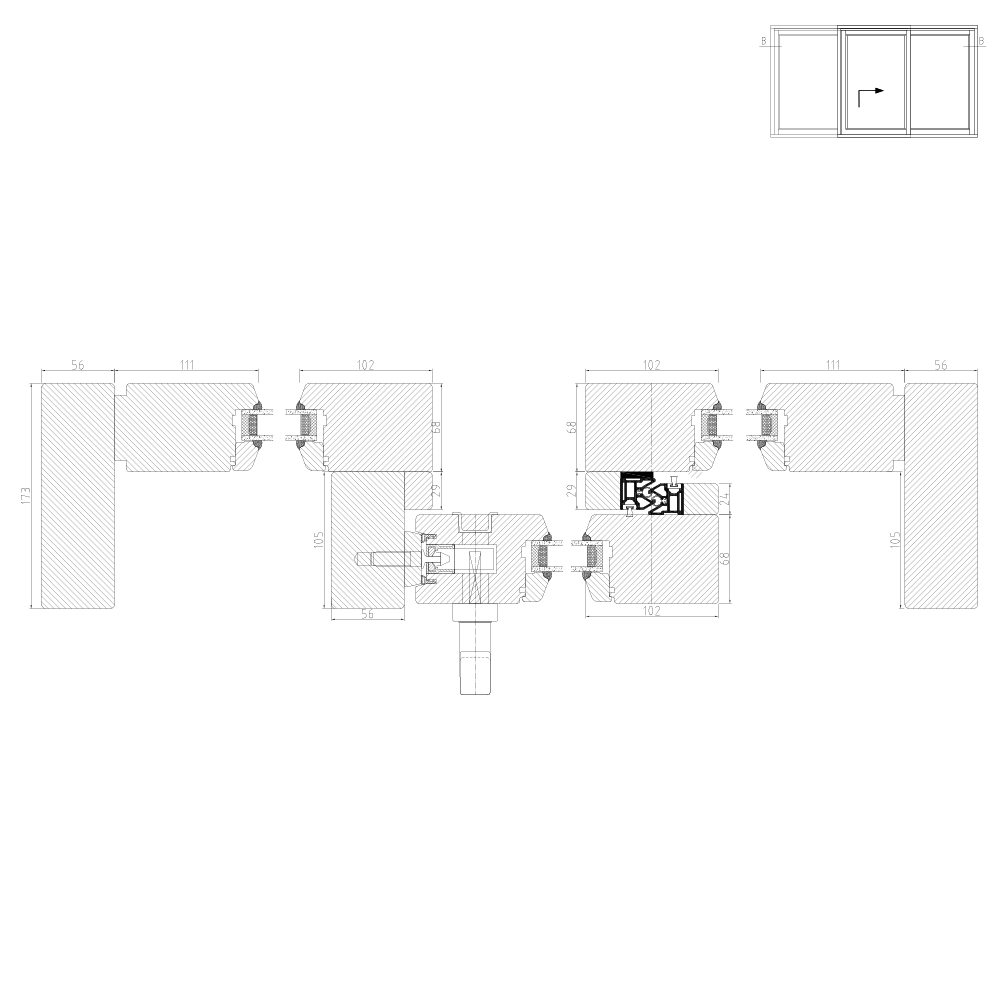

IV68 - scheme G horizontal cross section
IV 68 - scheme G horizontal cross section

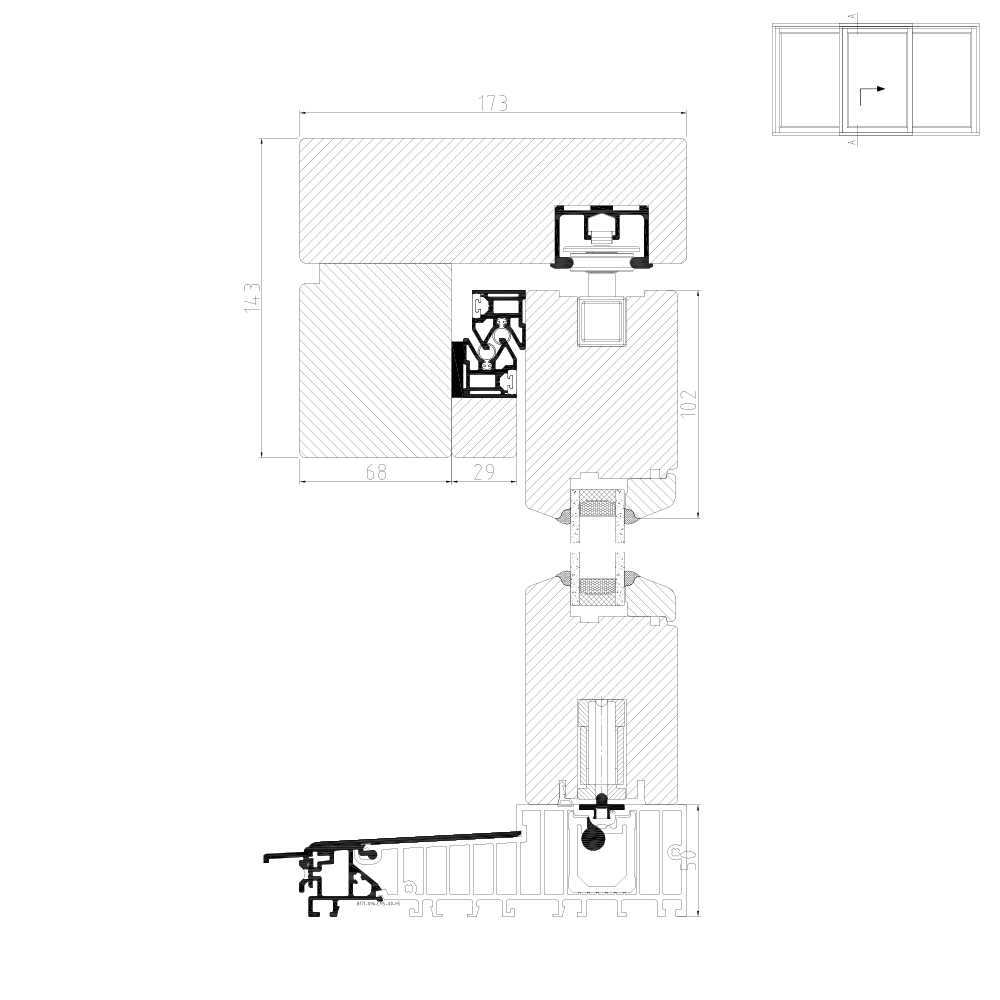

IV68 - scheme G vertical cross section of sliding sash
IV 68 - scheme G vertical cross section of sliding sash

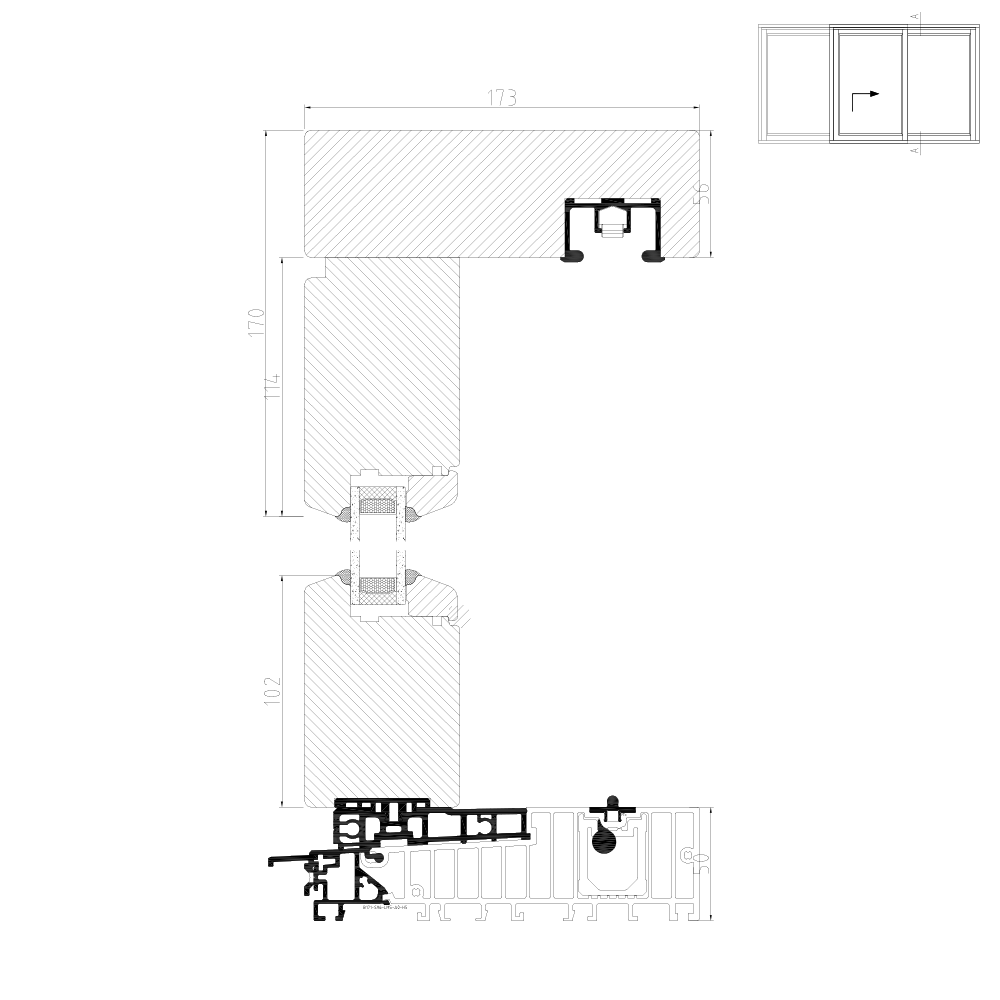

IV68 - scheme G vertical cross section of fixed panel
IV 68 - scheme G vertical cross section of fixed panel

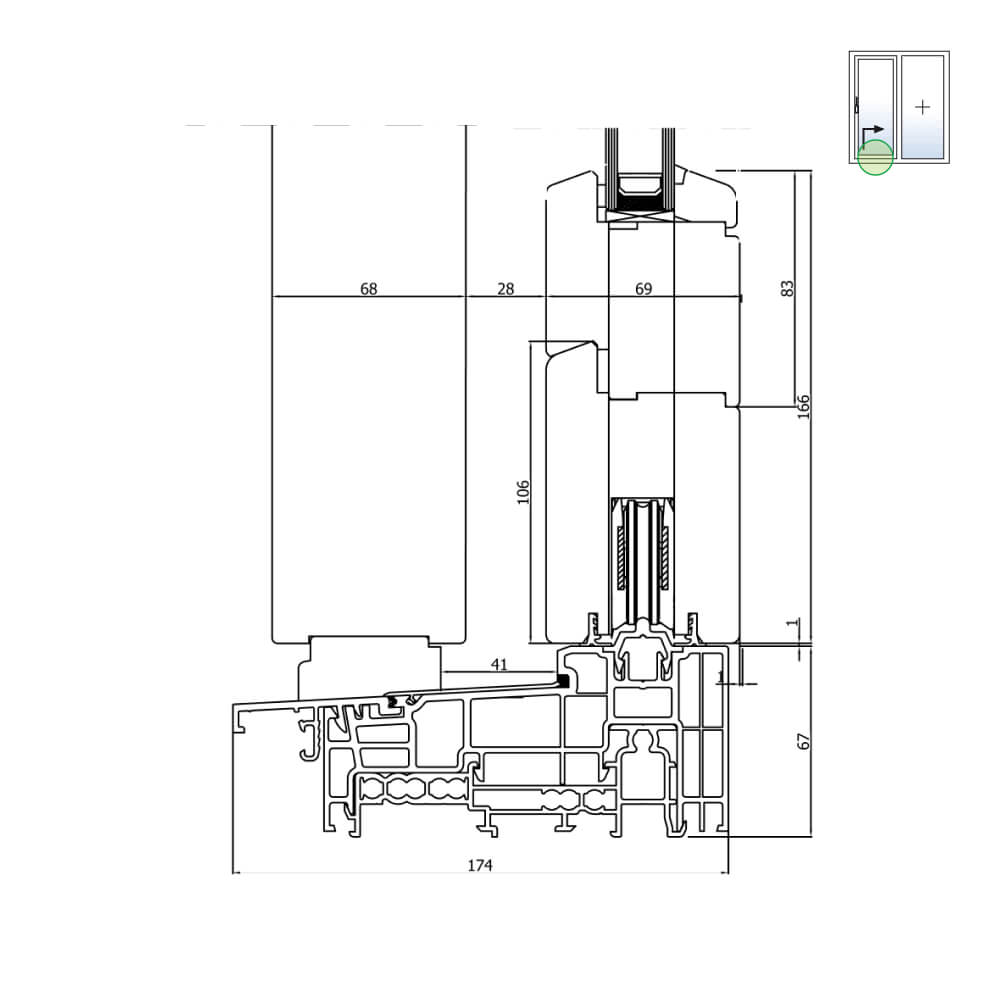

IV68 - 67mm sill profile
IV 68 - 67mm sill profile

To top of page

IV 78

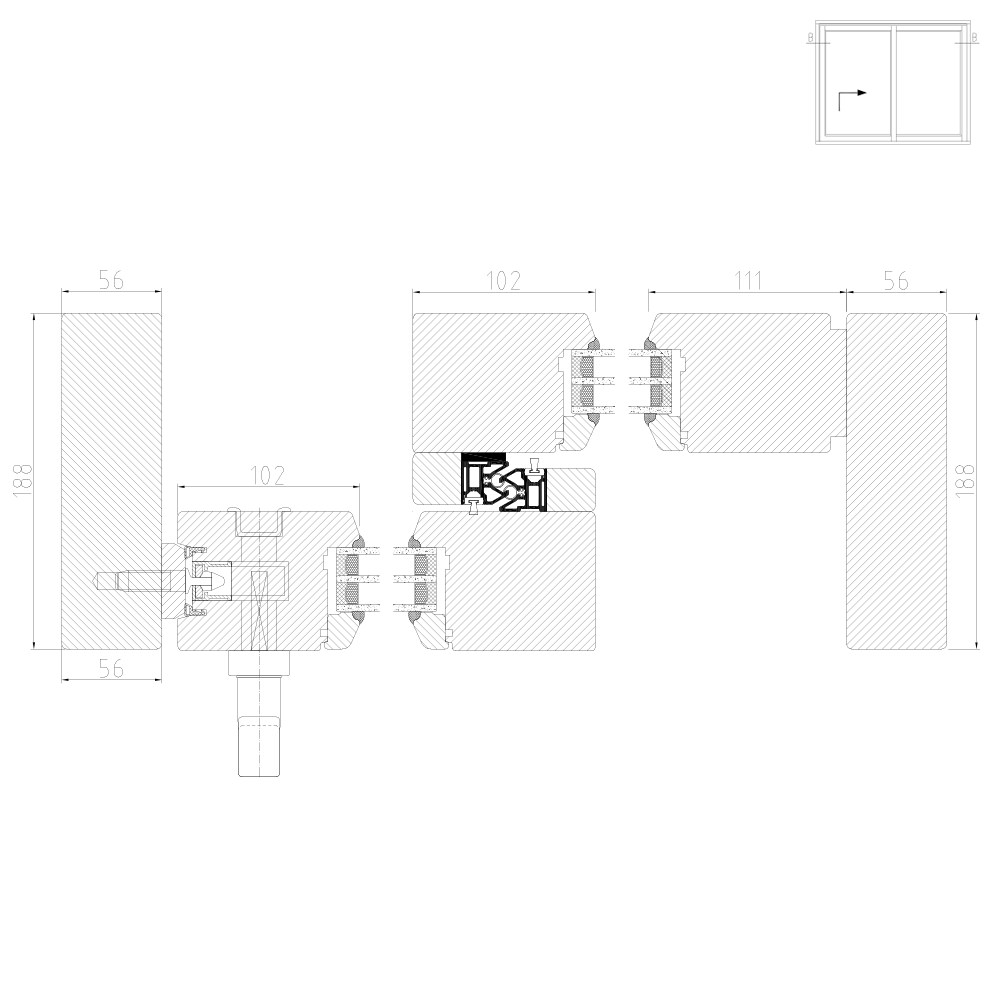

IV 78 - scheme A horizontal cross section
IV 78 - scheme A horizontal cross section

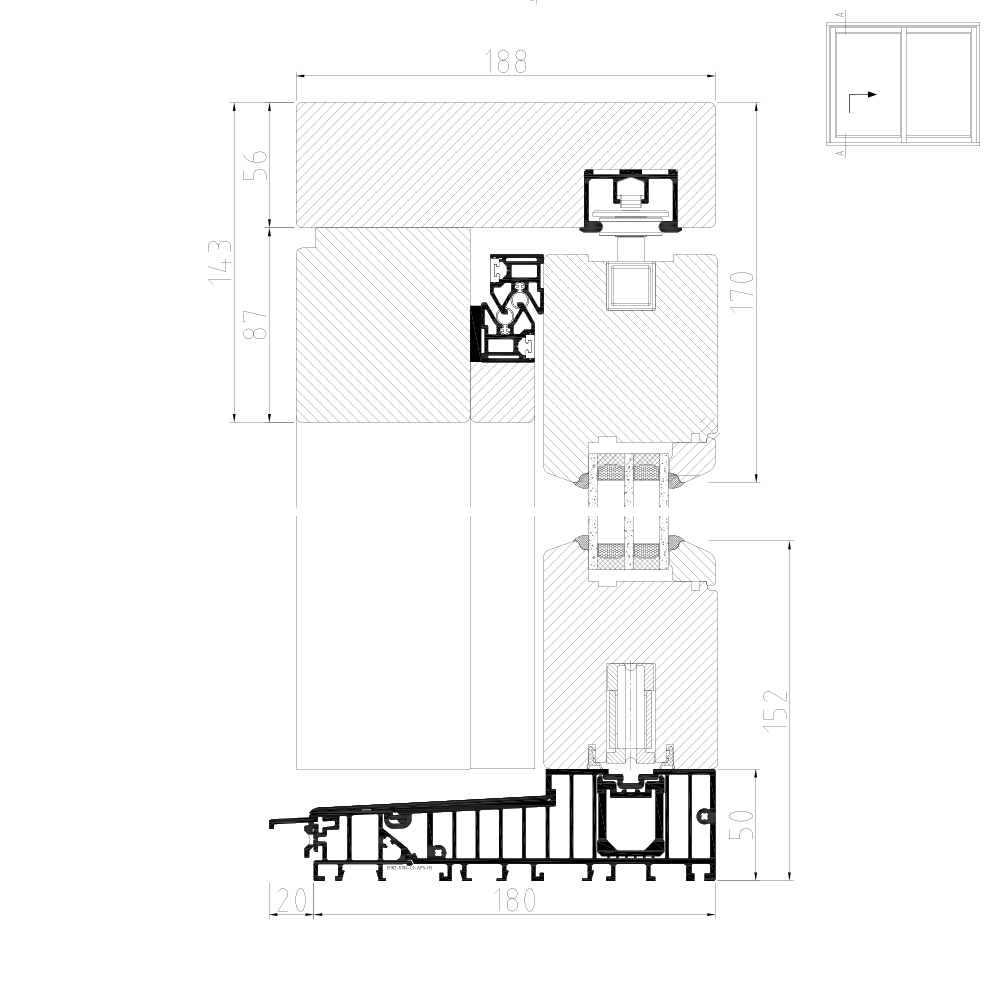

IV 78 - scheme A vertical section of sliding sash
IV 78 - scheme A vertical section of sliding sash

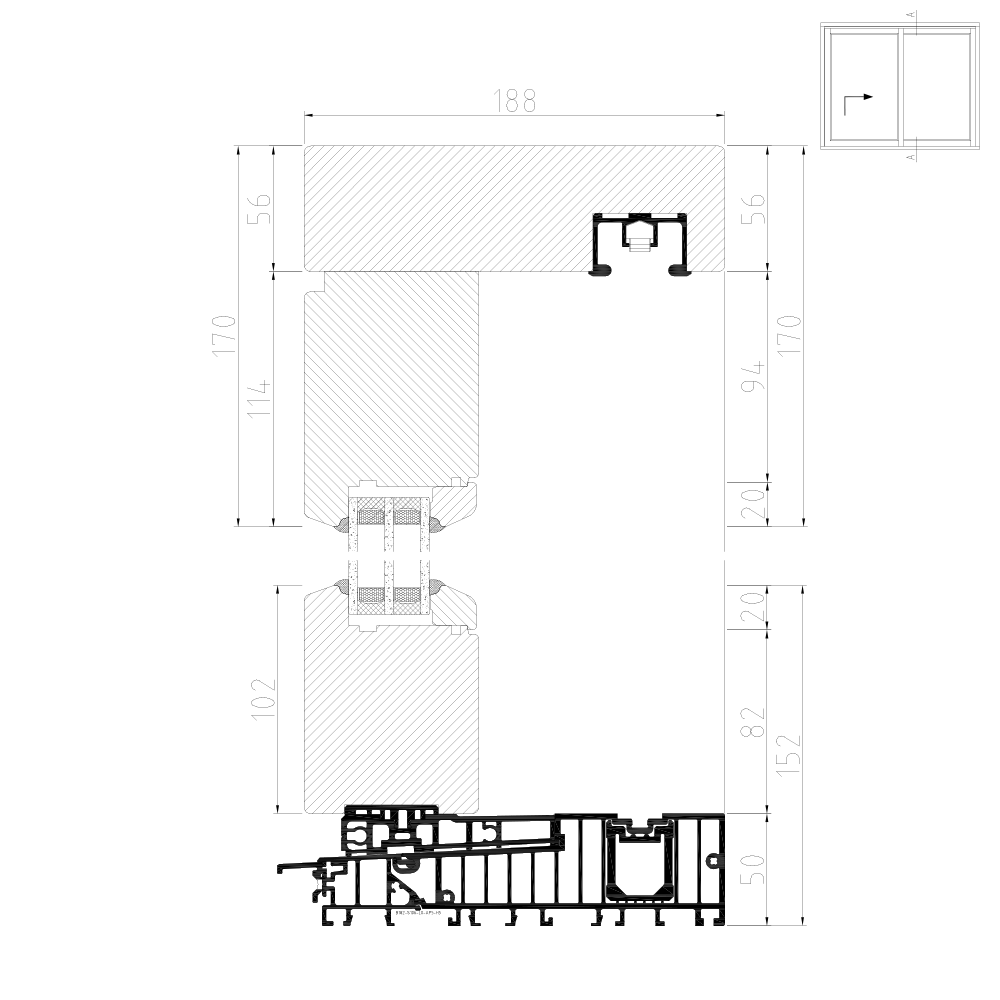

IV 78 - scheme A vertical section of fixed panel
IV 78 - scheme A vertical section of fixed panel

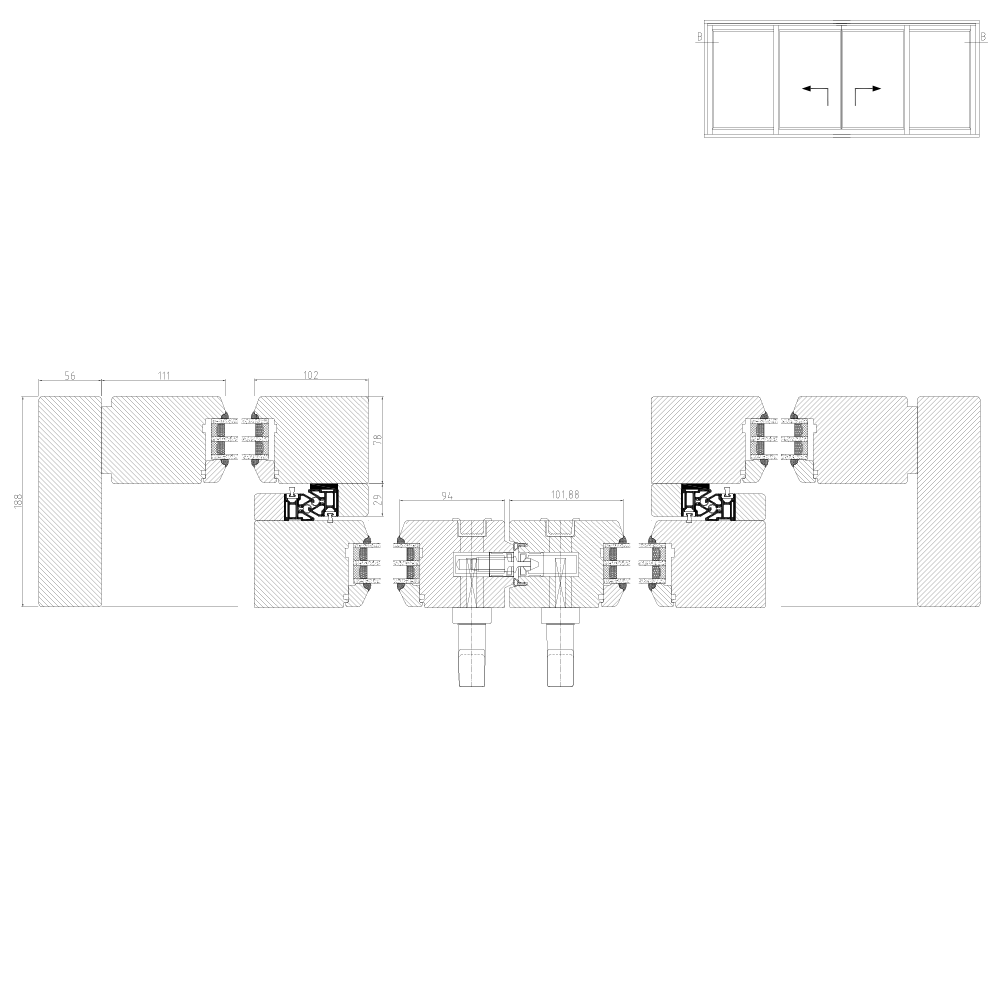

IV 78 - scheme C horizontal cross section
IV 78 - scheme C horizontal cross section

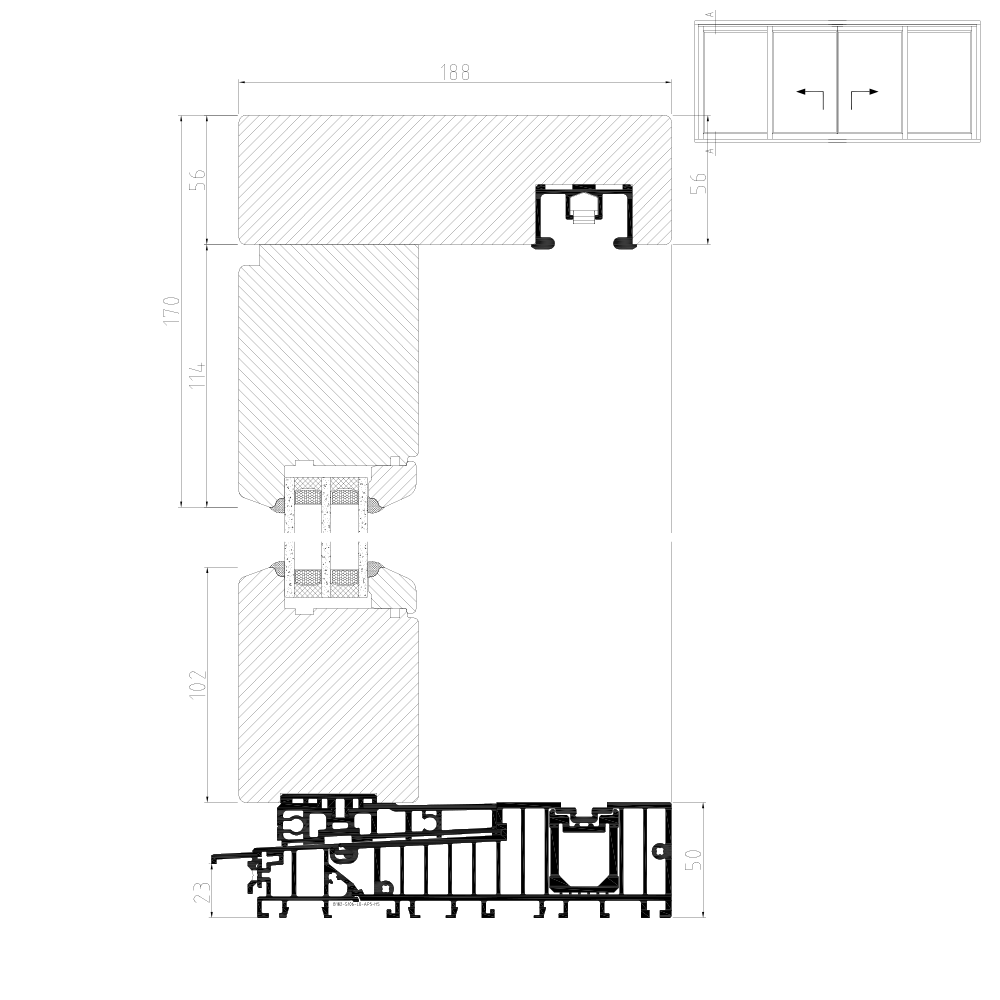

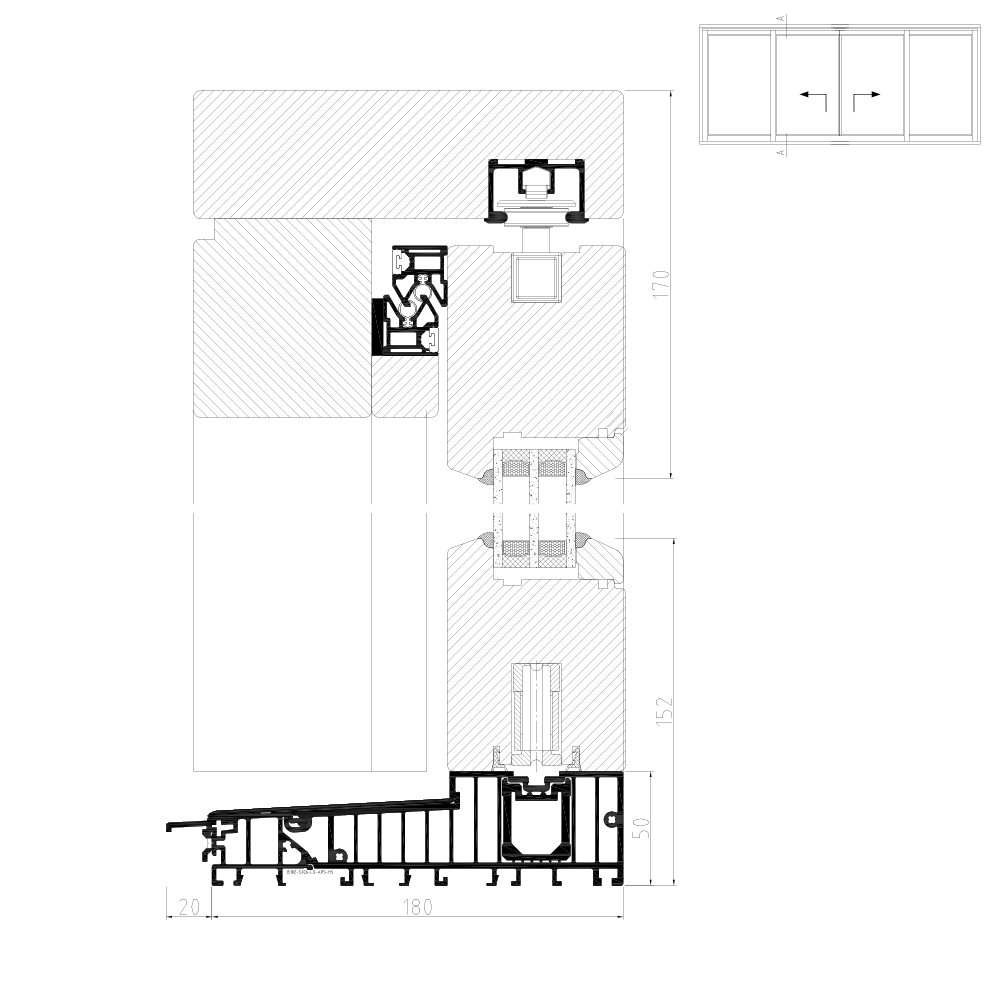

IV 78 - scheme C vertical section of sliding sash
IV 78 - scheme C vertical section of sliding sash
IV 78 - scheme C vertical section of sliding sash
IV 78 - scheme C vertical section of sliding sash

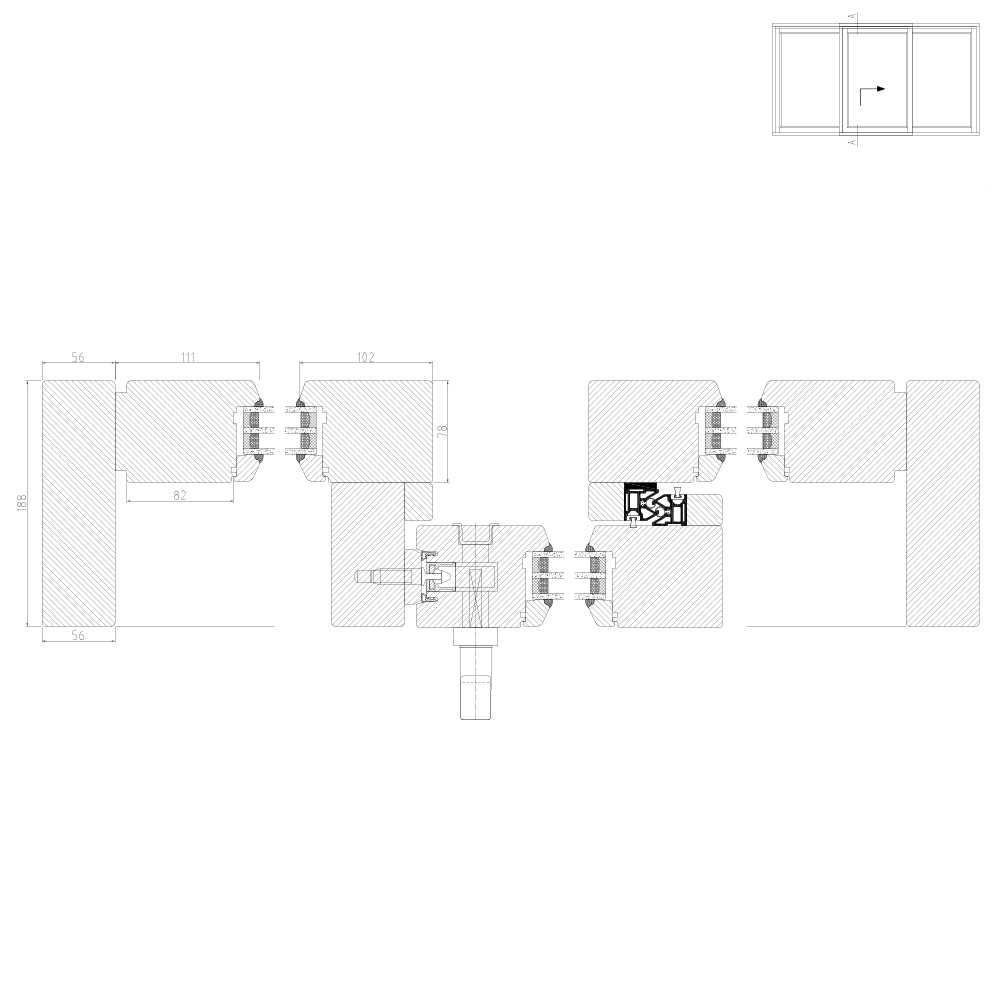

IV 78 - scheme G horizontal cross section
IV 78 - scheme G horizontal cross section

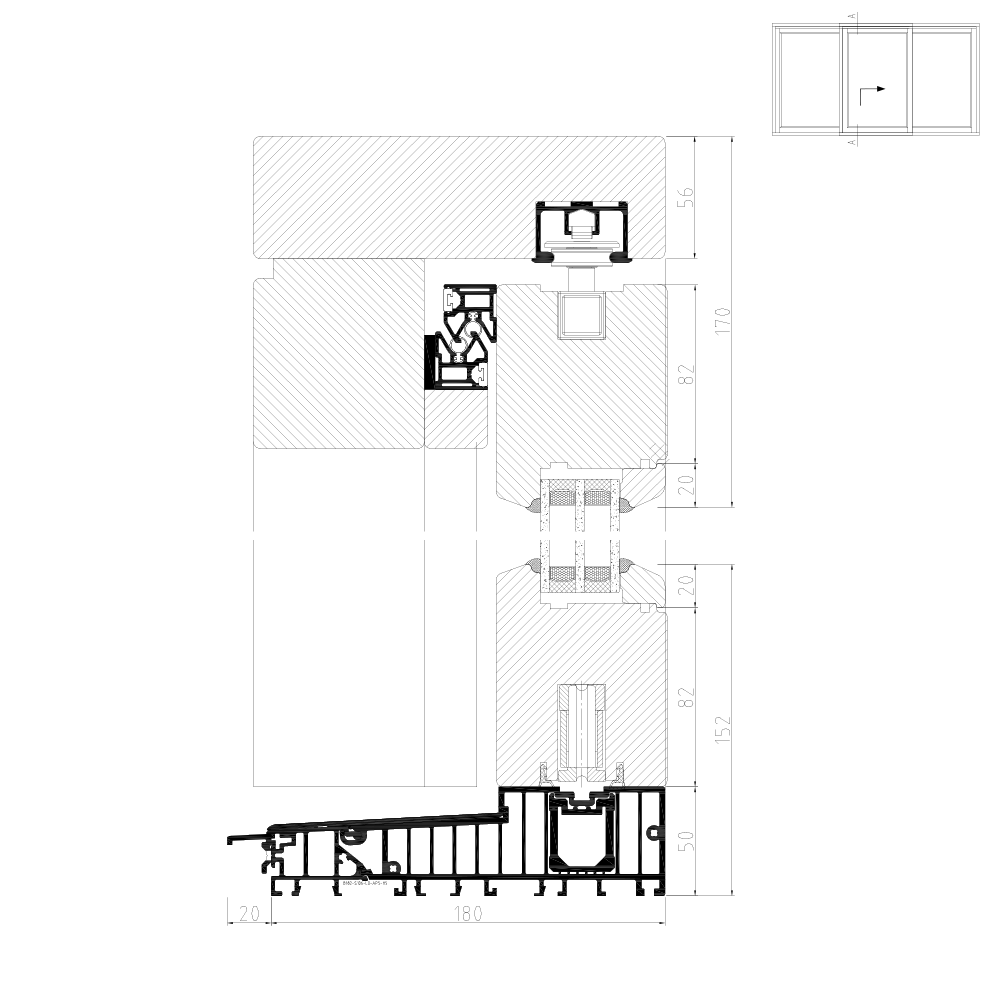

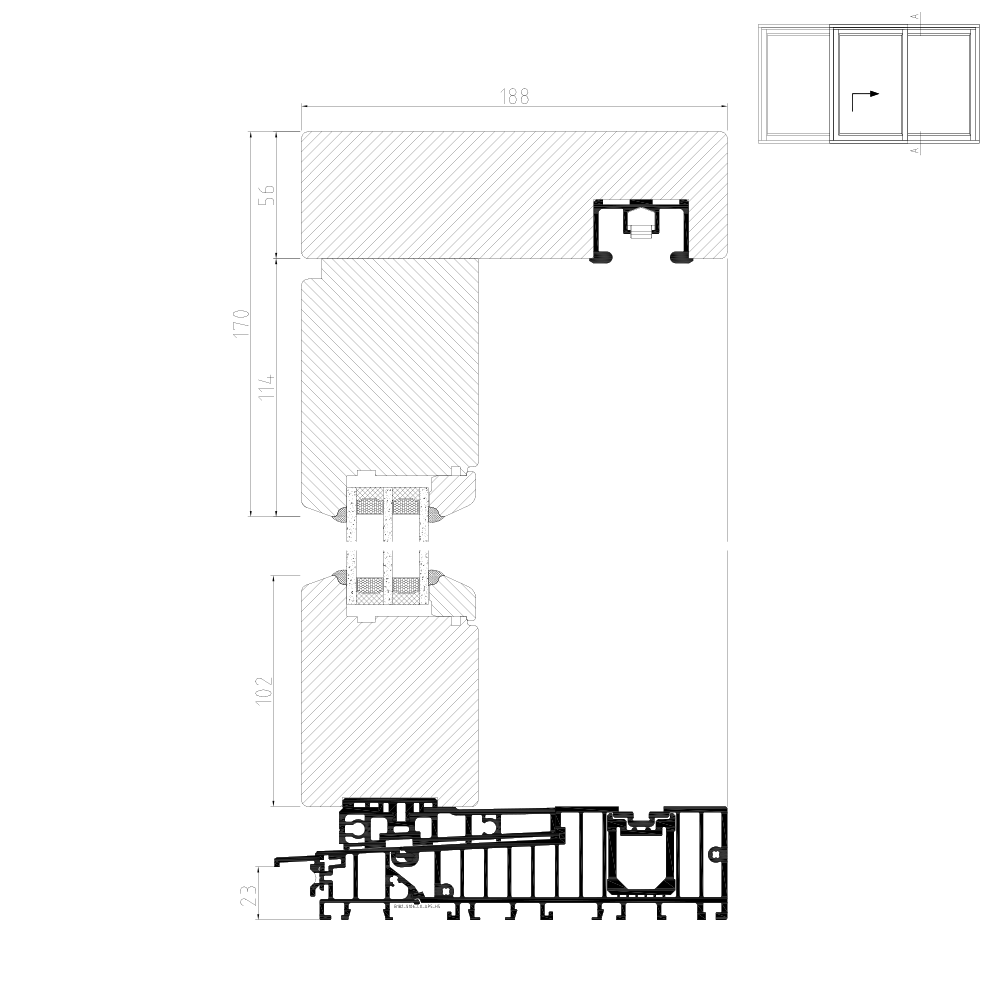

IV 78 - scheme G vertical cross section of sliding sash
IV 78 - scheme G vertical cross section of sliding sash
IV 78 - scheme G vertical cross section of fixed panel
IV 78 - scheme G vertical cross section of fixed panel

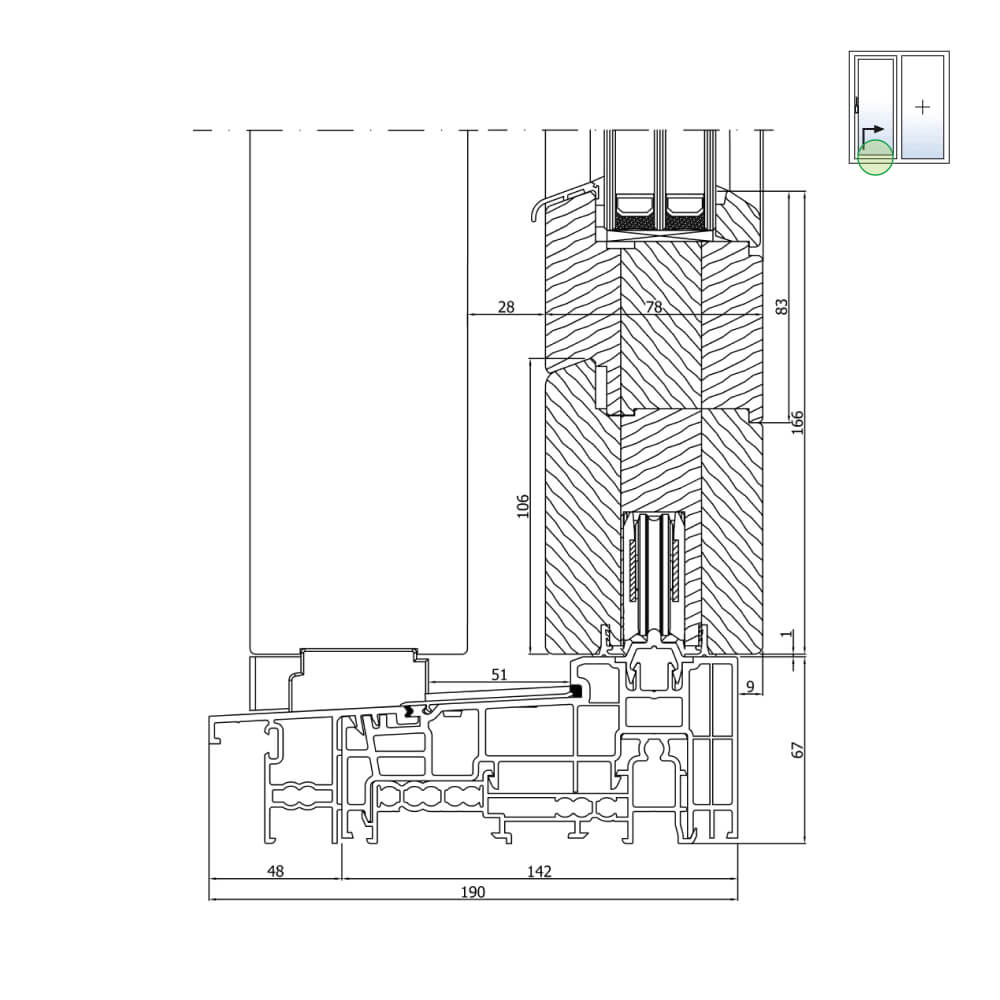

IV 78 - 67mm sill profile
IV 78 - 67mm sill profile

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
