Wooden lift and slide door stopper detail

Lift and slide door made from wood with a stopper on the right

U_W- value

≥ 1.00

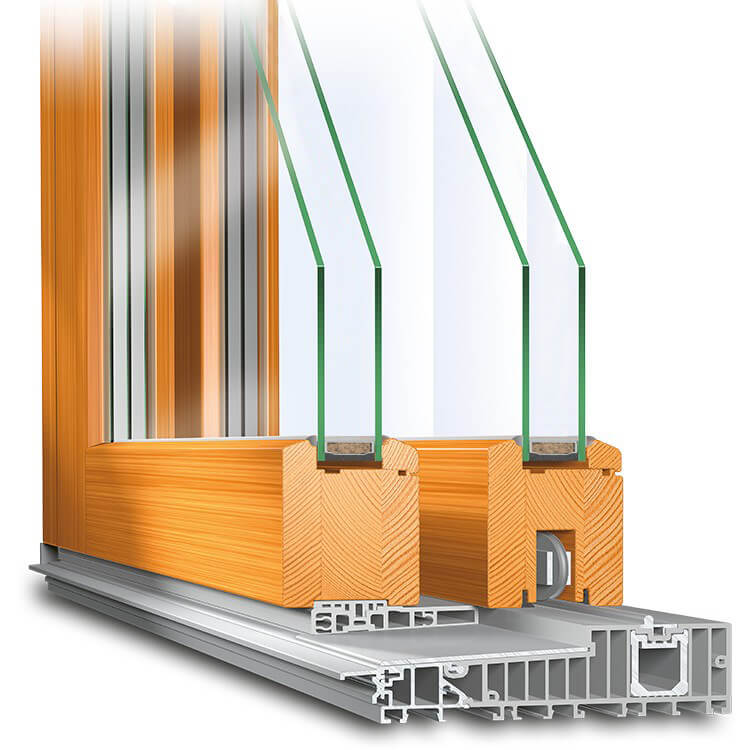

Classic IV 68 wooden lift and slide door profile section

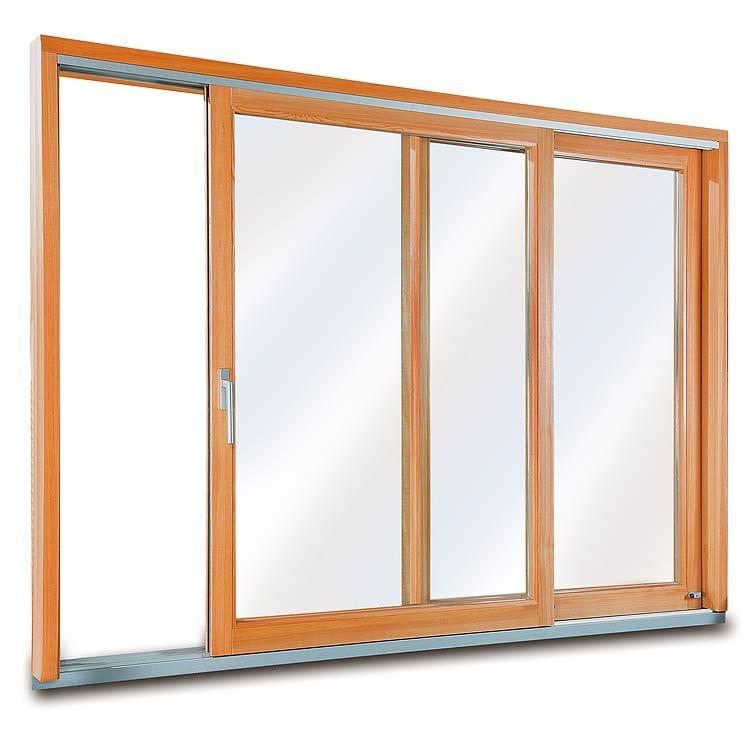

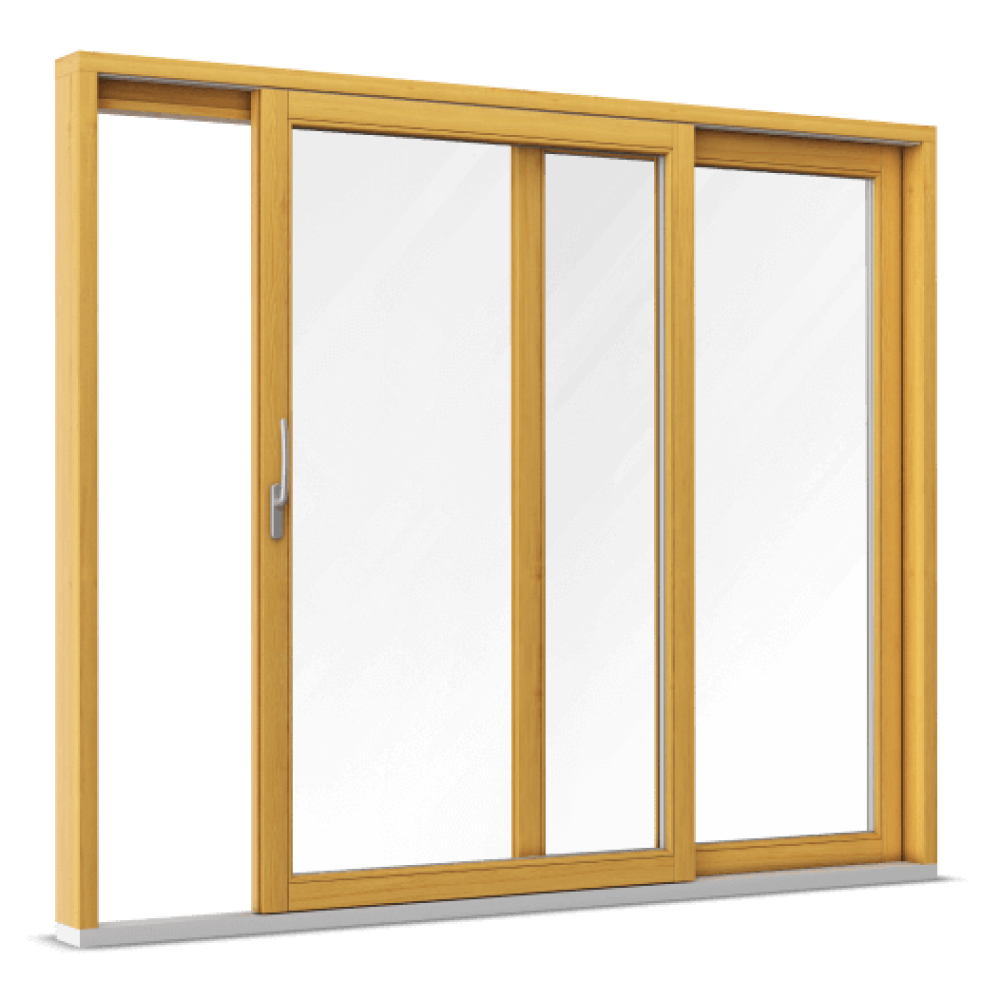

Lift and slide door made from wood

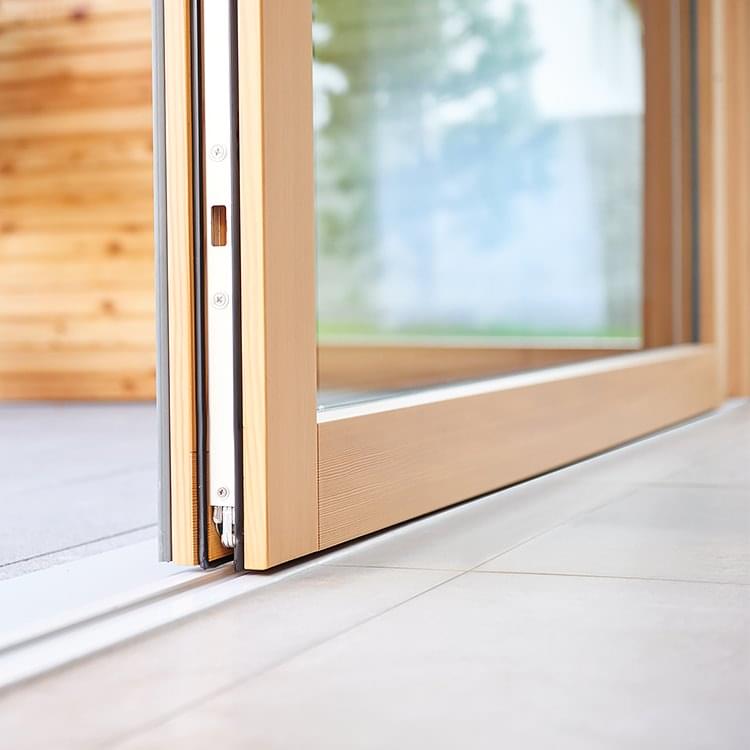

Lift and slide door threshold

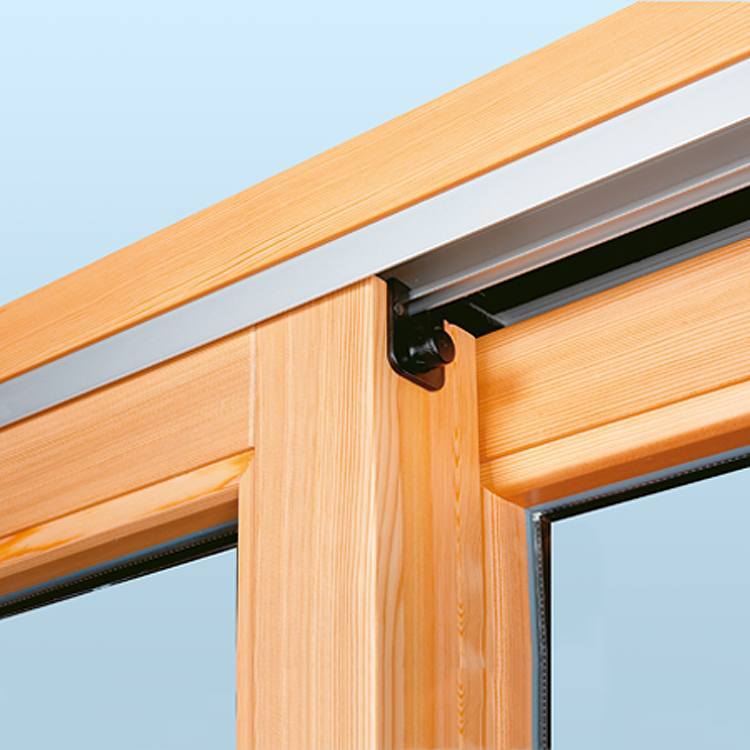

Wooden lift and slide door stopper detail

Classic profile wooden lift and slide door fitting position

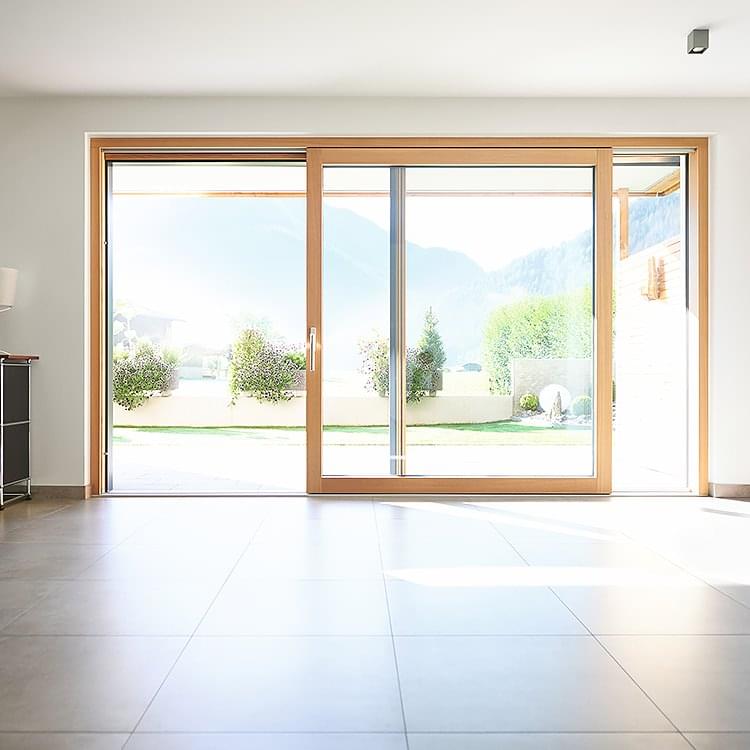

Wooden lift and slide door with a stopper on the right

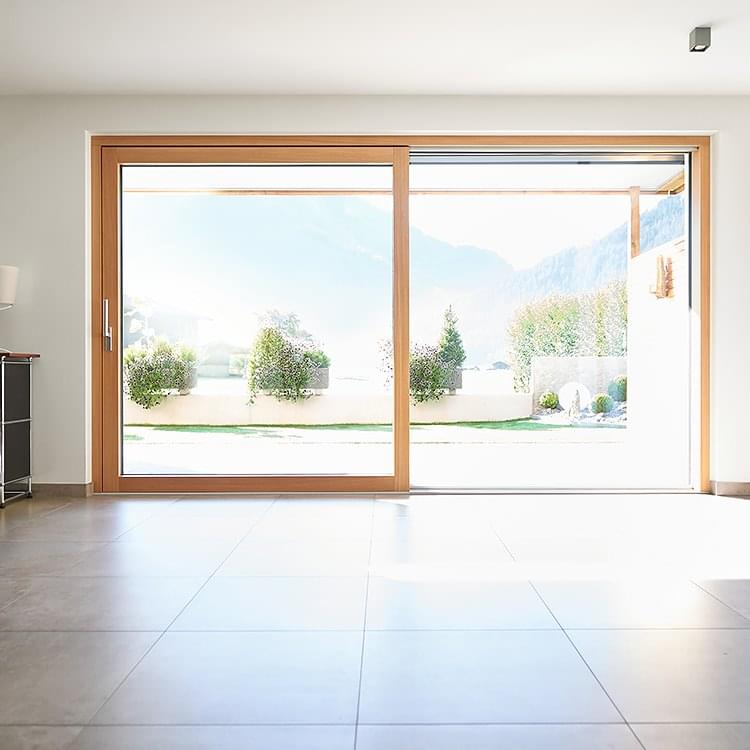

Closed wooden lift and slide door

Wooden lift and slide door – Classic IV 68

Name: Ideal Classic lift and slide door
Brand: windows24.com
Price: 3451 EUR
Availability: InStock

Available in many wood types

from € 3,451~~from € 3,451~~

incl. 19% VAT, free delivery^**

168 mm construction depth
Very good sound and thermal insulation properties
Thermally separated threshold

Calculate Price

Estimated production time 5-8 weeks¹

Product data sheet Classic IV 68

Uw values Classic IV 68

Detail drawings Classic IV 68

Warranty

Classic

Overview of features

Execution of the sash depth at 68mm

High-quality Siegenia Aubi fitting with 2 locking bolts as standard

Dimensionally stable, thermally separated aluminium threshold

Completely new sliding feeling thanks to maximum ease of movement

Simple and intuitive operation

High design standards due to concealed positioning

Extensive colour range

German brand quality

Customer satisfaction

Over 250,000 satisfied customers and counting

Residential building

Russ DriveNew Zealand

Composite windows and doors for a passive house

“The windows from windows24.com meet all of our criteria for design, energy efficiency and high quality. These made-to-measure products are a perfect match for our passive house.”

Residential building

DonvaleAustralia

uPVC sliding doors

“The expert team supported us throughout the process: realising our ideas, choosing long-lasting materials, and sorting the shipping from Germany to Australia.”

Residential building

ArizonaUSA

uPVC windows and doors

“Great customer service! The professional advice from the windows24.com-team helped us choose the ideal products for situation.”

Residential building

PeppertreeAustralia

Special window shapes

“windows24.com delivered windows to us that perfectly fit to the design of our house. These are no standard windows! We were surprised by how exactly we could define the shape of each window.”

TECHNICAL DETAILS

CLASSIC – system description

Layer-glued sawn timber, available in wood types: pine, spruce, Meranti, larch, eucalyptus or oak.
168 mm construction depth / profile depth with a _Uf value = 1.23 W/m²K
Standard glazing with a U_g value of 1.1 W/m²K
Siegenia-Aubi HS PORTAL 300KF
High basic security with two locking bolts as standard
Lever and handle shell available in the colours white, brown and titanium
Weather-resistant thanks to uPVC with modern additive technology
Weatherproof thanks to extruding seals; in accordance with DIN18055

Thermal, safety and soundproof glazing possible
Effortless opening and closing, even with heavy sashes
Concealed locking technology through the swivel hook gear
High resistance to wind and driving rain-proof
Increased light penetration due to a large glass area

Options:

Additional break-in protection with security fittings rated up to RC2 N
Integrated multipoint locking system, lockable from inside and outside
Lock monitoring

PRODUCT INFORMATION

Ideal Classic lift and slide door

The lift and slide door in the Classic profile has a construction depth of 68 mm and can be made from various different wood types.

Image	Profile	Model	Product Type	Width	Height
	IV 68	Classic IV 68	Lift and slide door	from 213.50 cm	from 200 cm
Logo	Brand	Availability	Condition	Colour	Price
	windows24.com	available	New	White, Mahogany, Walnut	from € 3,451
