Detailed Drawings – uPVC Lift and Slide Patio Doors

Overview

IDEAL Basic
IDEAL Premium
Kömmerling PremiDoor 76

IDEAL Basic

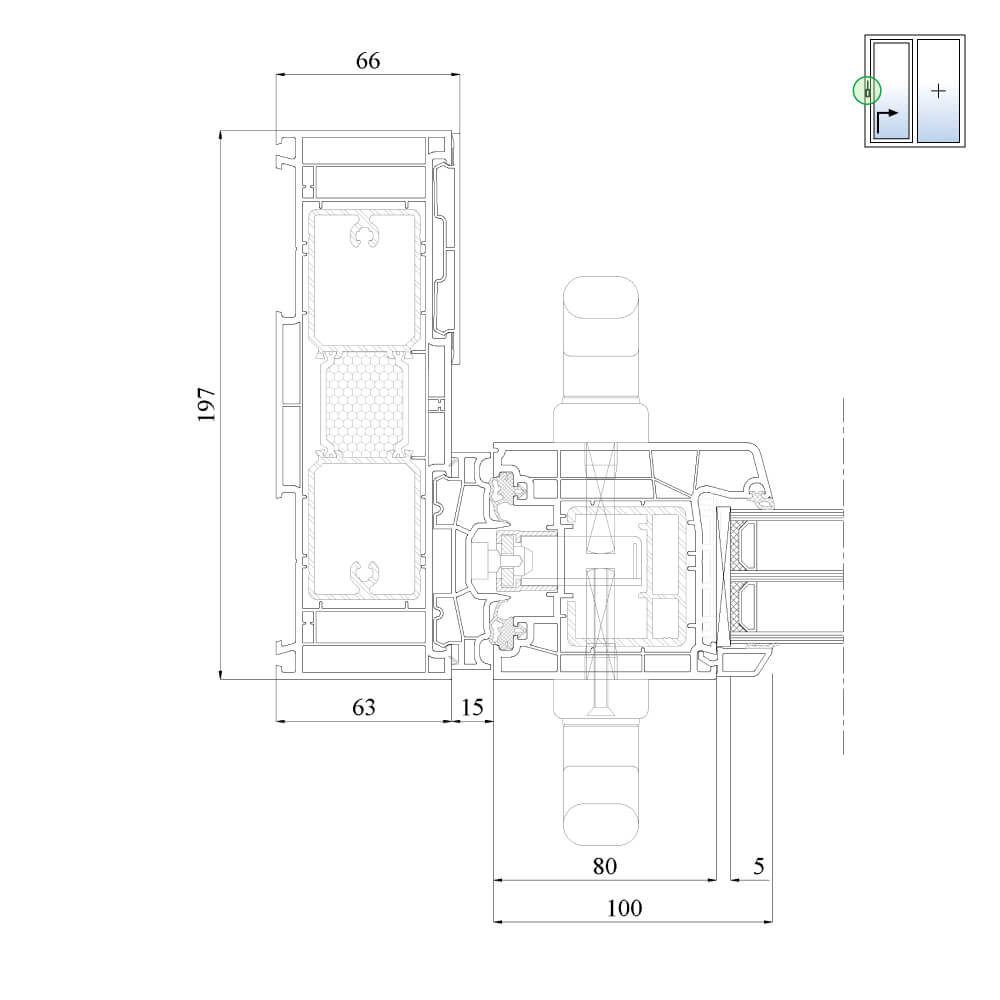

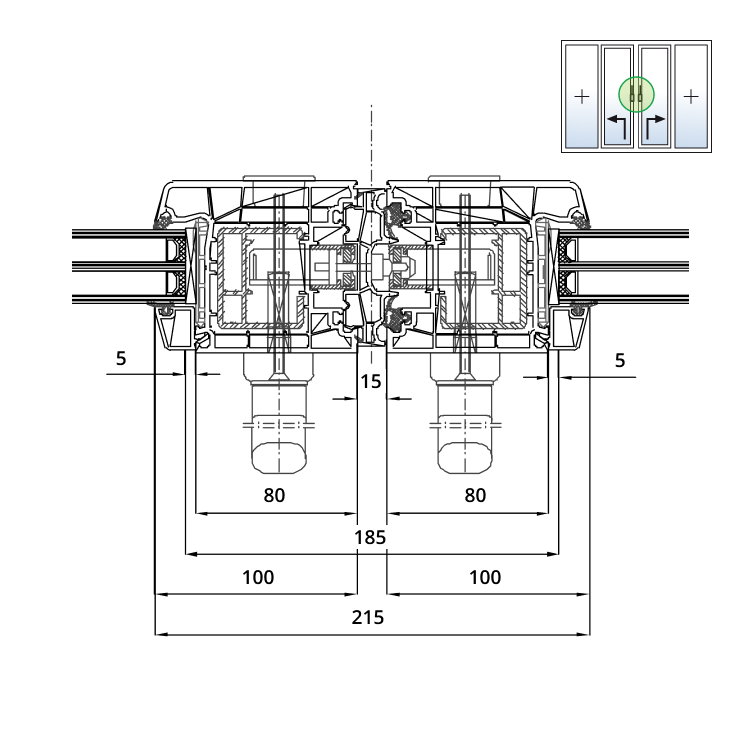

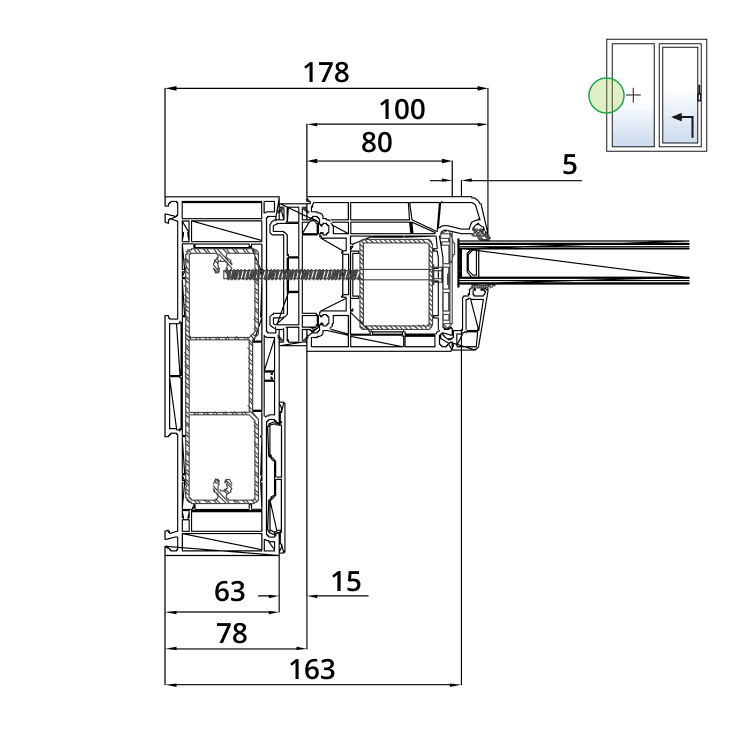

IDEAL Basic - detail of double sash centre

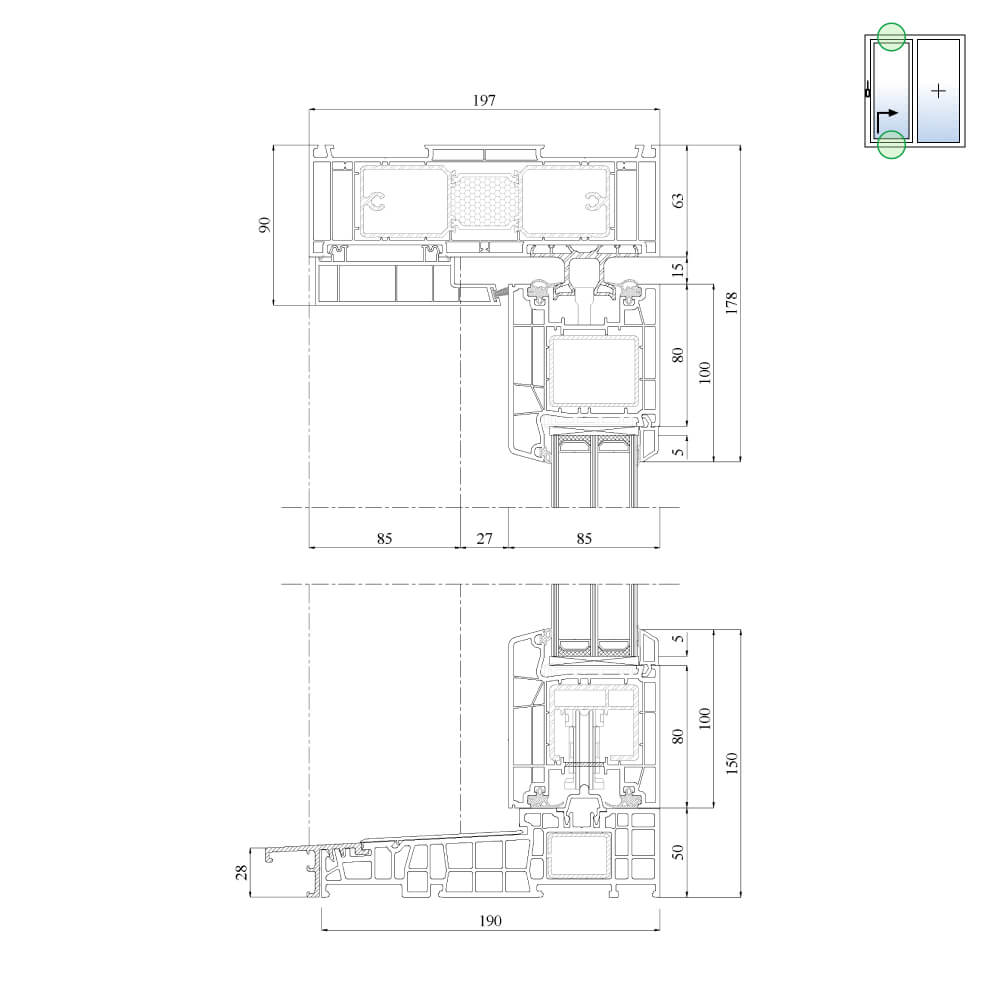

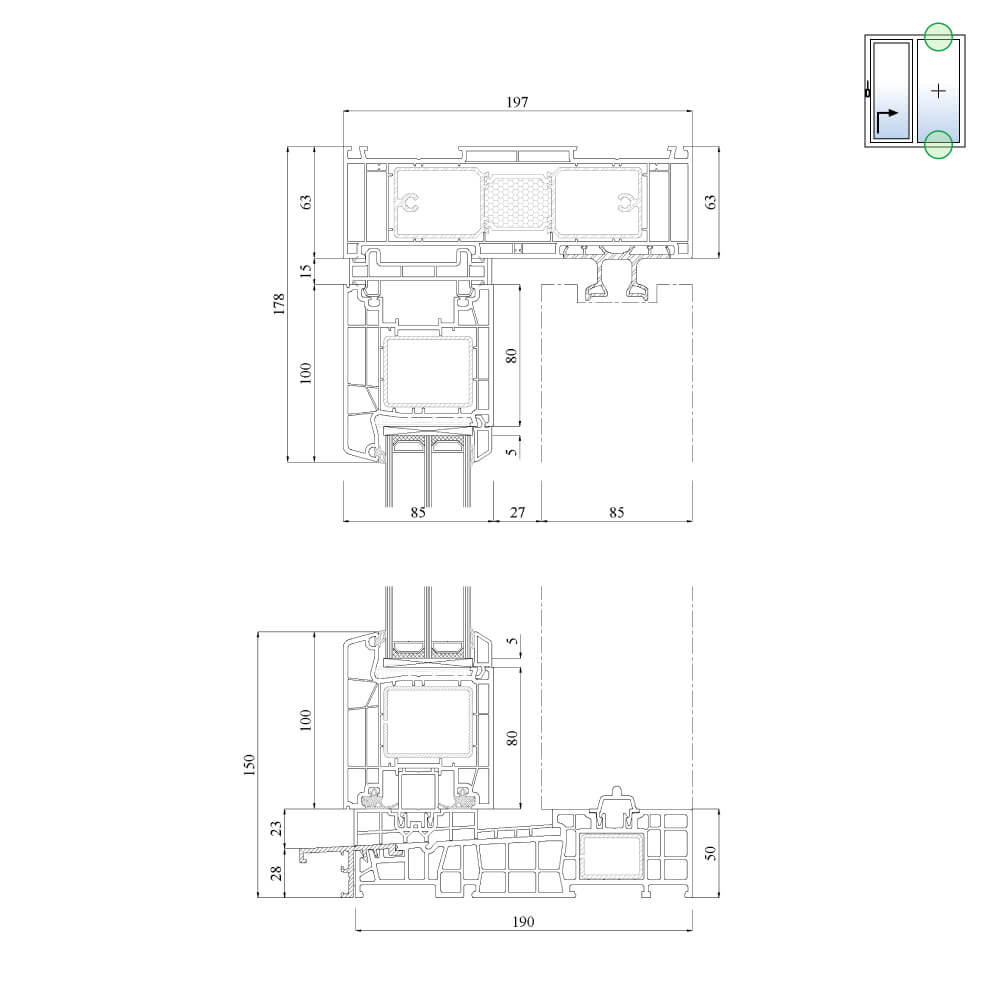

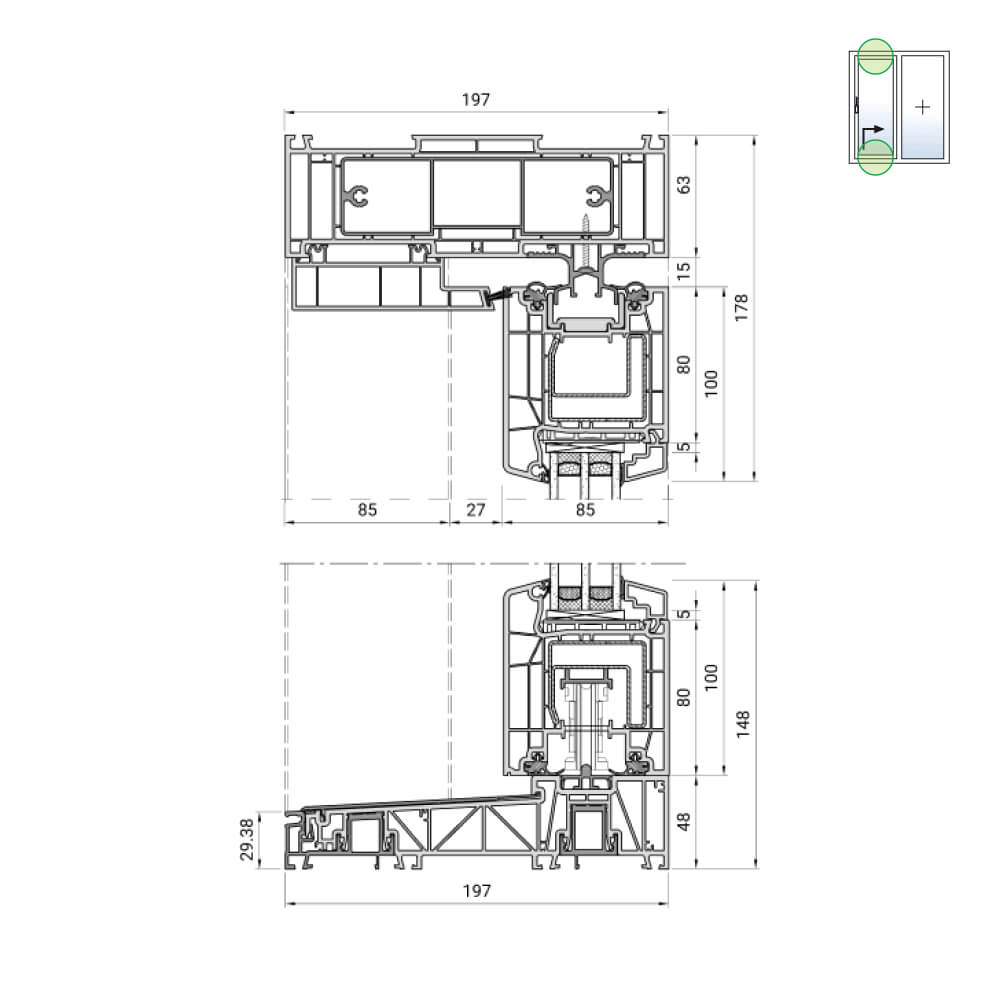

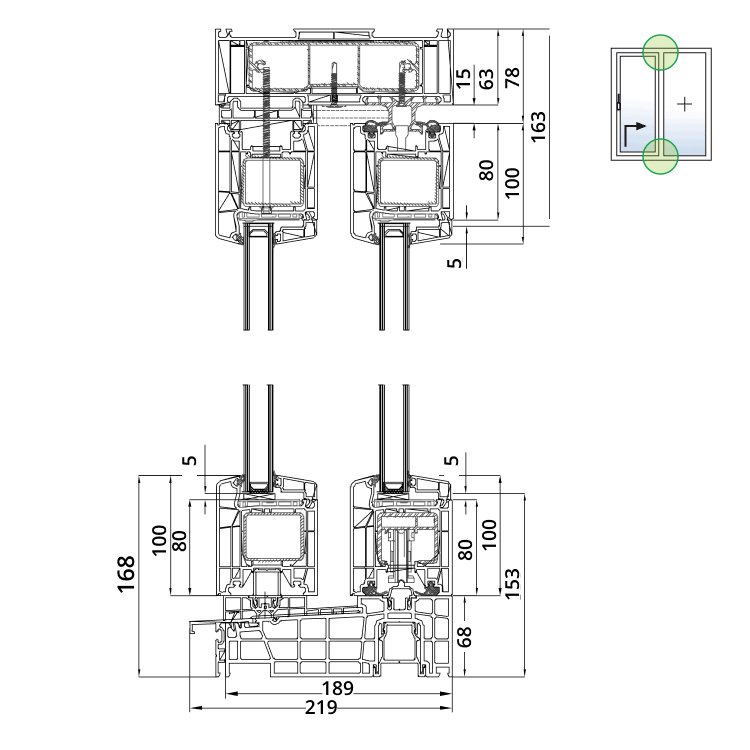

IDEAL Basic - vertical cross-section showing upper frame & lower threshold

To top of page

IDEAL Premium

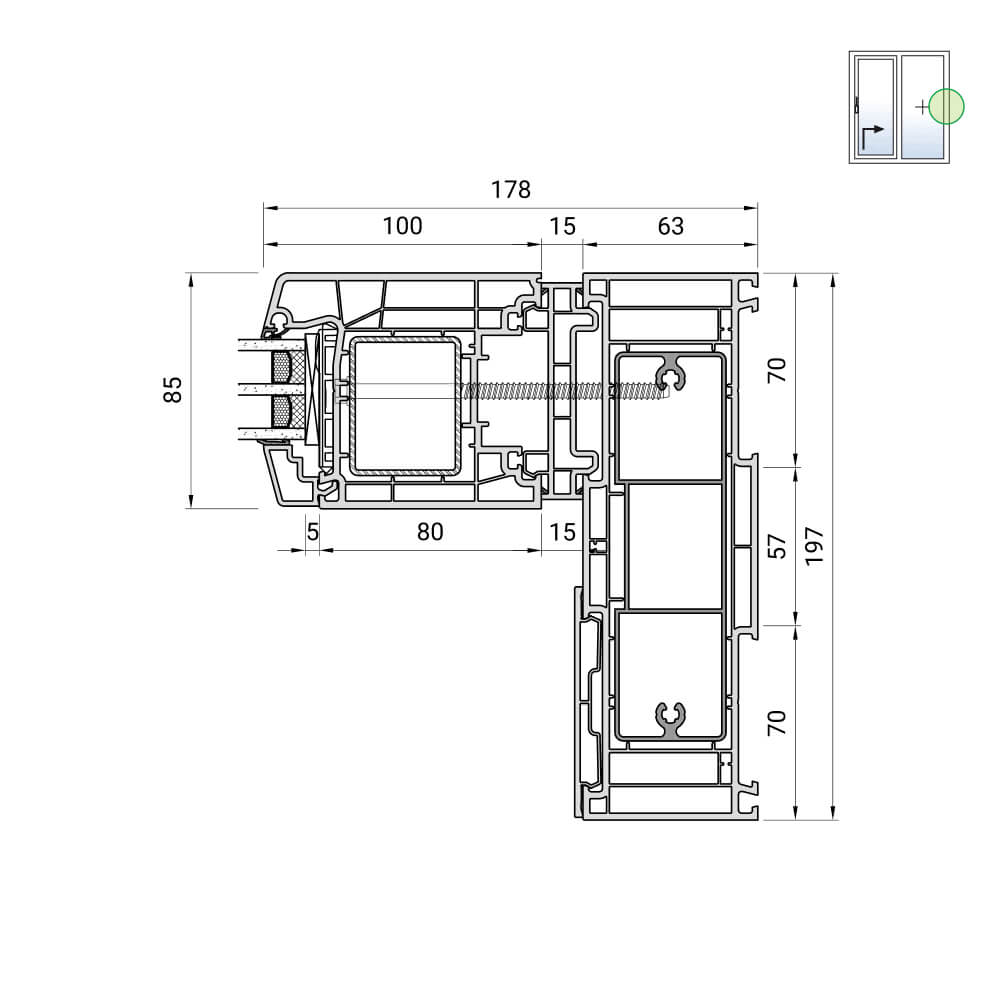

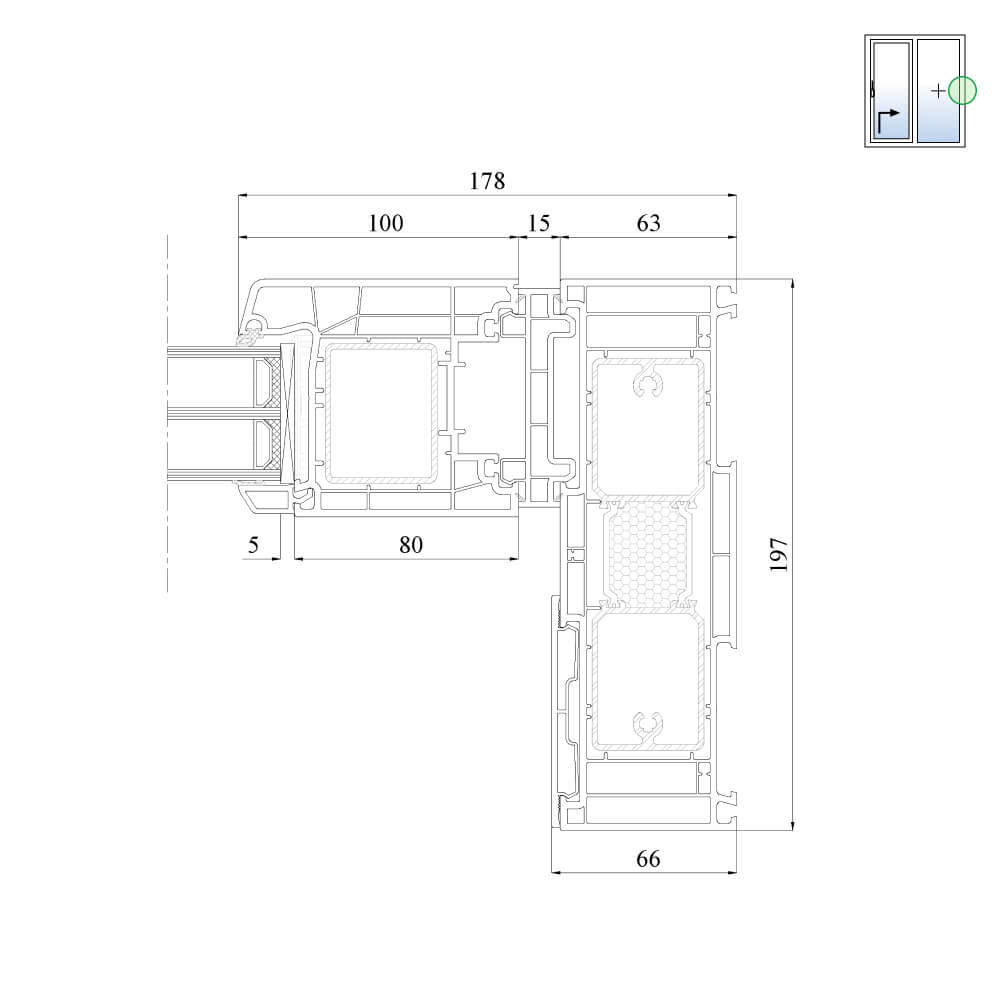

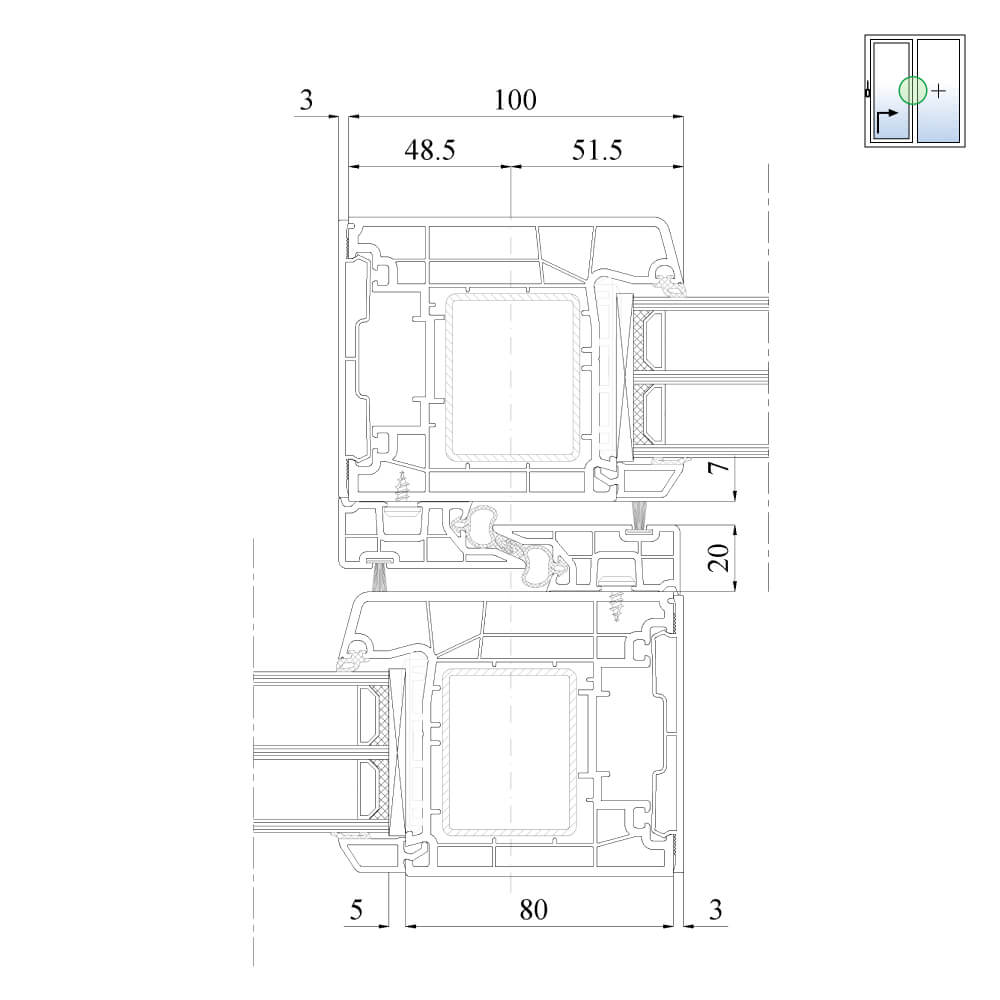

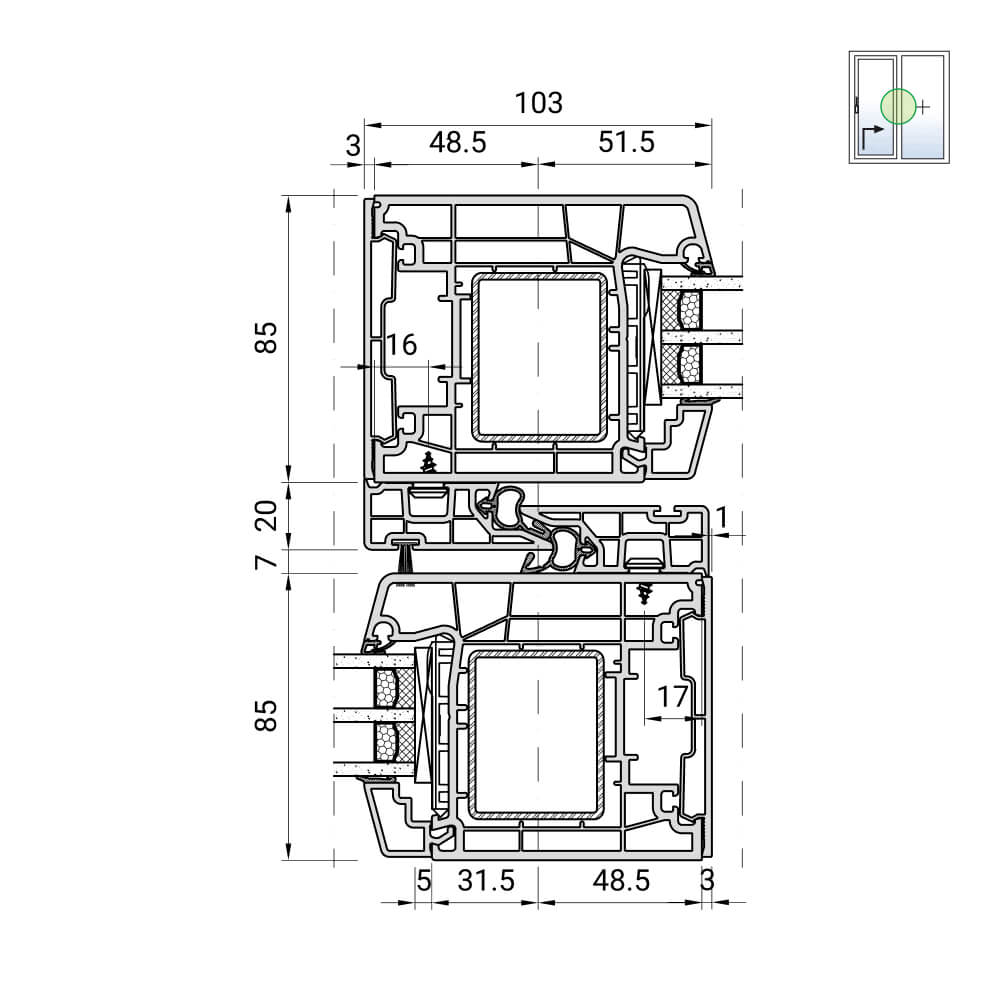

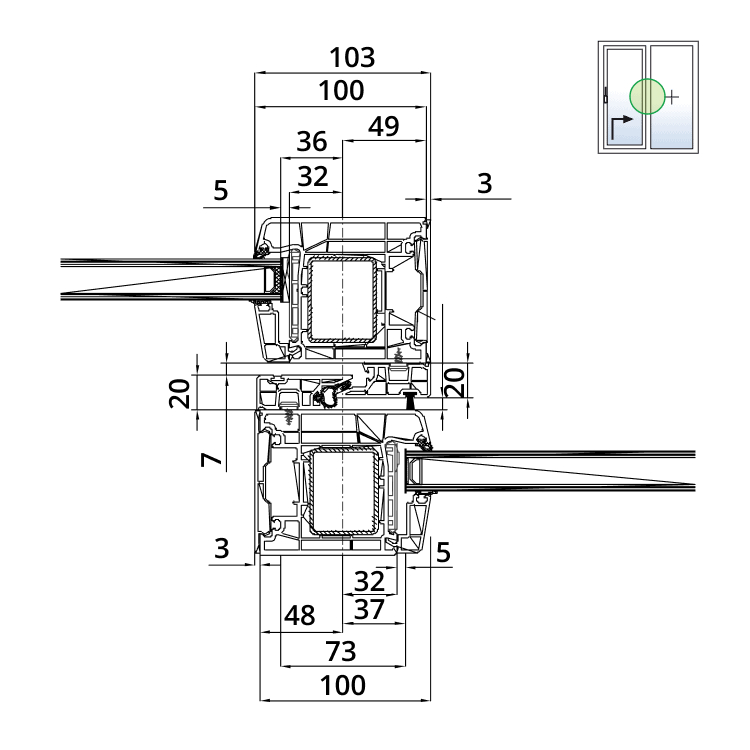

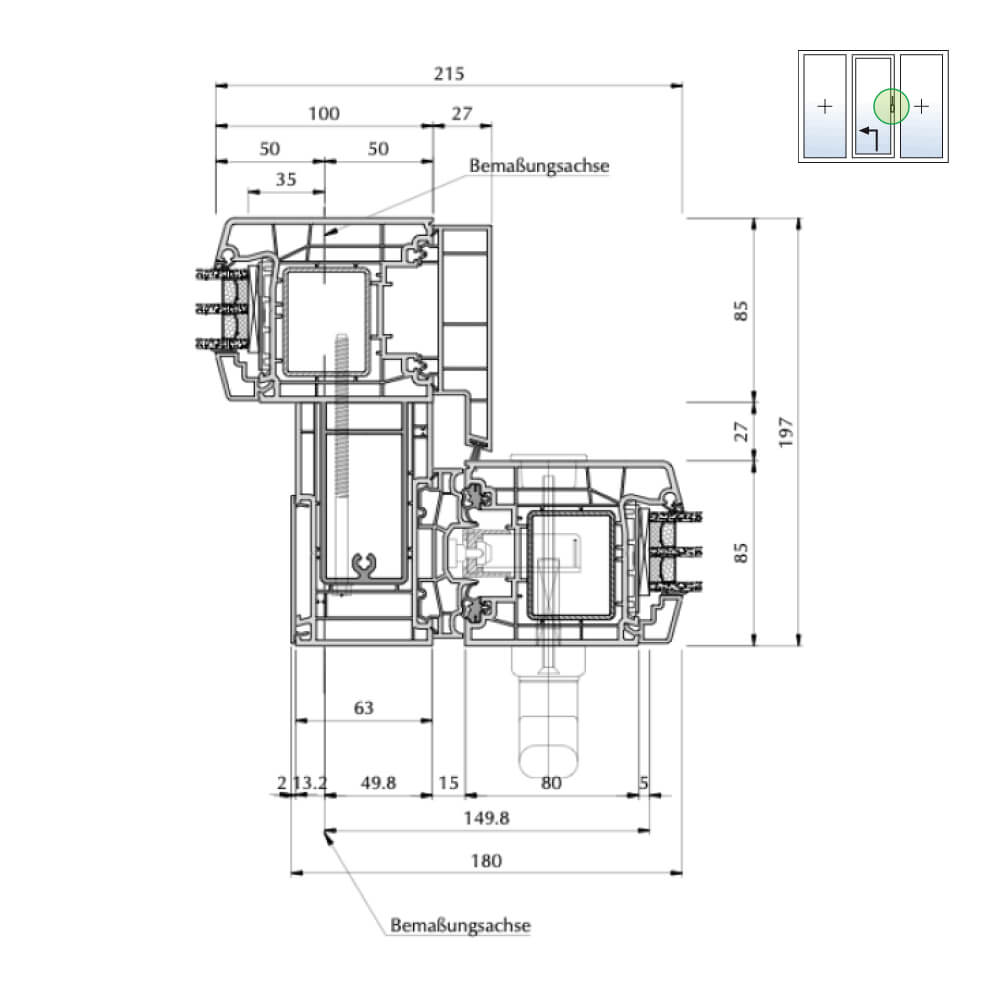

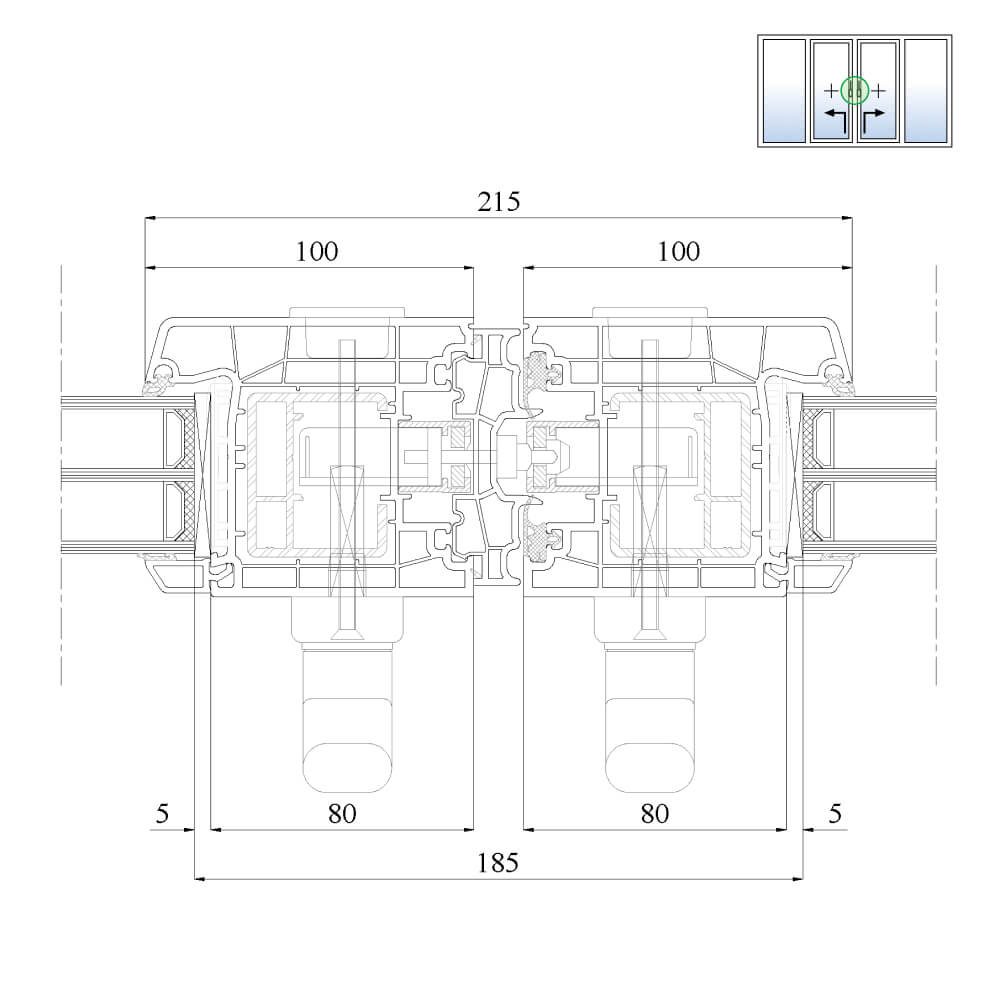

IDEAL Premium - detail of central mullion

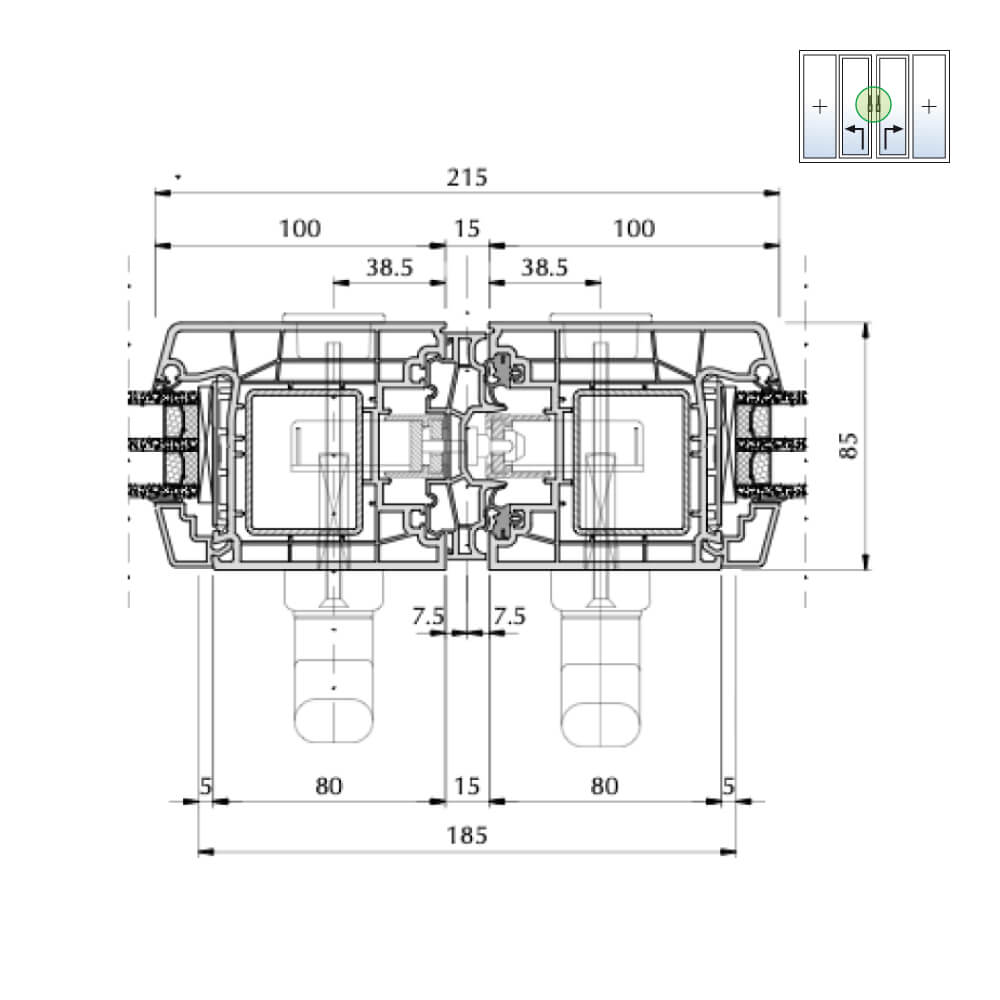

IDEAL Premium - detail of double sash centre

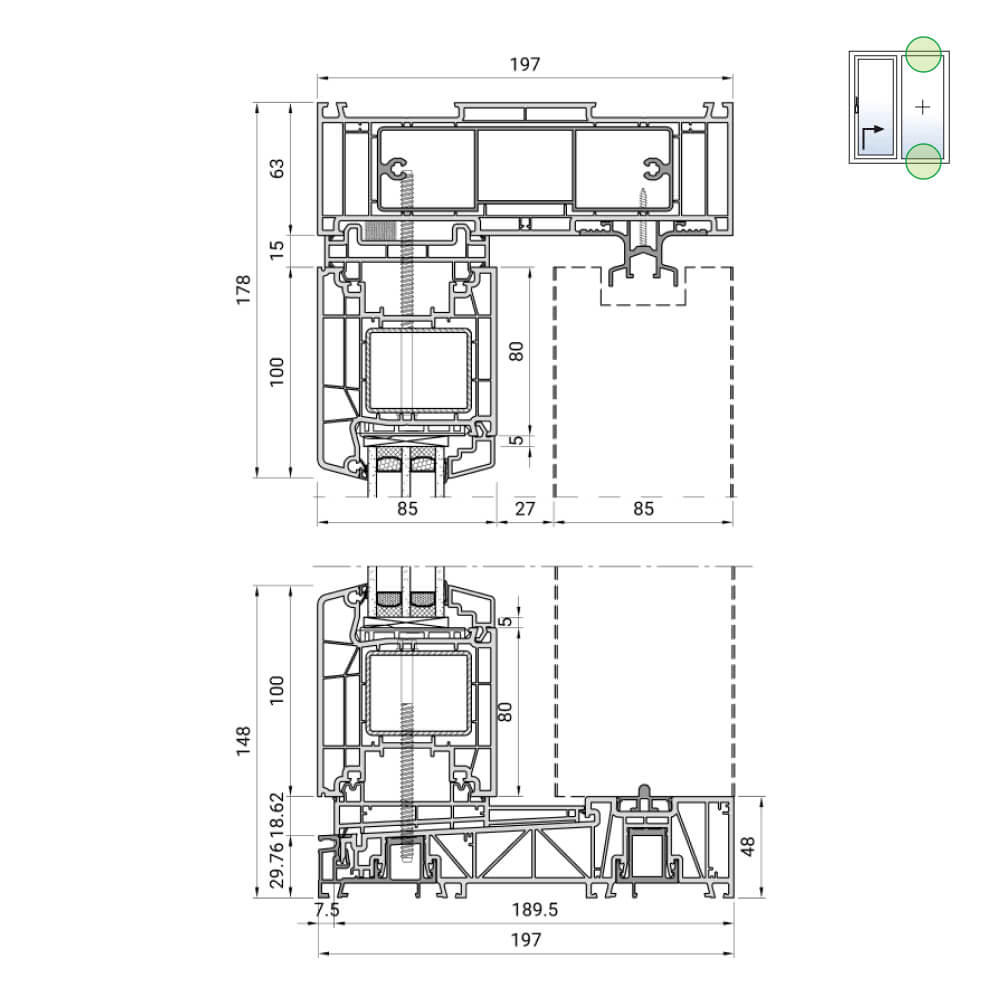

IDEAL Premium - vertical cross-section showing upper frame & lower threshold of fixed panel

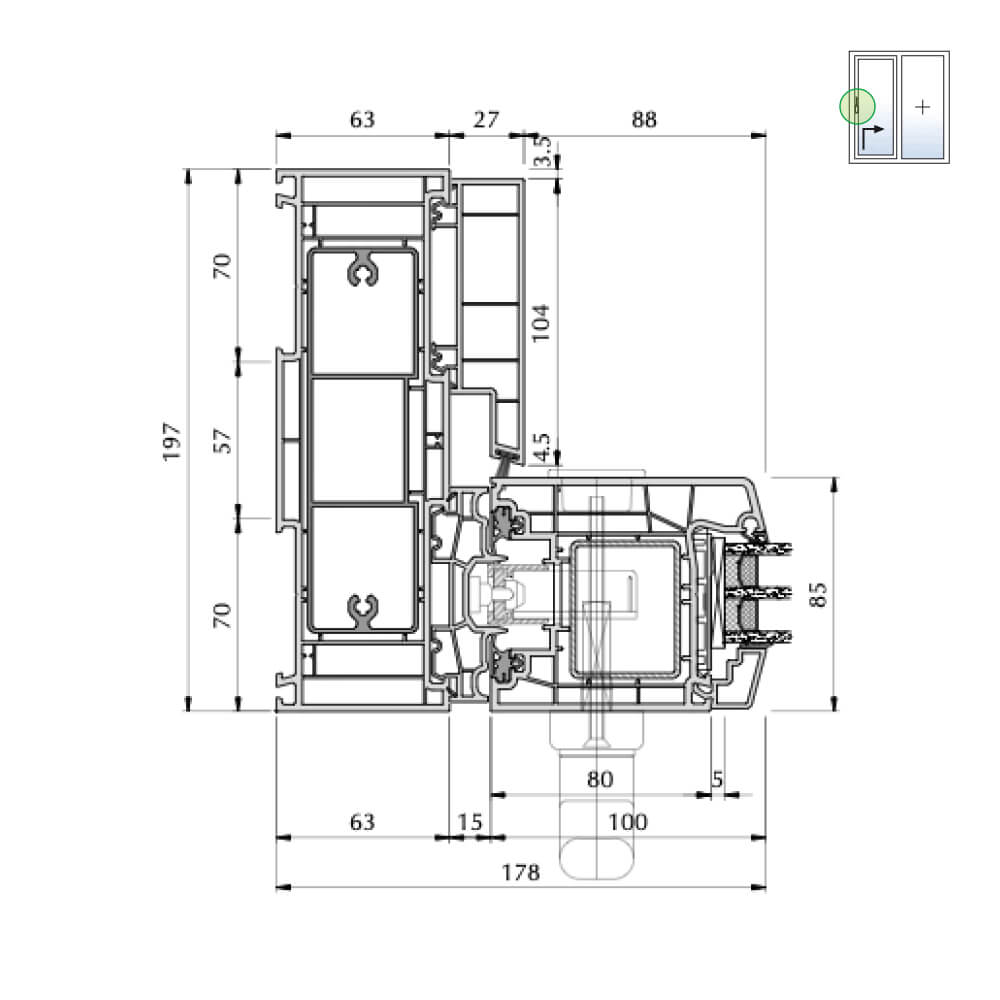

IDEAL Premium - vertical cross-section showing upper frame & lower threshold of the inner sliding sash

Frame Extensions

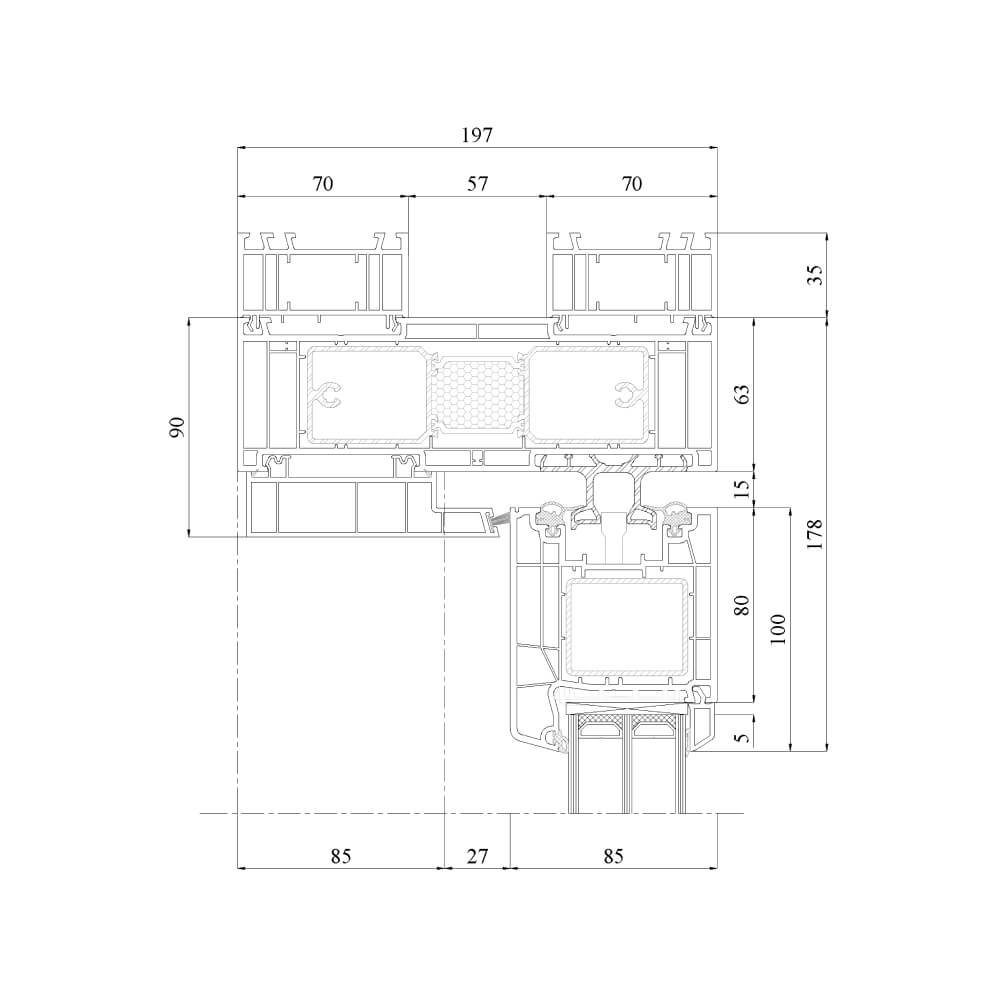

IDEAL Premium - 35 mm upper frame extension

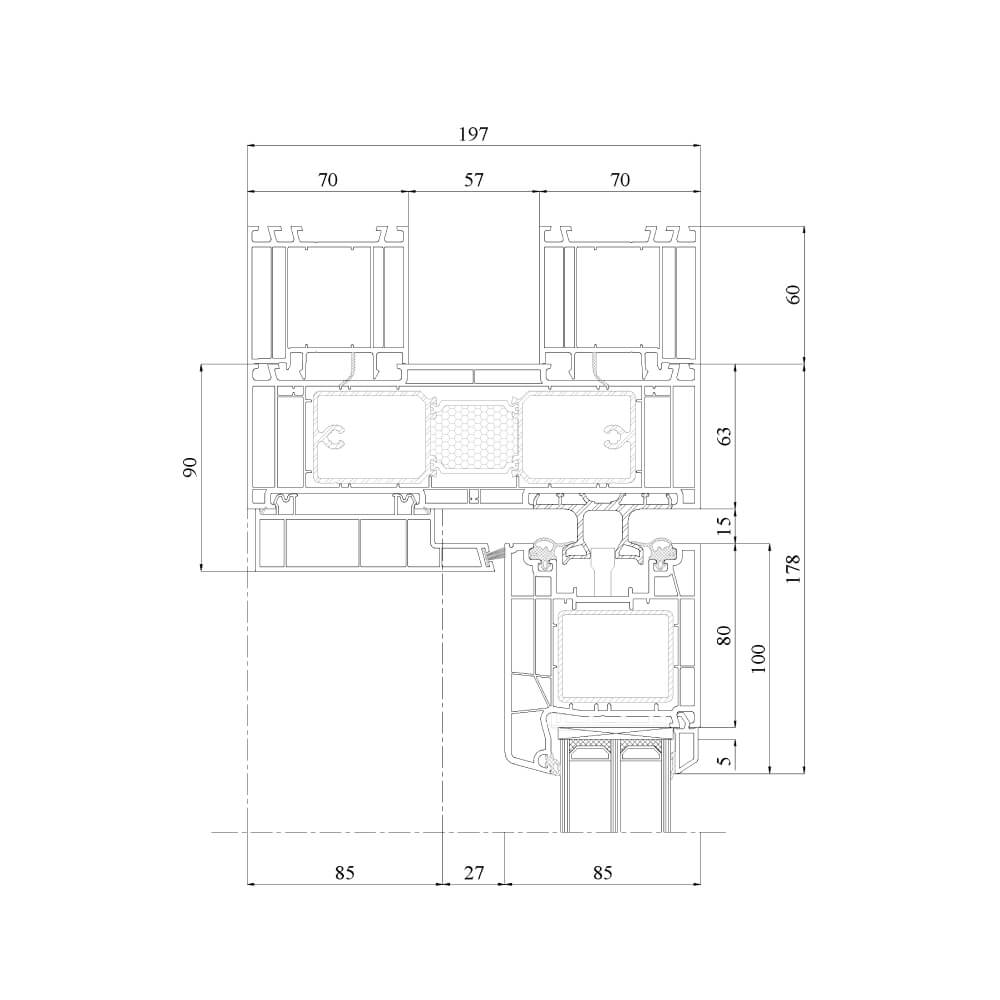

IDEAL Premium - 60 mm upper frame extension

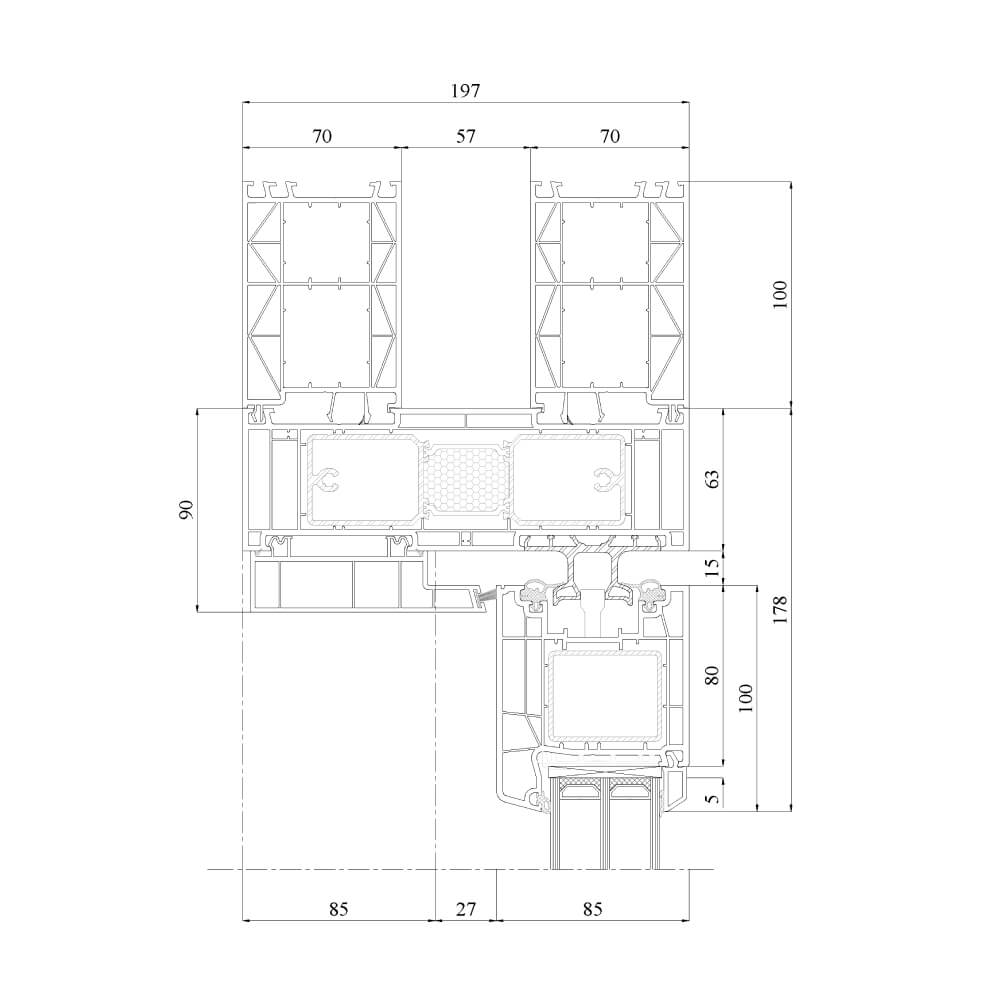

IDEAL Premium - 100 mm upper frame extension

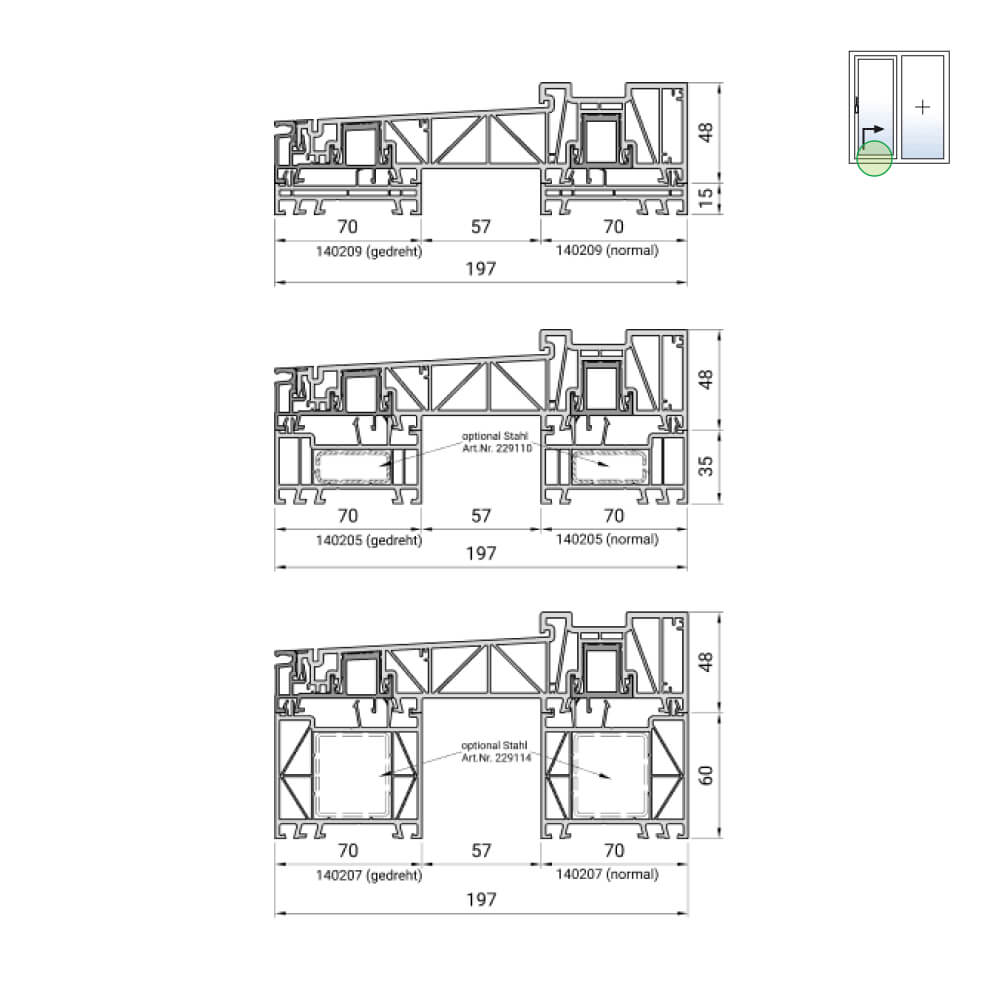

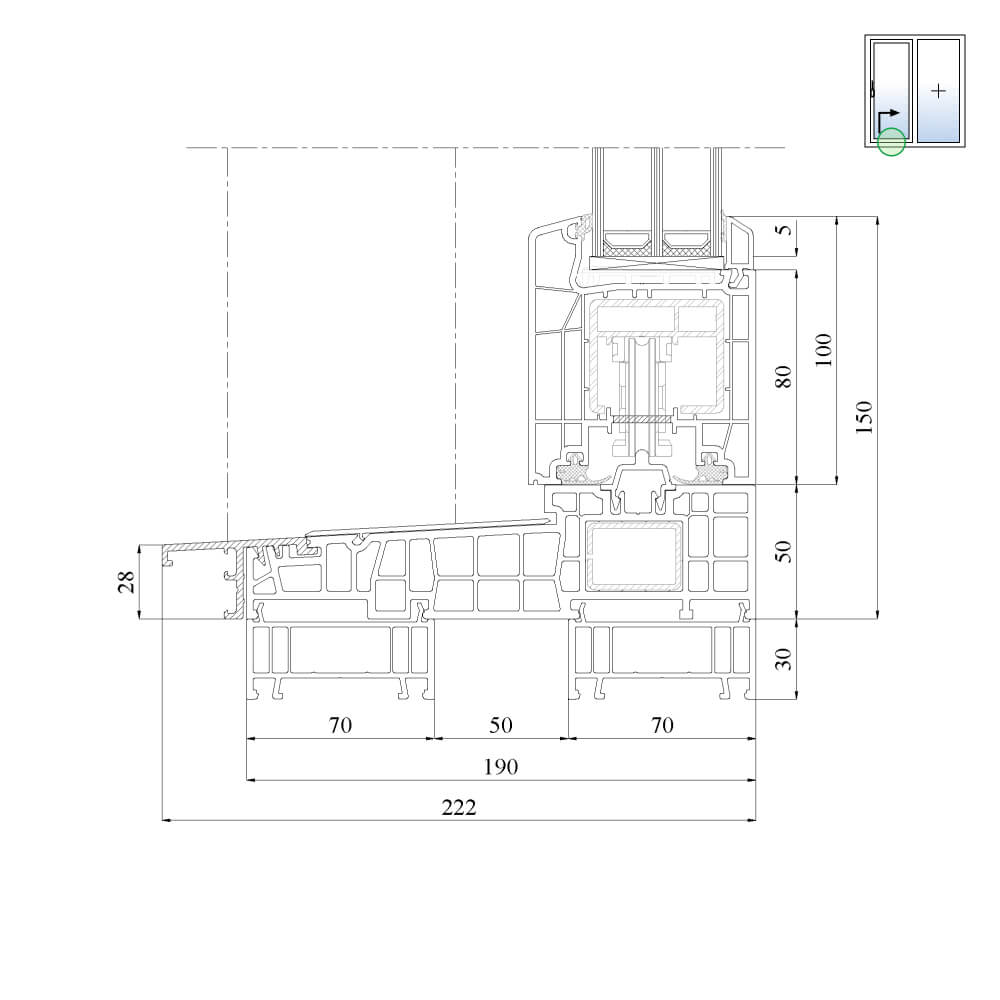

IDEAL Premium - 30 mm threshold frame extension

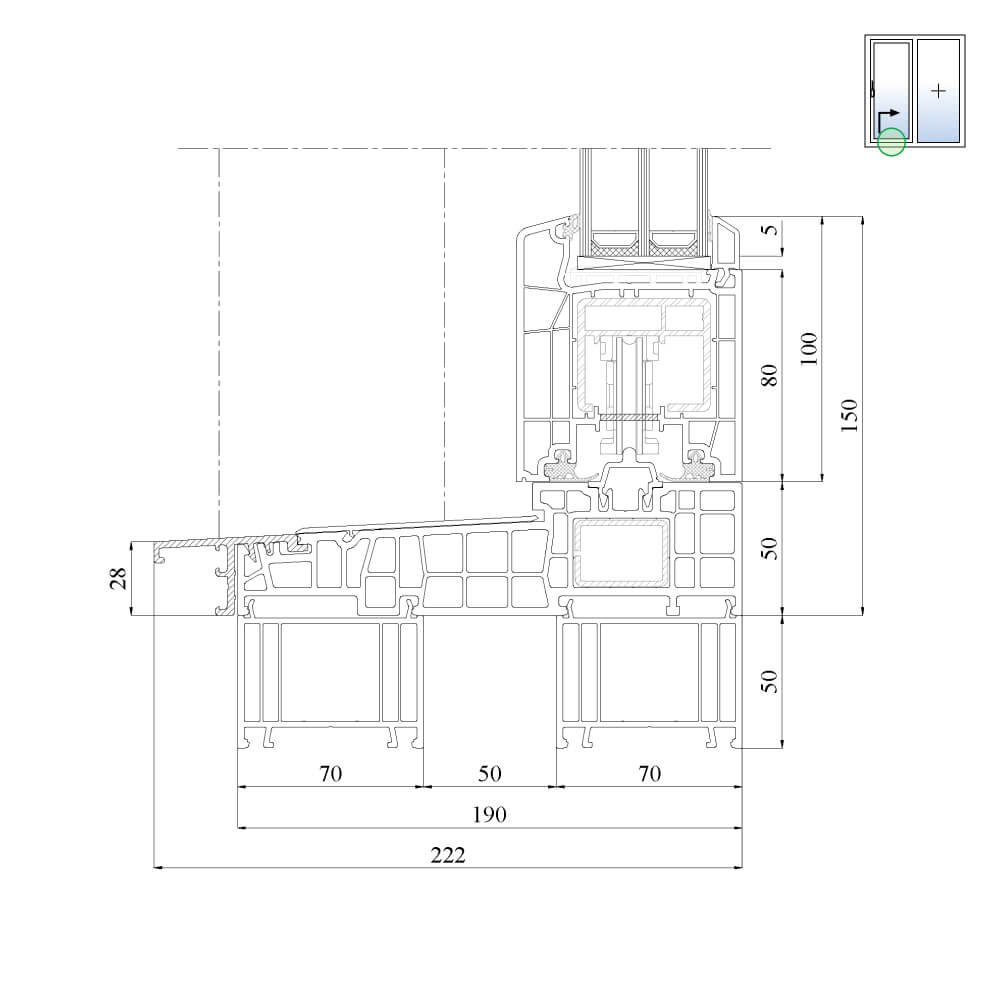

IDEAL Premium - 50 mm threshold frame extension

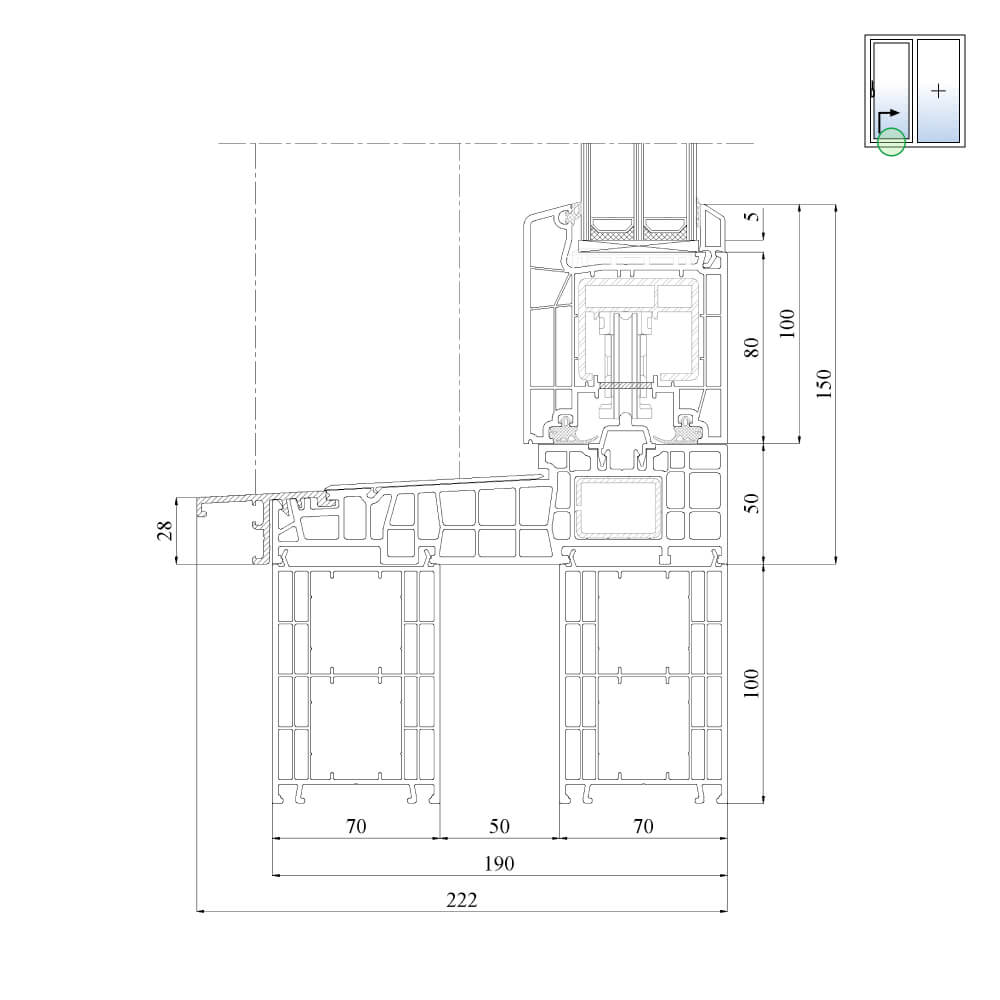

IDEAL Premium - 100 mm threshold frame extension

To top of page

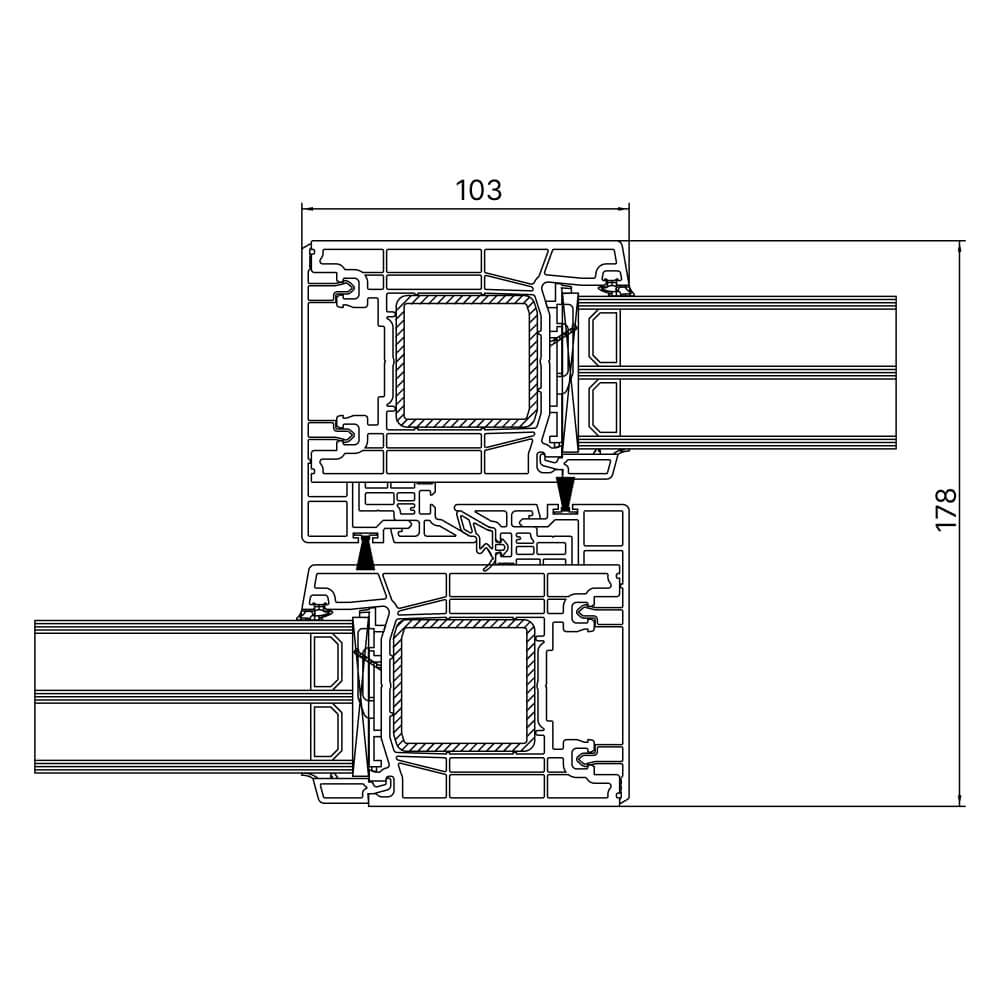

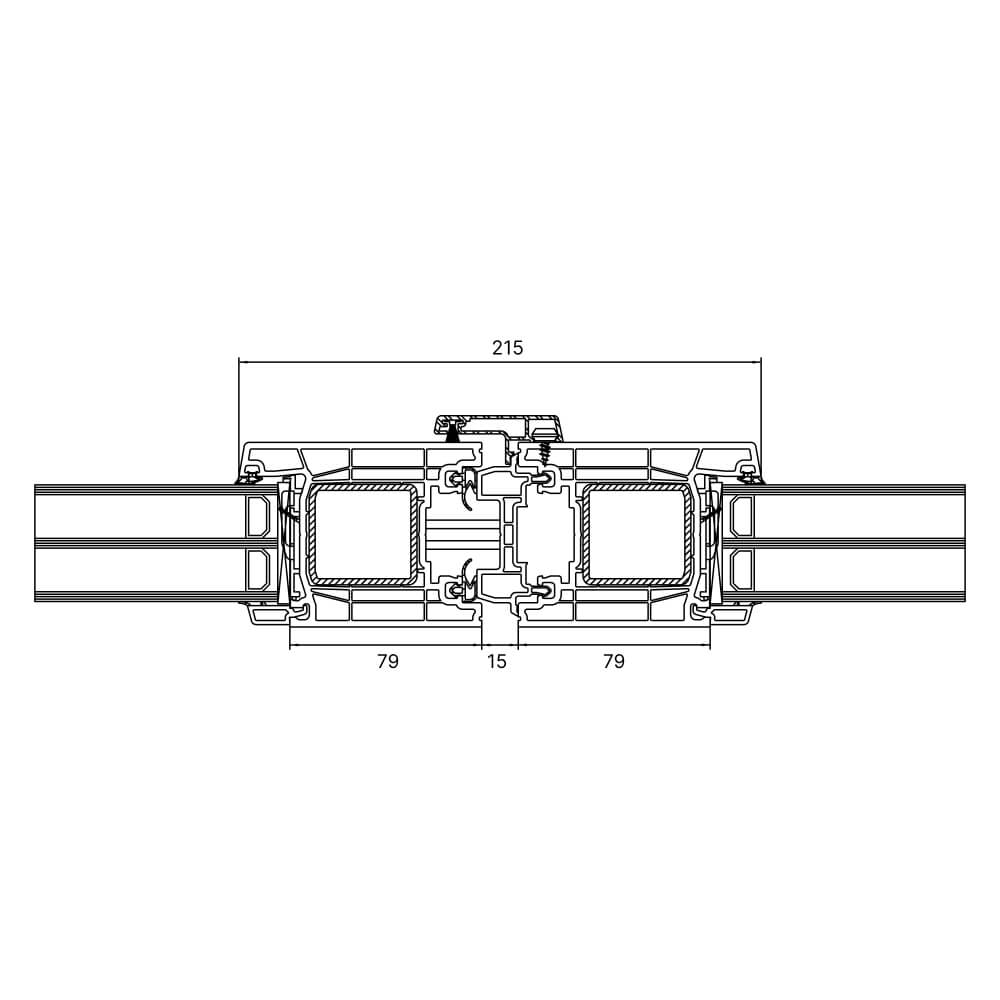

Kömmerling PremiDoor 76

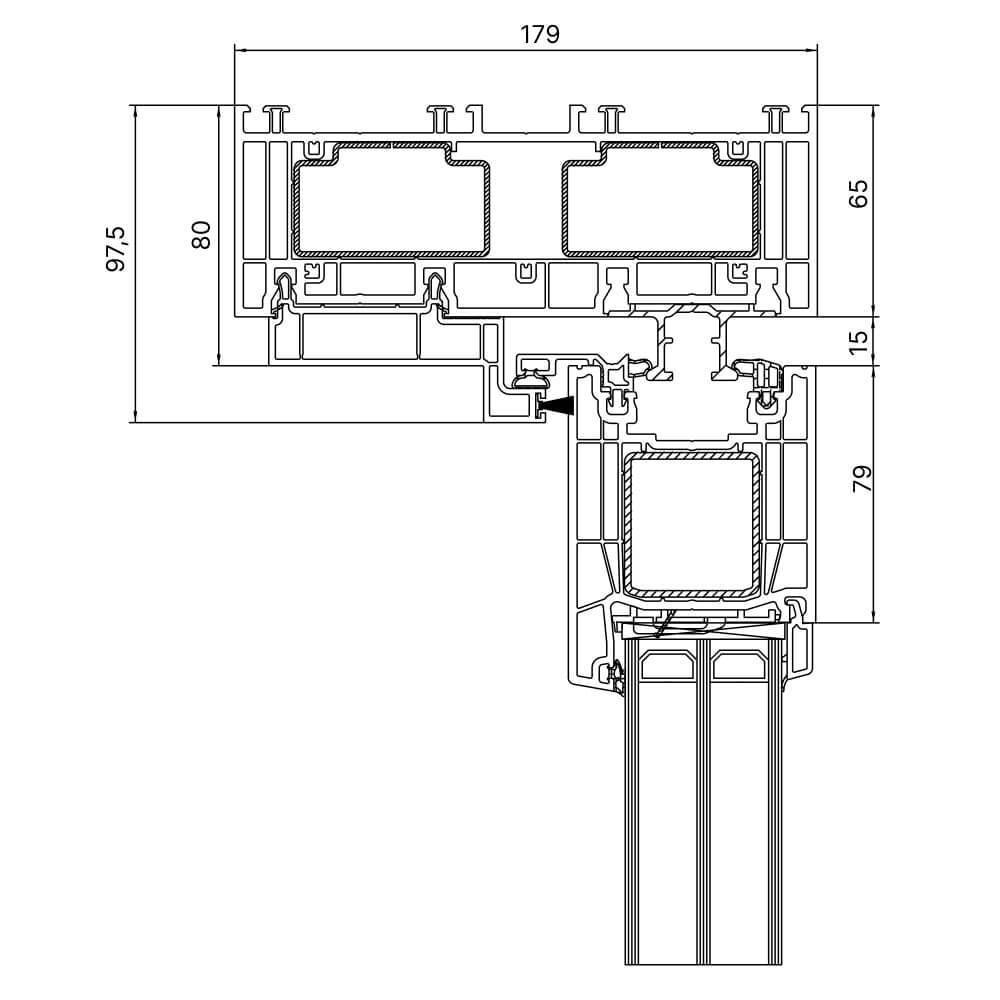

Kömmerling PremiDoor 76 - top detail of sliding sash

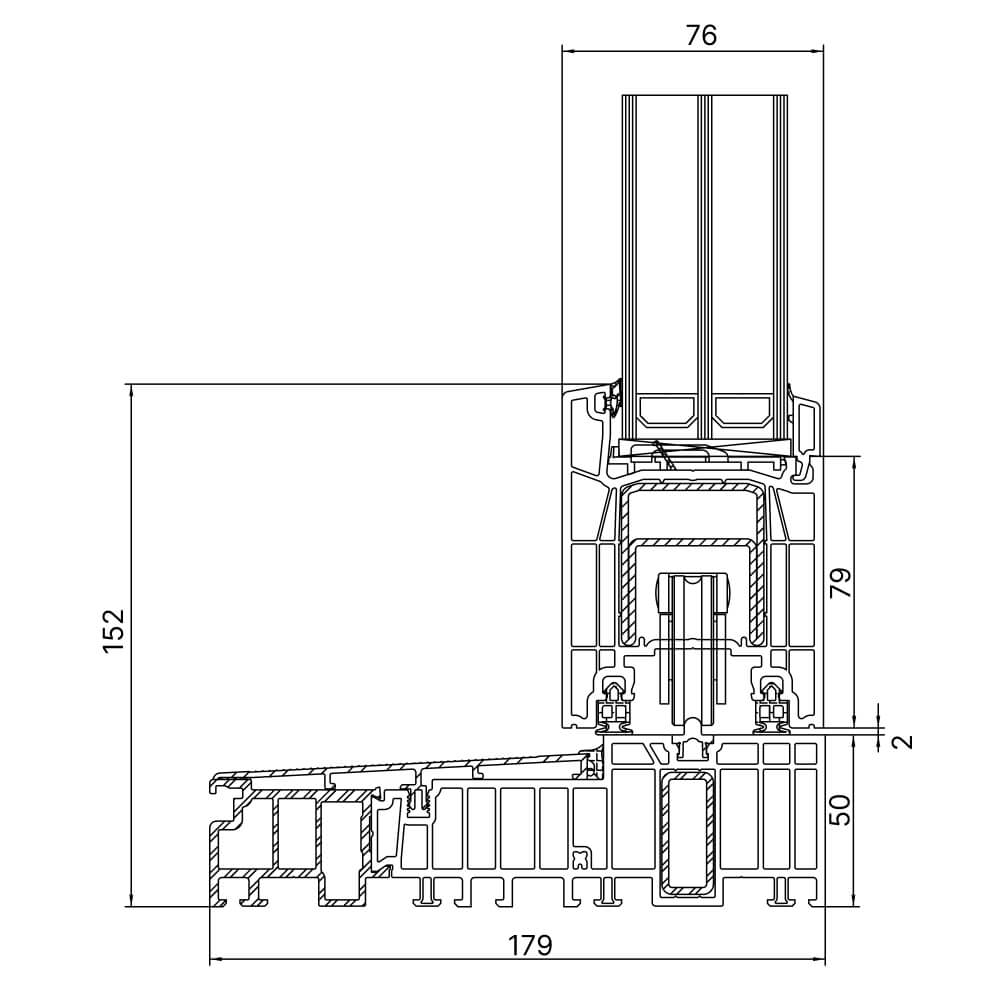

Kömmerling PremiDoor 76 - threshold and sliding sash

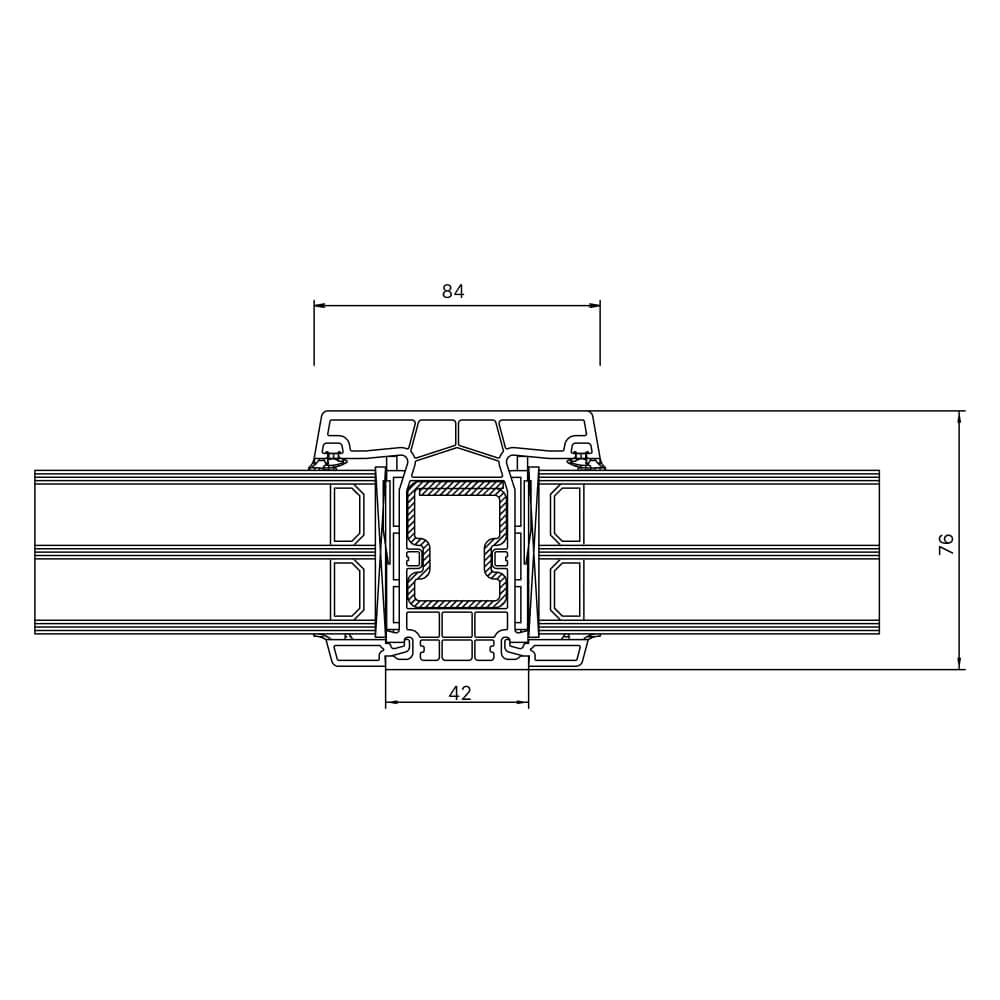

Kömmerling PremiDoor 76 - 84 mm glazing bars

Frame Extensions

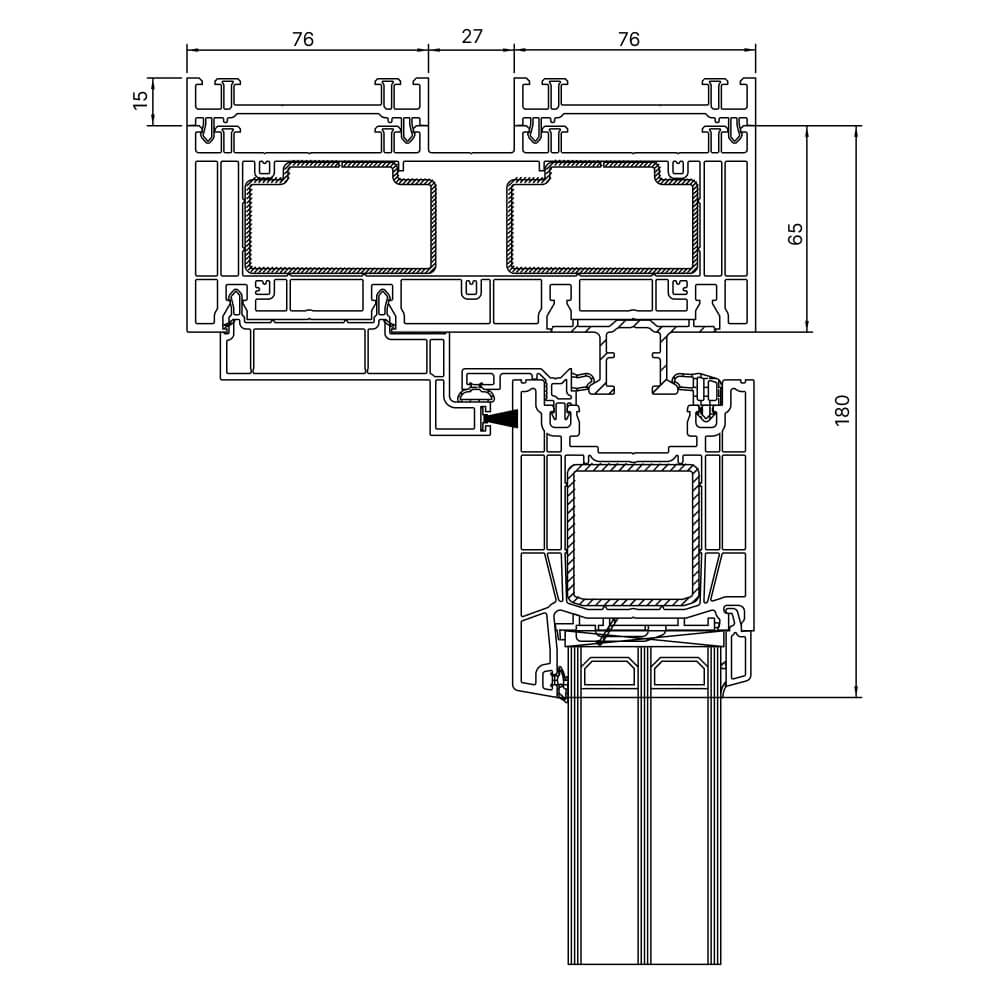

Kömmerling PremiDoor 76 - 15 mm frame extension

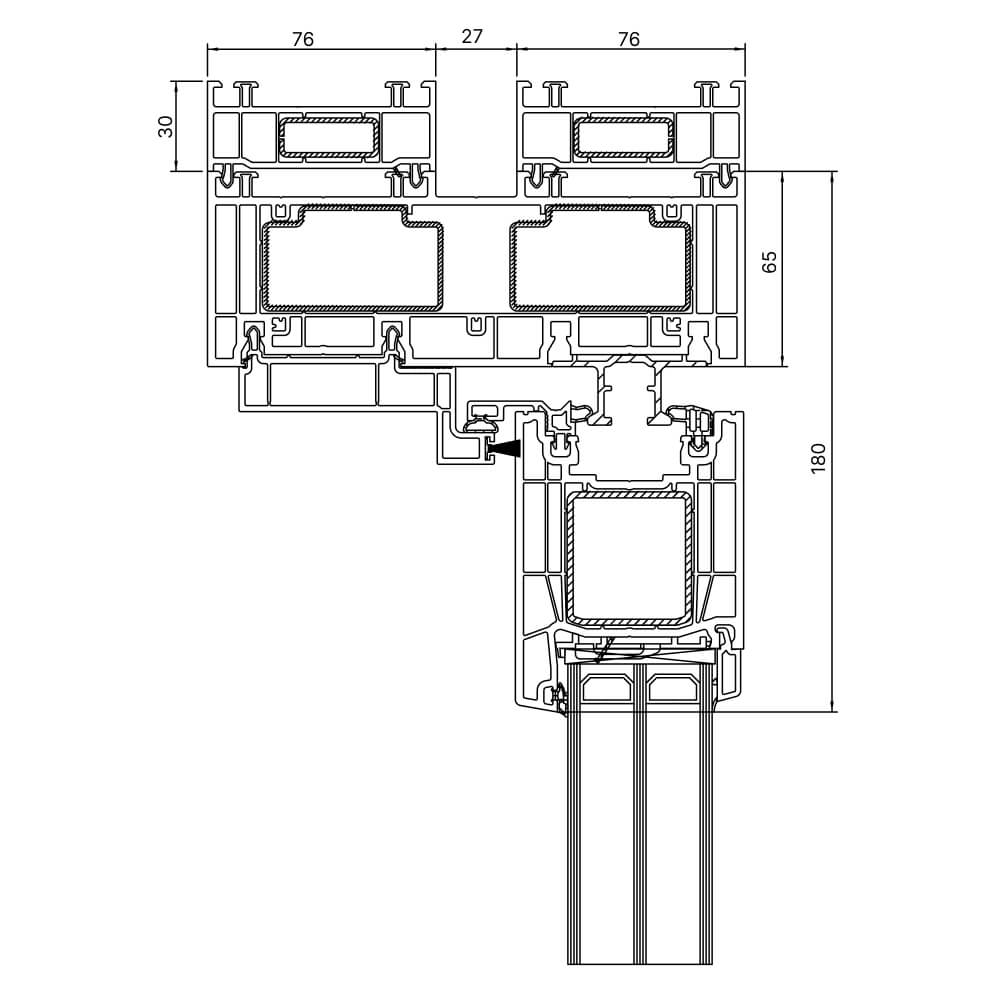

Kömmerling PremiDoor 76 - 30 mm frame extension

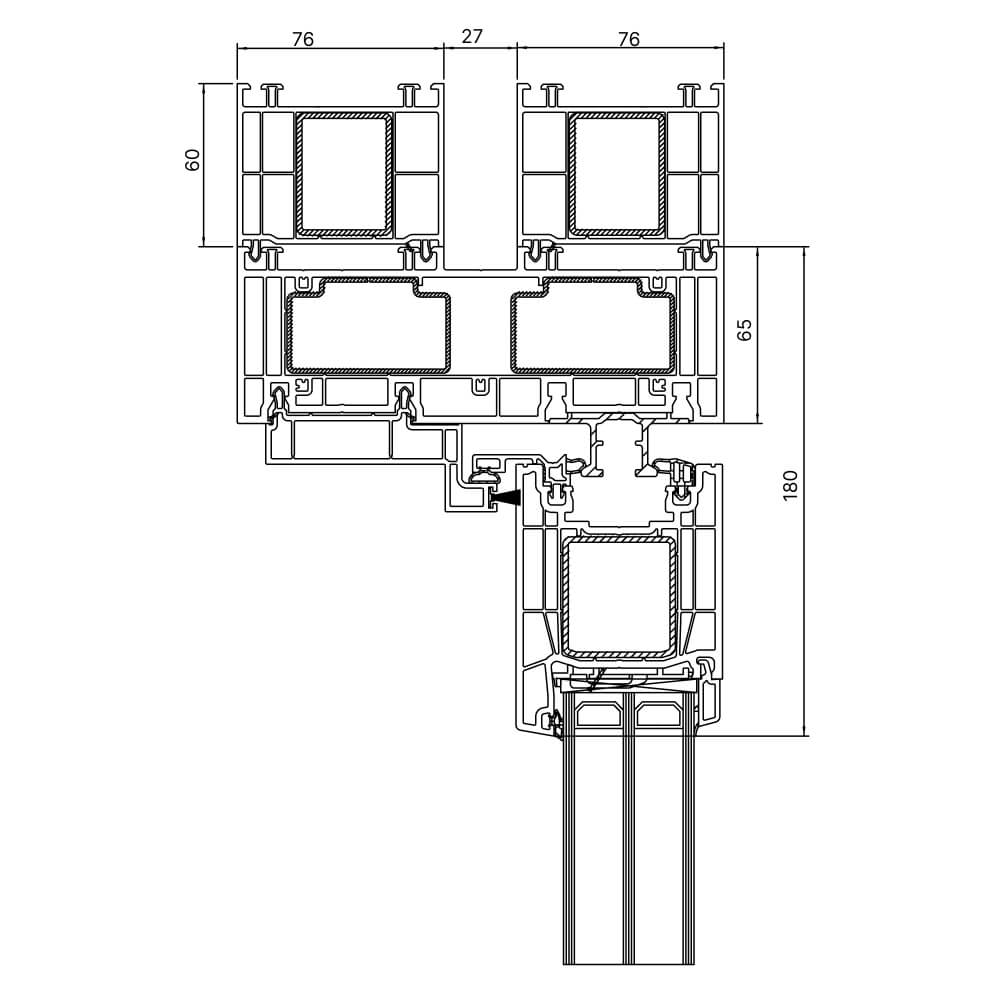

Kömmerling PremiDoor 76 - 60 mm frame extension

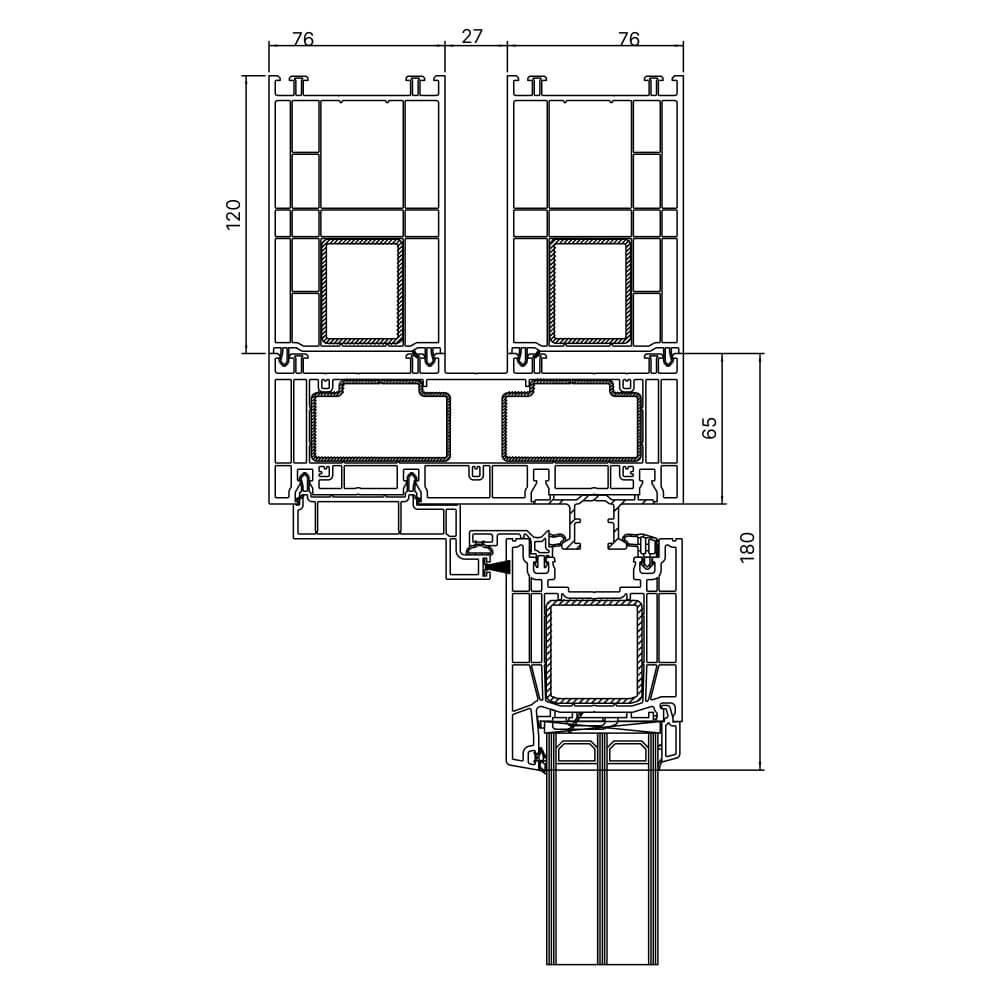

Kömmerling PremiDoor 76 - 120 mm frame extension

Roller Shutters

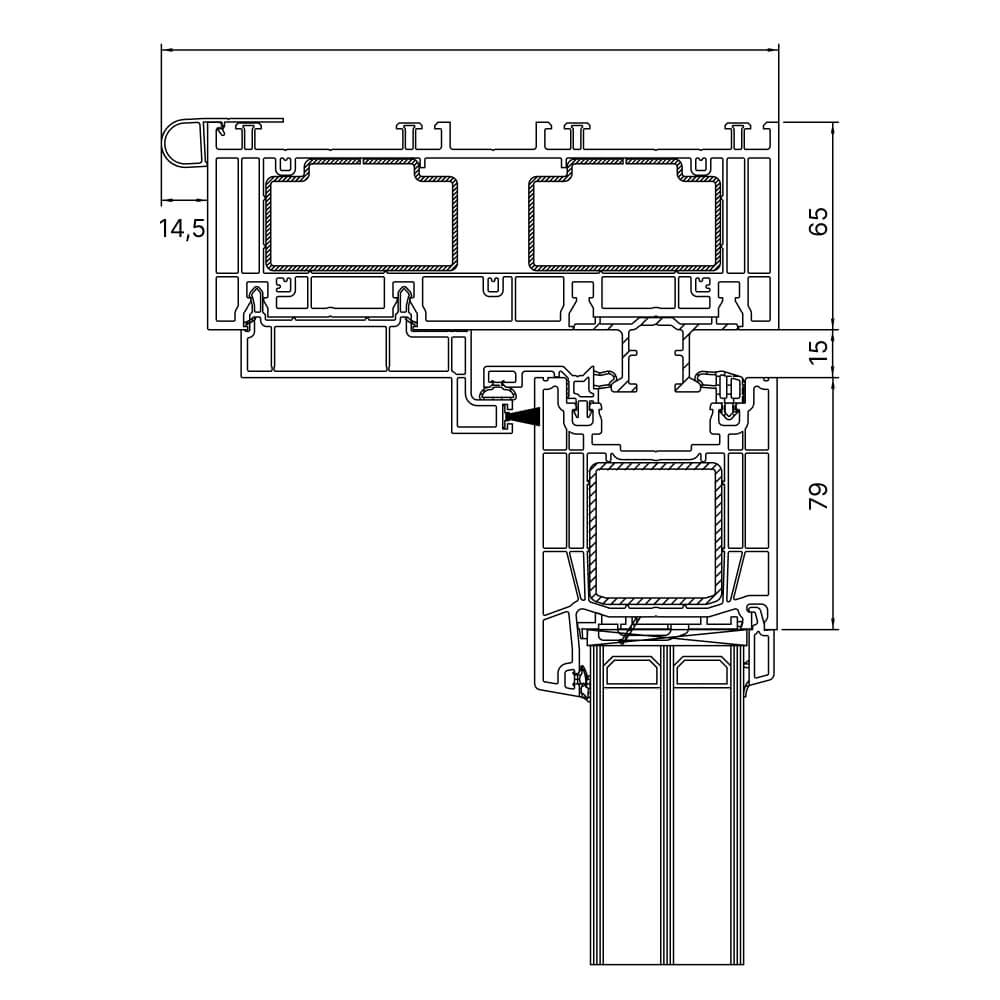

Kömmerling PremiDoor 76 - new-build roller shutter profile

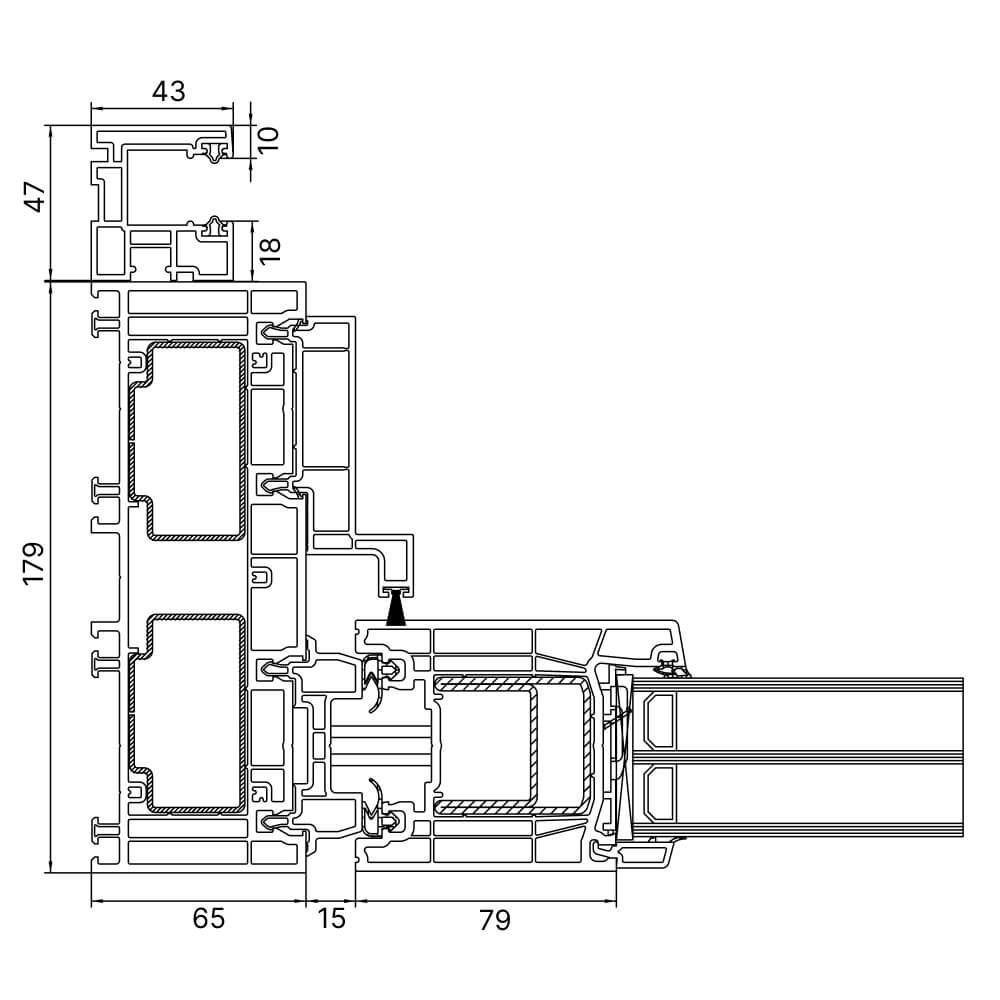

Kömmerling PremiDoor 76 - new-build roller shutter guide rails

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
