Detailed Drawings – Aluminium Lift and Slide Patio Doors

Overview

MB-77
MB-77 HI
Schüco ASE 60.HI
Schüco ASE 80.HI

MB-77

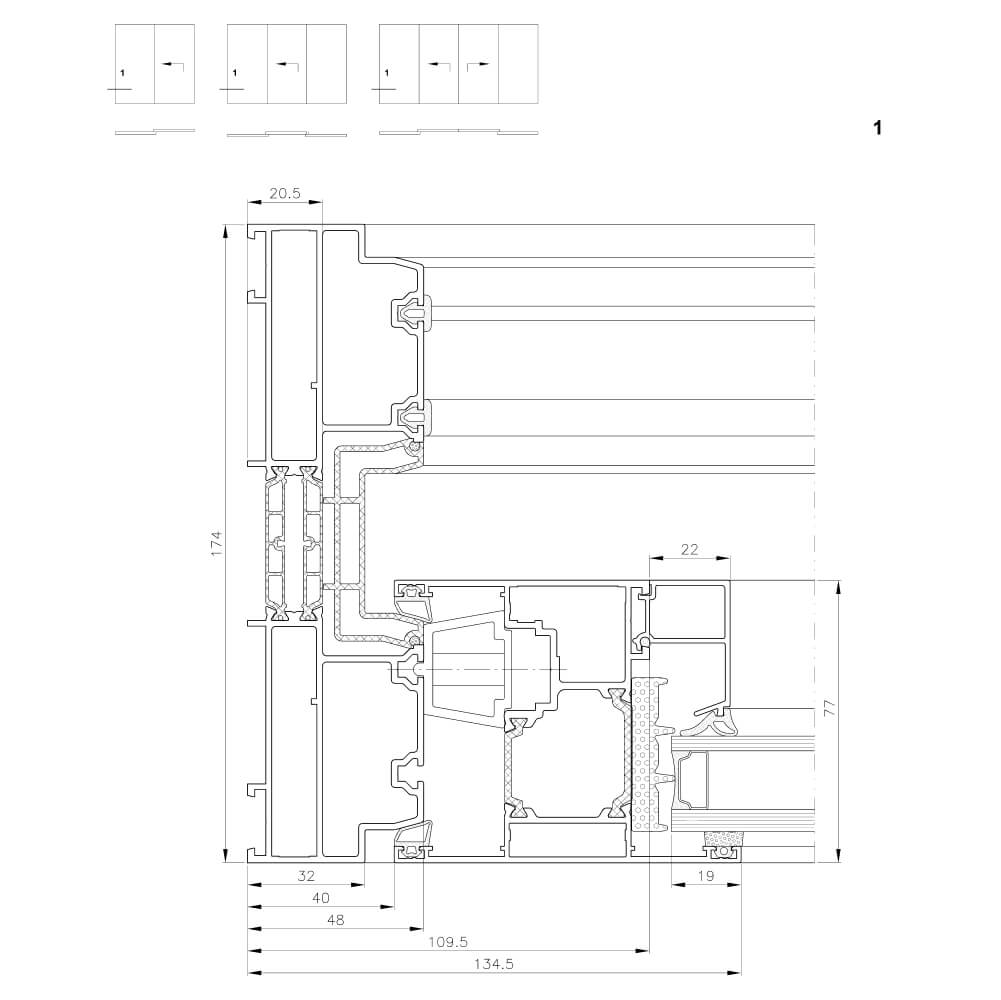

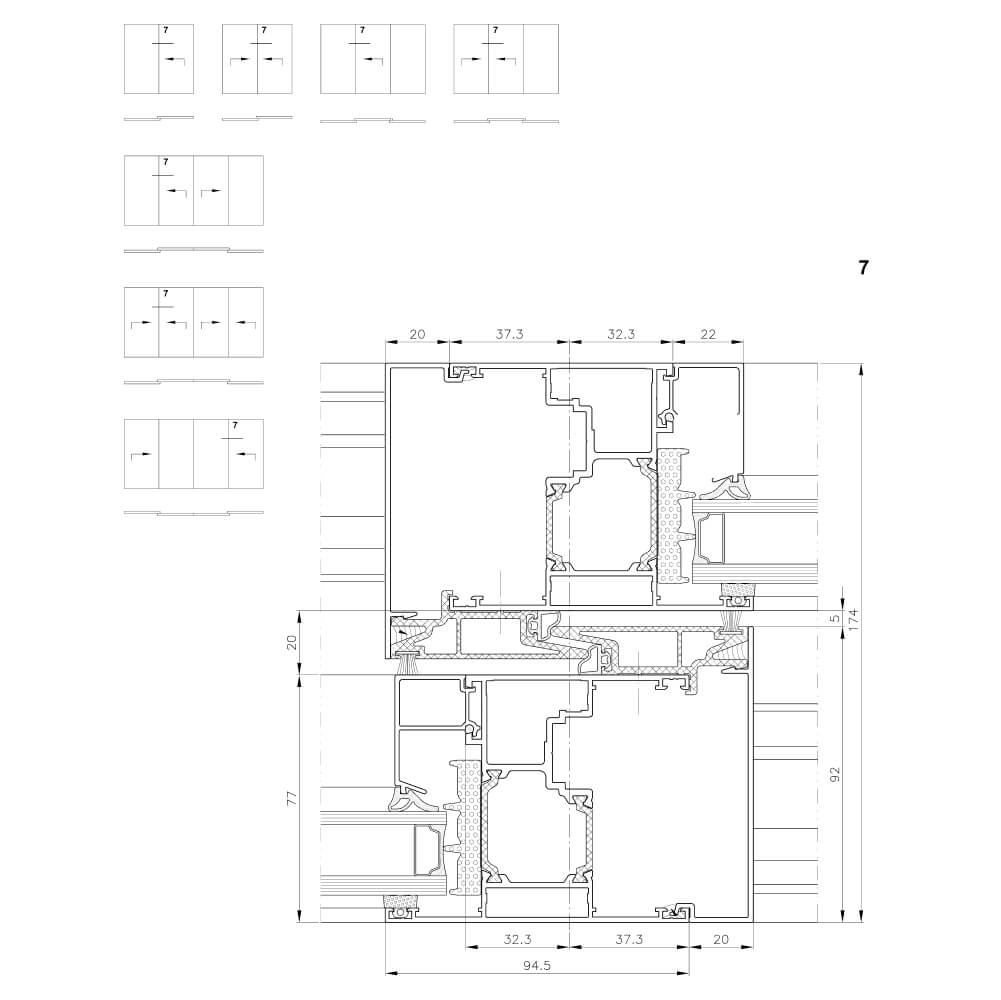

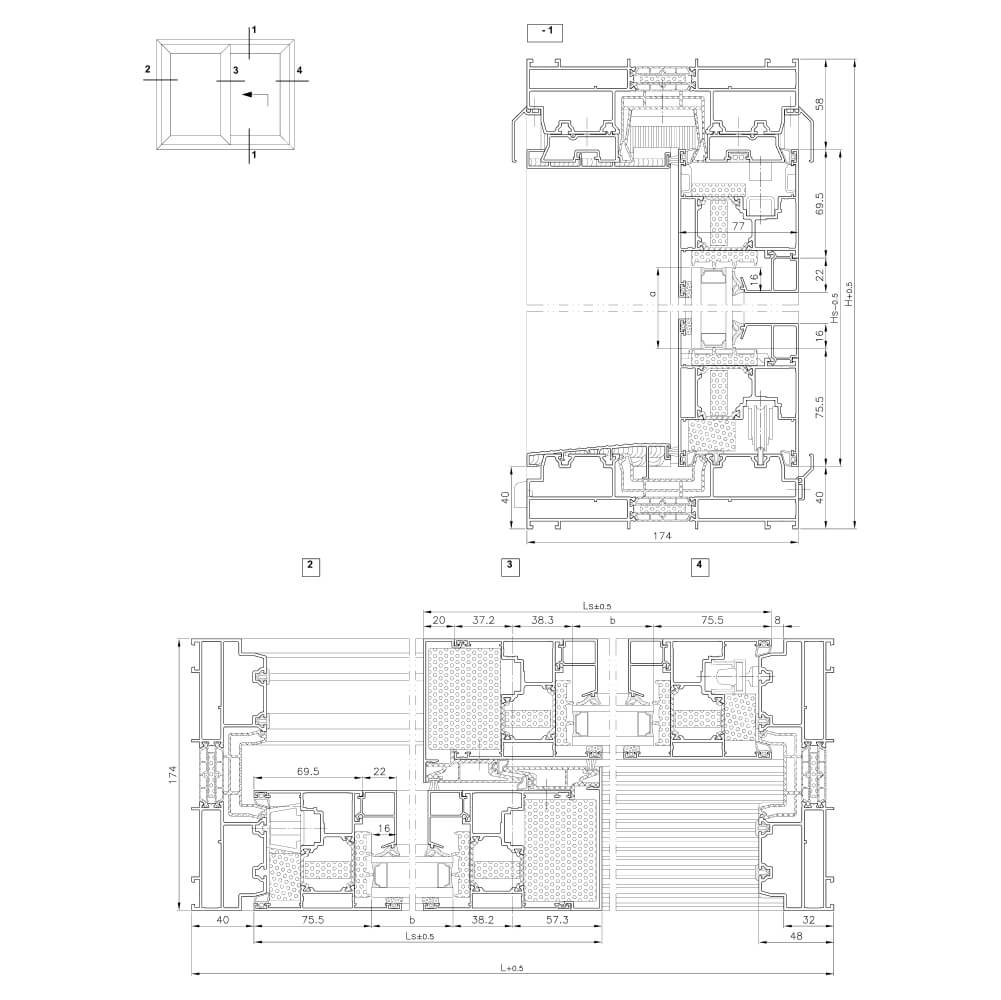

MB-77 - horizontal and vertical cross sections

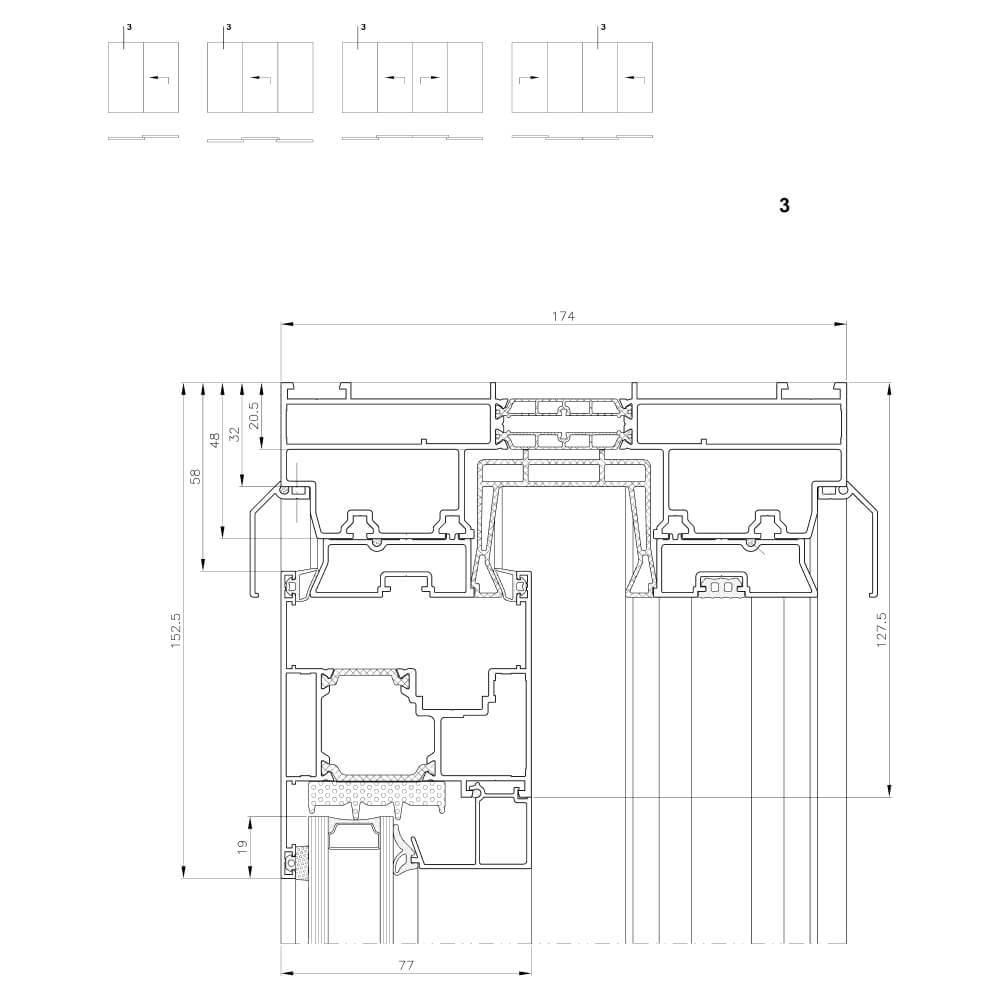

MB-77 - vertical cross-section of fixed panel

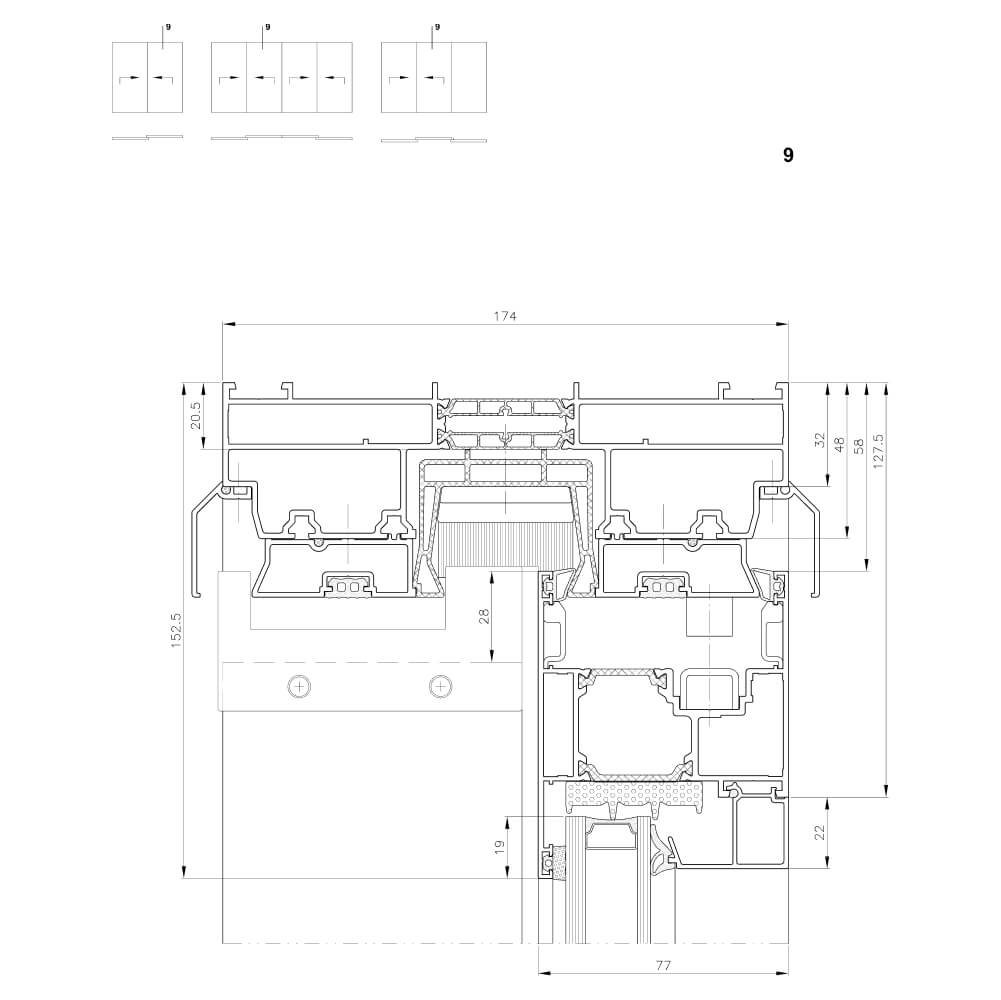

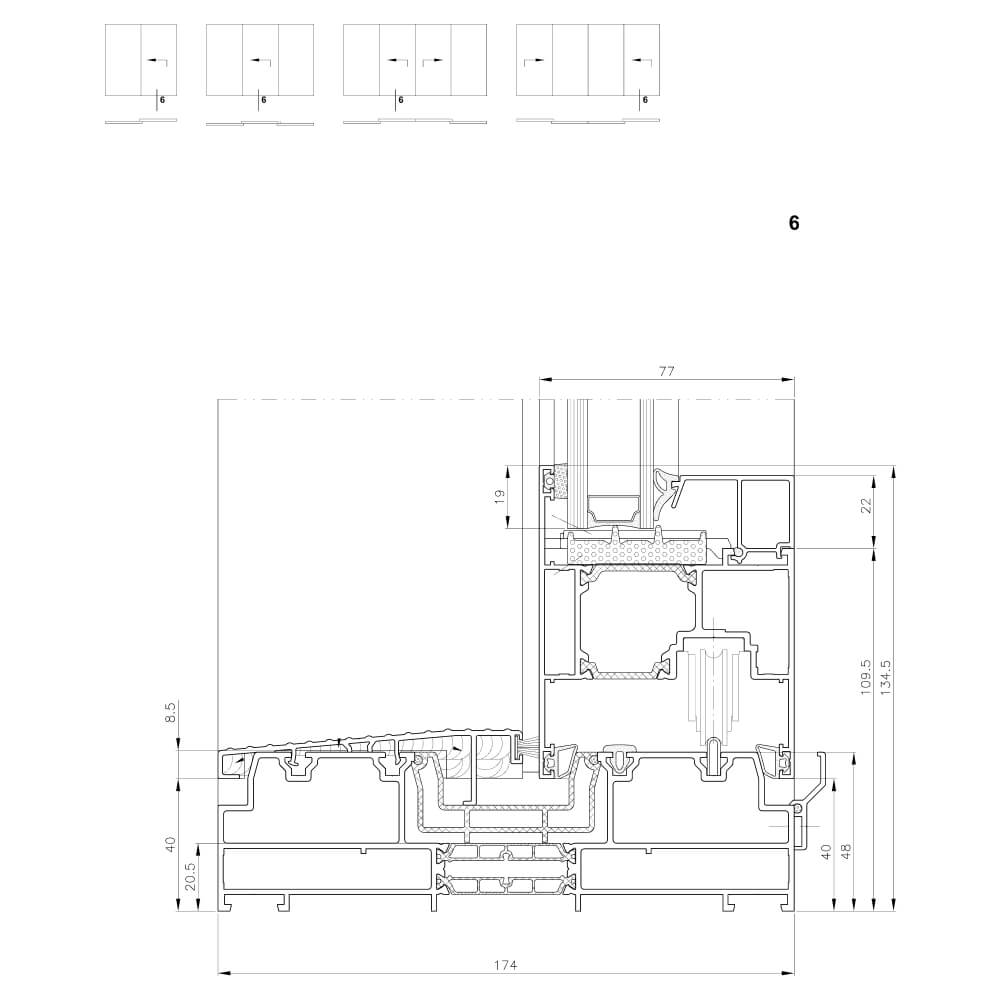

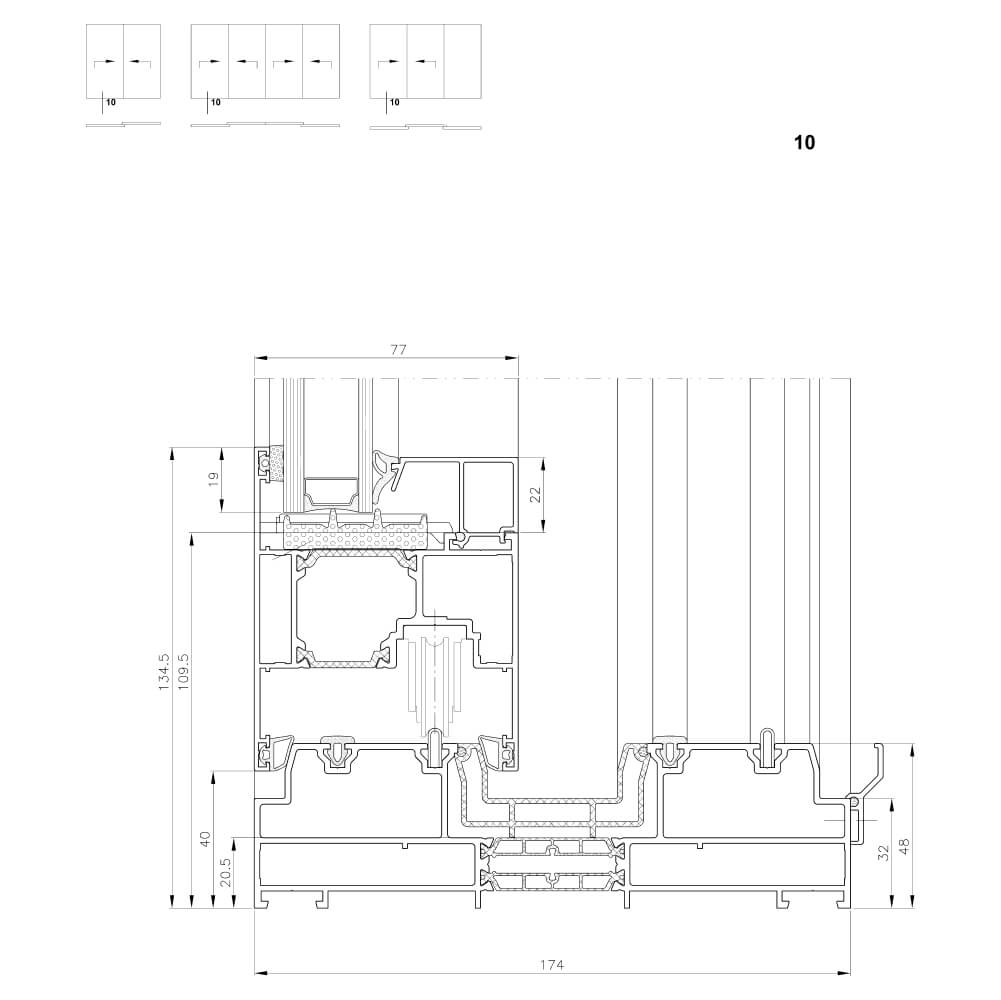

MB-77 - vertical cross-section of sliding sash

To top of page

MB-77 HI

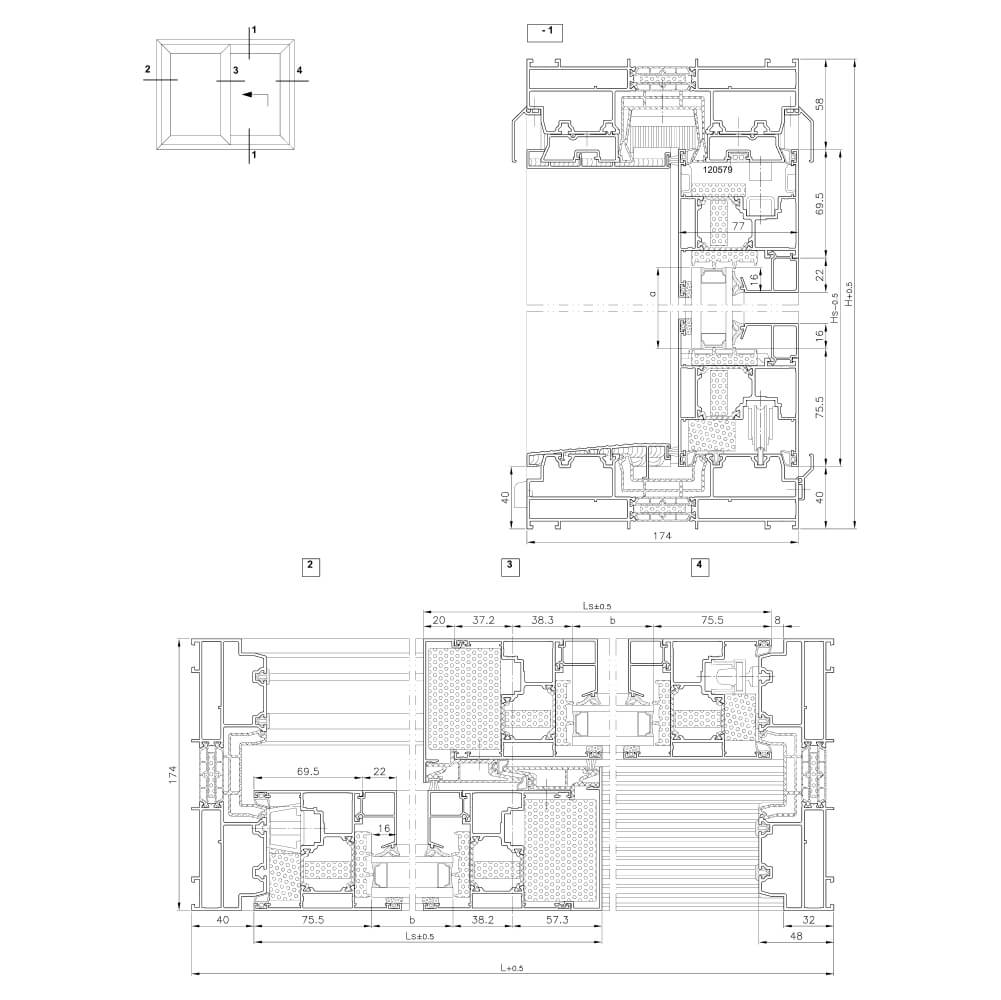

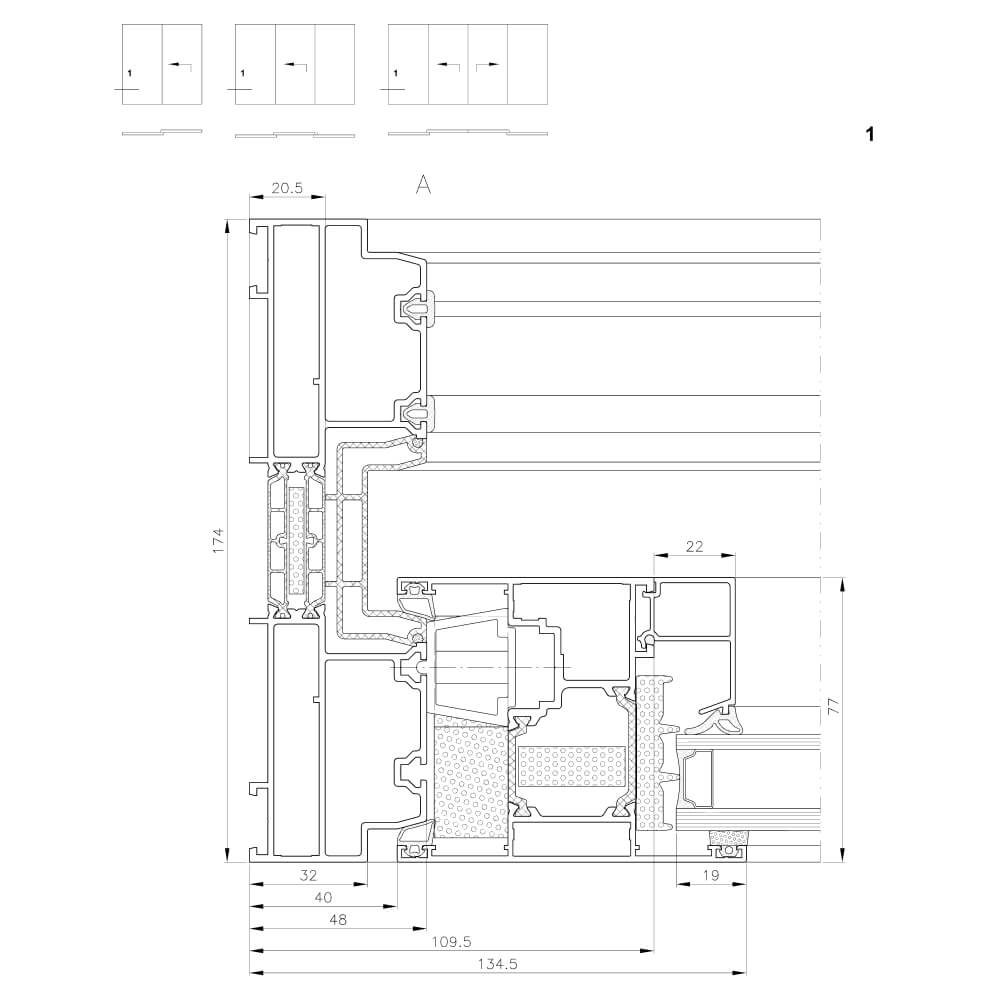

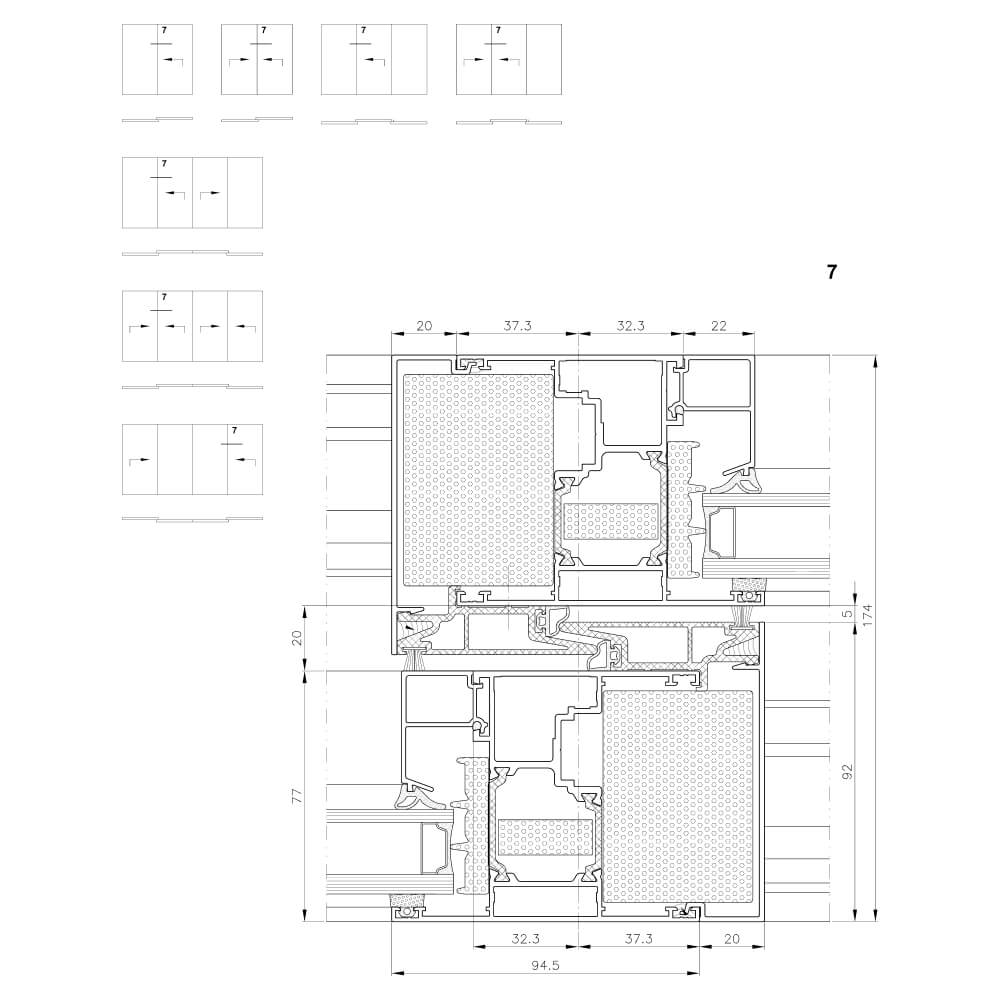

MB-77 HI - horizontal and vertical cross sections

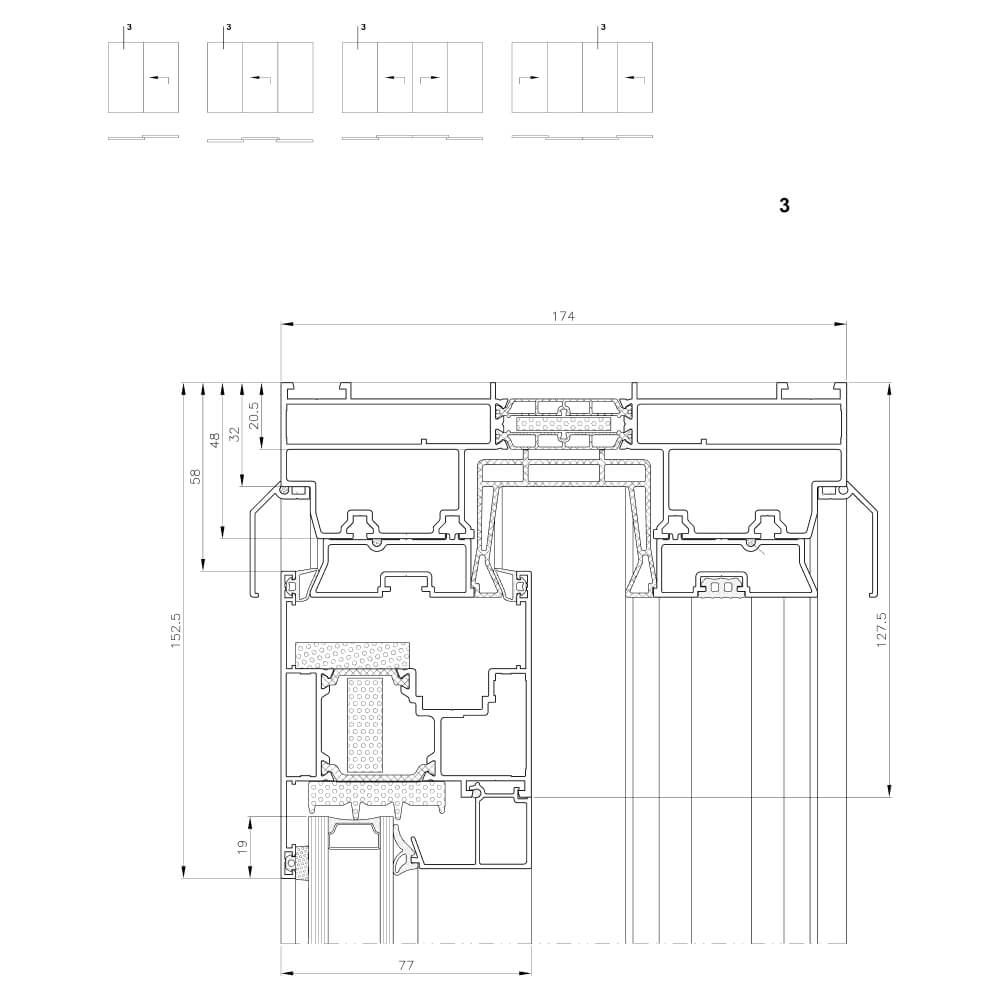

MB-77 HI - vertical cross-section of fixed panel

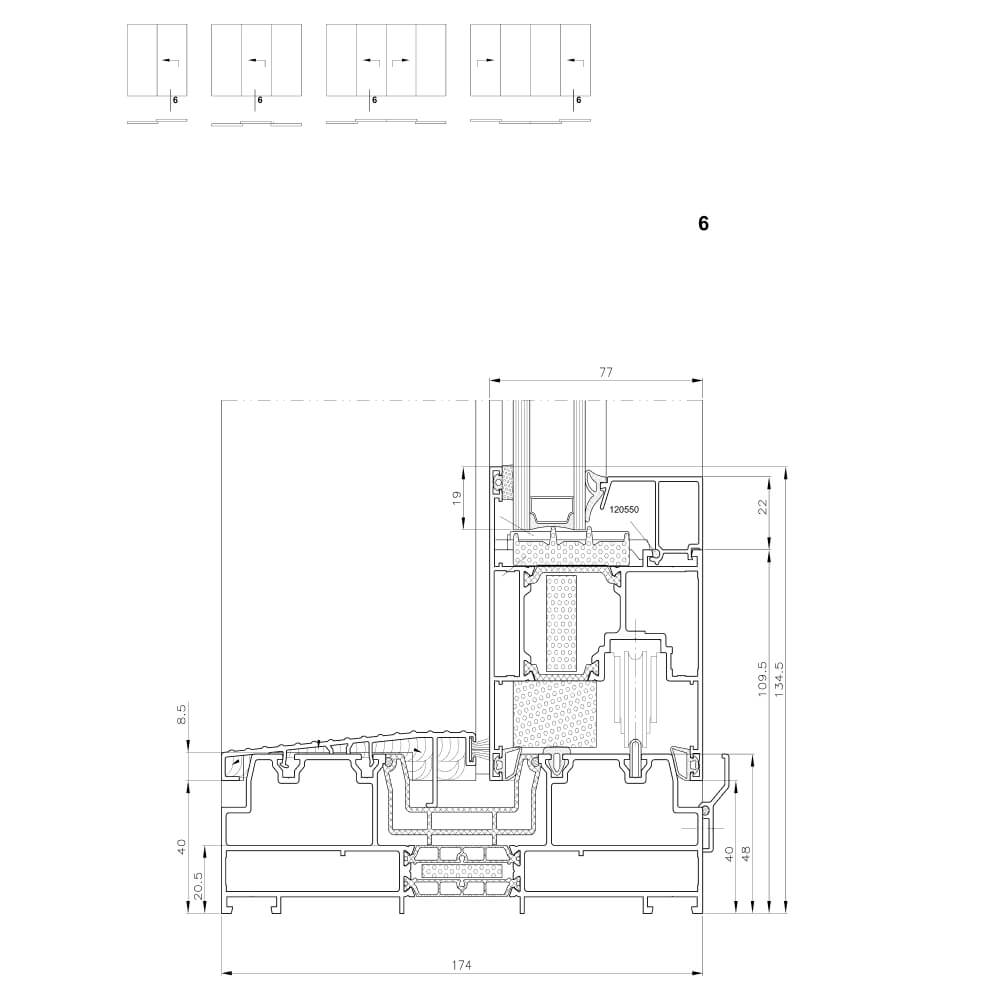

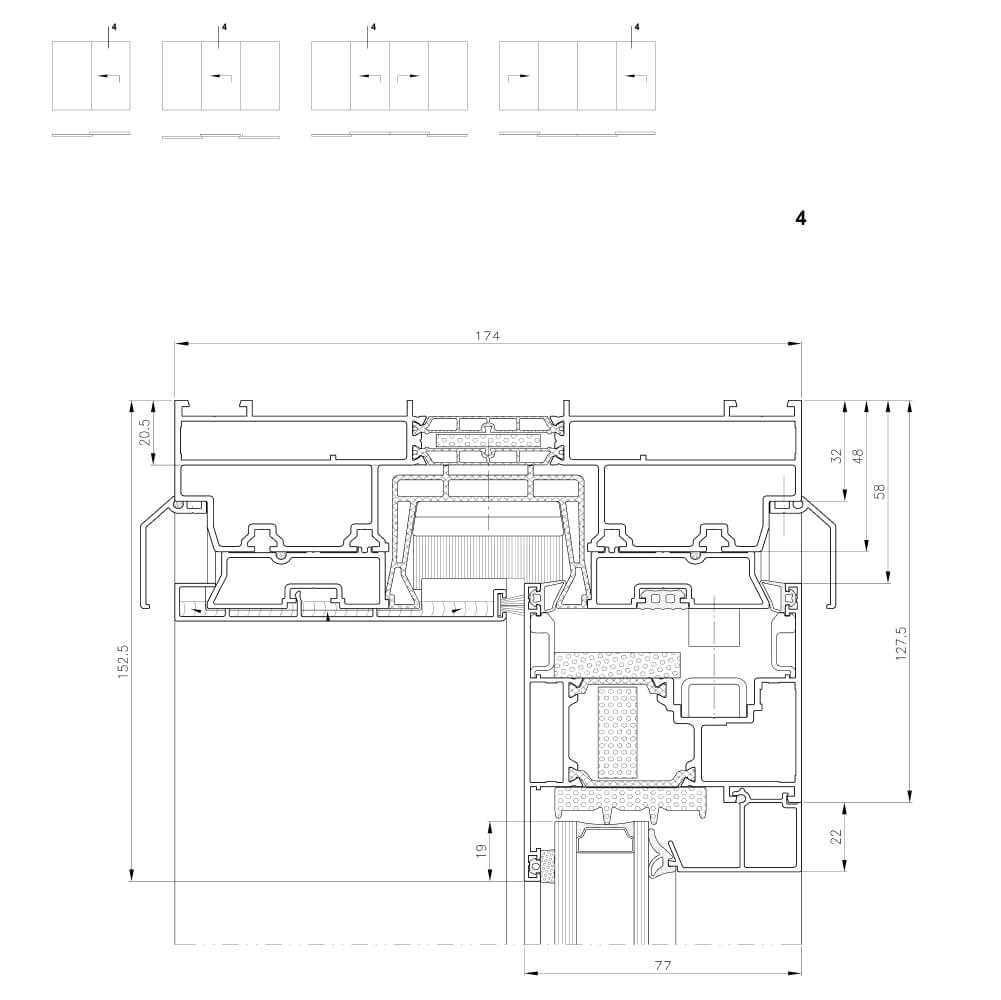

MB-77 HI - vertical cross-section of sliding sash

To top of page

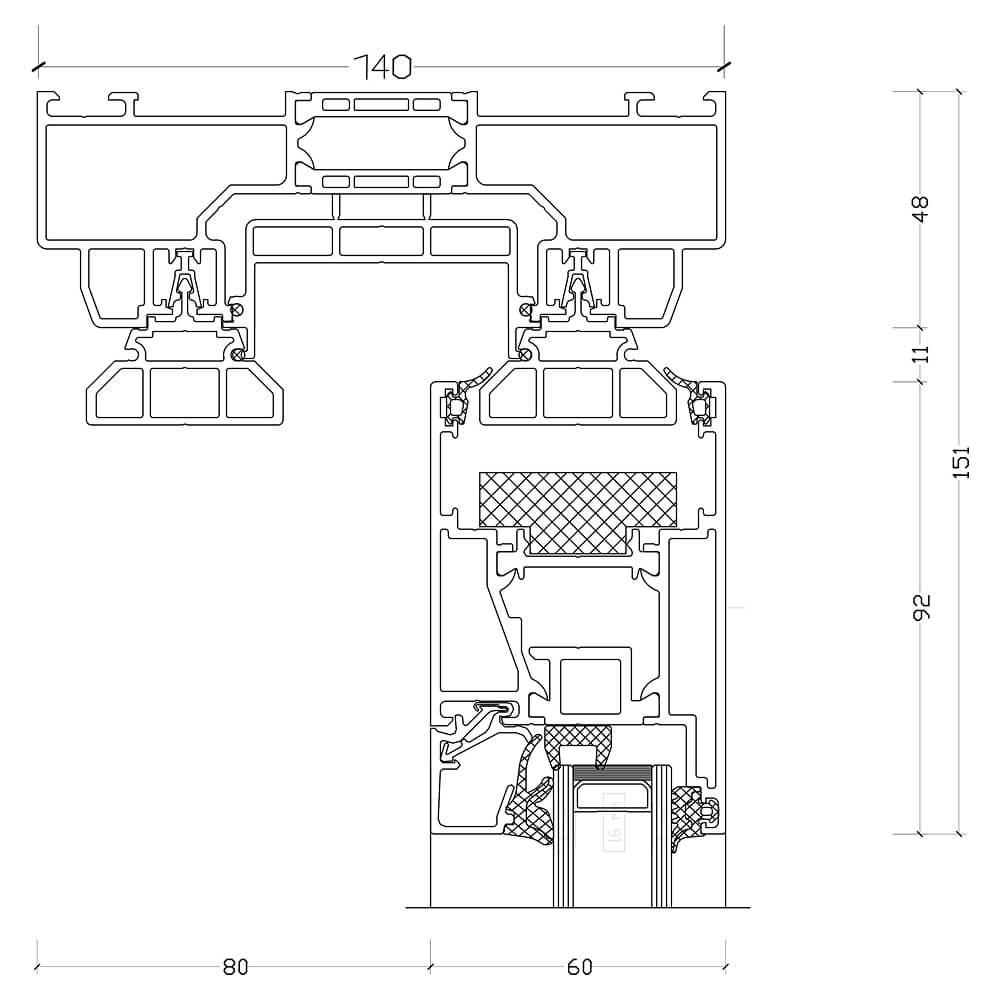

Schüco ASE 60.HI

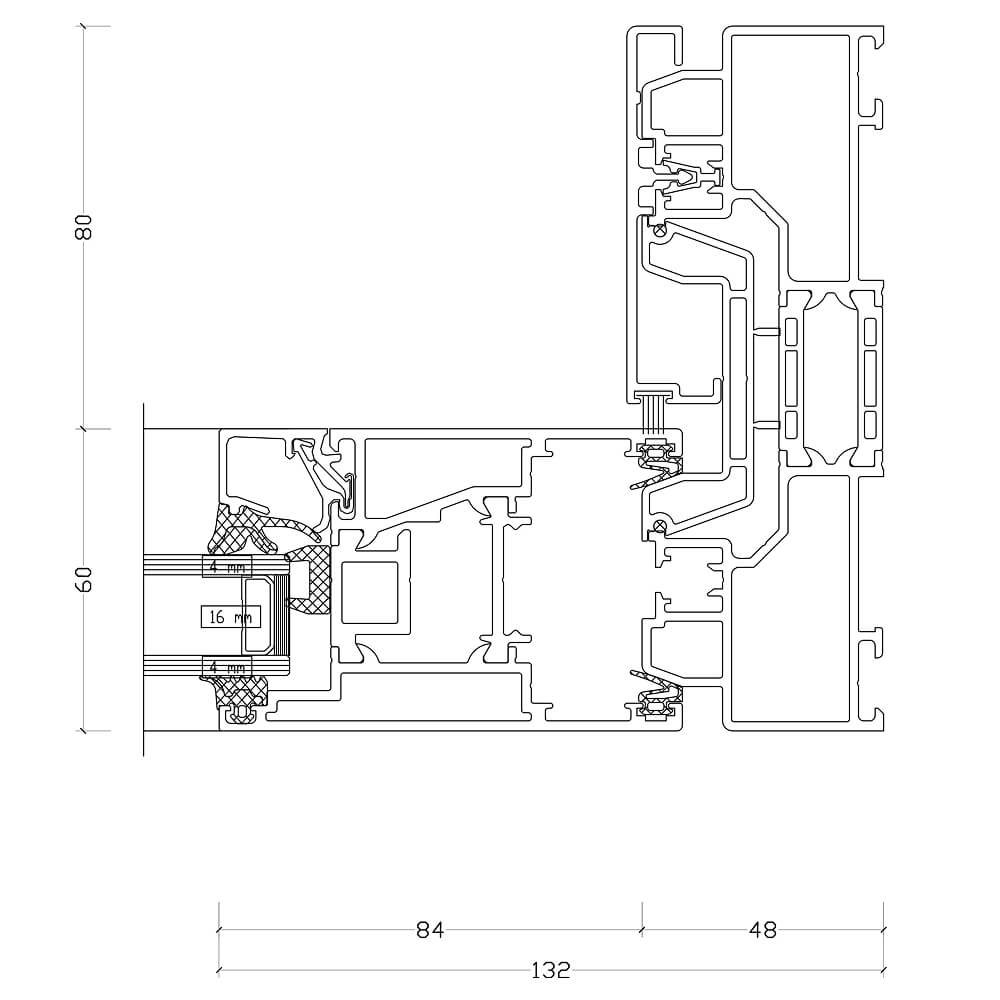

ASE 60: Side detail of fixed panel — Schüco ASE 60.HI - side detail of fixed panel

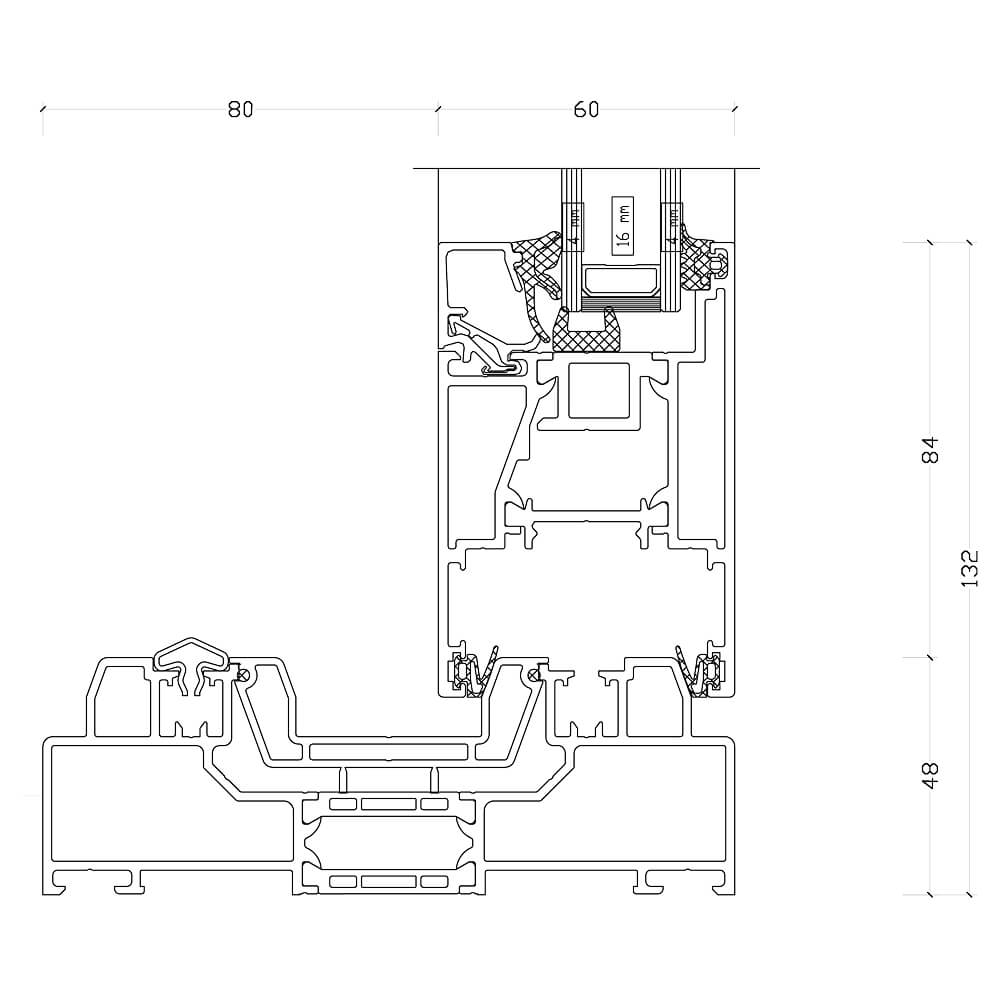

ASE 60: Bottom detail of fixed panel — Schüco ASE 60.HI - bottom detail of fixed panel

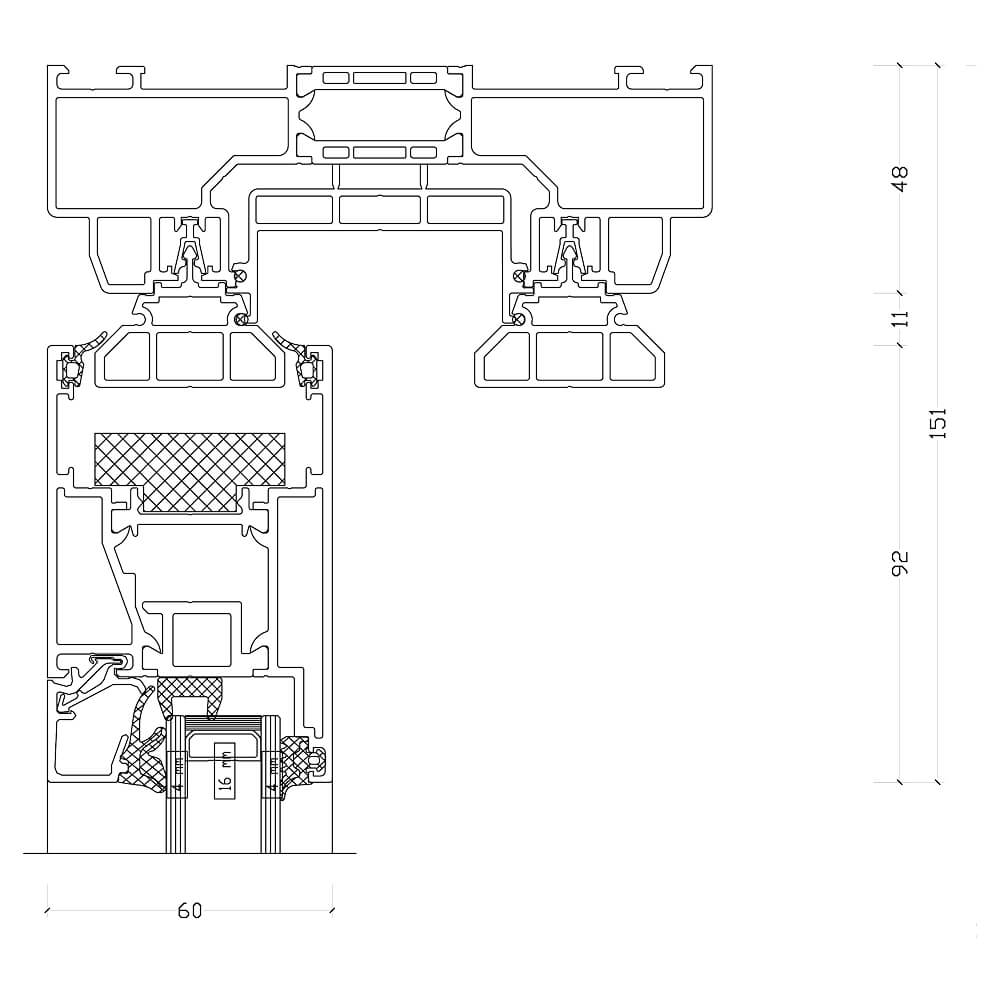

ASE 60: Top detail of mobile sash — Schüco ASE 60.HI - top detail of mobile sash

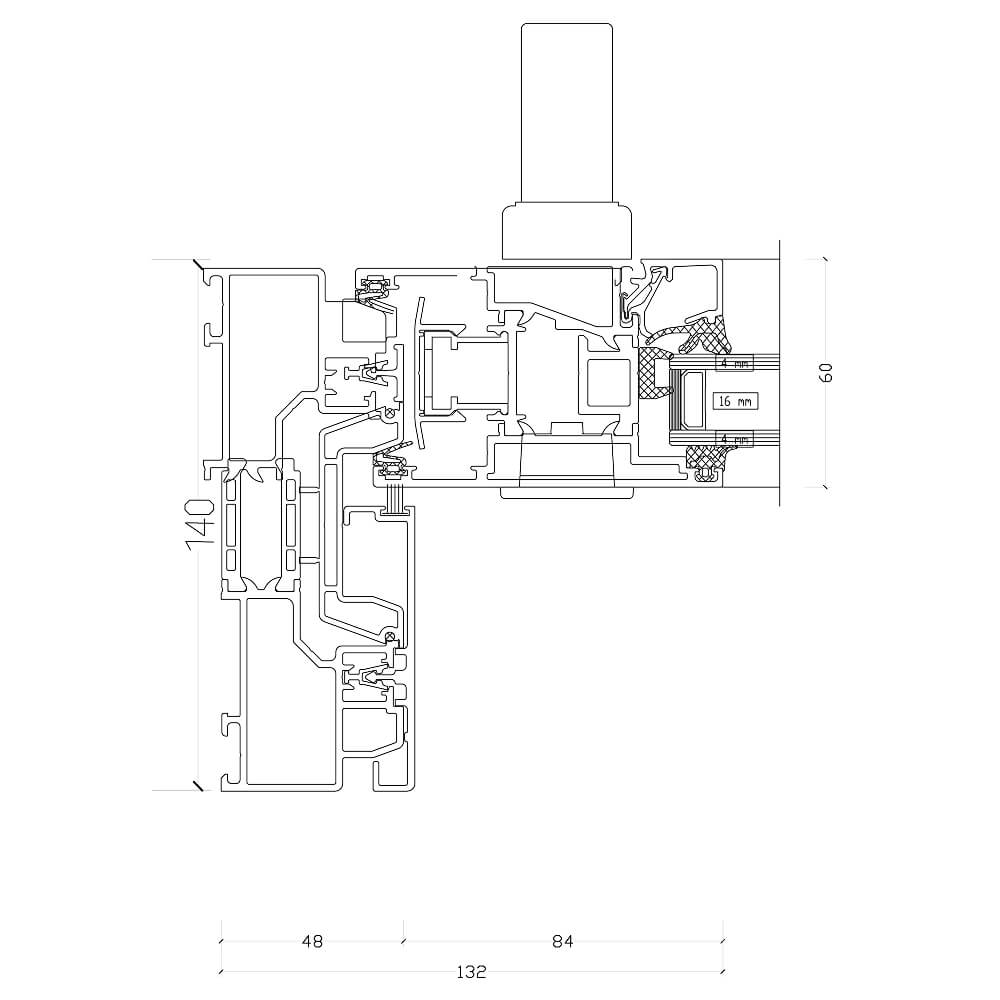

ASE 60: Side detail of mobile sash — Schüco ASE 60.HI - side detail of sliding sash

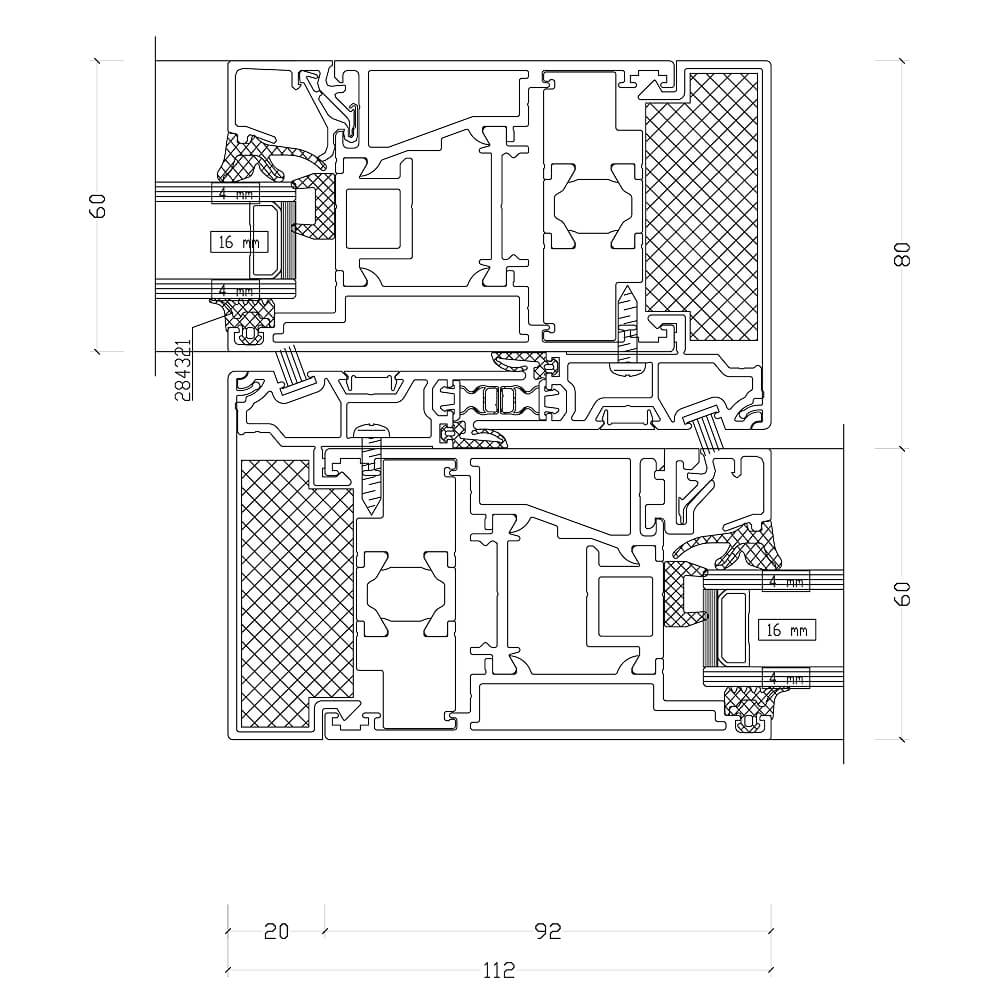

ASE 60: Middle meeting section — Schüco ASE 60.HI - detail of central post

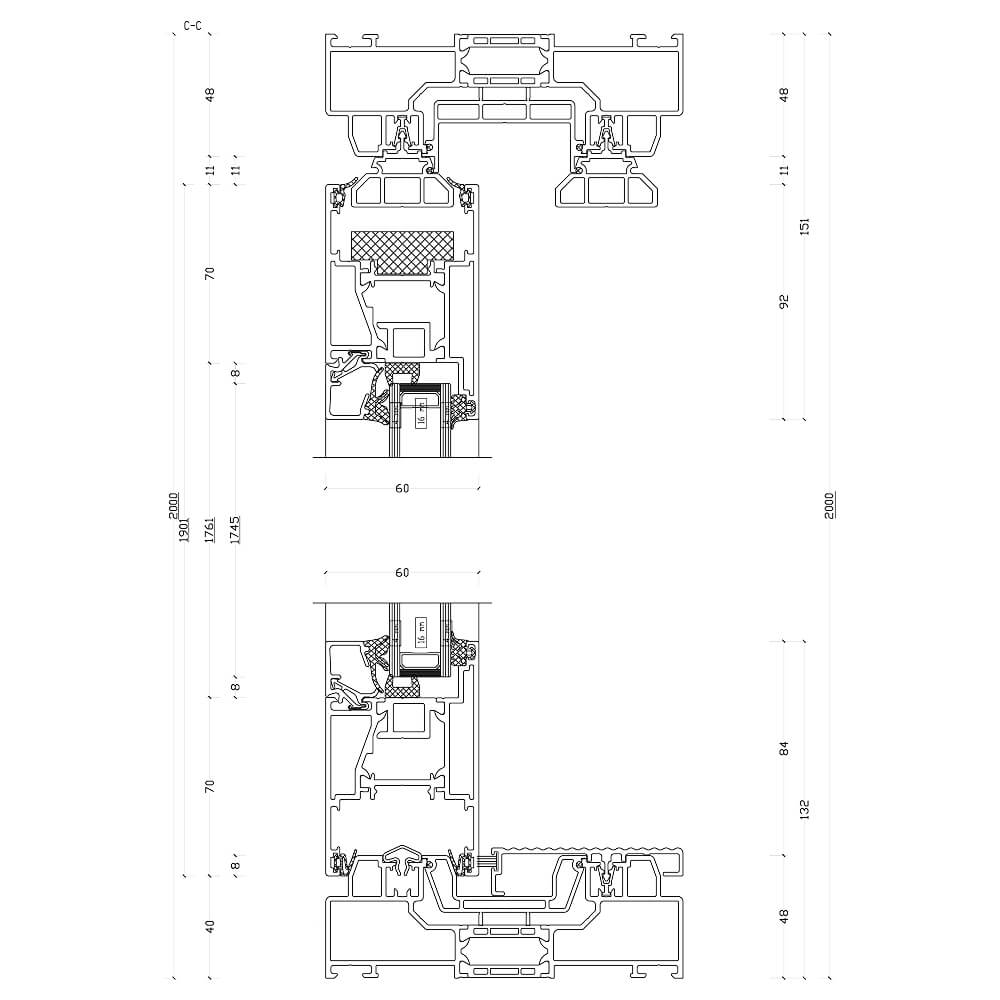

ASE 60: Vertical view of mobile sash — Schüco ASE 60.HI - vertical view of sliding sash

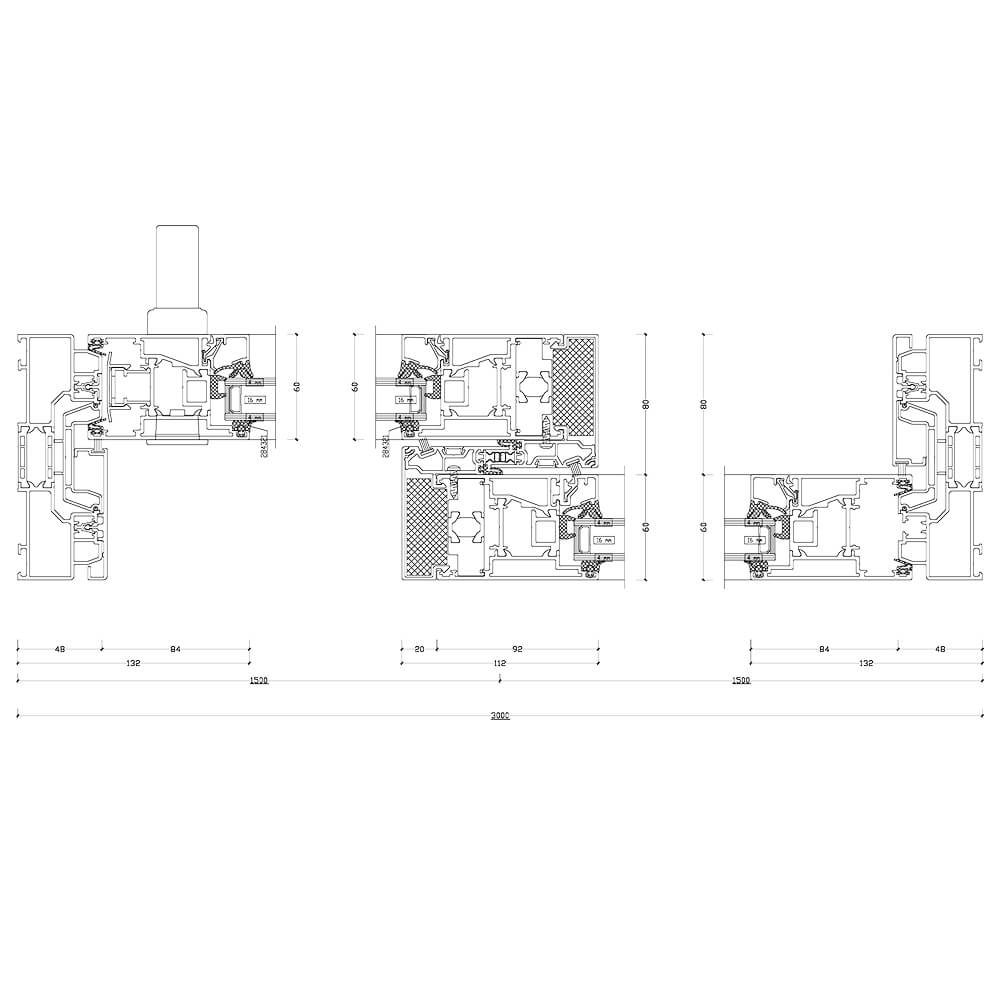

ASE 60: Horizontal view of whole door — Schüco ASE 60.HI - horizontal cross-section

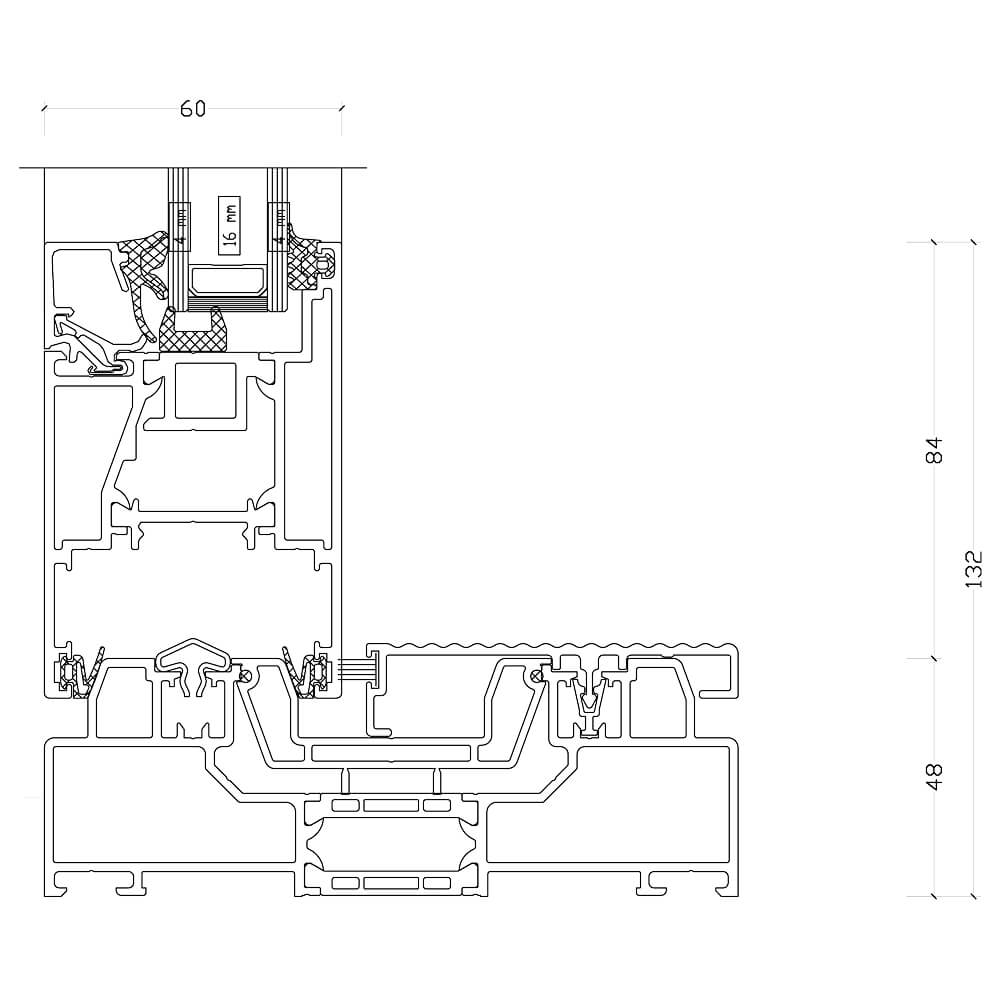

ASE 60: Bottom detail of mobile sash — Schüco ASE 60.HI - bottom detail of sliding sash

To top of page

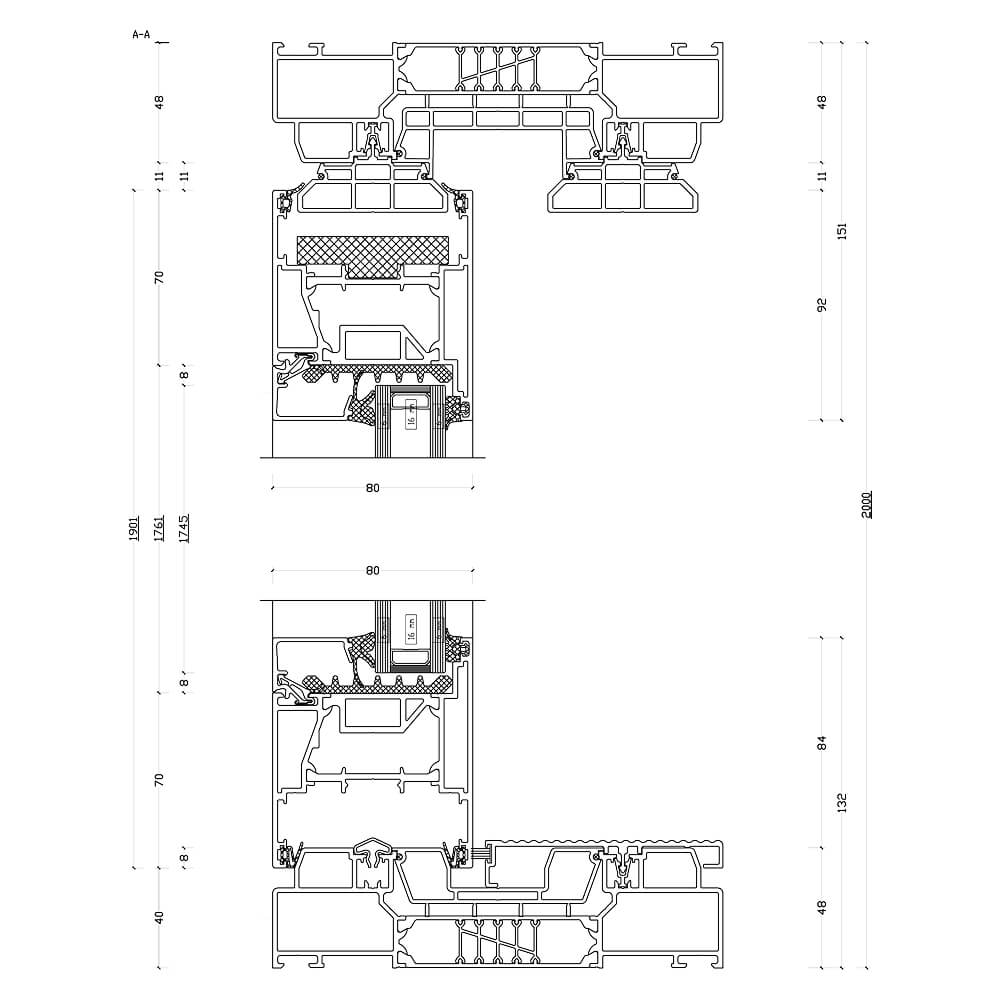

Schüco ASE 80.HI

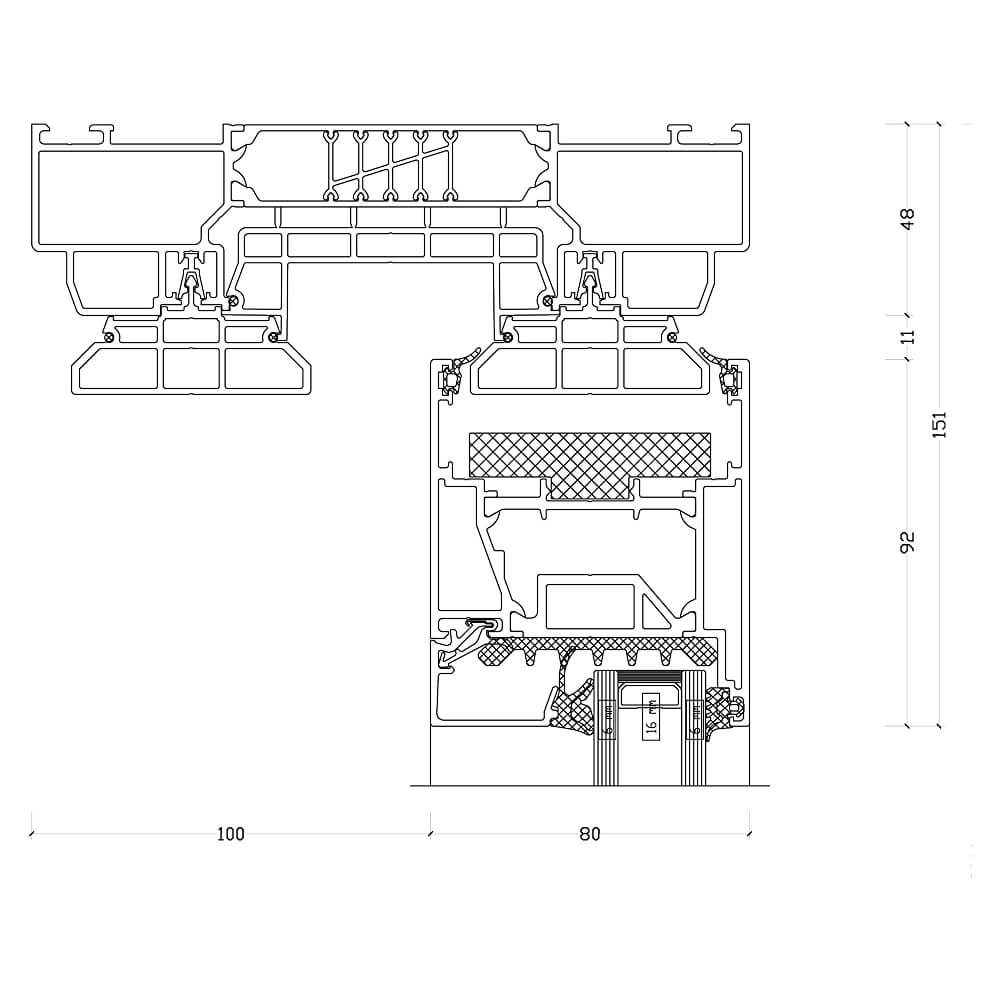

ASE 80.HI: Top detail of fixed panel — Schüco ASE 80.HI - top detail of fixed panel

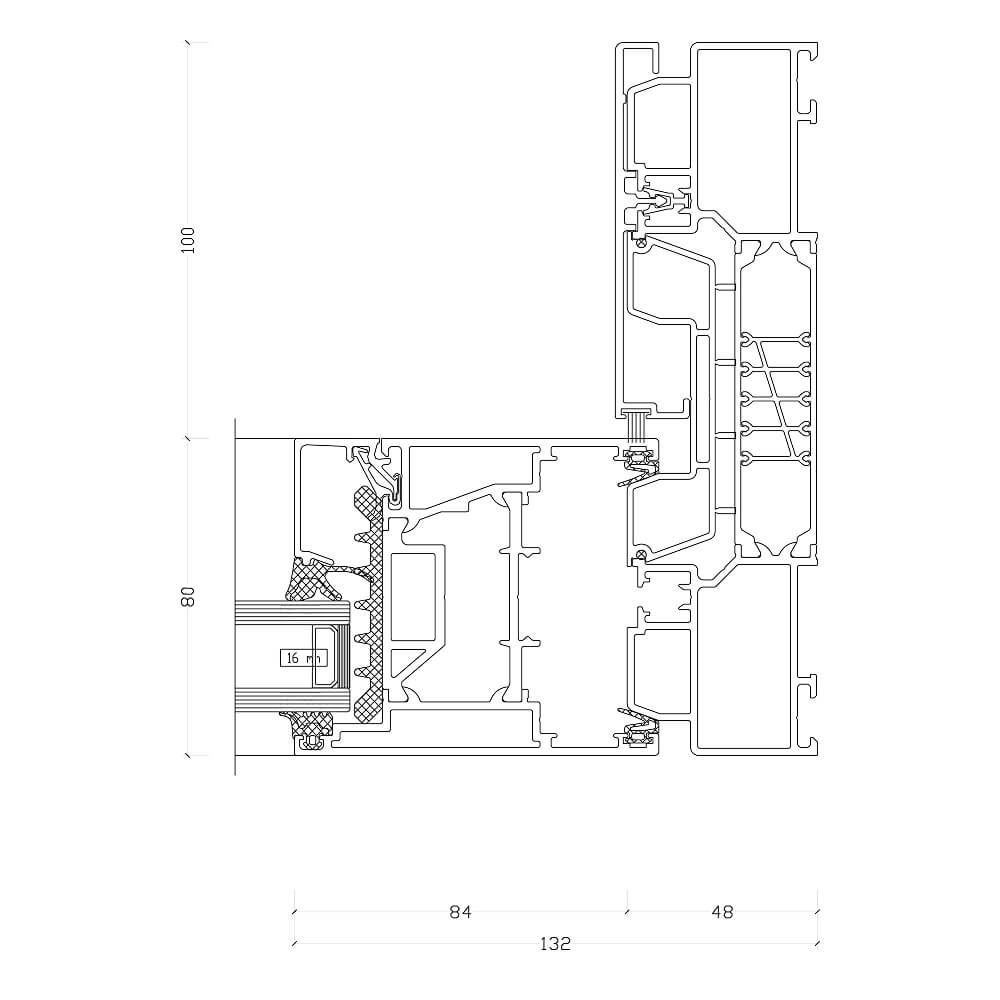

ASE 80.HI: Side detail of fixed panel — Schüco ASE 80.HI - side detail of fixed panel

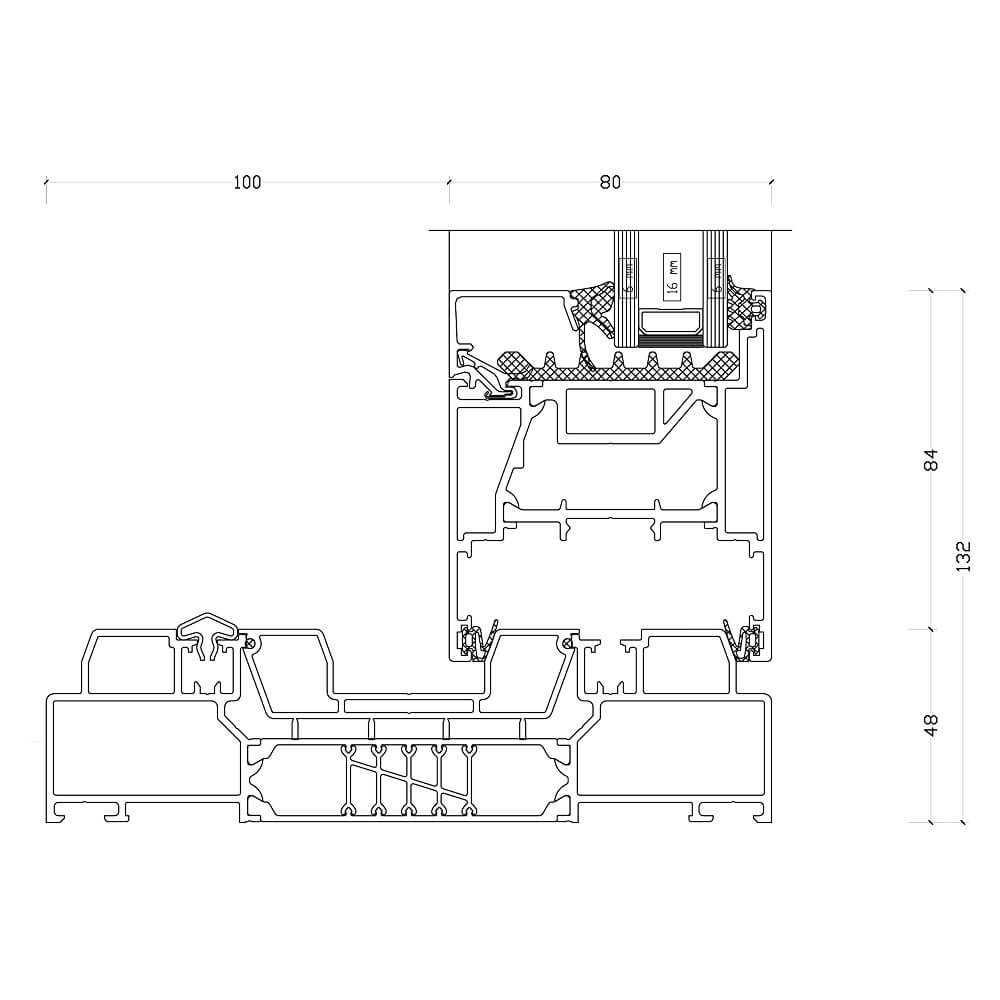

ASE 80.HI: Bottom detail of fixed panel — Schüco ASE 80.HI - bottom detail of fixed panel

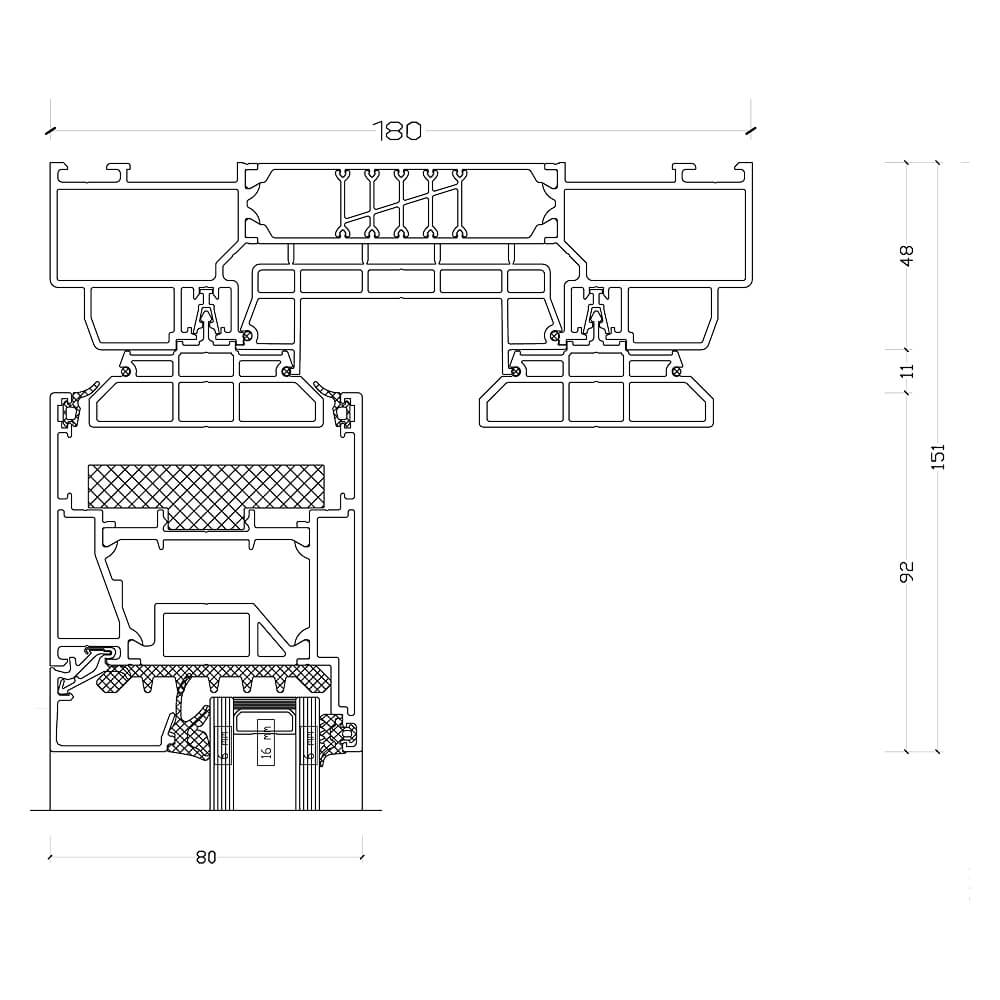

ASE 80.HI: Top detail of mobile sash — Schüco ASE 80.HI - top detail of sliding sash

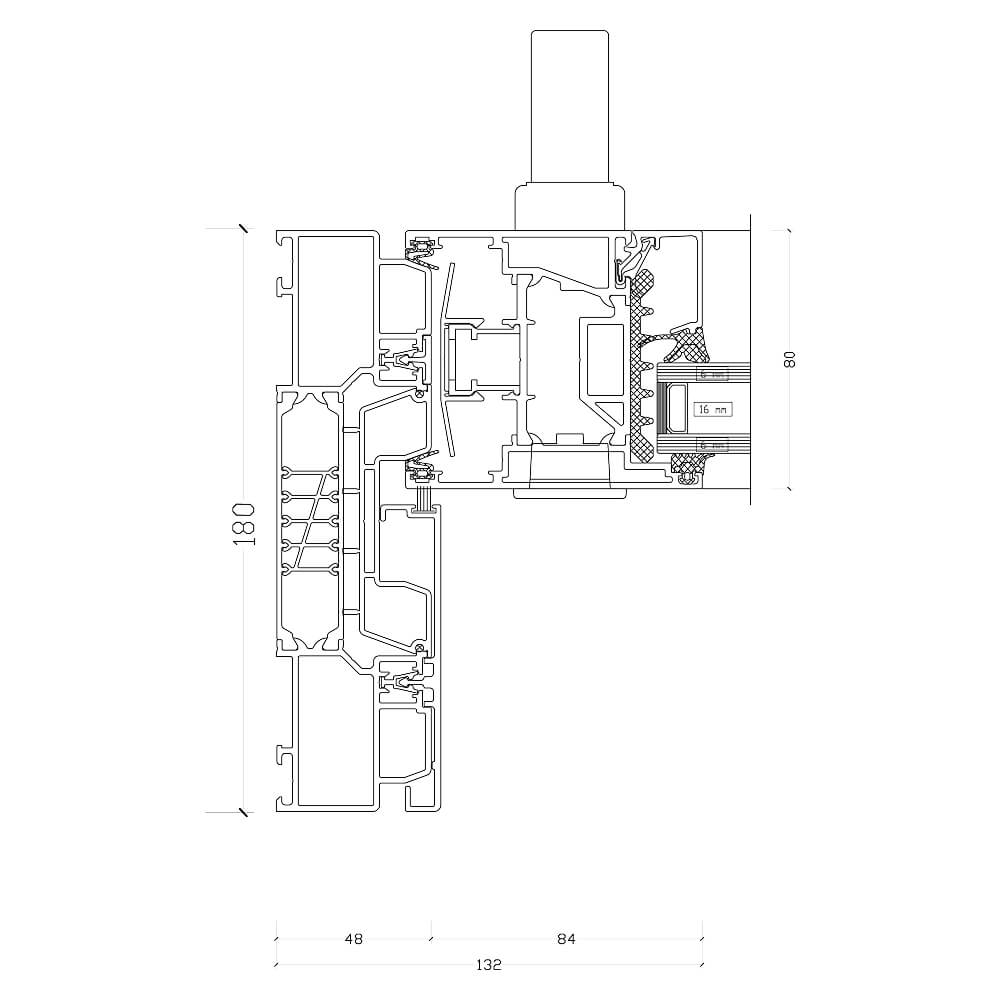

ASE 80.HI: Side detail of mobile sash — Schüco ASE 80.HI - side detail of sliding sash

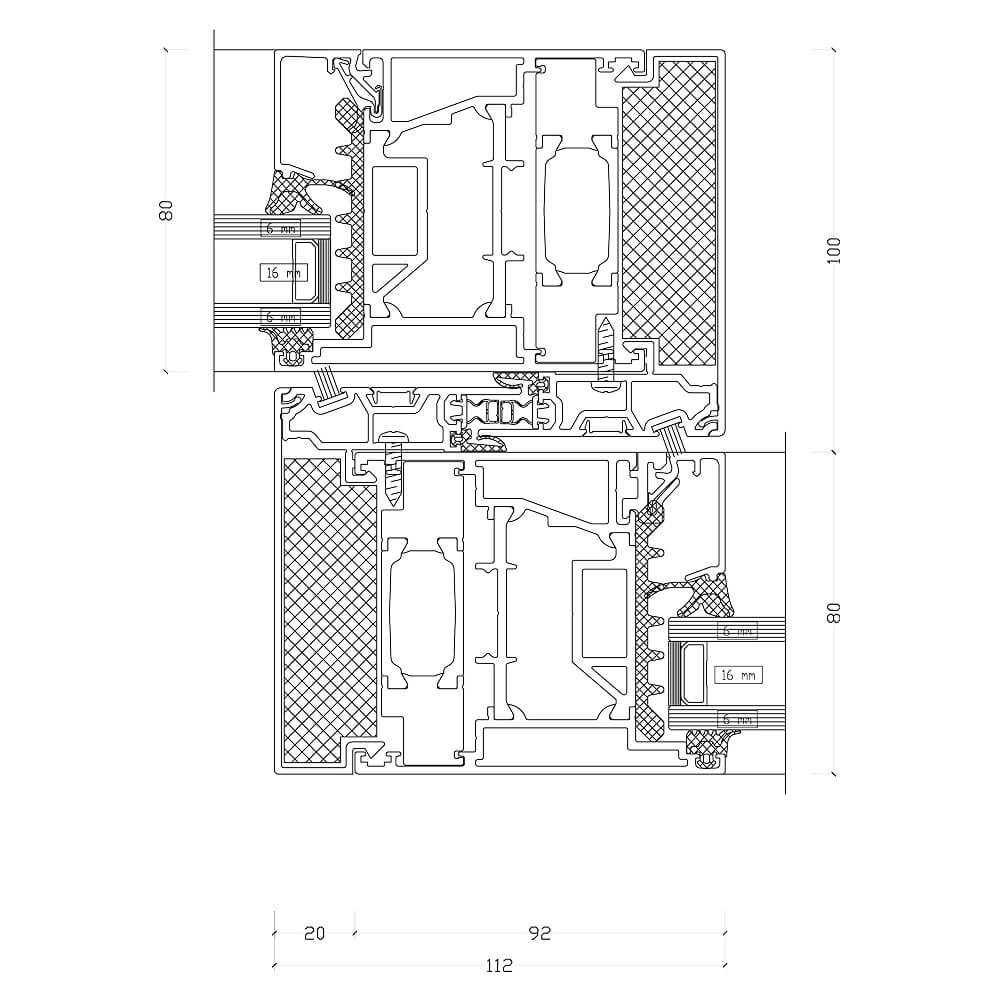

ASE 80.HI: Middle meeting section — Schüco ASE 80.HI - detail of central post

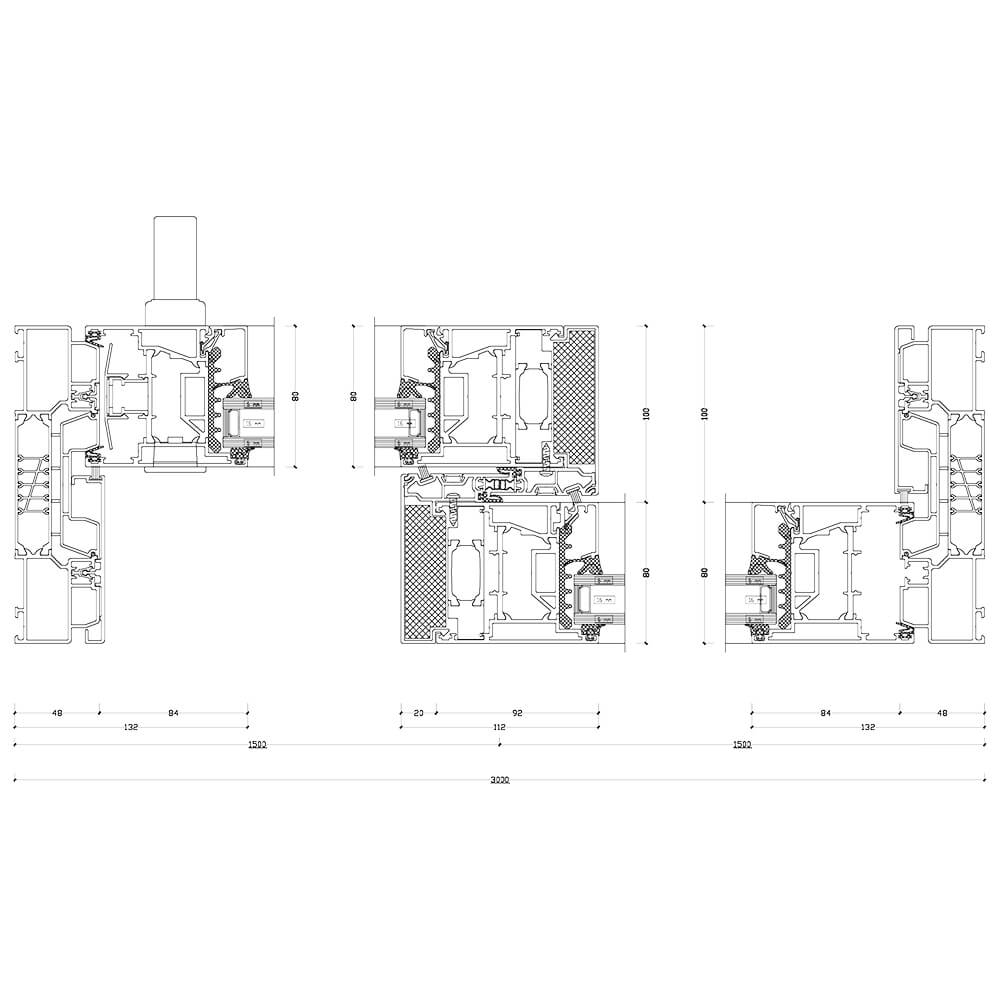

ASE 80.HI: Horizontal view of whole door — Schüco ASE 80.HI - horizontal cross-section

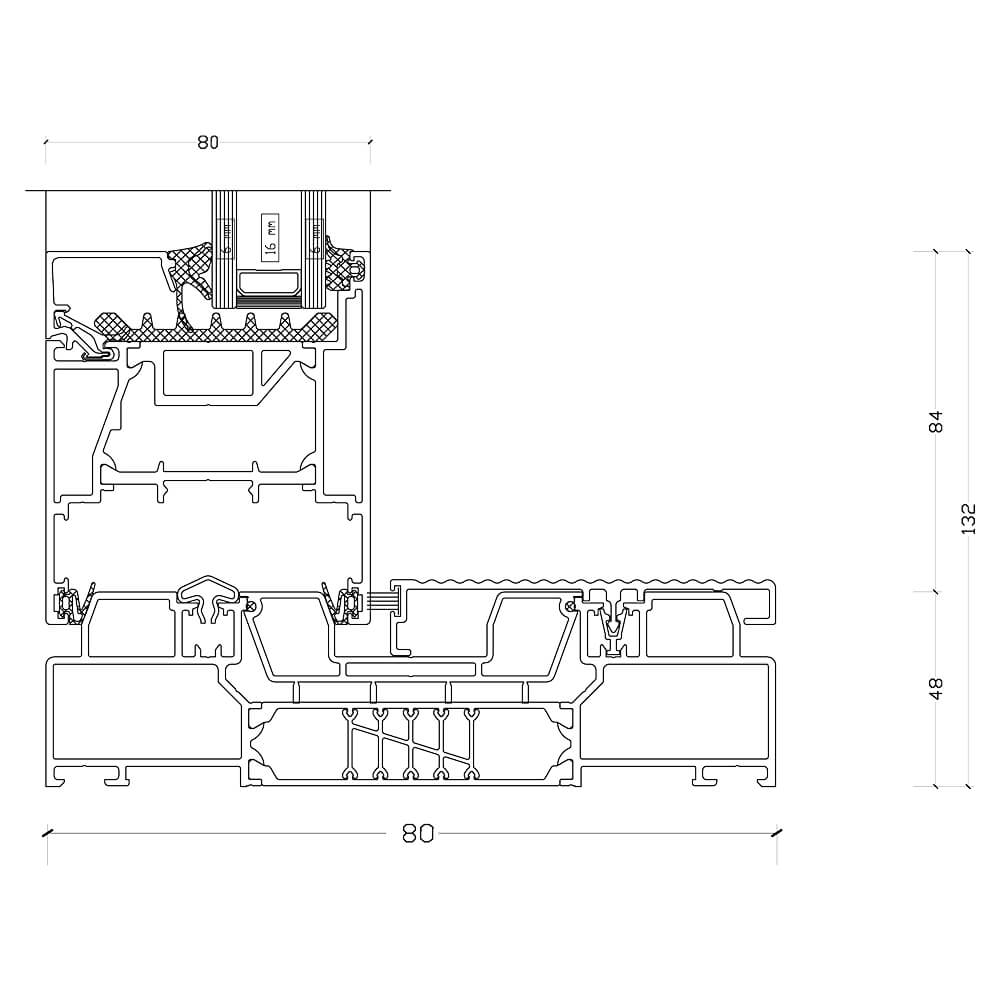

ASE 80.HI: Bottom detail of mobile sash — Schüco ASE 80.HI - bottom detail of sliding sash

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
