ECO Plano wood-aluminium balcony door

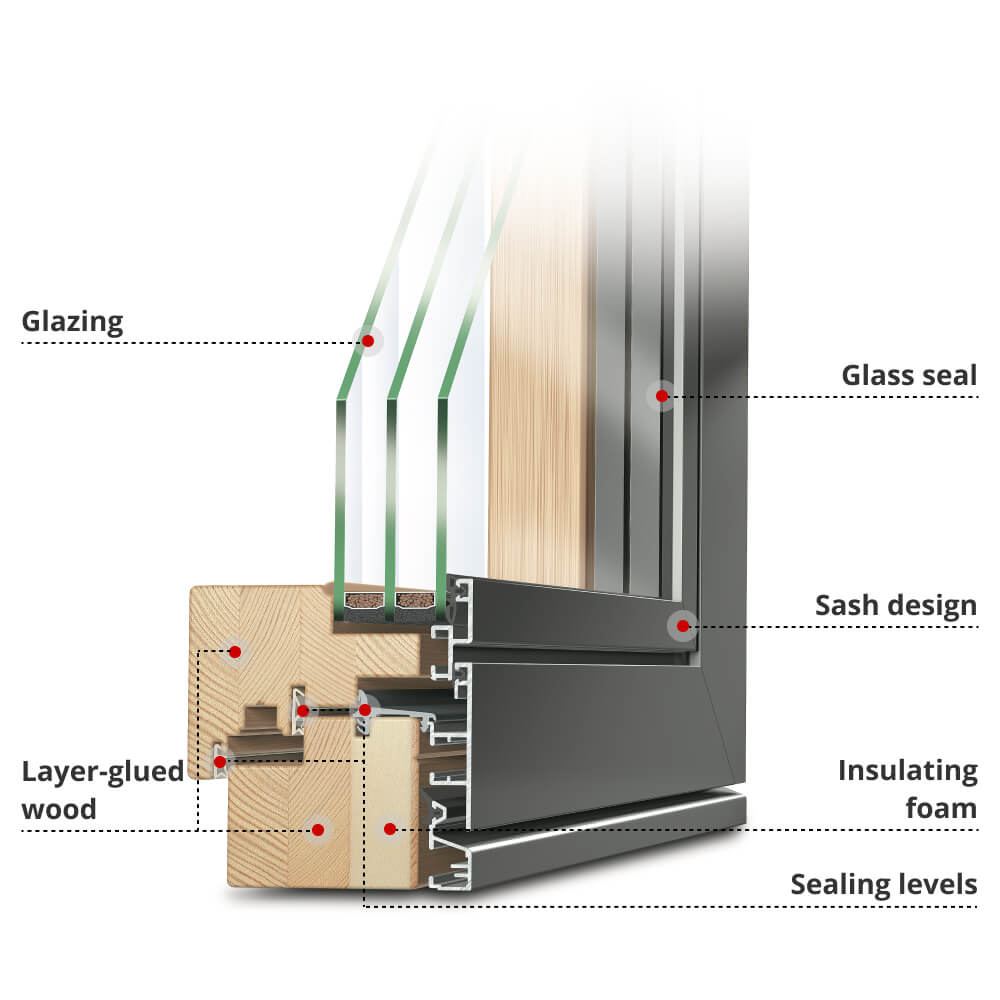

• Glazing: Triple glazing fitted as standard

• Glass seal: The glass seal provides optimum protection against water penetration

• Sash design: Modern flush-finish design

• Insulating foam: Additional insulating foam layer within the wood laminate provides excellent thermal performance

• Layer glued wood: Glued wood edge bands with continuous laminated top layer provide stability and durability

• Sealing levels: Three sealing levels ensure both good thermal and noise insulation

glazing

• Use of branded insulating glass, can be combined with sun protection, sound insulation (up to class 4) as well as safety glass and ornamental glass
• UV resistant seal
• General wet glazing

Surface

• The surface treatment ensures the longevity of the components
• A colourless surface is also possible for wood-aluminium windows

Fitting

• Corner hinges and shear bearing hinges with trunnions for a sash weight of up to 130 kg
• all fittings in contemporary powder coating or anodised
• Level switch lock as sash lifter and malfunction lock

Functionality

• Normal windows, thermal insulation, soundproof and security windows, sliding elements, balcony and patio doors

Physical Requirements

• Thermal insulation according to DIN 4108 and GEG
• Sound insulation according to VDI 2719 SSK, SSK II to V
• Burglar resistance according to DIN V ENV 1627-1630 up to resistance class 2
• Wood-aluminium windows with a 10-year guarantee are only coated with products that have been tested according to all European requirements without exception

Options:

• Thermally separated balcony door threshold
• Integrated door lock, lockable from inside and outside
• Outwards opening
