Detailed Drawings – Wooden Bifold Patio Doors

Detailed drawings

Overview

  1. IV 68
  2. IV 78

Detailed Drawings – IV 68

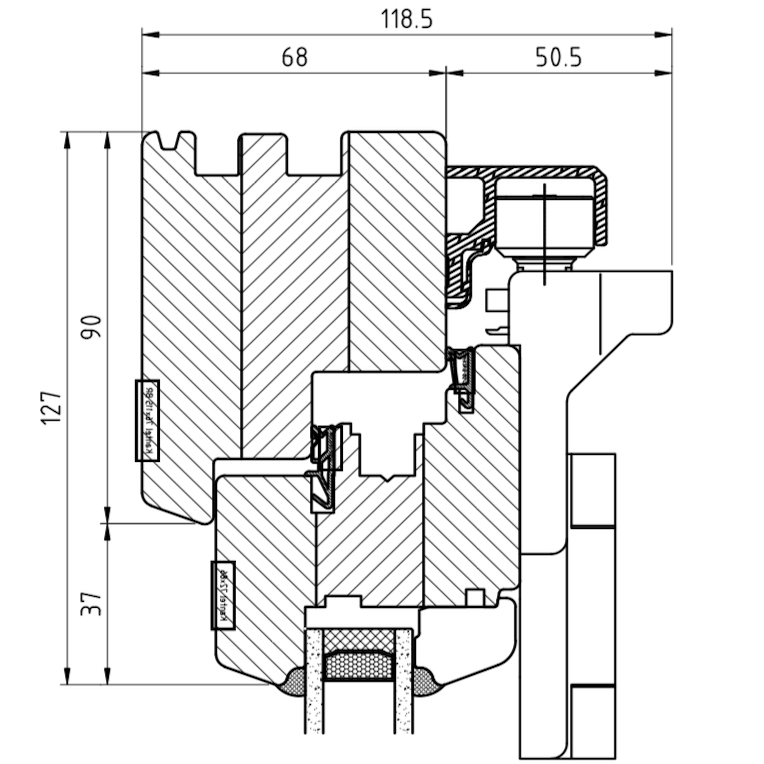

IV 68 - detail from above
IV 68 - detail from above

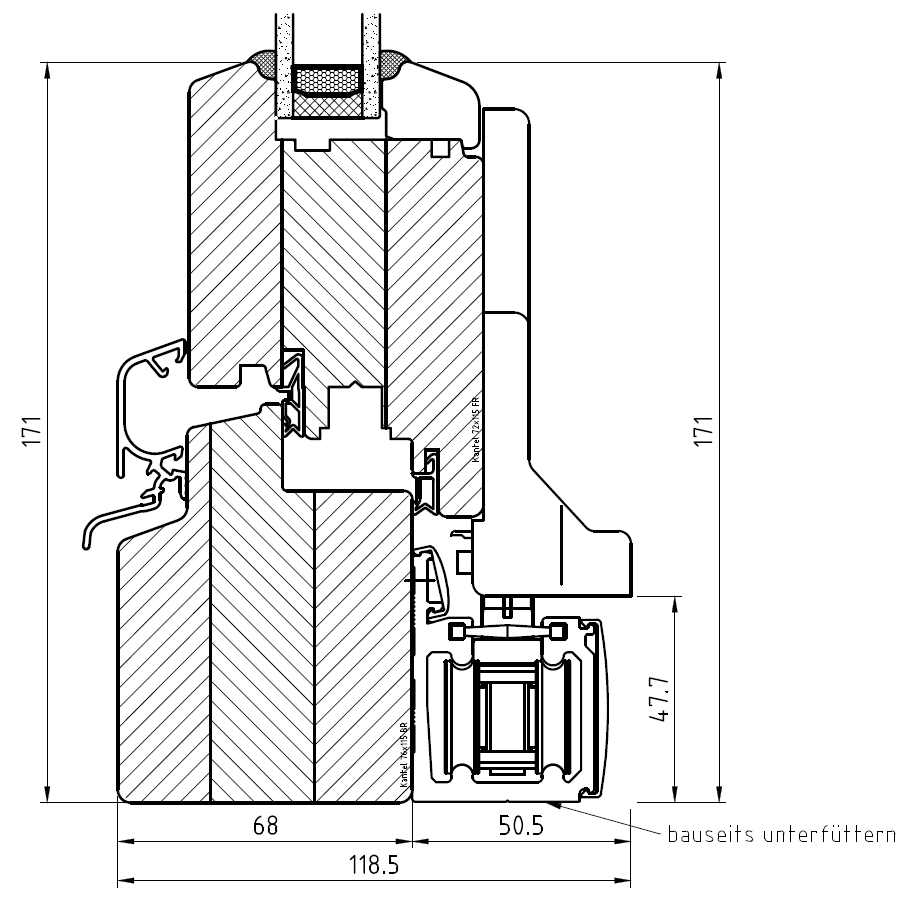

IV 68 - detail from below
IV 68 - detail from below

To top of page

Detailed Drawings – IV 78

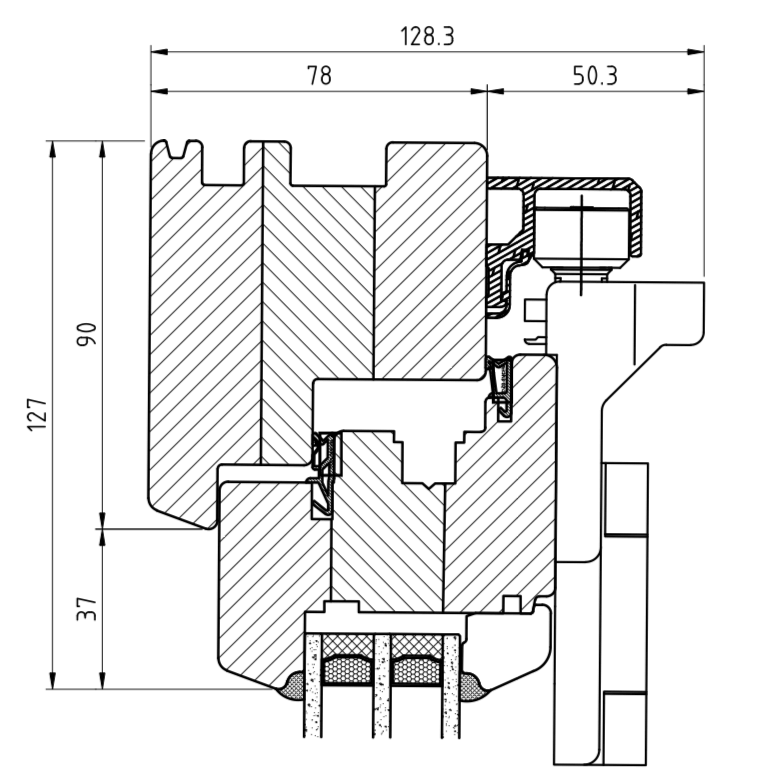

IV 78 - detail from above
IV 78 - detail from above

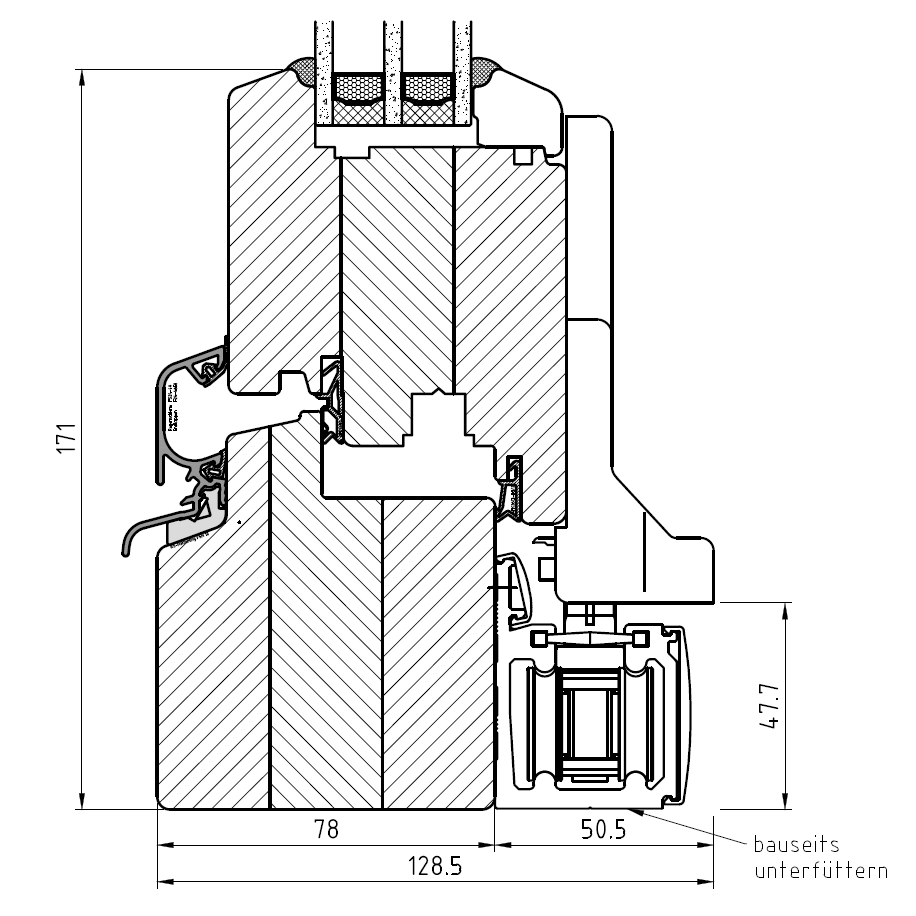

IV 78 - detail from below
IV 78 - detail from below

To top of page

IV 68 & IV 78 – Opening Types

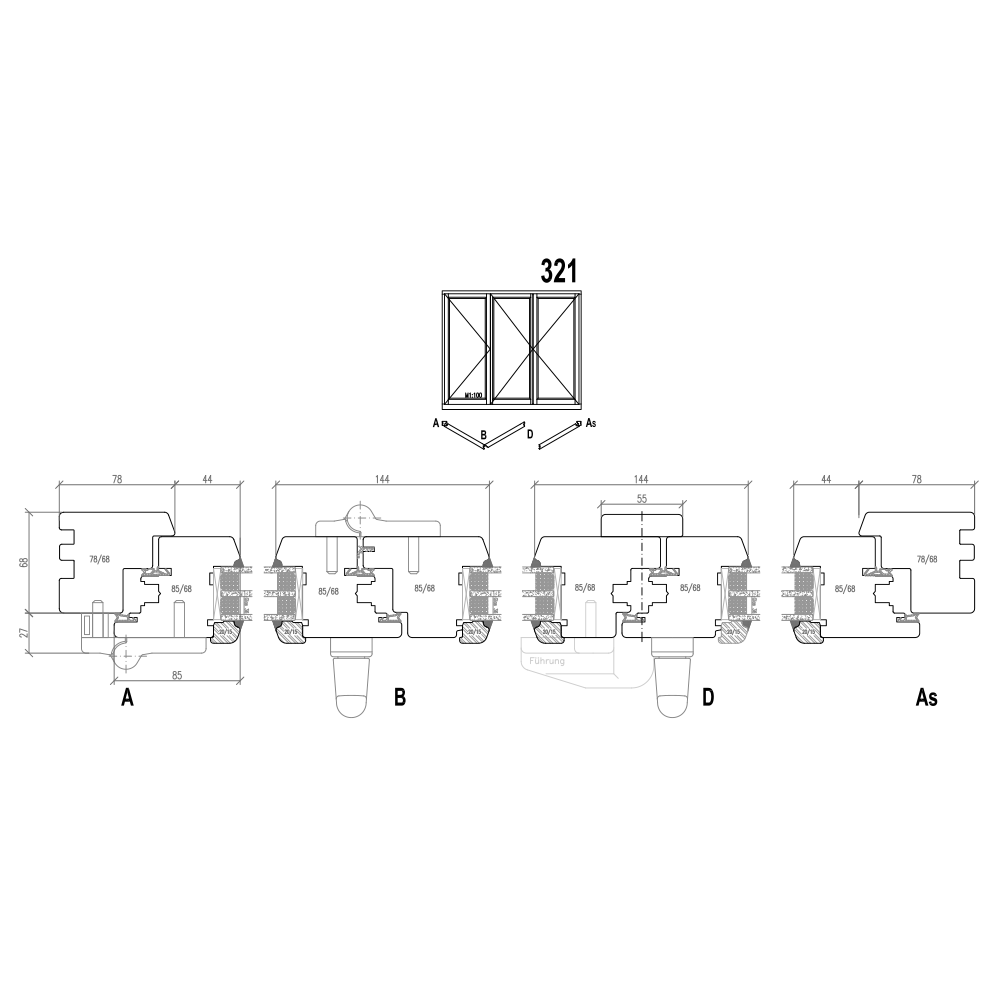

IV 68 & IV 78 - opening type according to scheme 321
IV 68 & IV 78 - opening type according to scheme 321

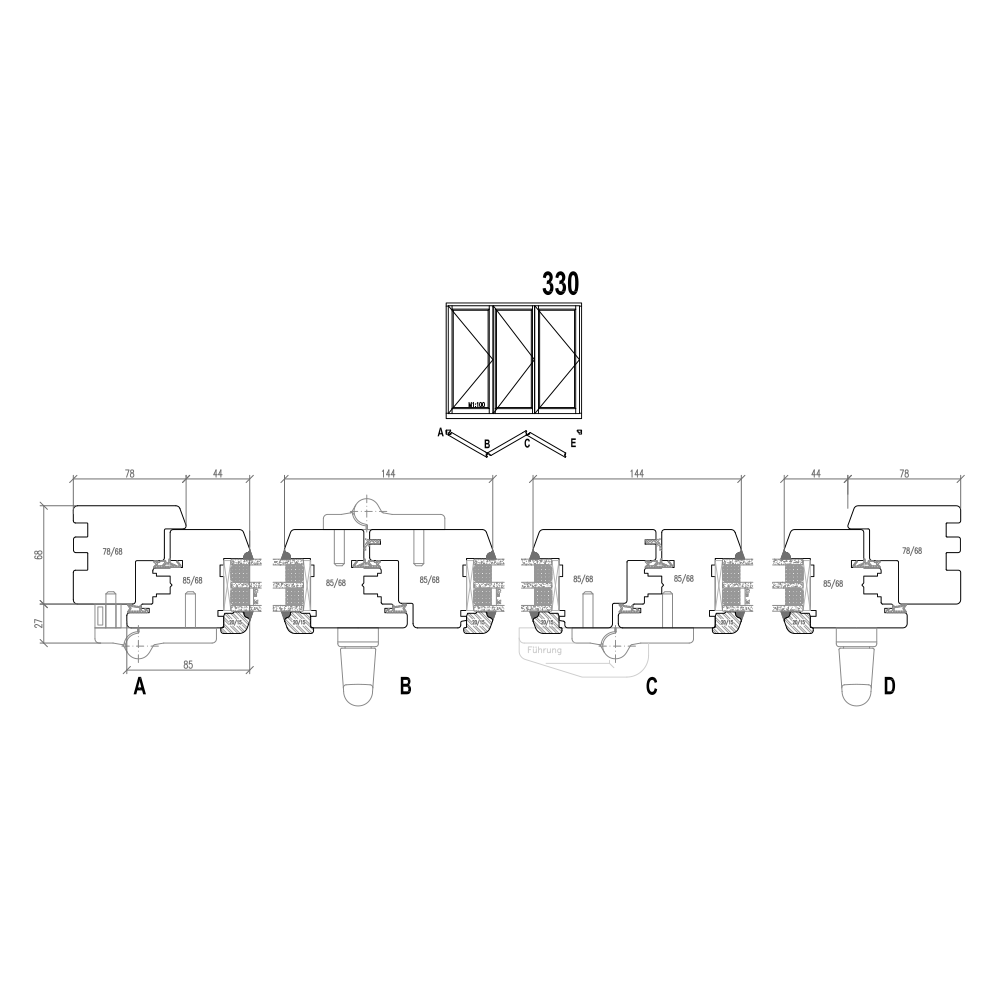

IV 68 & IV 78 - opening type according to scheme 330
IV 68 & IV 78 - opening type according to scheme 330

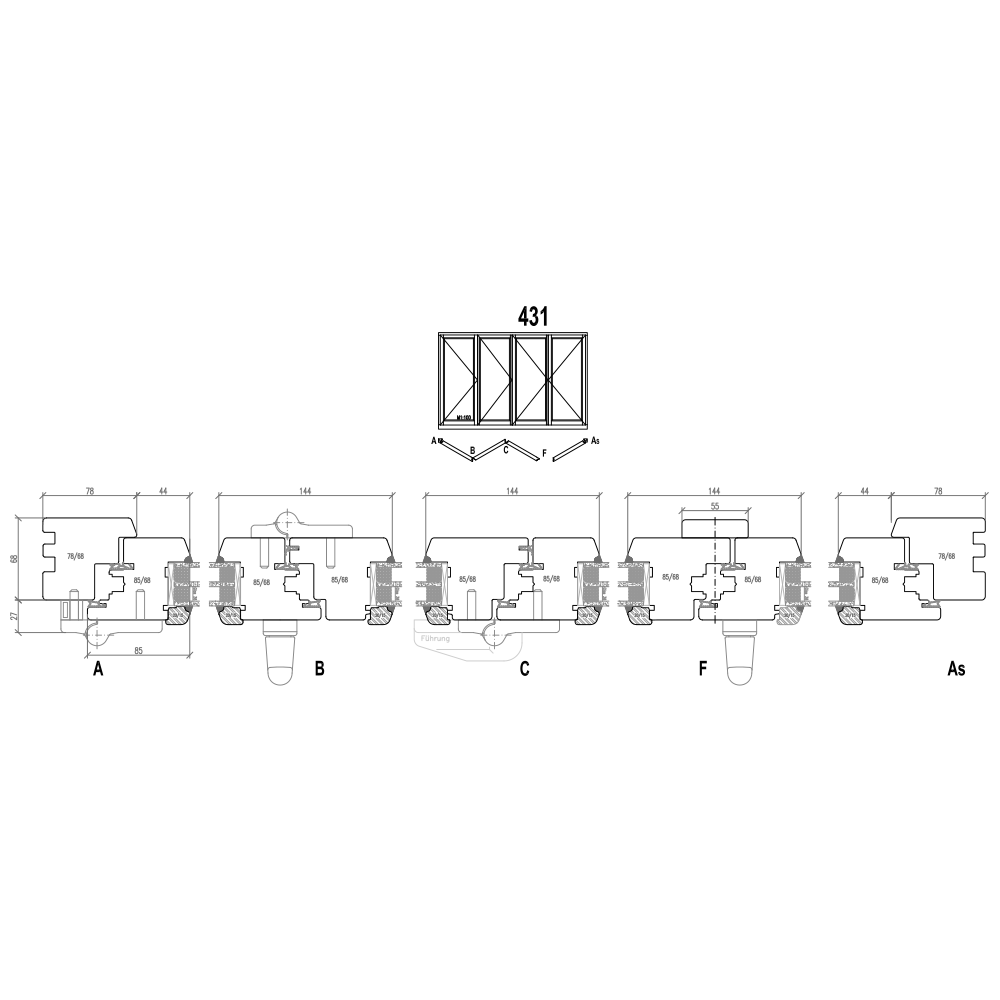

IV 68 & IV 78 - opening type according to scheme 431
IV 68 & IV 78 - opening type according to scheme 431

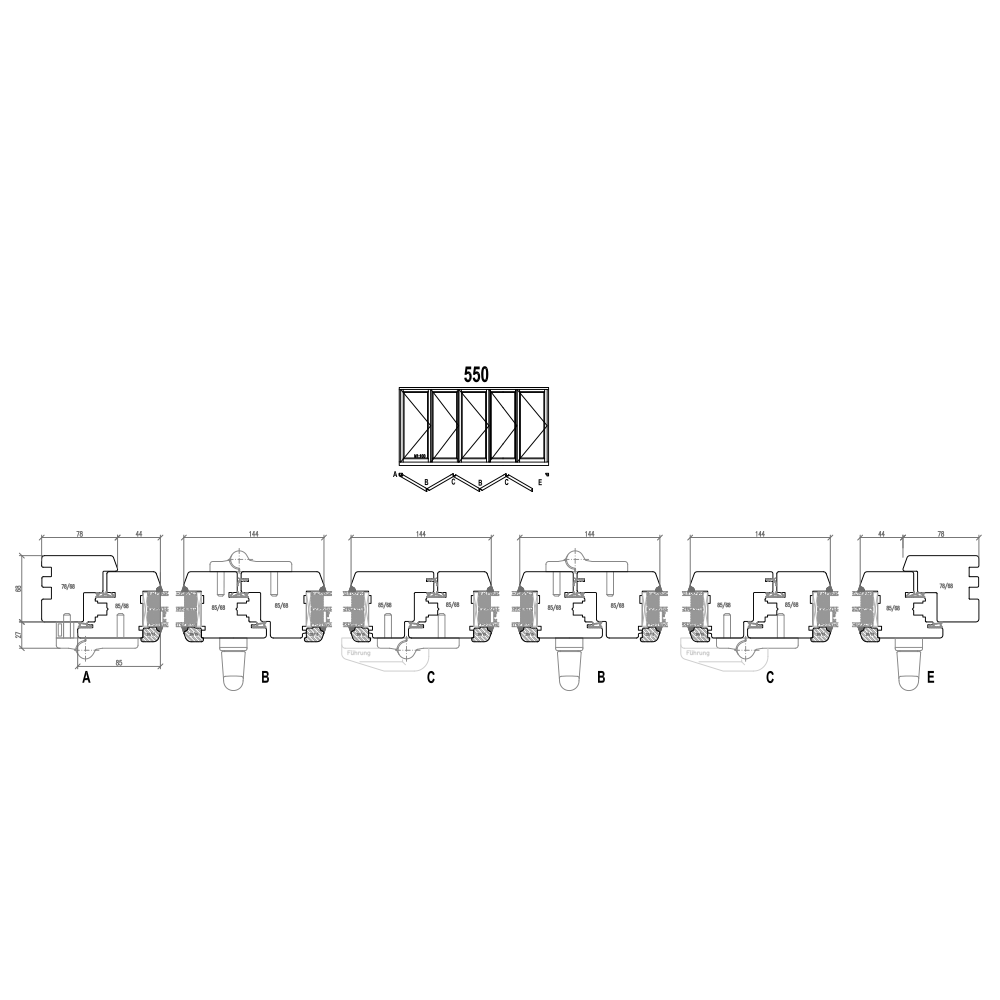

IV 68 & IV 78 - opening type according to scheme 550
IV 68 & IV 78 - opening type according to scheme 550

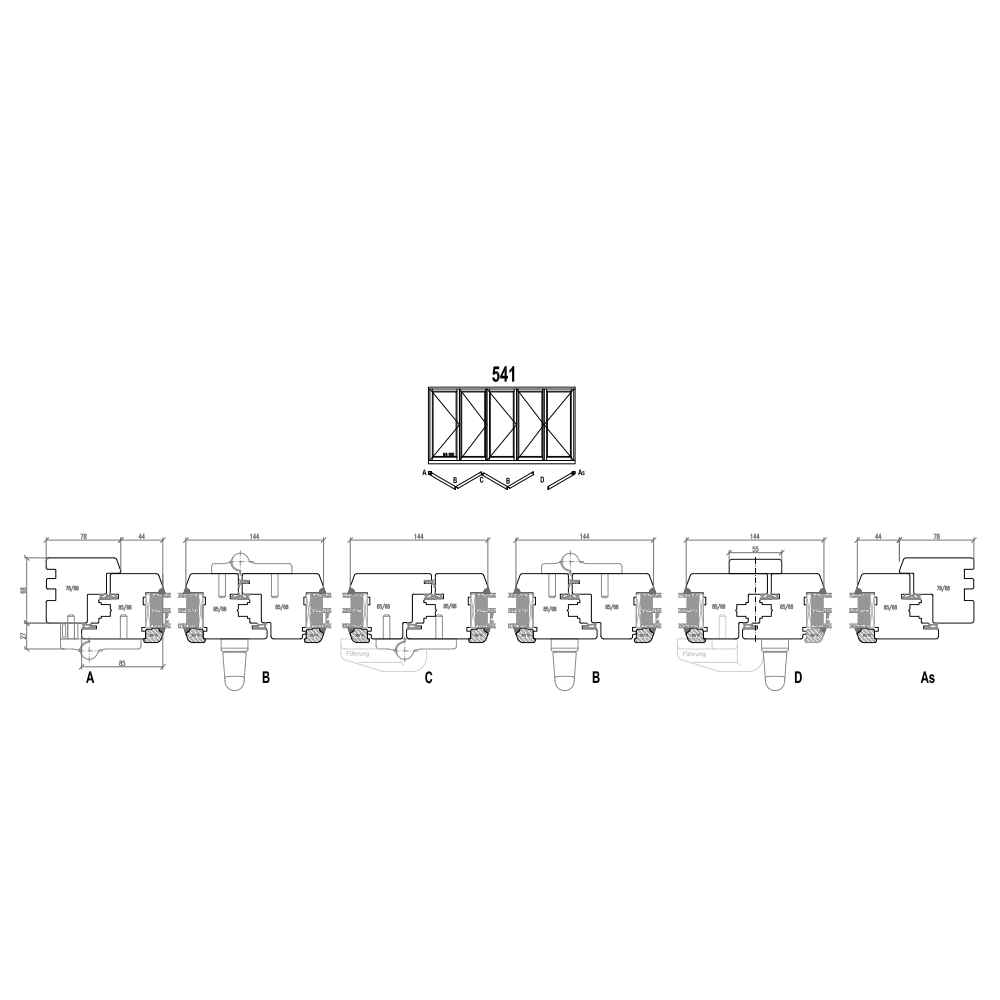

IV 68 & IV 78 - opening type according to scheme 541
IV 68 & IV 78 - opening type according to scheme 541

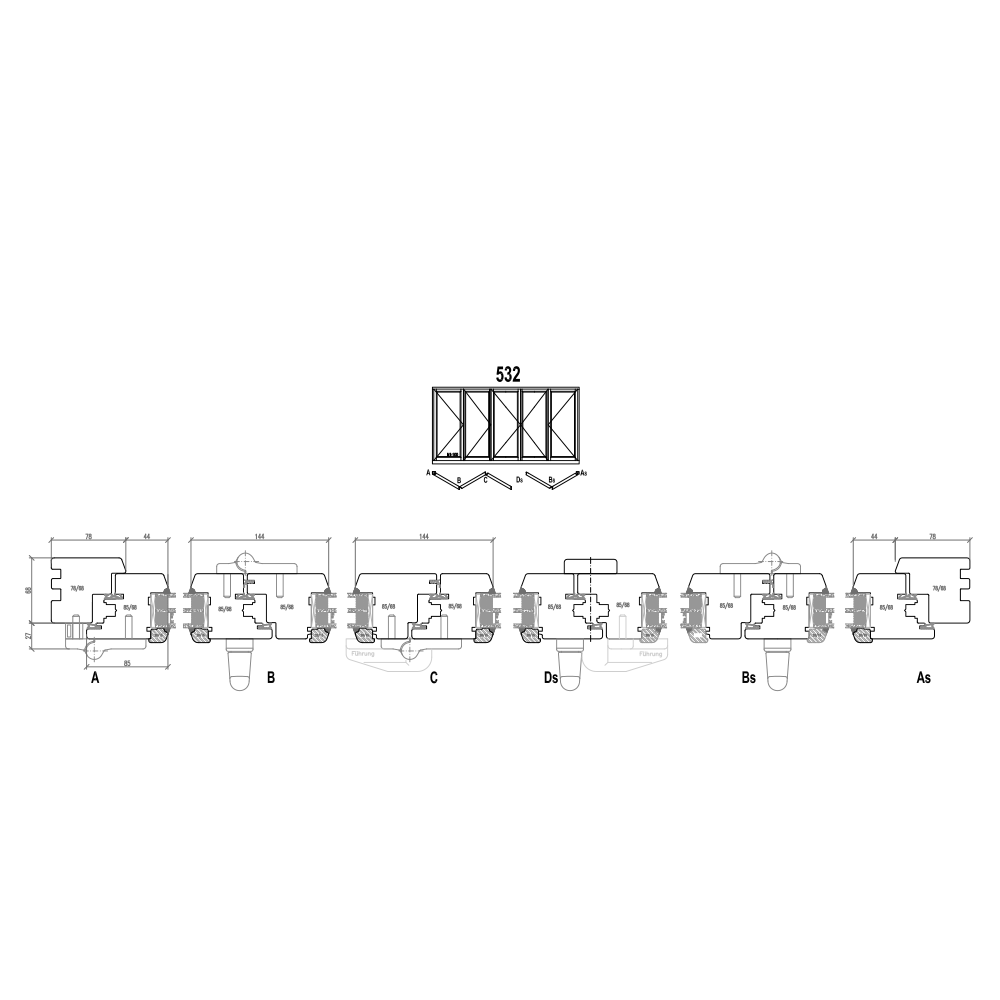

IV 68 & IV 78 - opening type according to scheme 532
IV 68 & IV 78 - opening type according to scheme 532

For a detailed explanation of these opening type drawings please refer to: types of folding sliding door openings.

To top of page

Please note that these are standard drawings. If you would like to know, before ordering, exactly which profiles, models, and components will be used, just contact us on +49 711 860 60 200 or via e-mail at info@windows24.com. Our experts will be happy to help you with configuring your product and to answer any questions.
