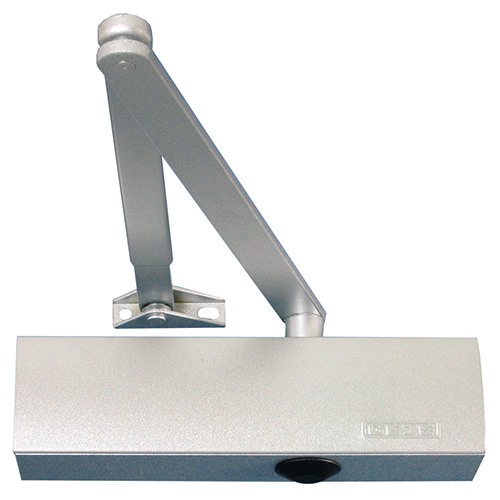

GEZE TS 2000 door closer

The TS 2000 V door closer from GEZE can be used for all house doors and room doors with a leaf width of up to 1250 mm. According to DIN EN 1154 , it is available in sizes 2, 4 and 5. The closing force can be gradually adjusted through the various mounting locations. The individual sizes correspond to the respective leaf width of the door:

• EN 2 : 750 mm-850 mm
• EN 4 : 850 mm-1100 mm
• EN 5 : 1100 mm-1250 mm

The closing speed of the door closer is approximately five seconds, but this can also be adjusted using various settings. In comparison to the TS 5000, the TS 2000 door closer does not have a slide rail or a mounting plate, but is supplied with a standard link arm. The TS 2000 V from GEZE can even be used for right or left swing doors without the need for complex conversion. The hydraulic latching action can be individually adjusted via the link arm and the closing speed.

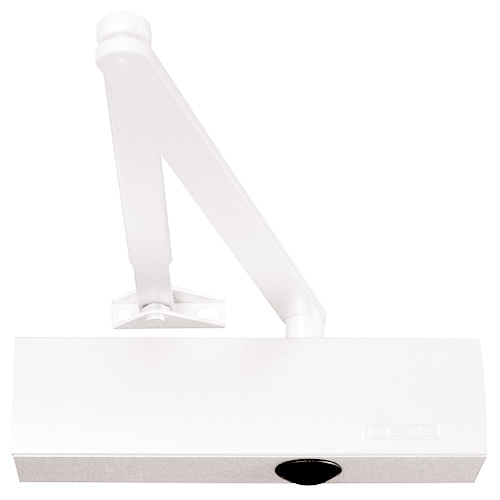

The GEZE TS 2000 V door closer also gives you the option of changing the hold-open area between 70° and 150° via the link arm. An additional optional function of the high-quality door closer is the adjustable TS 2000 V BC back check. With dimensions of 226 x 60 x 48 mm, the GEZE TS 2000 V door closer is also available in different colours. You have the choice between silver and white.

Ensure that your GEZE door closer is set correctly

In just a few steps, you can set the GEZE TS 2000 V overhead door closer to suit your individual needs. First, the protective device must be removed by hand. Simply remove the slider, then open and adjust. You can then adjust the closing speed, closing force and latching action using the instructions.

The GEZE TS 2000 gives you the option to set the back check on the door as required.
