Wood tilt and slide patio door - Rustic IV 68

• Glazing: choose between double or triple glazing.

• Glazing gasket: The glazing gasket provides protection against water penetration.

• Glass strip: Provides the required contact pressure between the gaskets and glass.

• Sash design: The casement has a recessed design.

• Rain rail: The water drainage channel protects exposed surfaces.

• Layer glued wood: These glued wood edge bands with a continuous laminated top layer provide good stability and guarantee long durability.

• Sealing levels: Two sealing levels ensure good heat and noise insulation.

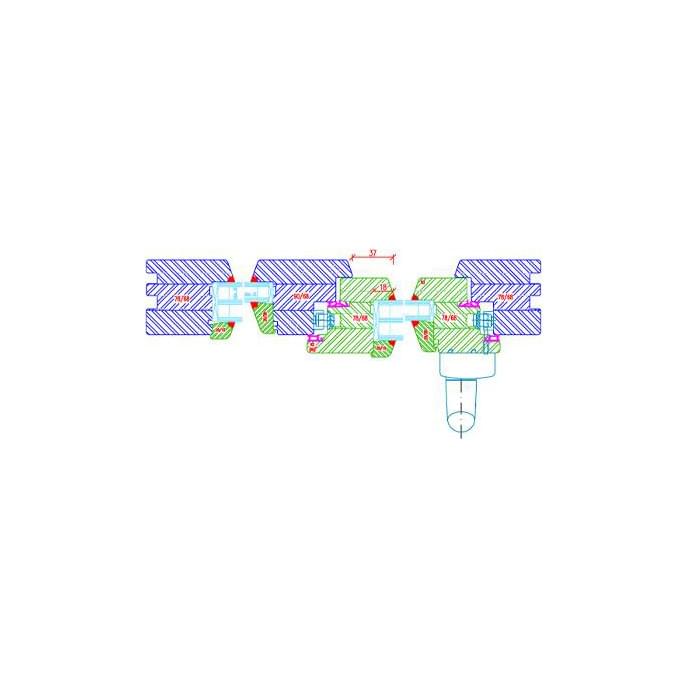

System and construction

• Layer-glued sawn timber, available in wood types: pine, spruce, Meranti, larch, eucalyptus or oak.

Surface

• Smooth wood surface due to hydro-tensioned fine planing
• Factory-applied finish to protect against UV rays and moisture
• Finished with an electrostatic spraying process using environmentally friendly paints and varnishes
• The lower sections of the frame, which are particularly affected by the weather, are protected by a coated or anodised water drainage channel

Functionality

• Normal windows, thermal insulation, soundproof and security windows, sliding elements, balcony and patio doors

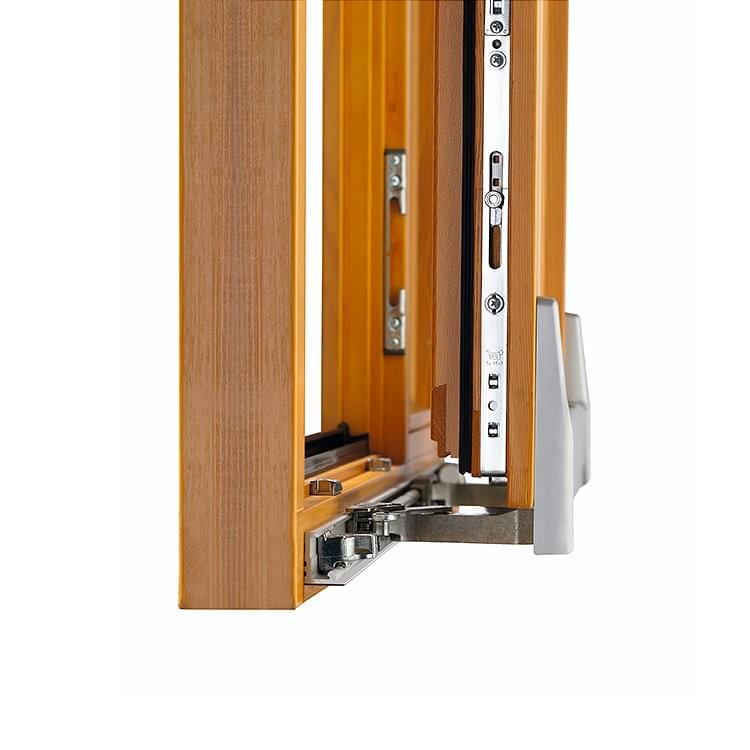

Fitting

• Parallel slide and tilt hardware with malfunction lock
• Basic security with two mushroom-head locking bolts and two safety strike plates
• Intuitive operation and elegant, smooth sliding of the sash into the closed position
• Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
