PVC front door profiles

Name: Profiles for uPVC Front Doors | windows24.com
Rating: 5 (2 reviews)

Our uPVC front doors are available in two different profile variants. The profile IDEAL HT4000 offers a construction depth of 70 mm, the IDEAL HTplus profile has a depth of 85 mm. Both versions are fitted with a thermally separated aluminium sill which provides very good heat insulation.

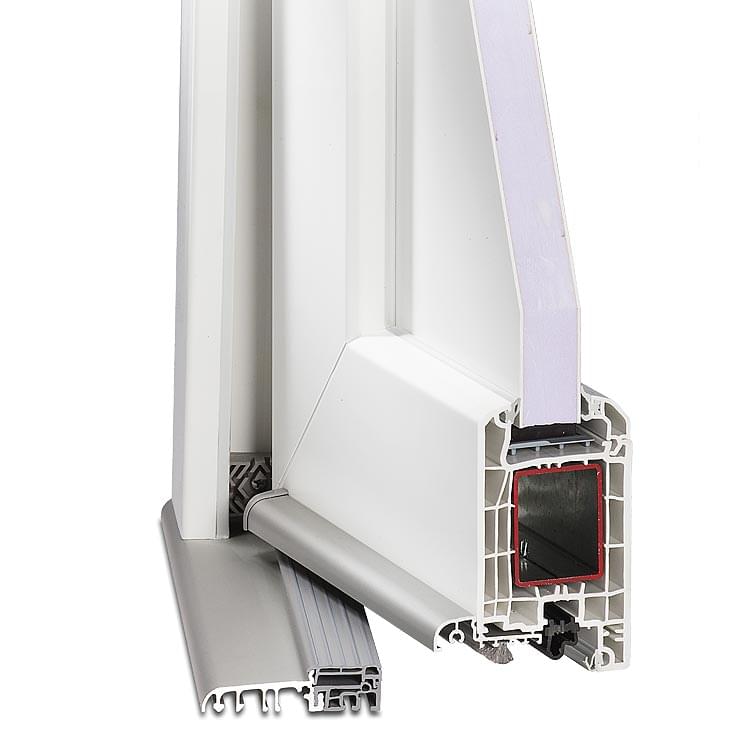

IDEAL HT 4000

IDEAL HT4000

4-5 Chamber system
Steel strengthening in sash and frame
Stable welded edge joint for better rigidity of the construction
2 seals between the frame and sash for excellent water tightness
Structural depth 70 mm
Frame width 80 mm
Flush sash (70 mm deep / 116 mm view (visible sash profile))
Standard flattened glazing strip
Maximum glass thickness 41 mm
Aluminium sill 20 mm with thermal separation
Aluminium rain guard with integrated brush seal
Lower threshold with 1 rebate gasket and 1 sill seal

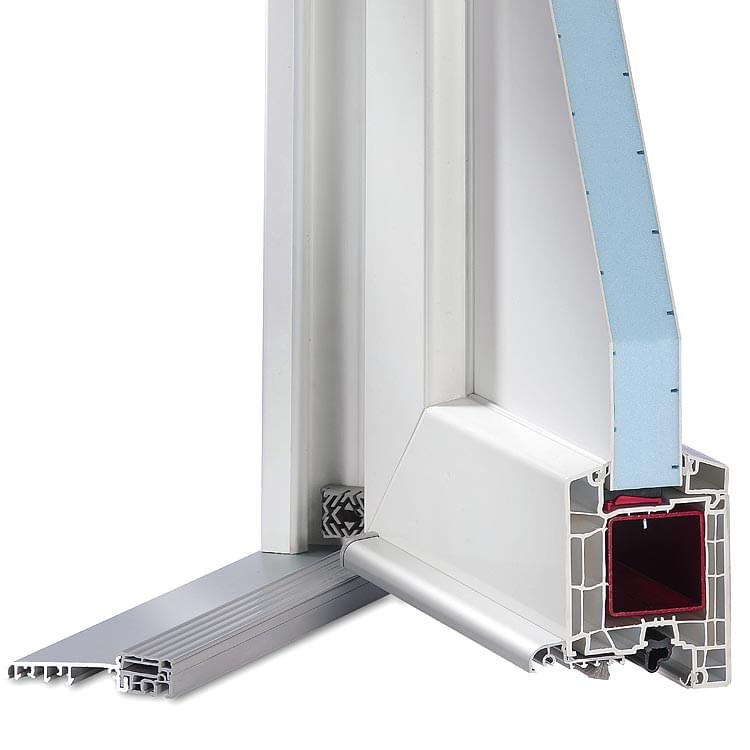

IDEAL HT PLUS

IDEAL HTplus

5-6 Chamber system
Steel strengthening in sash and frame
Stable welded edge joint for better rigidity of the construction
2 seals between the frame and sash for excellent watertightness
Structural depth 85 mm
Frame width 80 mm
Flush sash (85 mm deep / 116 mm view (visible sash profile))
Standard angular glazing strip
Maximum glass thickness 51 mm
Aluminium sill 20 mm with thermal separation
Aluminium rain guard with integrated brush seal
Lower threshold with 1 rebate gasket and 1 sill seal
